- Maximum Power(Pmax): 100W
- Maximum Power Voltage(Vmp): 18.6V
- Maximum Power Current(Imp): 5.38A
- Open Circuit Voltage(Voc): 22.8V
- Short Circuit Current(Isc): 5.78A
- Weight: 15 lbs
- Dimensions: 39.0 x 21.3 x 1.2 inches
- Warranty: 25 years output warranty
Rich Solar - 400 Watt Solar Kit for Solar Generators Portable Power Stations
Engineered as a compact, high-efficiency source for off-grid power, this four-panel solar kit is designed to charge solar generators and portable power stations in RVs, vans, and remote work sites. The kit supports popular brands such as GOALZERO, ECOFLOW, and BLUETTI, enabling seamless expansions or upgrades with plug‑in simplicity.

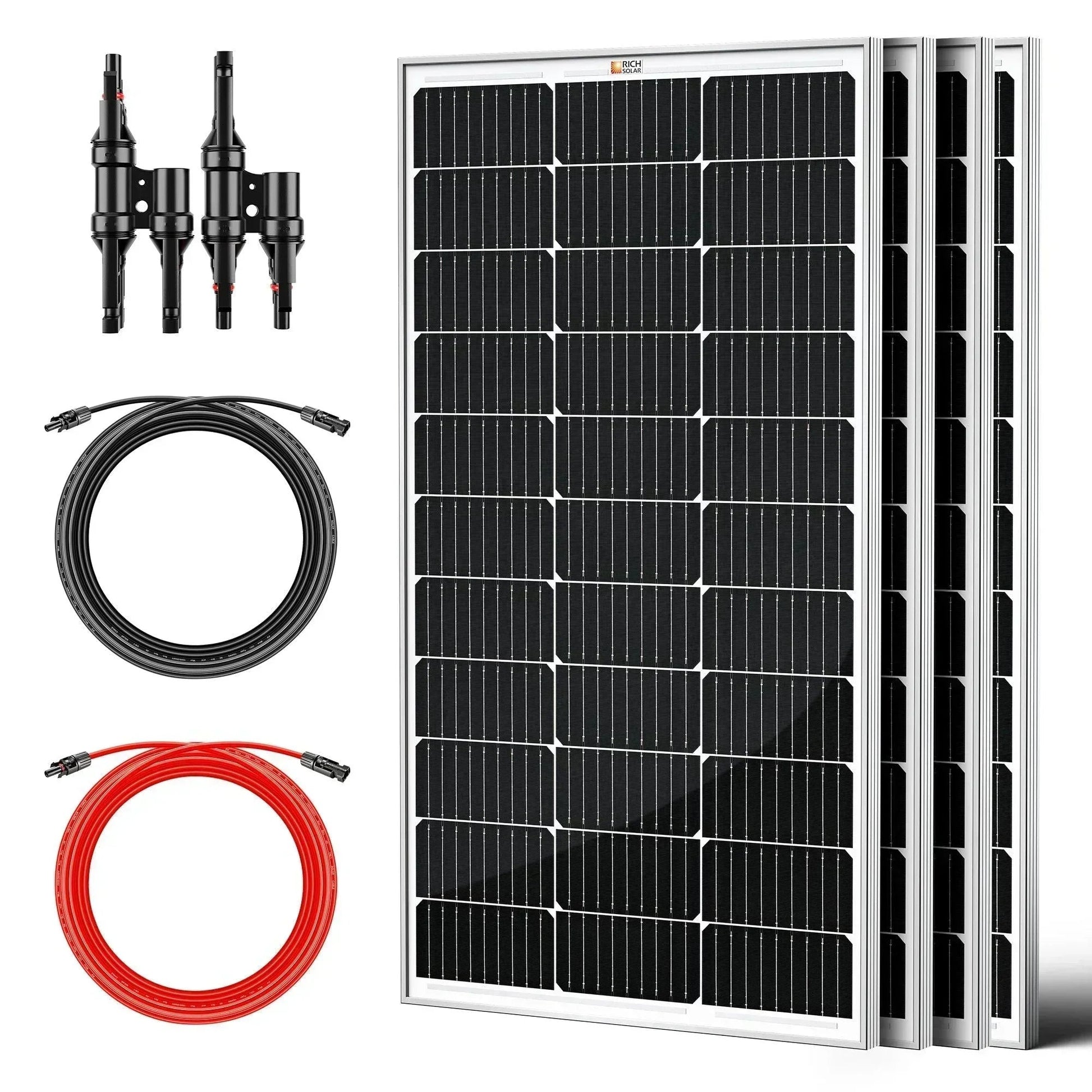

Kit Contents
- 4 x 100 Watt Monocrystalline Solar Panels
- 1 x 30 ft #10 Gauge Red Extension Cable with pre-assembled Female and Male connectors
- 1 x 30 ft #10 Gauge Black Extension Cable with pre-assembled Male and Female connectors
- 1 x Parallel Connectors (one pair, 2 to 1)
Performance and Design
Each panel delivers Pmax 100 W with Vmp 18.6 V and Imp 5.38 A, Voc 22.8 V, and Isc 5.78 A. Dimensions per panel: 39.0 x 21.3 x 1.2 inches; weight 15 lbs. The kit's high-efficiency monocrystalline cells are treated with an anti-reflective coating to maximize light absorption and overall energy yield. When combined, the four panels provide up to 400 W under standard test conditions for RV trailers, vans, and portable power applications.
Installation and Compatibility
Installation is streamlined by a pre-assembled wiring harness that does not require crimping tools. The included parallel connectors enable simple 2-to-1 combining for scalable configurations, and the entire system is designed to be compatible with a wide range of portable power stations and solar generators, supporting quiet, solar-powered outdoor experiences.
Warranty and Maintenance
The kit carries a 25-year output warranty, underscoring long-term reliability for RV and off-grid use. Specific maintenance requirements are not listed in the provided specifications.
Rich Solar - 400 Watt Solar Kit for Solar Generators Portable Power Stations
Our most popular kit! For a quieter, more peaceful outdoor experience with your off-grid RV solar system, use our 400 watt solar kit to charge most of the popular brands of solar generators, such as GOALZERO, ECOFLOW, BLUETTI, etc.
Package Includes
🗹 4 x 100 Watt Monocrystalline Solar Panel
🗹 1 x 30' #10 Gauge Solar Extension Cable (Red), Pre-assembled Female and Male Connector
🗹 1 x 30' #10 Gauge Solar Extension Cable (Black), Pre-assembled Male Connector and Female Connector
🗹 1 x Parallel Connectors (one pair 2 to 1)
High Efficiency Solar Panel
With the highest-grade monocrystalline solar cells for optimal output, our 100 watt panel is a great solar system for RV trailers and vans because it has been treated with an anti-reflective coating to maximize light absorption.
Simple Installation
Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, making expansions, upgrades, or additions simple and easy… just plug in and go!
25-Year Output Warranty
Buy with confidence knowing that your solar investment will last for the long-haul, worth the solar panels for RV cost.
100 Watt Solar Panel Specifications
