Rich Solar - 24V - 600AH - 15.3kWh Lithium Battery Bank

Designed for off-grid energy storage and reliable backup power, this six-module LiFePO4 battery bank delivers robust capacity for home, RV, or remote site applications. The bank combines six 24V, 100Ah ALPHA 4 LITE cells configured in parallel to provide 600Ah total at a nominal voltage around 25.6V, yielding an energy reserve of approximately 15.3 kWh. This setup supports sustained loads during outages and extended off-grid operation with a low-maintenance, lightweight platform.

Performance specifications

• Nominal voltage: 25.6V
• Nominal capacity per module: 100Ah
• Bank capacity (configured): 600Ah
• Energy per module: 2.56 kWh; bank energy: ~15.3 kWh
• Charge voltage: 28.8V
• Maximum charge current: 100A
• Continuous discharge current: 100A
• Cycle life: >4000 cycles
• Self-discharge: <5%/month
• Operating temperature (charge): 32°F to 131°F (0°C to 55°C); (discharge): -4°F to 140°F (-20°C to 60°C)
• Storage temperature: 14°F–113°F (-10°C to 45°C); 90% RH max for >3 months
• Physical: 52.9 lb per module; 20.9 x 8.1 x 8.5 in per module
• Includes: 6 x 24V 100Ah ALPHA 4 LITE batteries; 10 x 1 ft 2 AWG battery cables

Safety features

• Built-in smart battery management system with per-cell fusing
• Over-charge protection (detection 3.75V ±0.05V; delay ~1,000 ms; recovery to ~33.55V)
• Over-discharge protection (detection 2.20V ±0.08V; delay ~1,000 ms; recovery to ~2.70V)
• Short circuit protection
• Over/under temperature disconnects; excessive heat protection
• Convenient removable carry handle; lightweight design

Installation and maintenance

• Not intended to replace starting batteries
• Install on a level, ventilated rack with secure mounting

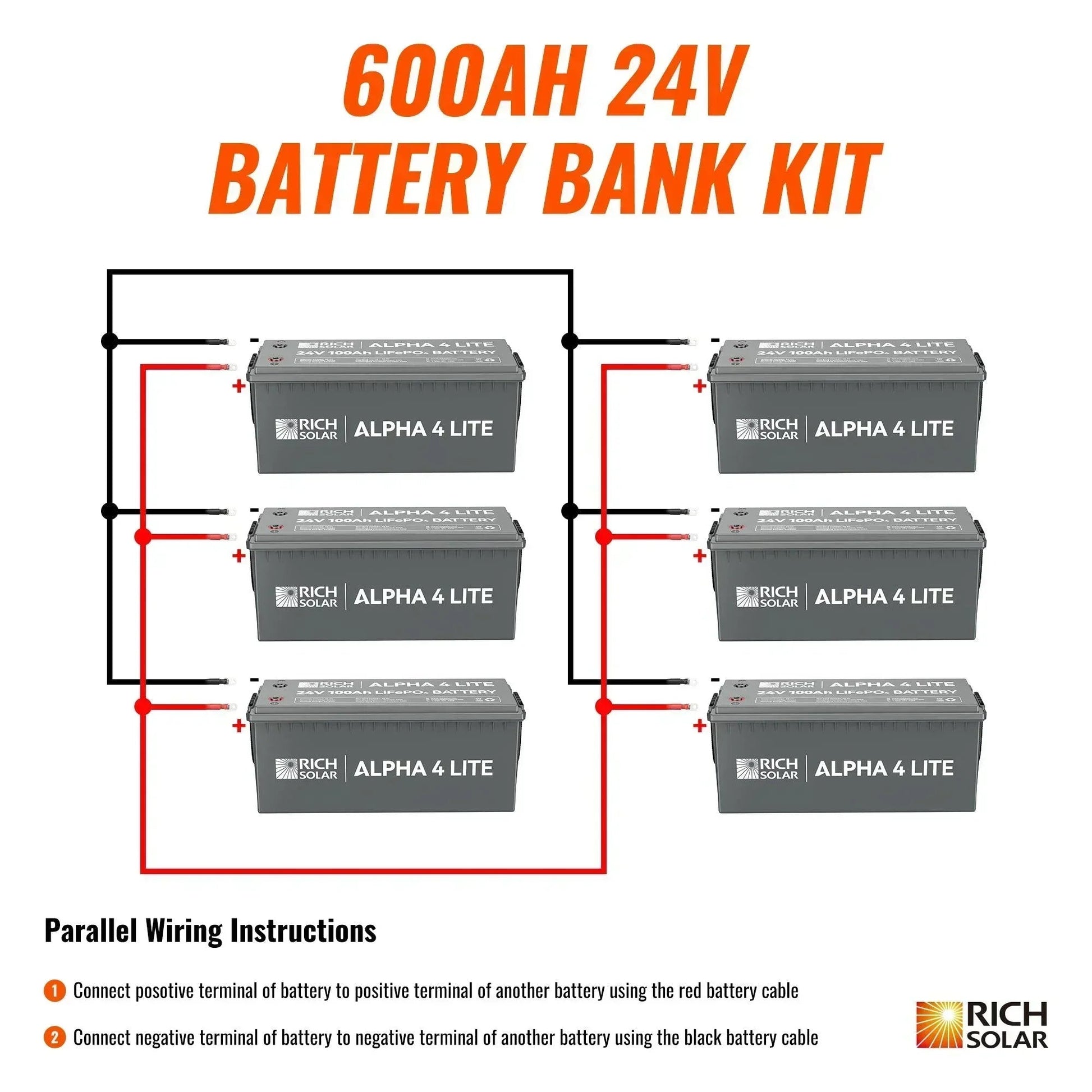

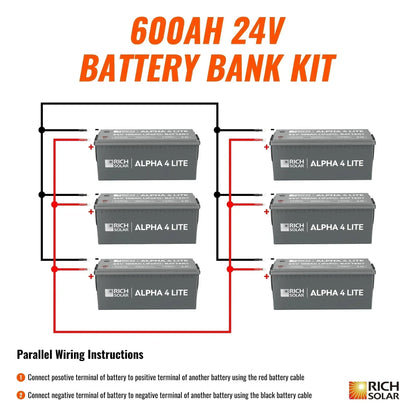

• Use included 1 ft 2 AWG cables for interconnection; verify polarity and voltage compatibility
• Low maintenance by design; perform periodic inspection of connections and BMS health
• Operate and store within specified temperature and humidity ranges for longevity

Warranty and service

Warranty: 5 years. Lifetime customer support. For service, contact Rich Solar with proof of purchase; replacements or repairs provided per policy.

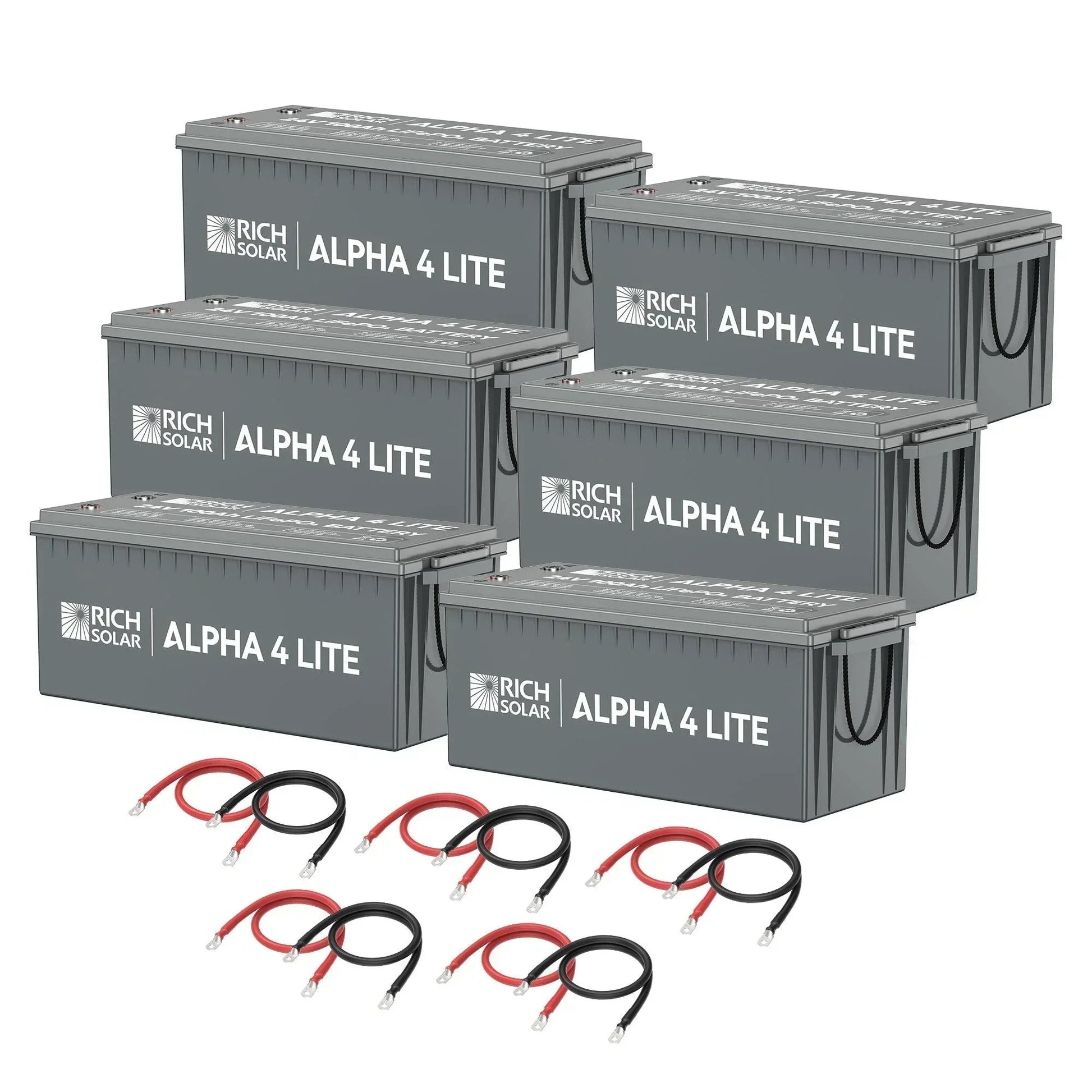

This 600AH 24V 10.2kWh Lithium Battery Bank comes with:

• 6 x 24V 100AH ALPHA 4 LITE LiFePO4 Battery

• 10 x 1ft 2 AWG Battery Cable

The ALPHA 4 LITE is a 24V 100 Ah lithium battery built and packed with RICH SOLAR’s premium LiFePO4 cells. Built to withstand extreme temperatures and handle deep discharges, this lithium battery is ready to be your go to battery for any off-grid needs.

Whether you’re looking to set up backup power for your family home or boondocking off-grid, you can be sure you have power available to you. With it’s low maintenance, lightweight build, and powerful discharge cycles, the ALPHA 4 LITE is the battery for you.

* Not intended to replace starting batteries.

Features:

• Extremely high number of charge/discharge cycles

• > 10 Year lifespan with proper maintenance

• Built-in smart battery management system

• Wide operating temperature range

• Unsurpassed high temperature performance

• Green energy without metal contaminant

• Low maintenance

• High amp capacity

• Stable output voltage

• Little self-discharge

• Lifetime customer support

• Over charging or discharging protection.

• Over current & short circuit protection.

• High & low temperature disconnects

• Charge Voltage: 28.8V

• Max Charge Current: 100A

• Max Discharge Current: 100A

• Battery Dimensions(L*W*H): 20.9x8.1x8.5 in

• Weight: 52.9 lb


BMS Safety Protection

Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.

Other BMS Features include:

• Convenient removable carry handle
• Lightweight
• Short circuit protection
• Over-charge/discharge protection
• Excessive heat protection

Short Circuit Protection: Yes

Warranty: 5 years warranty
