Rich Solar 24V 300Ah LiFePO4 Battery Bank

Rich Solar 24V 300Ah LiFePO4 Battery Bank assembles three 24V 100Ah ALPHA 4 LITE modules into a single, scalable energy storage system rated at approximately 7.6 kWh. It delivers reliable off‑grid power for family homes, backup reliability for essential circuits, and boondocking or remote-site power needs. Included in the package are four 1 ft 2 AWG battery cables for straightforward interconnection. Not intended to replace starting batteries, this bank is optimized for long cycle life and low maintenance in steady, continuous operation.

Key Specifications

• Nominal Voltage: 25.6 V
• Bank Nominal Capacity: 300 Ah (3 × 100 Ah modules)
• Energy: 7.6 kWh
• Configuration: 3 × 24V 100Ah LiFePO4 modules
• Charge Voltage: 28.8 V
• Max Charge Current: 100 A
• Max Discharge Current: 100 A
• Cycle Life: > 4000 cycles
• Self-Discharge: < 5%/month
• Charge Temperature Range: 32°F to 131°F (0°C to 55°C)
• Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Storage Temperature: 14°F–113°F / -10°C–45°C; 90% RH max for >3 months
• Dimensions (L×W×H): 20.9 × 8.1 × 8.5 in
• Weight: 52.9 lb per module
• Included Cables: 4 × 1 ft 2 AWG battery cables

Safety, BMS and Protections

• Built‑in smart BMS with individual cell protection
• Over‑charge and over‑discharge protection
• Short‑circuit protection and high/low temperature disconnects
• Excessive heat protection and a removable carry handle
• Over‑charge detection: 3.75 V per cell; delay ~1000 ms; recovery to ~33.55 V
• Over‑discharge detection: 2.20 V per cell; delay ~1000 ms; recovery to ~2.70 V
• Heavy‑duty safety: each LiFePO4 cell individually fused

Warranty, Service and Support

Warranty: 5 years. Service: lifetime customer support to assist with setup, operation, and troubleshooting.

Installation and Maintenance

Low maintenance LiFePO4 chemistry and a built‑in BMS minimize routine upkeep. The system ships with four interconnect cables (1 ft, 2 AWG) for quick wiring. Maintain operation within the specified temperature ranges and observe the not‑to‑start battery guideline to ensure long, reliable service life.

Rich Solar - 24V - 300AH - 7.6kWh Lithium Battery BankRich Solar - 24V - 300AH - 7.6kWh Lithium Battery Bank

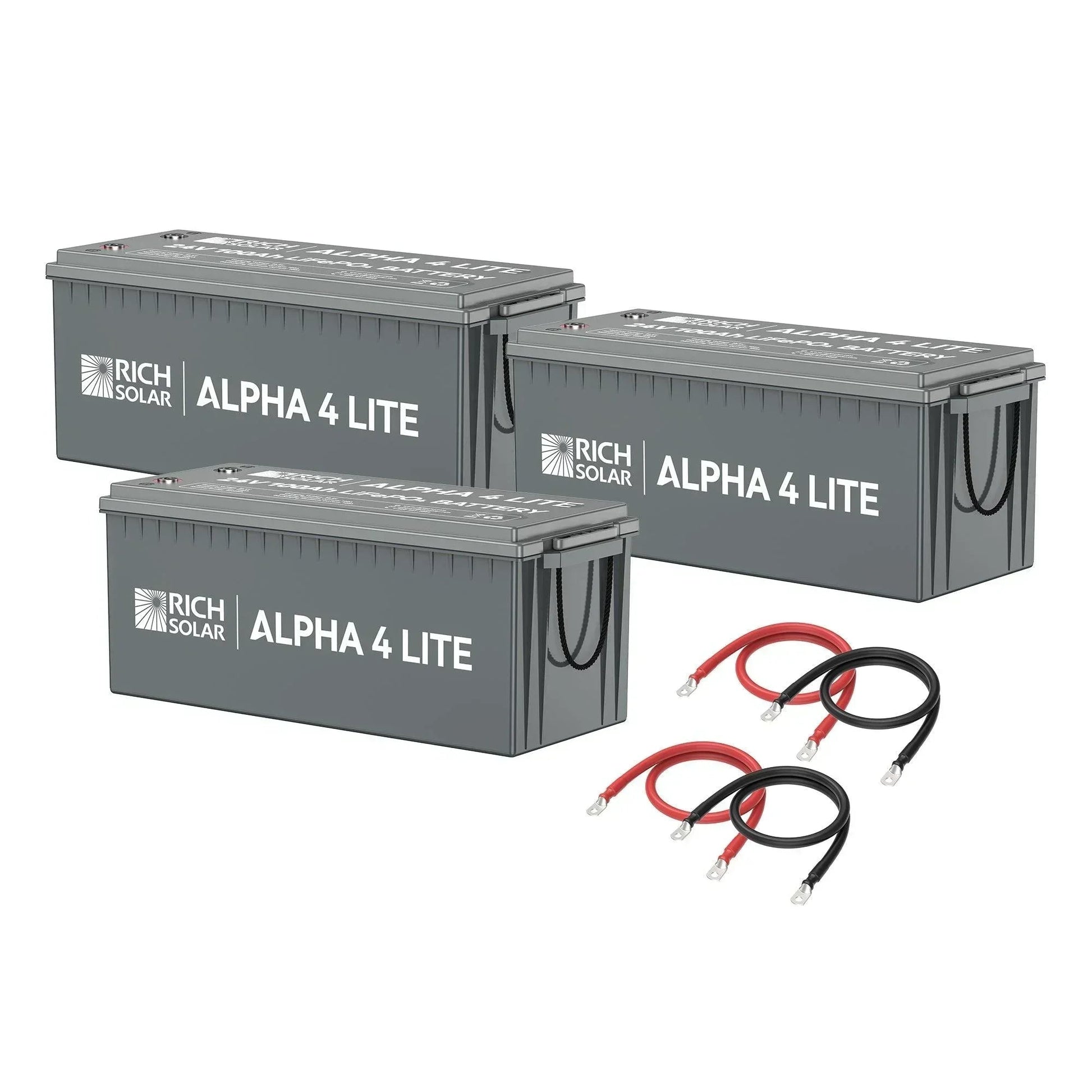

This 300AH 24V 7.6kWh Lithium Battery Bank comes with:

• 3 x 24V 100AH ALPHA 4 LITE LiFePO4 Battery

• 4 x 1ft 2 AWG Battery Cable

The ALPHA 4 LITE is a 24V 100 Ah lithium battery built and packed with RICH SOLAR’s premium LiFePO4 cells. Built to withstand extreme temperatures and handle deep discharges, this lithium battery is ready to be your go to battery for any off-grid needs.

Whether you’re looking to set up backup power for your family home or boondocking off-grid, you can be sure you have power available to you. With it’s low maintenance, lightweight build, and powerful discharge cycles, the ALPHA 4 LITE is the battery for you.

* Not intended to replace starting batteries.

Features:

• Extremely high number of charge/discharge cycles

• > 10 Year lifespan with proper maintenance

• Built-in smart battery management system

• Wide operating temperature range

• Unsurpassed high temperature performance

• Green energy without metal contaminant

• Low maintenance

• High amp capacity

• Stable output voltage

• Little self-discharge

• Lifetime customer support

• Over charging or discharging protection.

• Over current & short circuit protection.

• High & low temperature disconnects

• Charge Voltage: 28.8V

• Max Charge Current: 100A

• Max Discharge Current: 100A

• Battery Dimensions(L*W*H): 20.9x8.1x8.5 in

• Weight: 52.9 lb


BMS Safety Protection

Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.

Other BMS Features include:

• Convenient removable carry handle
• Lightweight
• Short circuit protection
• Over-charge/discharge protection
• Excessive heat protection

Short Circuit Protection: Yes

Warranty: 5 years warranty
