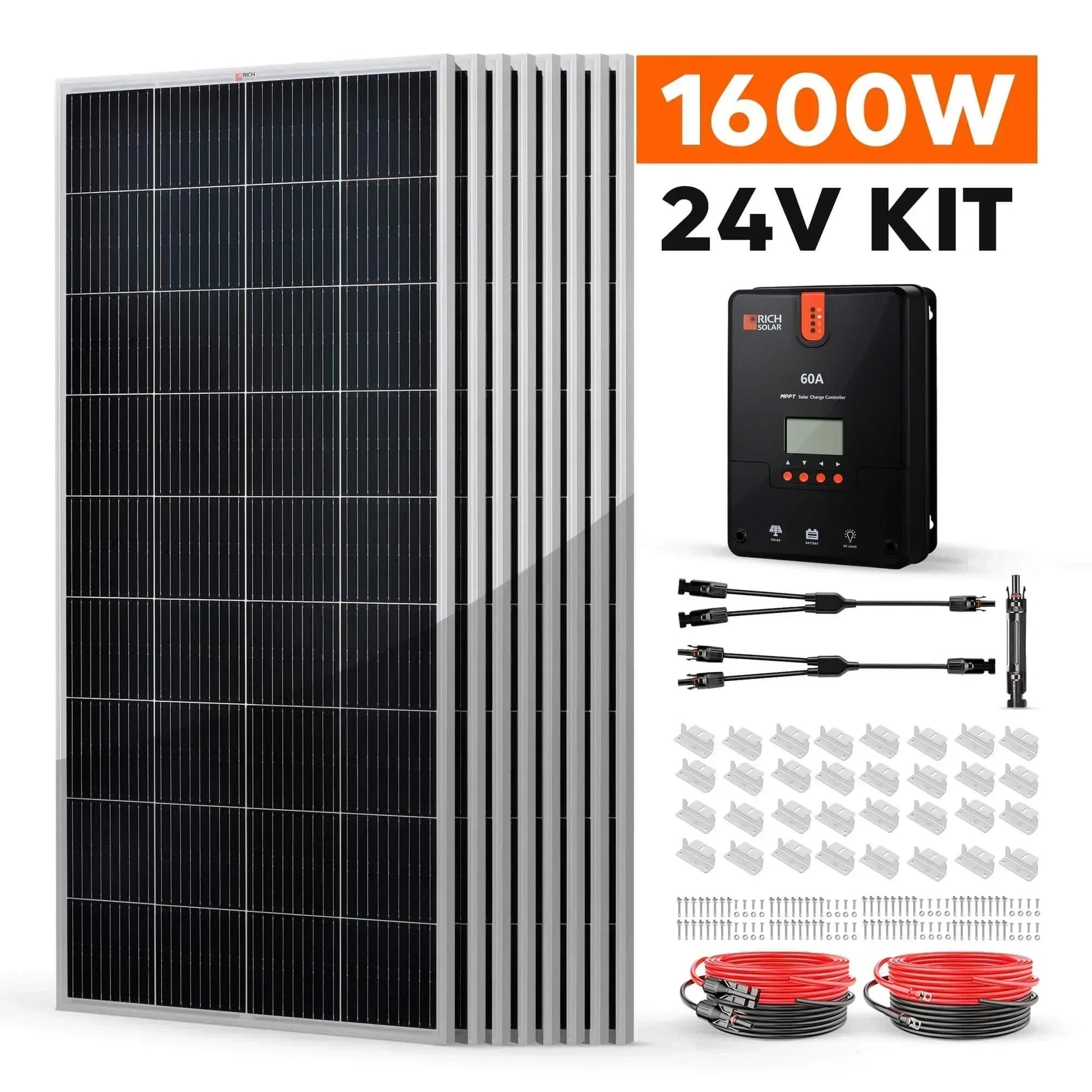

Rich Solar - 1600 Watt Solar Kit
Powerful, ready-to-install 24V solar solution designed for off-grid RVs, boats, and trailers. This is Rich Solar’s largest 24V kit, pairing eight 200W monocrystalline panels with a 60A MPPT controller to deliver reliable energy for camping, cruising, or remote deployments. When paired with a 400Ah 24V battery bank, the kit provides steady charging and quiet, dependable power without the noise or fuel use of generators.
Key specifications
System architecture and efficiency: 24 V nominal with eight 200 W panels (RS-M200) delivering up to 1,600 W under favorable conditions. Each panel uses high-efficiency monocrystalline cells with 9 busbars and an anti-reflective coating to maximize light absorption and output consistency. Panel electrical characteristics per unit: Vmp 20.4 V, Imp 9.80 A, Voc 24.3 V, Isc 10.2 A; weight 26.5 lb; dimensions 58.7 × 26.8 × 1.4 in. The kit includes a 60A MPPT charge controller (RS-MPPT60) with real-time monitoring of volts, amps, and amp-hours and protection against overcharging.

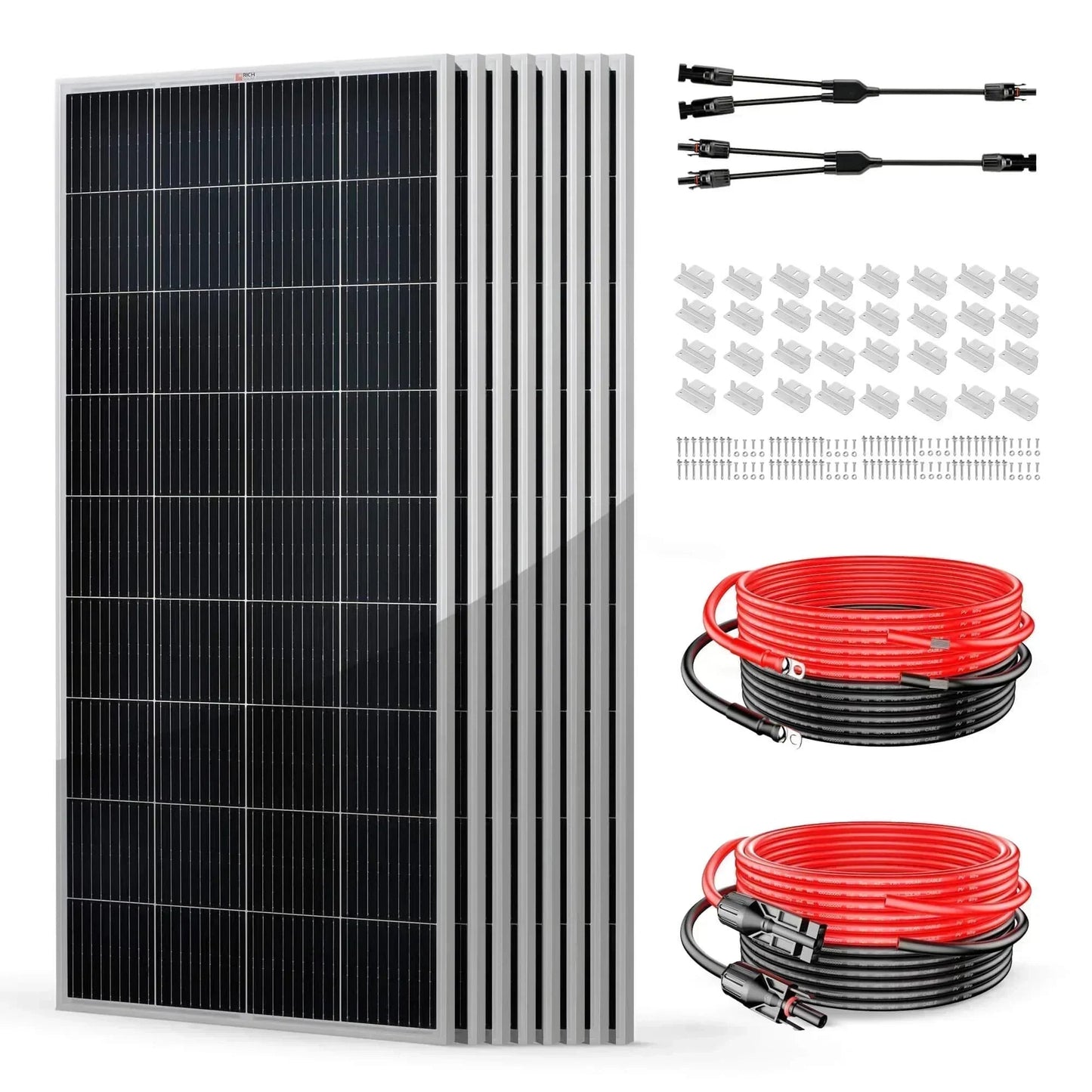

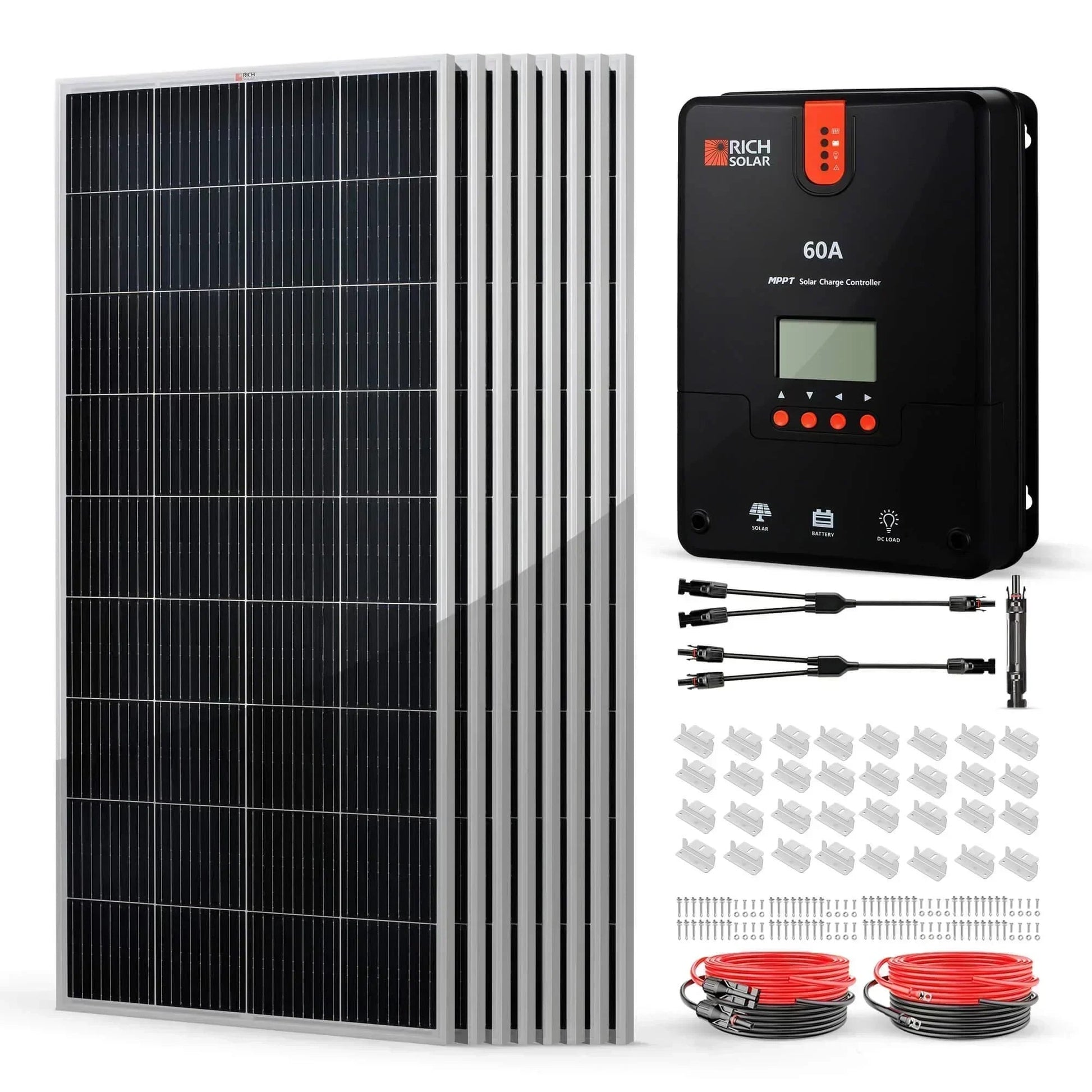

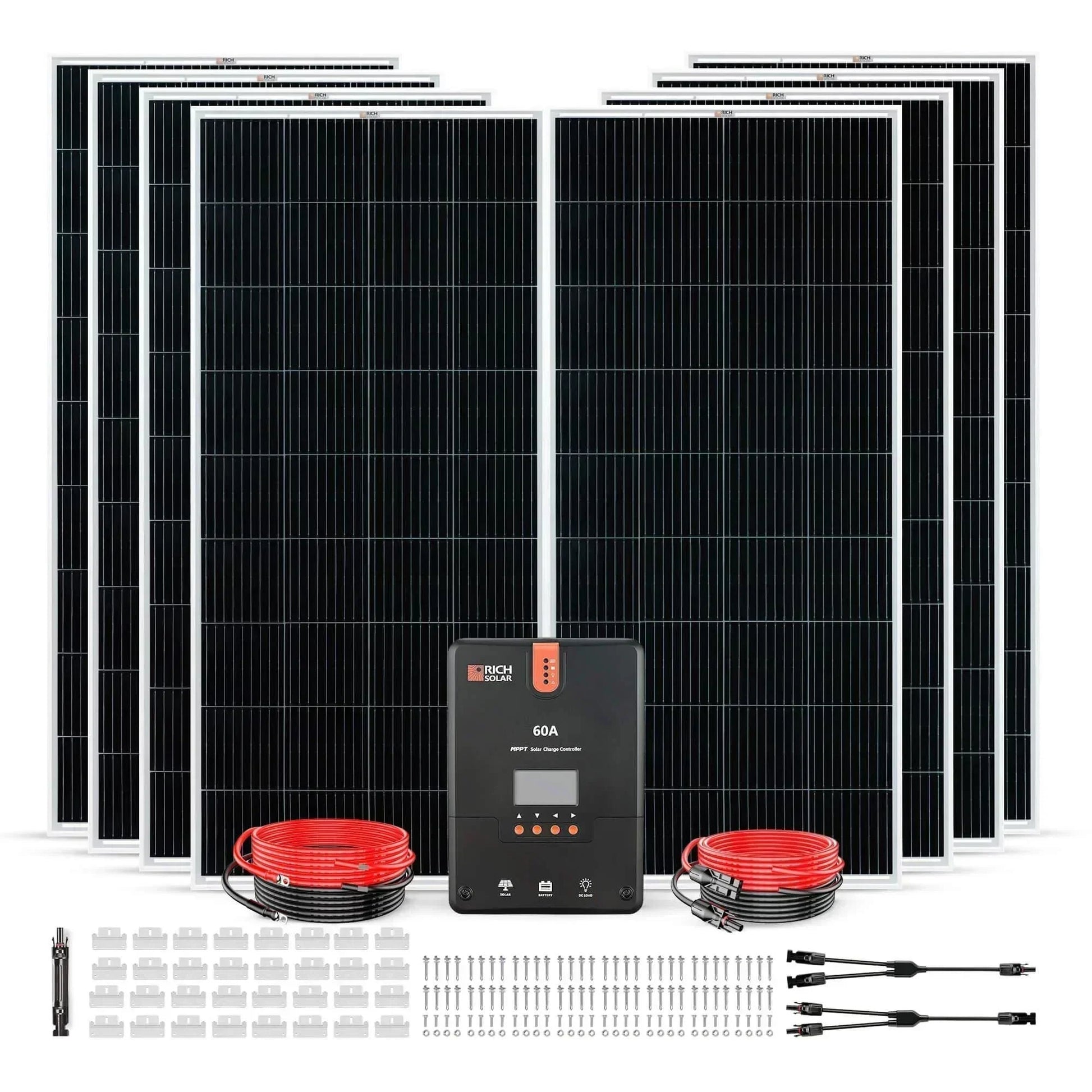

Package includes
- 8 × 200 W Monocrystalline Solar Panels (RS-M200)
- 1 × 60A MPPT Solar Charge Controller (RS-MPPT60)
- 1 × 20' #10 Gauge Solar Cable (Red) RS-20101
- 1 × 20' #10 Gauge Solar Cable (Black) RS-20101
- 1 × 10' #8 Gauge Battery Cable (Red) RS-810
- 1 × 10' #8 Gauge Battery Cable (Black) RS-810
- 8 × Mounting Z Brackets (RS-ZB4C)
- 1 × 30A Inline Fuse Holder with Fuse (RS-SC30F)
- 1 × Y Branch Parallel Adapters (RS-T2)
Installation and safety
- Pre-assembled wiring harness enables quick installation without crimping tools
- All components are compatible for straightforward expansions, upgrades, or additions—just plug in and go
- Includes mounting hardware and interconnectivity suitable for RVs, boats, and trailers
- MPPT controller provides real-time monitoring and overcharge protection; inline fuse enhances electrical safety
Warranty and service
25-year output warranty on the solar panels and overall kit performance, offering long-term reliability for off-grid power. Specific service terms beyond the warranty are not detailed in the provided data.
Rich Solar - 1600 Watt Solar Kit
Our largest 24V kit contains 8 high-efficiency 200W Monocrystalline panels with 9 busbars and our 60A MPPT controller. This kit can be paired with a 400AH 24V battery bank and can power most off-grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!
Package Includes
🗹 8 x 200 Watt Monocrystalline Solar Panel(RS-M200)
🗹 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
🗹 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
🗹 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
🗹 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
🗹 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
🗹 8 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
🗹 1 x 30A Inline Fuse Holder with Fuse(RS-SC30F)
🗹 1 x Y Branch Parallel Adapters(RS-T2)
High-Efficiency Solar Panel
With the highest-grade monocrystalline solar cells for optimal output, our 200 watt panel is treated with an anti-reflective coating to maximize light absorption.
Simple Installation
Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades, or additions simple and easy… just plug in and go!
Reliable and Convenient
The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp hours. provide peace of mind by protecting your system from overcharging.
25-Year Output Warranty
Buy with confidence knowing that your solar investment will last for the long haul.
200 Watt Solar Panel Specifications
Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 20.4V
Maximum Power Current(Imp): 9.80A
Open Circuit Voltage(Voc): 24.3V
Short Circuit Current(Isc): 10.2A
Weight: 26.5 lbs
Dimensions: 58.7 x 26.8 x 1.4 in
Warranty: 25 years output warranty
