Rich Solar - 1600W 24V Complete Solar Kit
Designed for RVs, travel trailers, and tiny homes, this turnkey solar solution delivers reliable off‑grid power with a 1600W solar array, lithium storage, and a 24V inverter. It is optimized for camping, remote work setups, and extended boondocking, enabling you to run essential appliances, lighting, and electronics without generators or noisy fuel sources.
Overview and primary applications
Turnkey, high‑efficiency solar kit tailored to mobile and compact living spaces. The eight 200W monocrystalline panels, paired with lithium batteries and a 24V inverter, provide a scalable path to energy independence for recreational vehicles and tiny homes.
Performance specifications
- Total PV power: 8 × MEGA 200W 12V Monocrystalline panels (RS‑M200) — 1600W nominal
- Battery storage: 2 × ALPHA 4 Lithium (RS‑B241S)
- Inverter: NOVA 3000W 24V Inverter (RS‑V3P24) — currently backordered
- Charge controller: 60A MPPT (RS‑MPPT60)
- Wiring and cables: 30’ 10 AWG (Panel to Controller) RS‑30101; 10’ 8 AWG (Controller to Battery) RS‑810; 8’ 4 AWG Battery Cables RS‑C48R/RS‑C48B; 2 × 1’ 2 AWG inverter cables RS‑C21R/RS‑C21B
- Mounting hardware: 8 × Z Bracket Sets RS‑ZB4C
- Protection and accessories: 30A Inline Fuse Holder RS‑SC15F; Y Branch RS‑Y2
Safety features
The kit incorporates electrical protection and robust components to support safe operation: inline fuse on the DC circuit (RS‑SC15F), high‑current rated cables and connectors, and MPPT charging optimization to prevent battery overcharge and overheating. Panel mounting hardware (RS‑ZB4C) provides secure, weather‑resistant installation.
Installation and maintenance

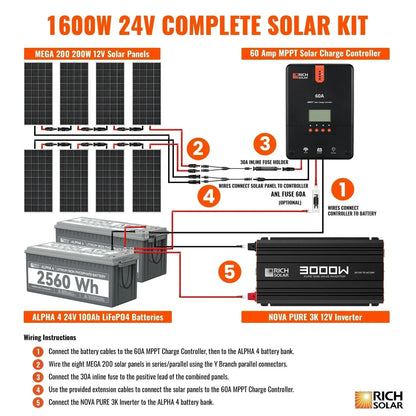

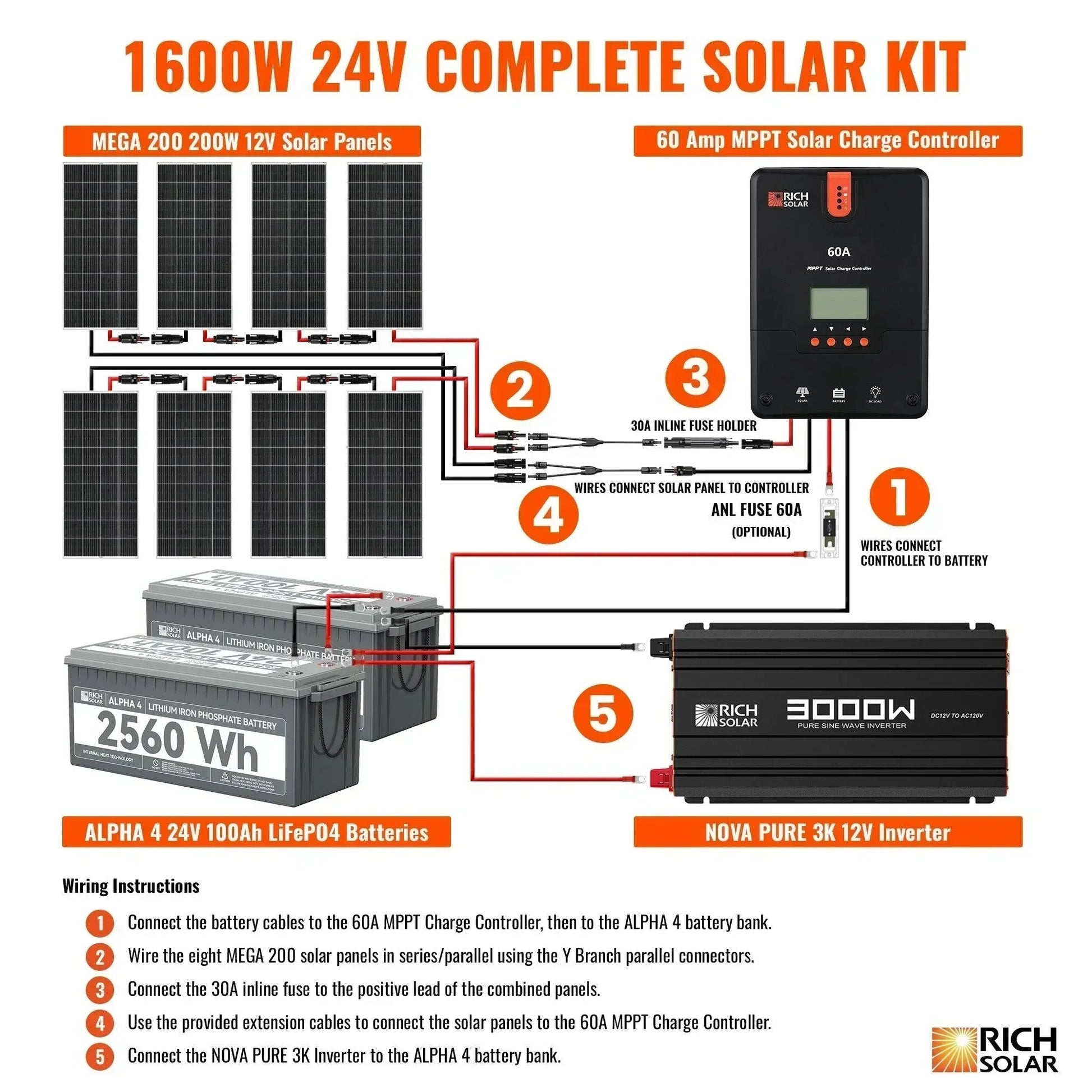

Install by mounting panels with the included Z brackets, connection to the 60A MPPT controller via the 30’ 10 AWG PV cable, then to the two lithium batteries using the 10’ 8 AWG cable. Join the battery bank to the 24V inverter with the 8’ 4 AWG cables. Regularly inspect connections and keep all outdoor components clean and dry.
Rich Solar - 1600 Watt 24V Complete Solar Kit
Dreaming of the ultimate solar-powered travel trailer? Our 1600W 24V Complete Solar Kit has everything you need to harness, store, and utilize solar energy efficiently. This kit includes eight high-efficiency 200W Monocrystalline panels, a 60A MPPT controller, a 3000W 24V inverter, and two ALPHA 4 Lithium batteries. Perfect for your RV or tiny home, this kit will launch your solar adventure today!

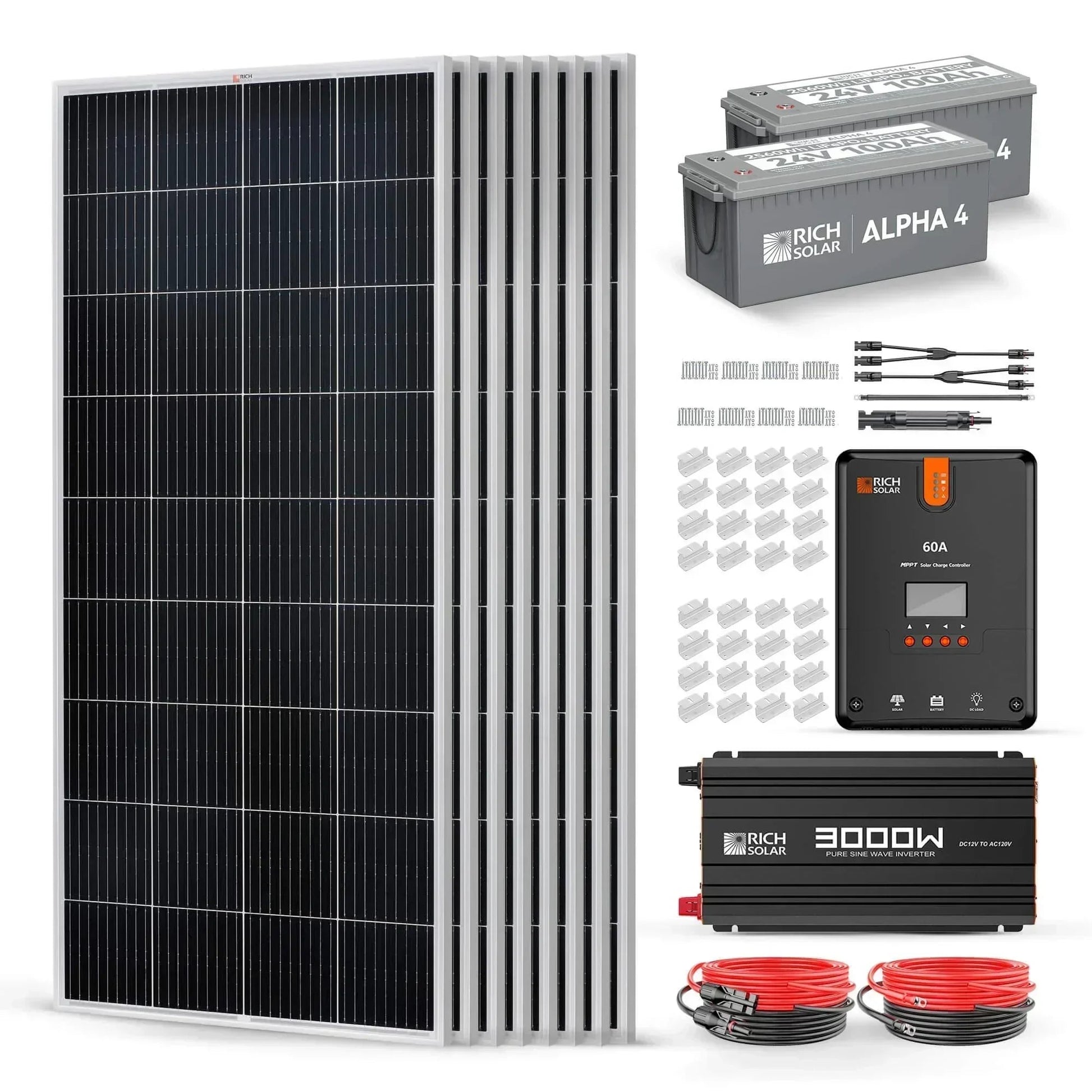

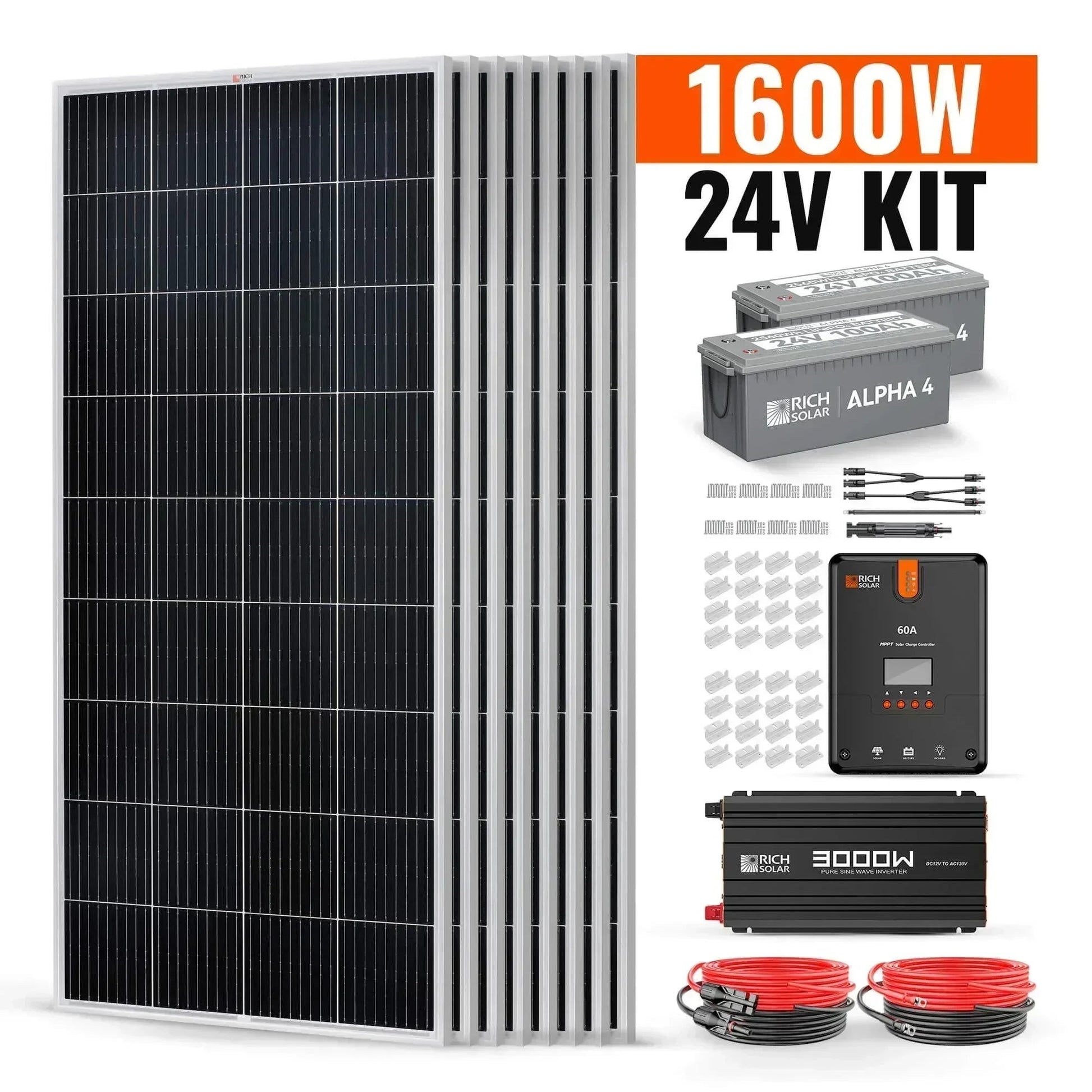

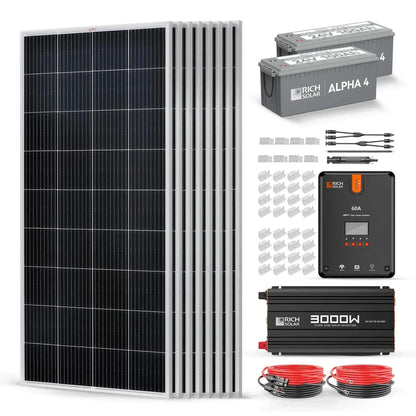

The 1600 Watt Complete Kit Includes:
8 x MEGA 200W 12V Panel (RS-M200)
2 x ALPHA 4 Lithium Battery (RS-B241S)
1 x NOVA 3000W 24V Inverter (RS-V3P24) - ON BACKORDER
1 x 60A MPPT Charge Controller (RS-MPPT60)
8 x Z Bracket Set (RS-ZB4C)
1 x 30A Inline Fuse Holder (RS-SC15F)
1 x Y Branch Parallel Adapter (RS-Y2)
1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
1 x 30’ 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10’ 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
1 x 8’ 4 AWG Battery Cable Set (RS-C48R & RS-C48B)
