Renogy Solar Panel Pole Mount — Single Side, 27.4in

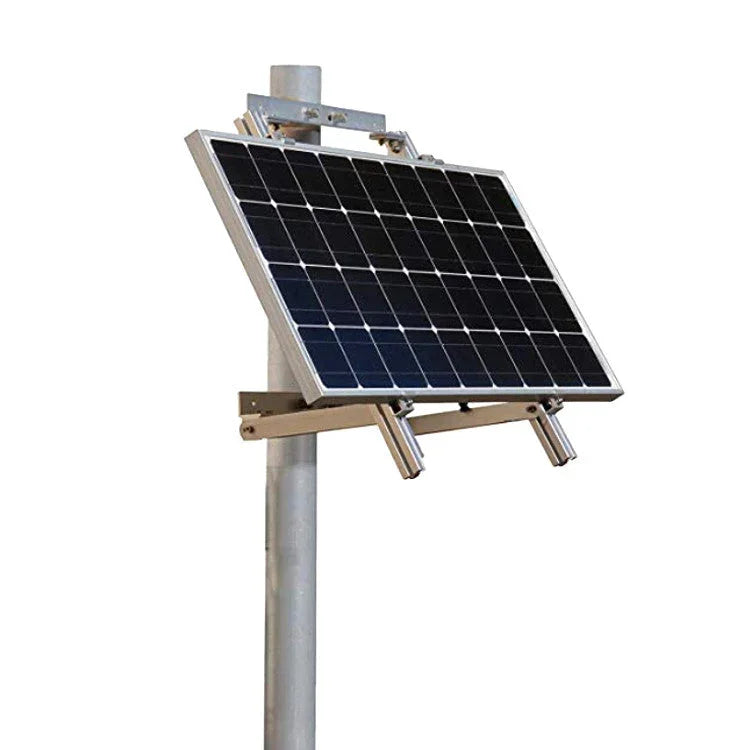

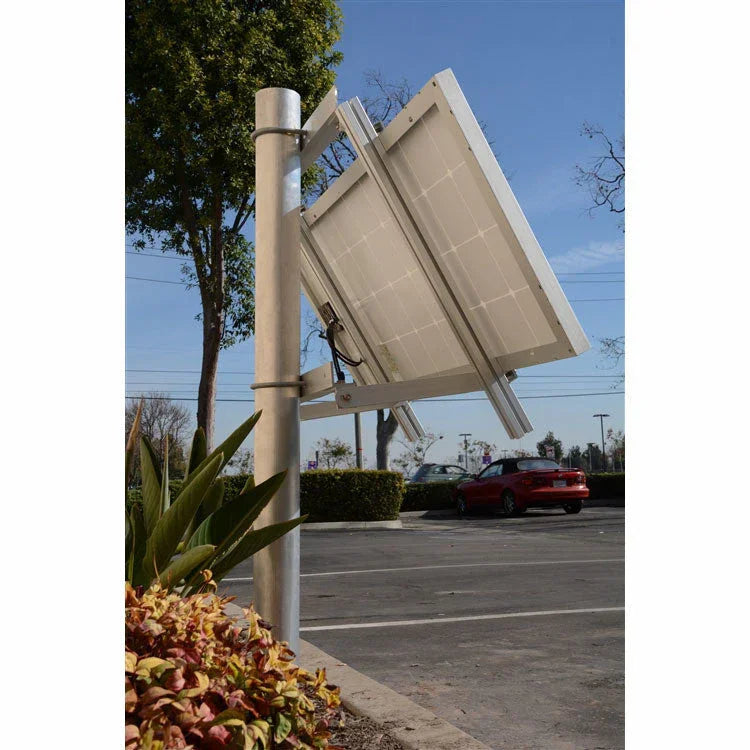

The Renogy Solar Panel Pole Mount provides a purpose-built solution for off-grid installations where roof mounting is impractical. It is designed to secure small solar systems to a vertical support structure, delivering straightforward, tool-efficient assembly with all fasteners included. Note that the mount is compatible exclusively with Renogy 80W and 100W panels and requires a 4-inch diameter pole (pole not included).
Performance and Specifications
- Material and finish: 5052-H32 aluminum construction with a brushed aluminum finish; stainless steel fasteners for corrosion resistance and high-tensile strength.
- Wind and exposure: engineered to withstand 50 psf (140 mph) wind loads for reliable, outdoor operation.

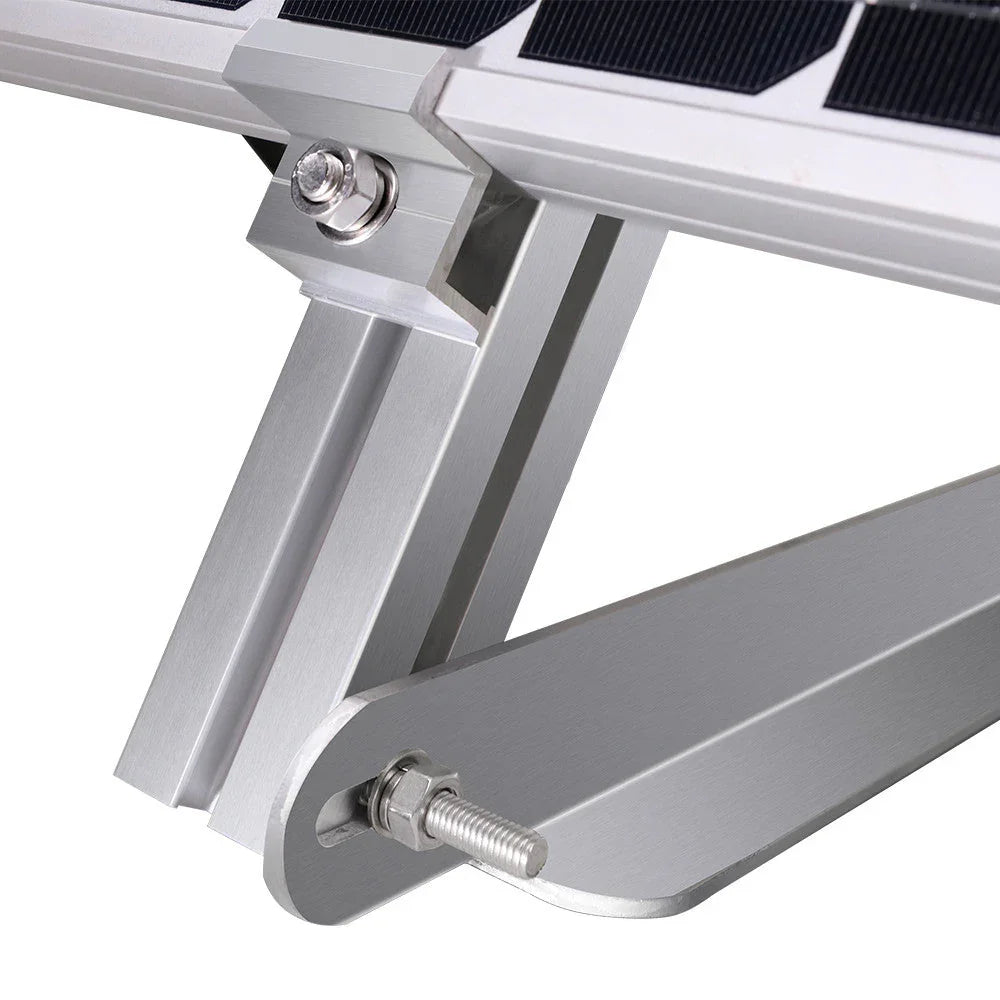

- Adjustability: infinitely adjustable tilt from 15° to 65° to optimize solar gain year-round.
- Dimensions and alignment: 27.4-inch width with precision hole positioning for repeatable, accurate mounting.
- Compatibility and hardware: compatible with Renogy 80W and 100W panels; pole not included; requires a 4-inch pole.
Safety Features and Certifications
- Key safety guidance: do not attach the solar panel until the mount is securely fitted and the pole base is firmly secured to the installation surface to prevent stripping of nuts and bolts. Two-person installation is recommended for safety and accuracy.
- Hardware durability: corrosion-resistant components and high-tensile hardware support long-term outdoor use.
Installation and Maintenance
- What’s included: Renogy Single Side 27.4in Pole Mount Support kit and accompanying fastening hardware as listed.
- Recommended tools (not provided): socket wrench, torque extension, box-level, tape measure, 18mm and 13mm wrenches/sockets.
- Installation notes: follow the well-illustrated instructions; avoid over-tightening to prevent thread damage; ensure the pole diameter is 4 inches.
- Maintenance: periodically inspect fasteners for corrosion and tightness; clean surfaces to preserve finish integrity.
Warranty and Service
Warranty: 1-year material warranty. For support or troubleshooting, contact Renogy customer service at 1-909-287-7111 or consult the Renogy Learning Center for guidance on off-grid installations.
Package Contents

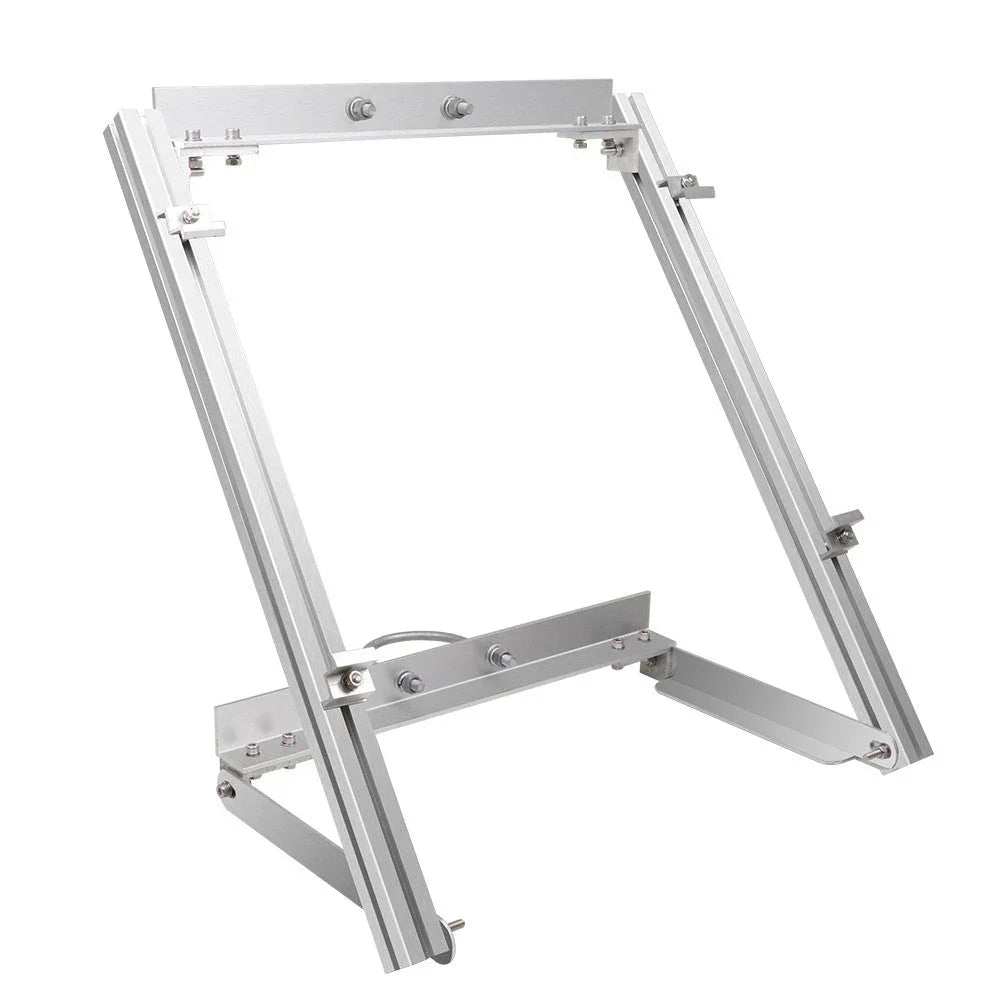

- Renogy Single Side of Pole Mount Support, 27.4 In Width

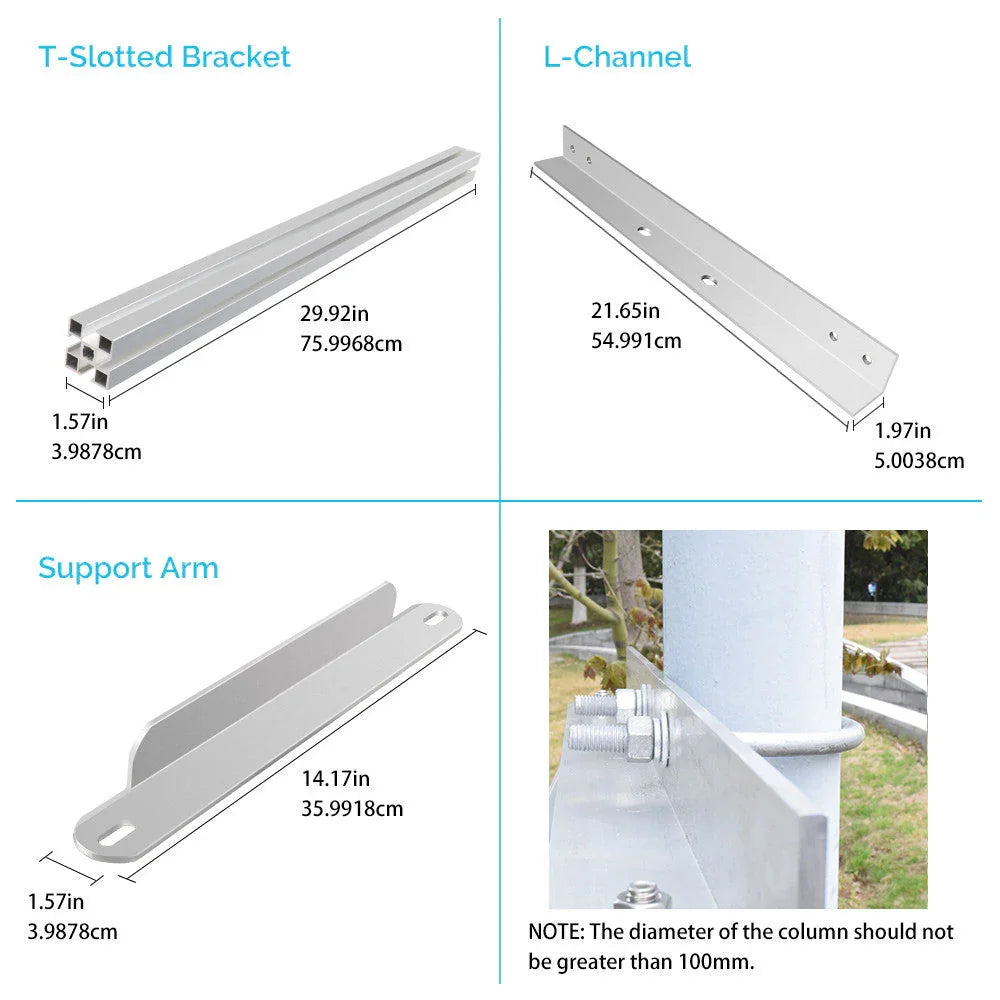

- T-Slotted Brackets: 2; L-Channels: 2
- L-Brackets: 4; Support Arms: 2
- U-Bolts: 2; M8 T-Bolts: 8
- M8 Cap Head Bolts: 10; M8 Washers: 28

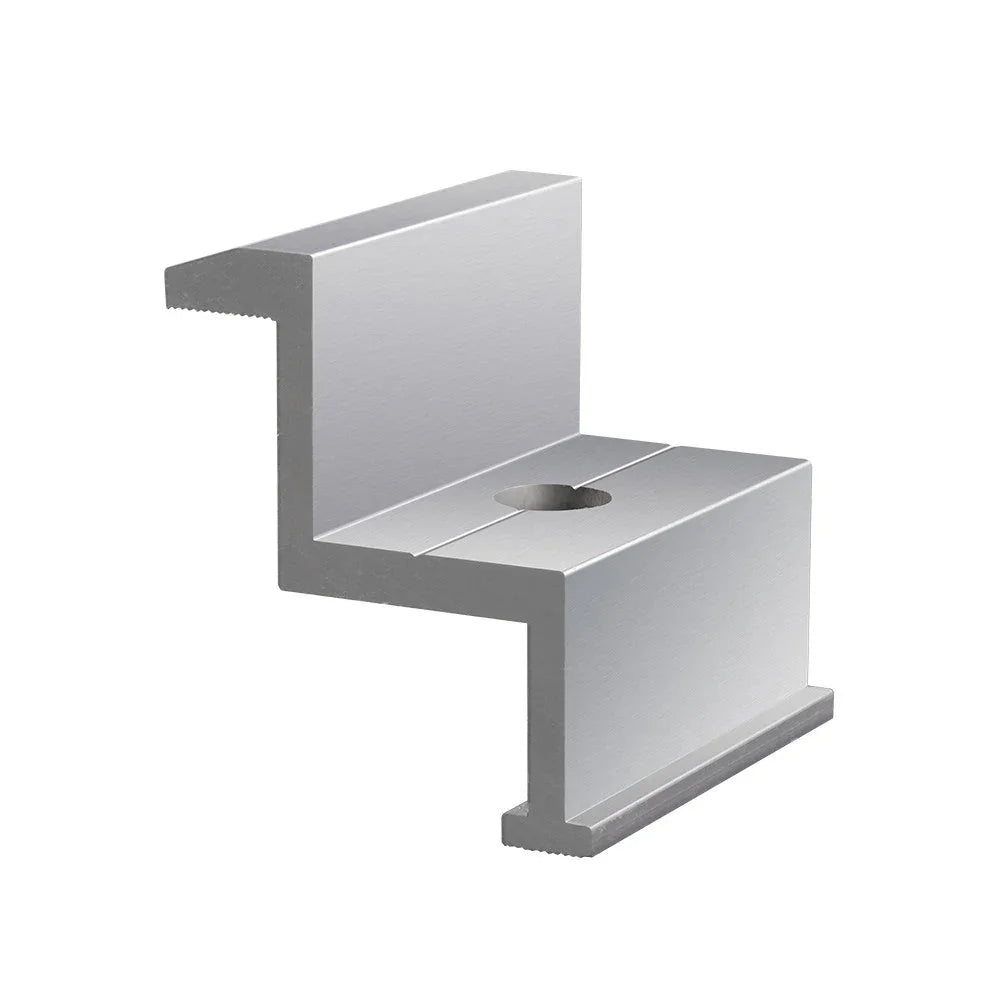

- M8 Spring Washers: 18; End Clamps: 4
- M8 Nuts: 18; M12 Washers: 8
- M12 Nuts: 8; M12 Spring Washers: 4
Description
The Renogy Solar Panel Pole Mount is designed for off-grid applications when mounting to a roof is not ideal. It comes complete with all fasteners to secure itself to the installation surface. The mount makes the installation of small solar systems easy, affordable and quick.
Recommended Tools (Not Provided):
- Socket Wrench
- Torque extension
- Box-Leveler
- Tape measure
- 18mm wrench or socket for larger hex nut
- 13mm wrench or socket for smaller hex nut
Caution:
- Do not attach solar panel to pole mount until mount is securely fit, and pole base has been secured.
- The chance to strip nuts and bolts exists.
- Multiple people for installation is suggested.
Please Note:
- The mount is only compatible with Renogy 80W and 100W solar panels.
- The pole not included. A pole with a diameter of 4 inch is necessary to work with the mount.
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center
Key Features
- 5052-H32 aluminum construction
- Stainless steel fasteners
- High-tensile strength
- Corrosion Free
- Withstands 50 psf (140 mph) wind loads
- Attractive brushed aluminum finish
- Infinitely adjustable between 15-65 degrees
- Precision hole positioning and alignment
- Easy, rapid assembly
- Well-illustrated instructions
Package Includes
|
Renogy Single Side 27.4in Pole Mount Support For Solar Panel
1 x
|
| Renogy Single Side of Pole Mount Support, 27.4In Width Support | |
|---|---|
| T-Slotted Brackets: 2 | L-Channels: 2 |
| L-Brackets: 4 | Support Arms: 2 |
| U-Bolts: 2 | M8 T-Bolts: 8 |
| M8 Cap Head Bolts: 10 | M8 Washers: 28 |
| M8 Spring Washers: 18 | End Clamps: 4 |
| M8 Nuts: 18 | M12 Washers: 8 |
| M12 Nuts: 8 | M12 Spring Washers: 4 |
Warranty Information
| Accessories | 1-year material warranty |
|
|
|
|
|
Renogy Single Side 27.4in Pole Mount Support For Solar Panel
1 x
|
| Renogy Single Side of Pole Mount Support, 27.4In Width Support | |
|---|---|
| T-Slotted Brackets: 2 | L-Channels: 2 |
| L-Brackets: 4 | Support Arms: 2 |
| U-Bolts: 2 | M8 T-Bolts: 8 |
| M8 Cap Head Bolts: 10 | M8 Washers: 28 |
| M8 Spring Washers: 18 | End Clamps: 4 |
| M8 Nuts: 18 | M12 Washers: 8 |
| M12 Nuts: 8 | M12 Spring Washers: 4 |
| Accessories | 1-year material warranty |
|
|
|
|
