Equipment Type and Primary Applications

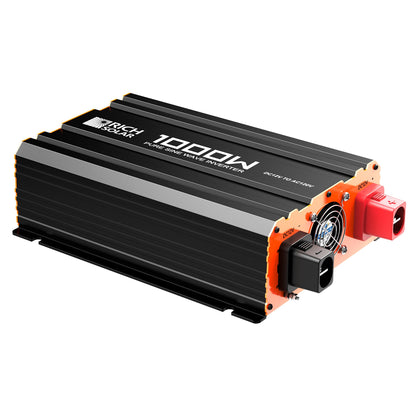

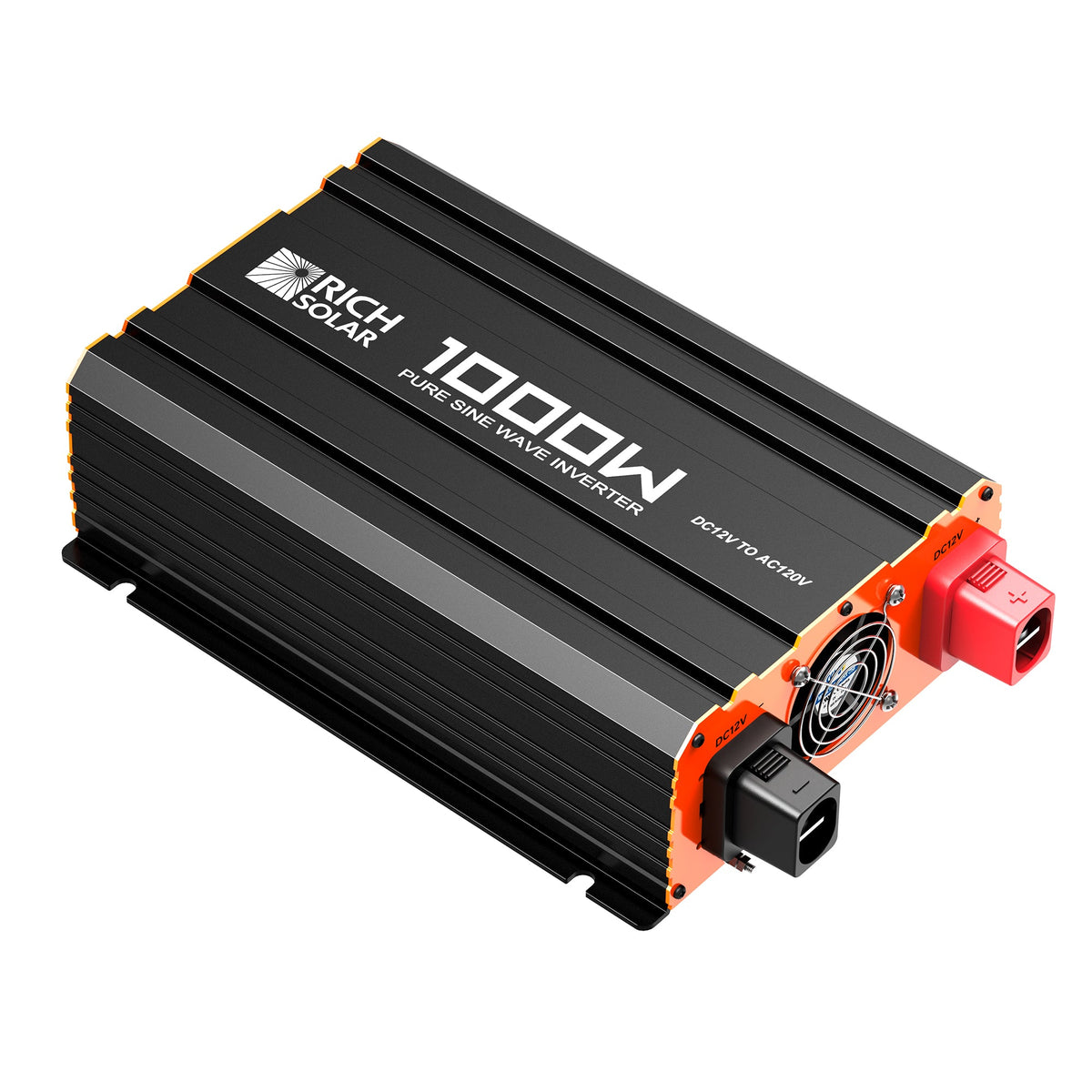

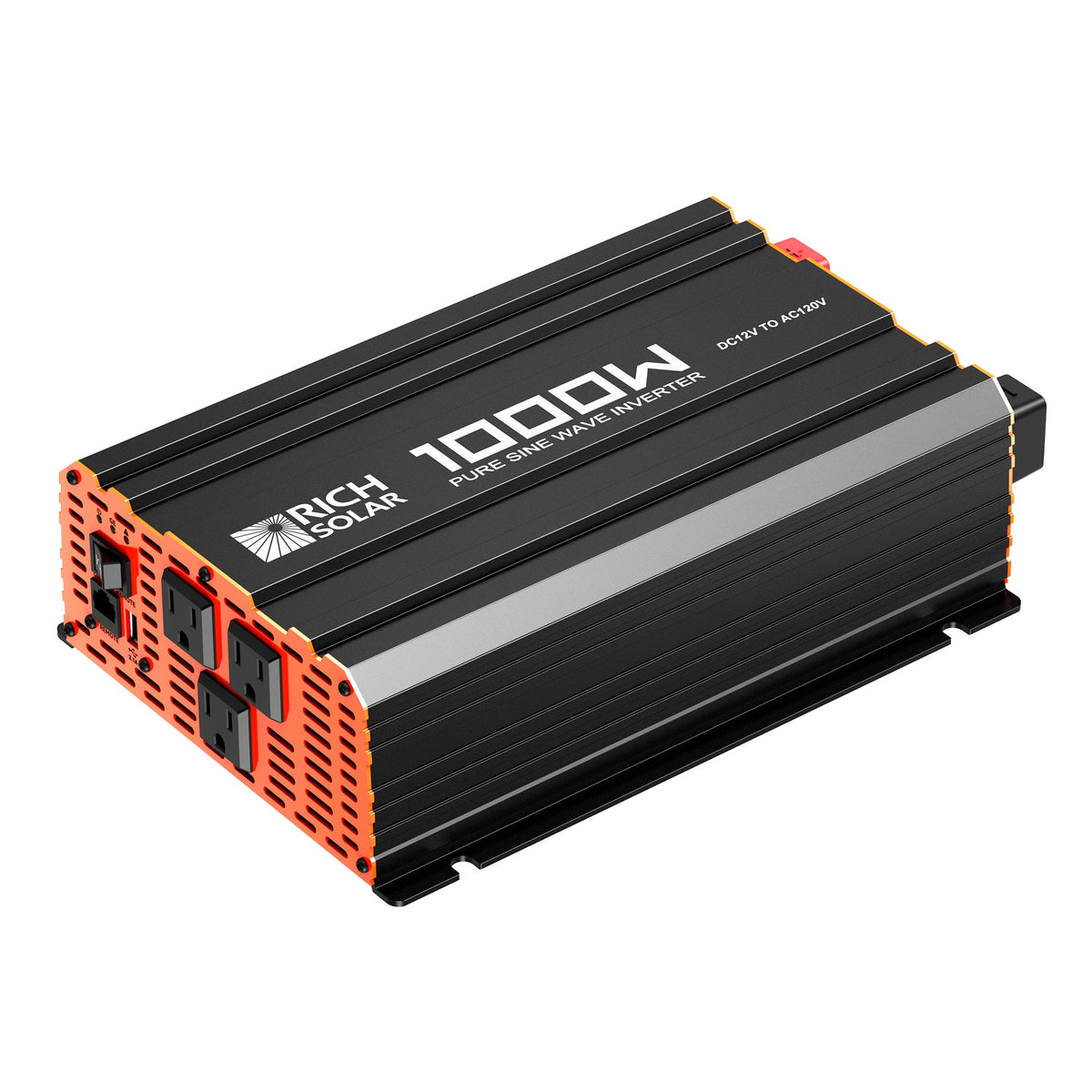

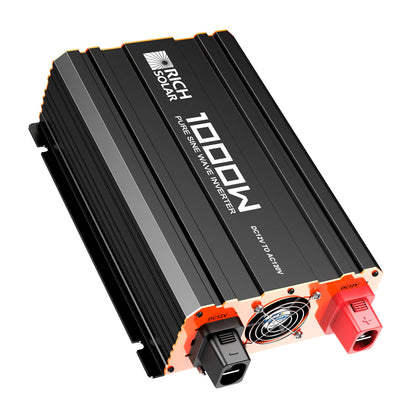

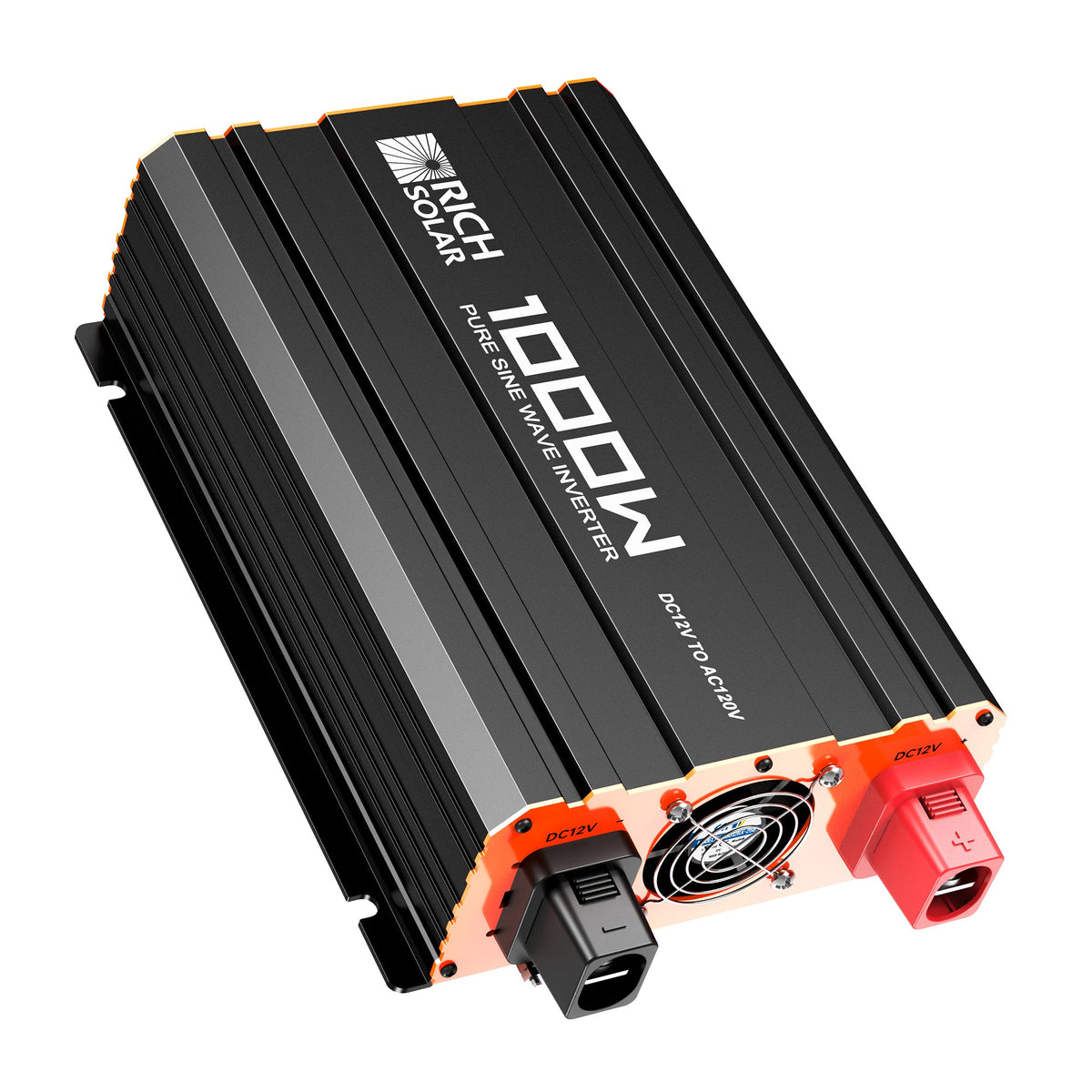

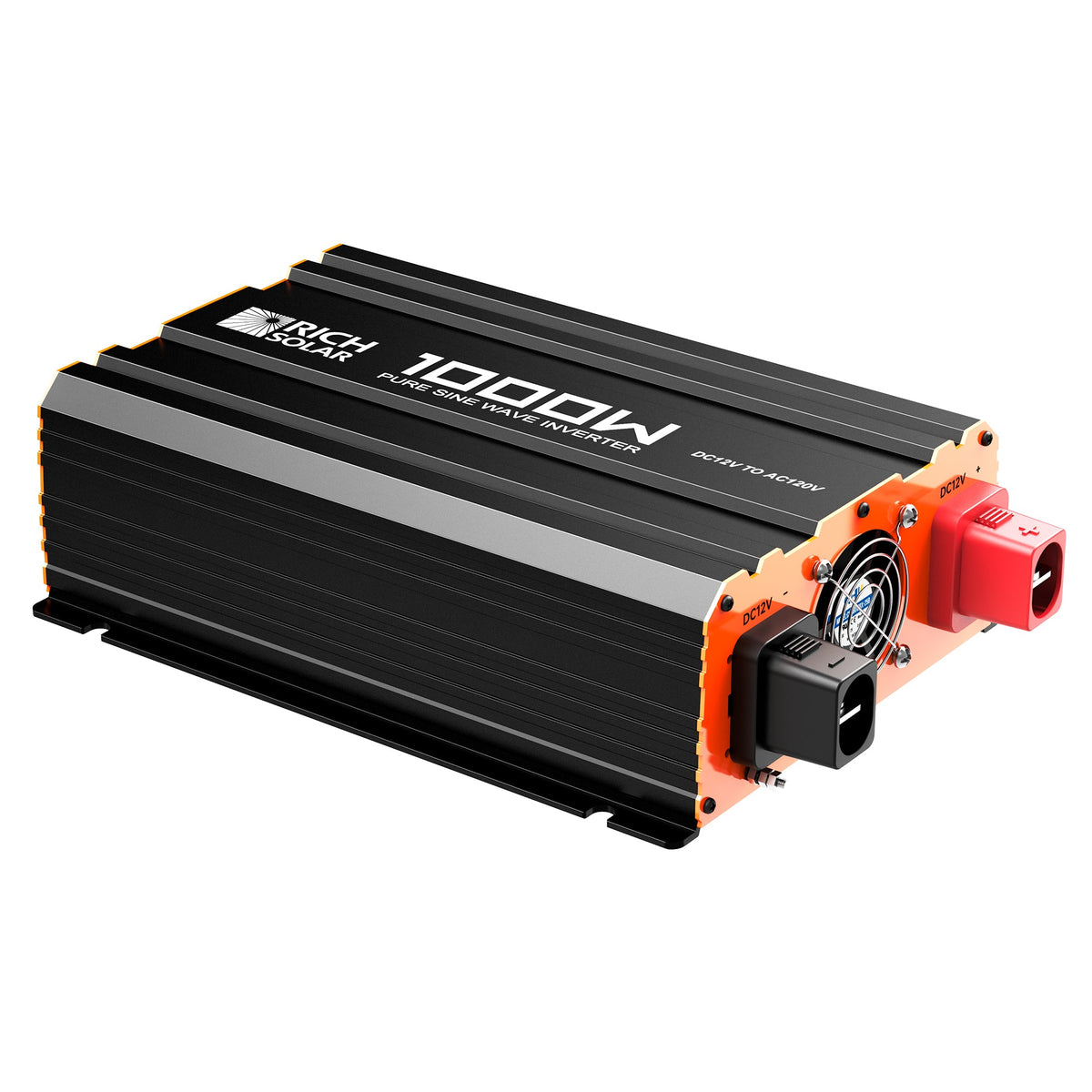

The NOVA PURE 1K is a 1,000-watt, 12V industrial pure sine wave inverter that converts battery power to stable 120V AC electricity. It is designed for off-grid power use in RVs, campers, and boats, including applications requiring clean power for sensitive electronics and household appliances.
Performance Specifications
- Continuous output: 1,000W; surge output: 2,000W
- Input: 12V DC; compatible with 12V deep-cycle and lithium batteries with BMS
- Output: 120V AC, 60Hz pure sine wave
- Total harmonic distortion: less than 3%
- Peak efficiency: greater than 88%

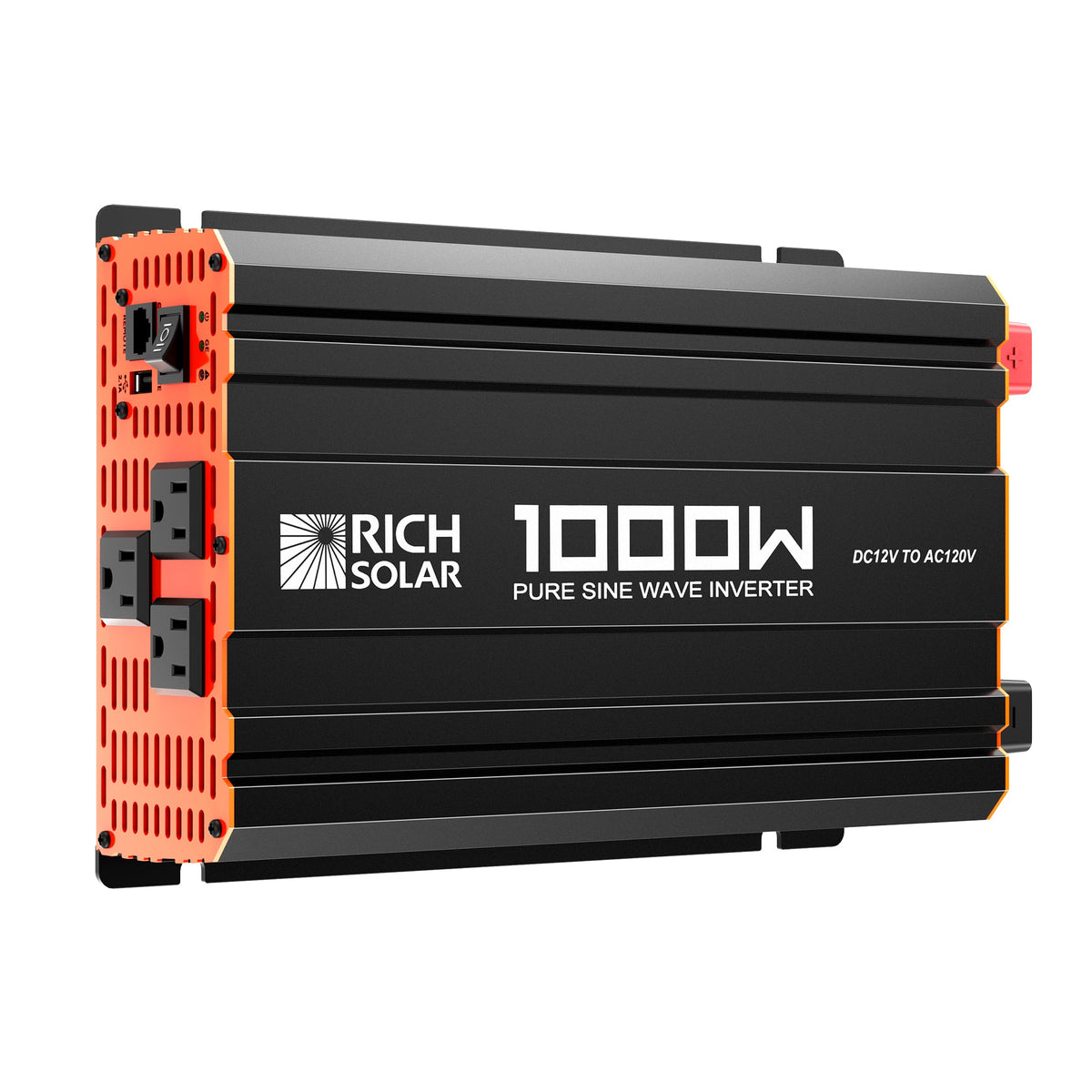

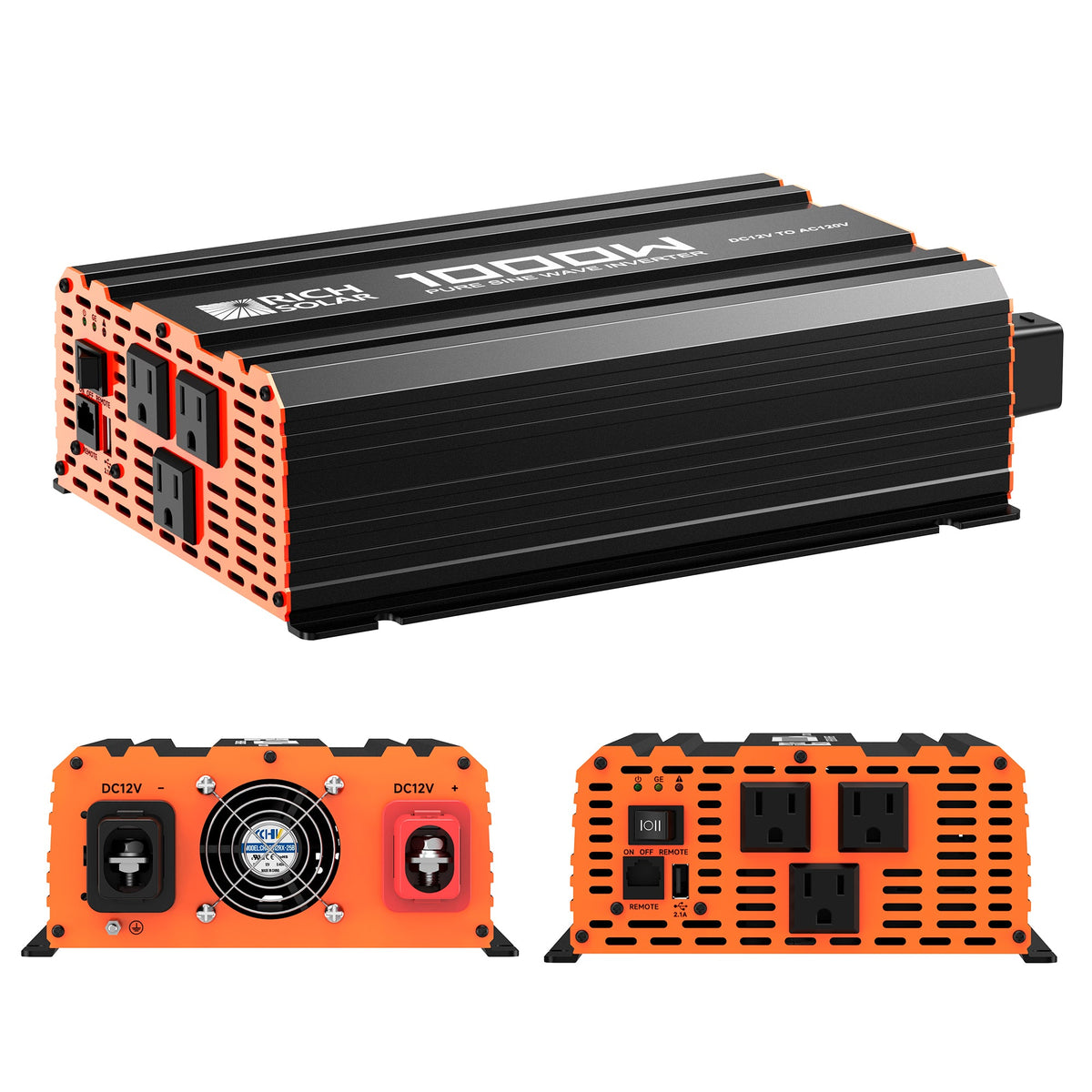

- Power connections: three AC outlets and one 5V/2.1A USB charging port
- Operating temperature: 14°F to 122°F
- Cooling: thermally controlled fan
- Dimensions: 12.6 × 7.7 × 3.2 in; net weight: 5.3 lb
Safety Features and Certifications
- Protection against under-voltage, over-voltage, overload, over-temperature, and short circuits
- Built-in DC fuse protects the inverter and connected equipment
- LED status indicators and audible alerts identify low-battery and overload conditions
- ETL Listed to UL 458; FCC, CE, and RoHS compliant
Installation and Maintenance Requirements

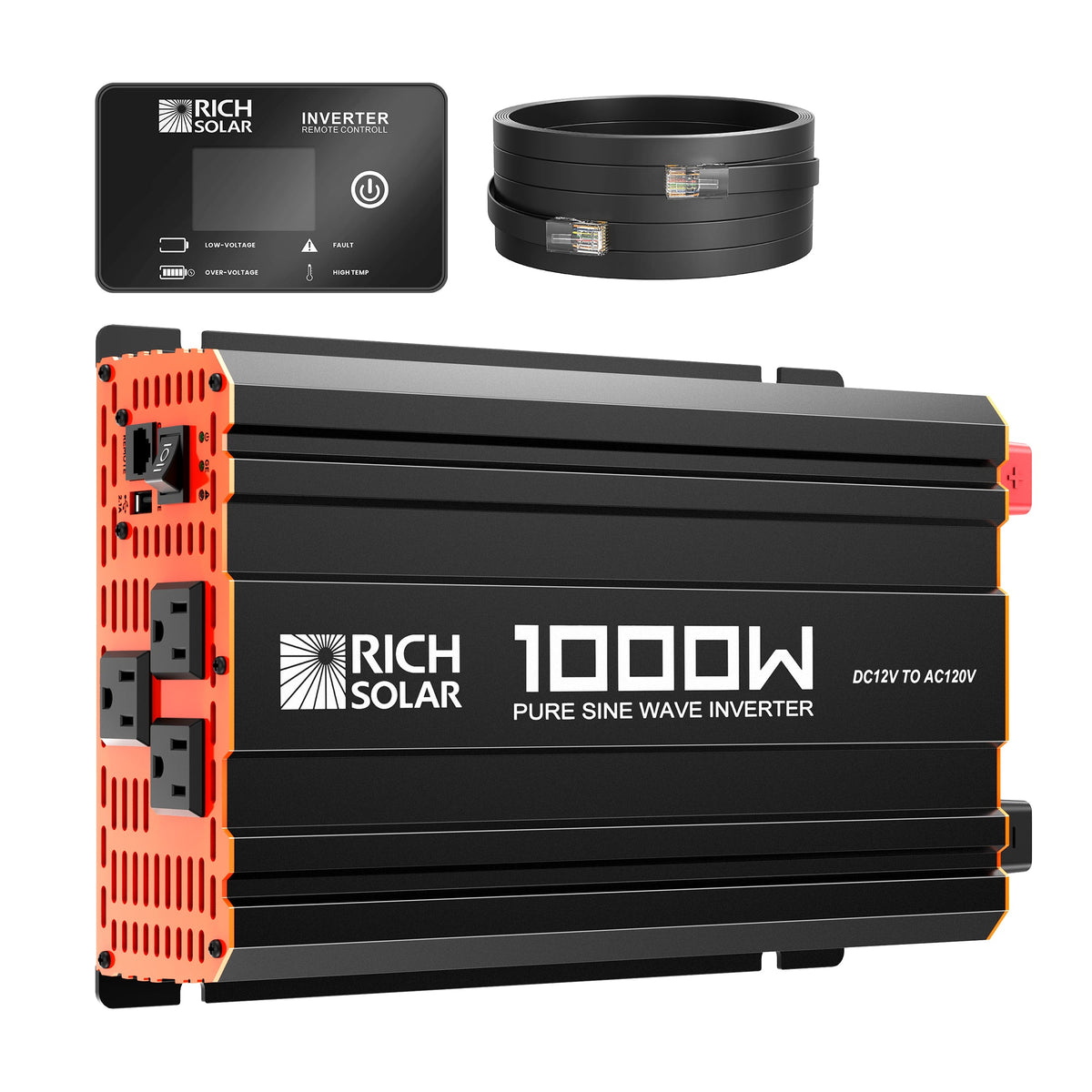

Requires a compatible 12V DC battery supply. Allow installation space for the 12.6 × 7.7 × 3.2-inch enclosure and thermally controlled fan airflow. Commissioning controls include the AC ON/OFF switch and included remote control. Routine maintenance intervals are not specified.
Warranty and Service Information
Branding/References
Brand: NOVA PURE. Model: NOVA PURE 1K. Safety reference: ETL Listed, UL 458.
Differentiators
Pure sine wave output below 3% THD combines with 1,000W continuous capacity, 2,000W surge handling, remote operation, and three AC outlets in a compact 12V inverter.
