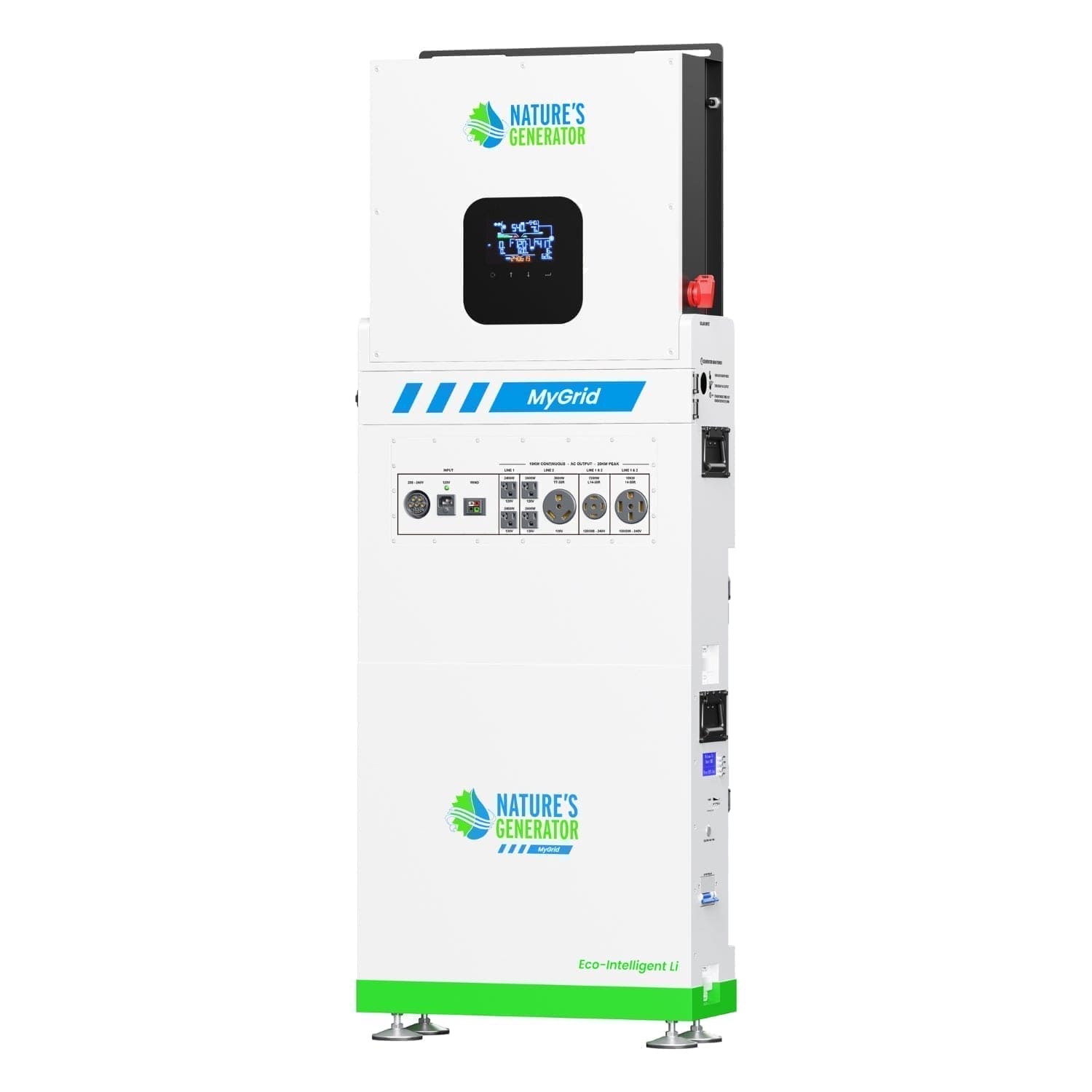

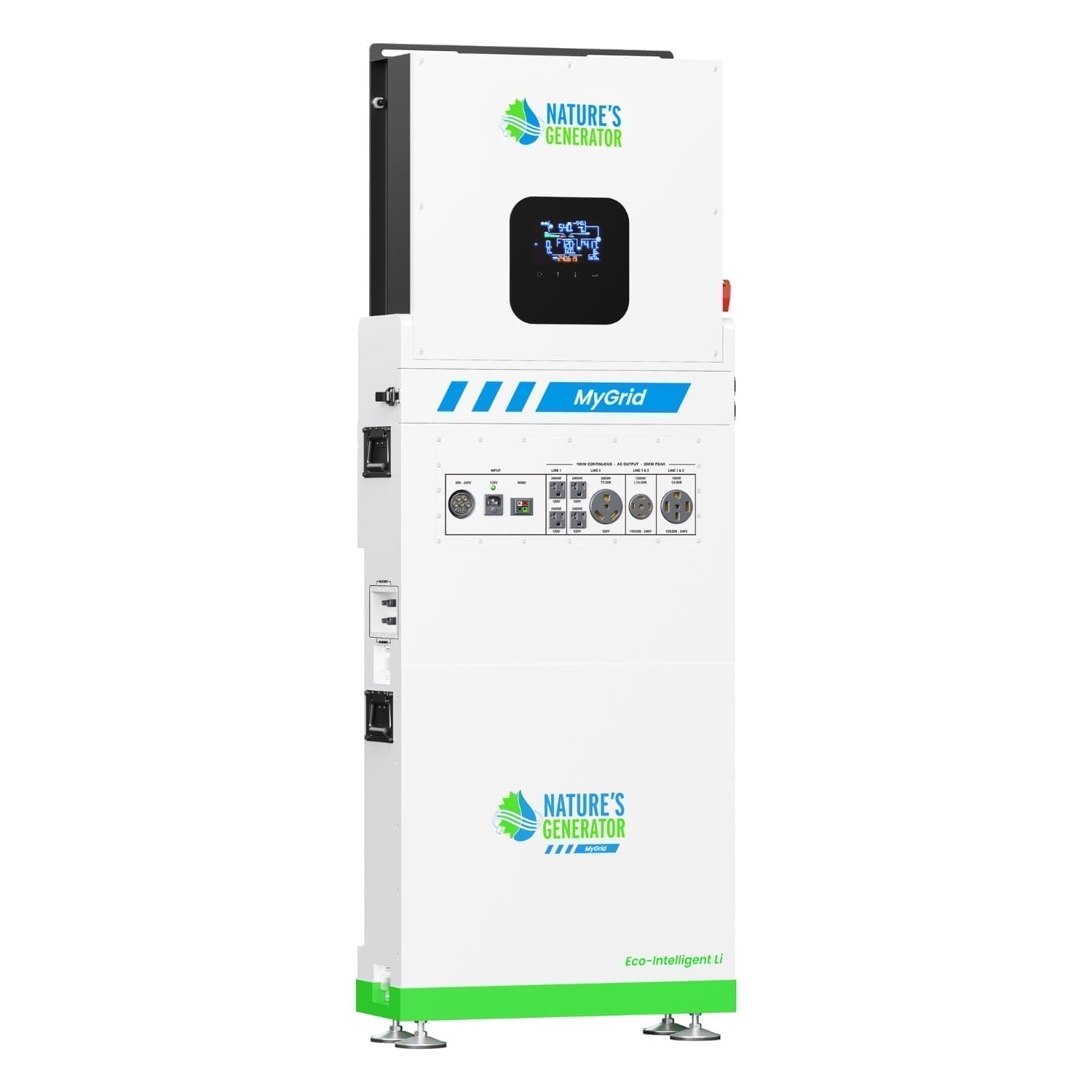

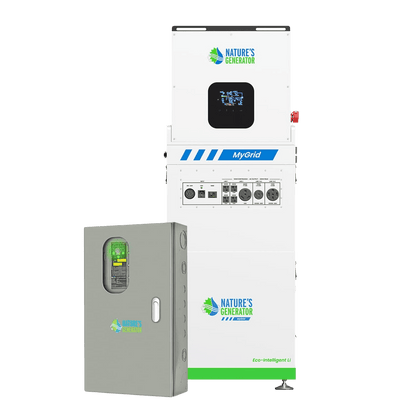

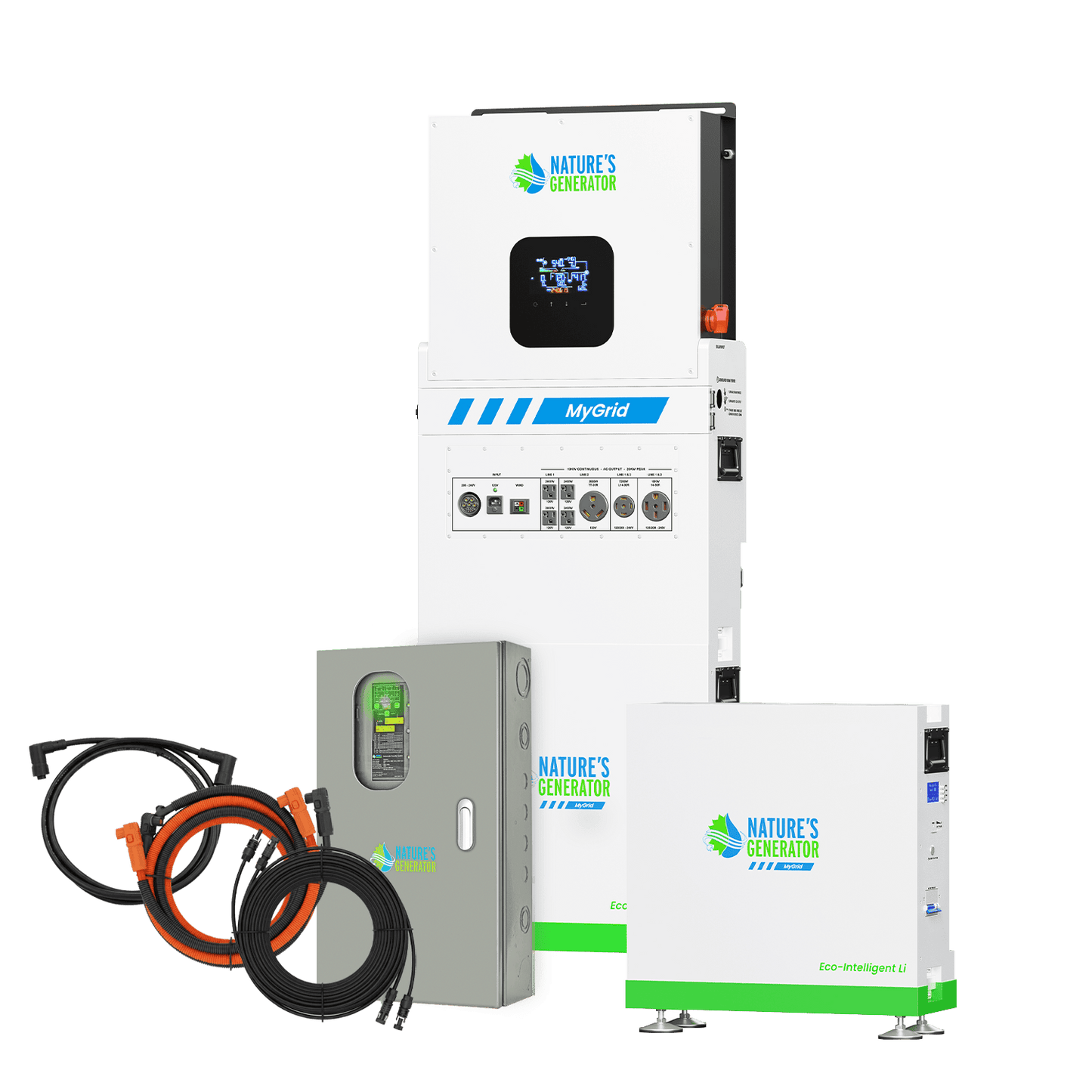

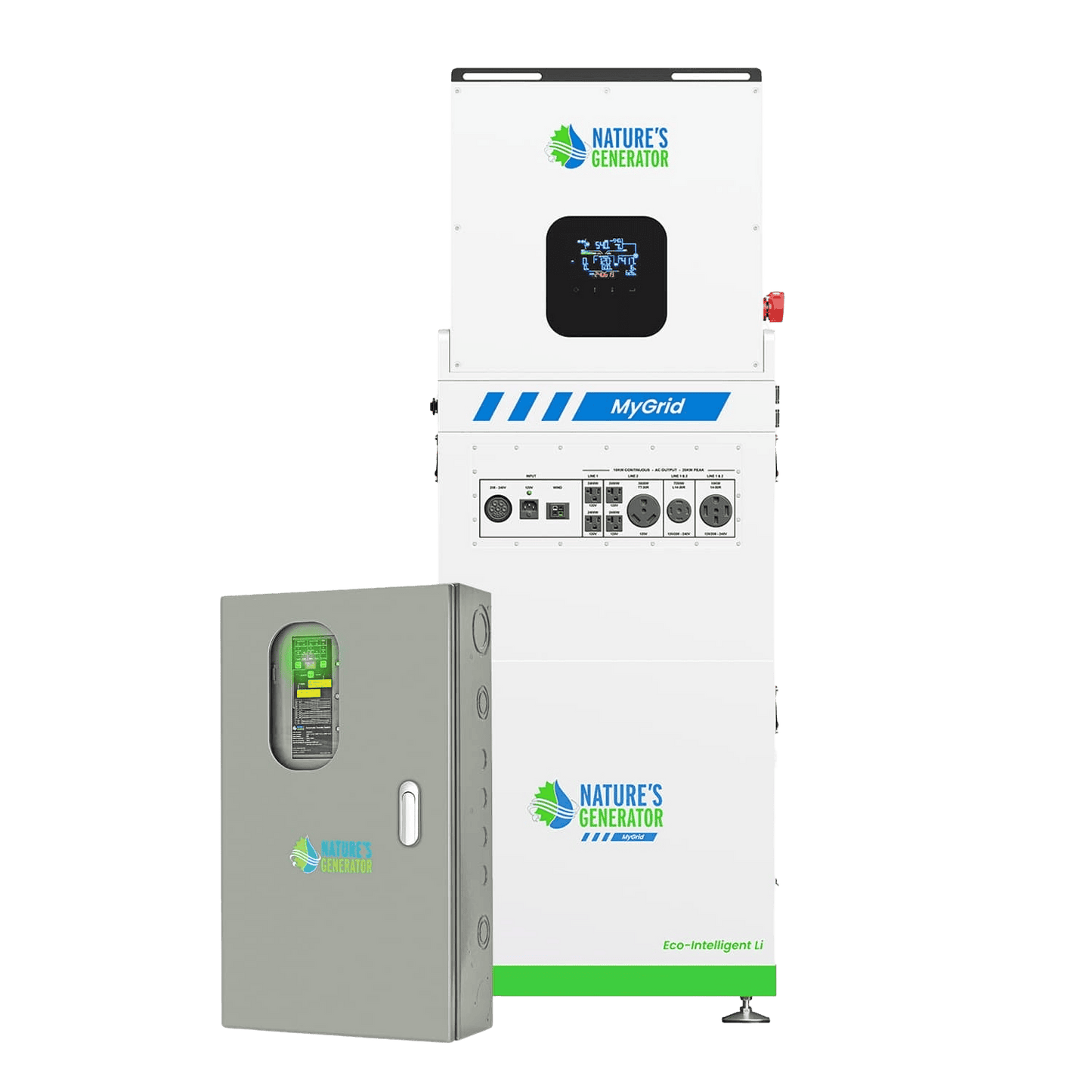

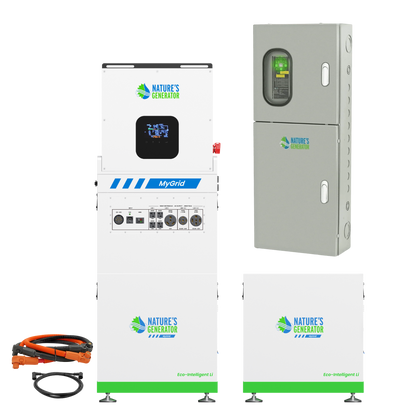

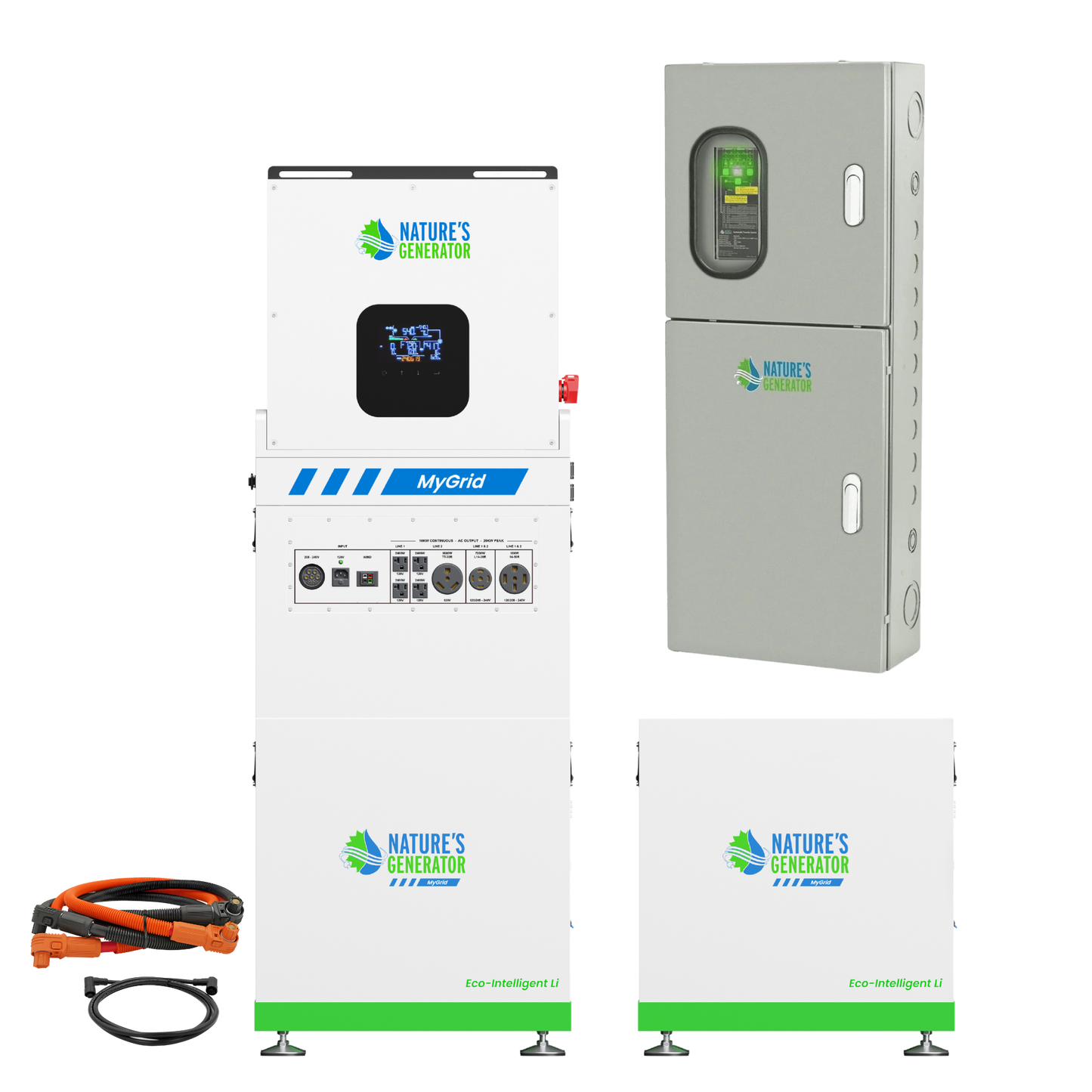

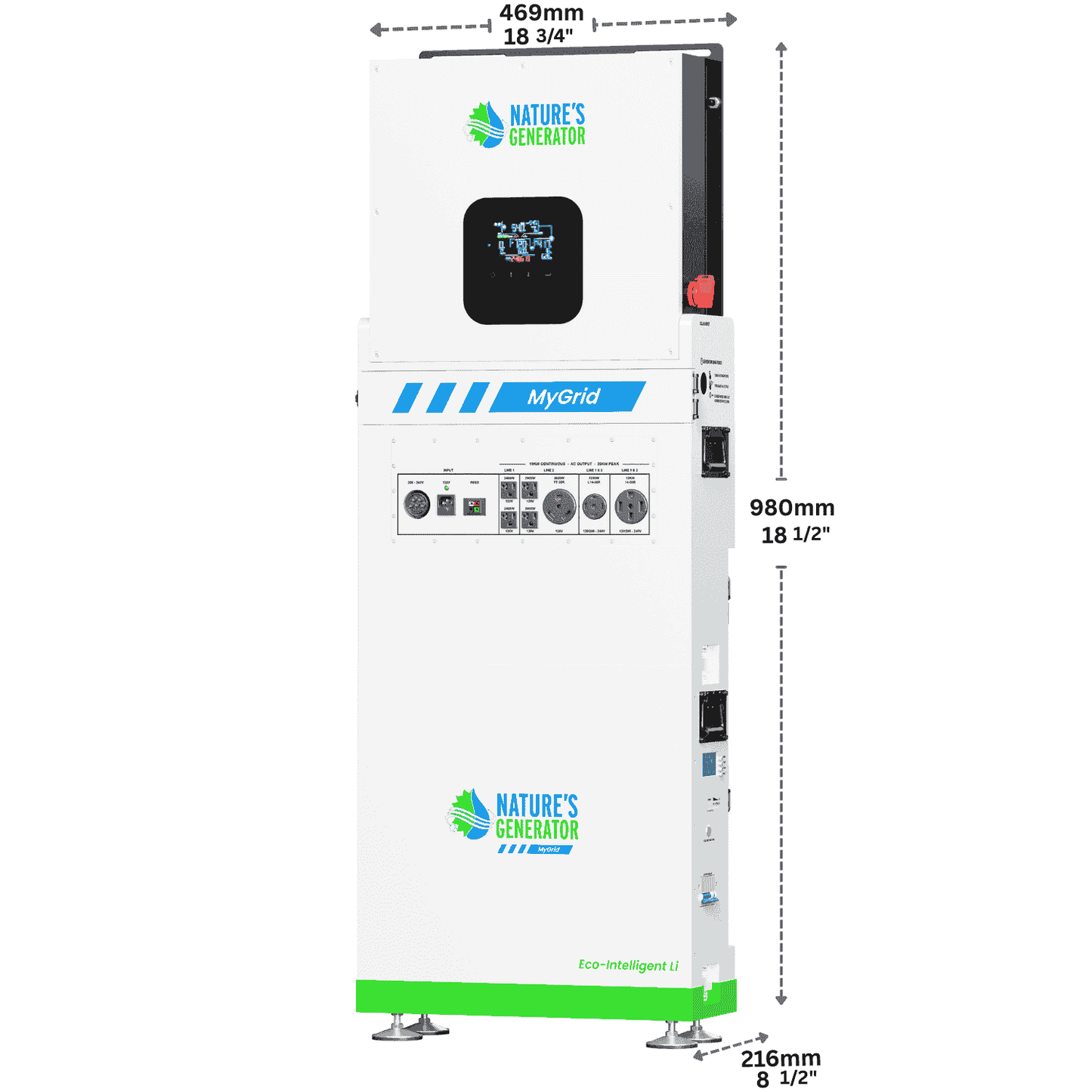

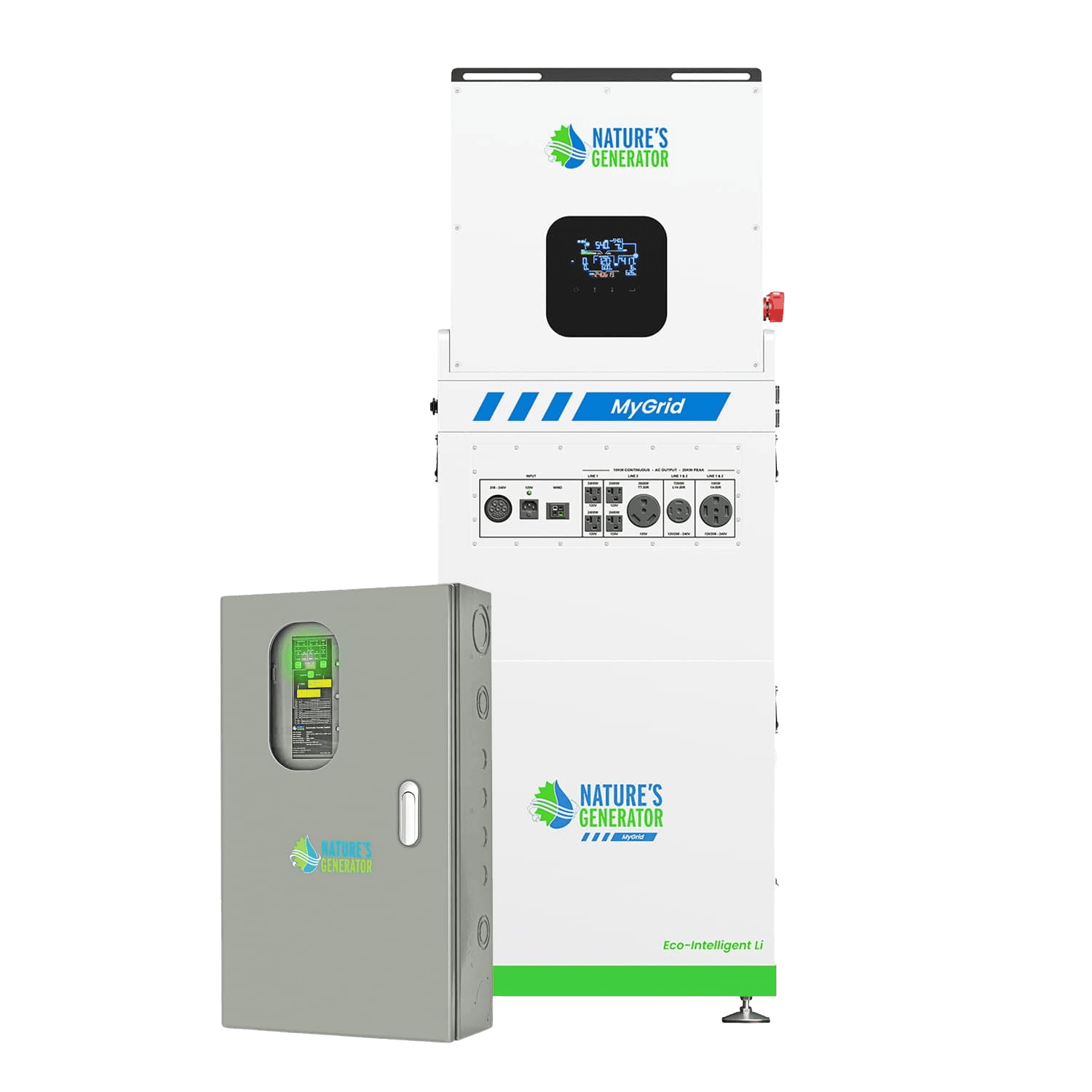

MyGrid 10K with Transfer Switch for House Battery Backup

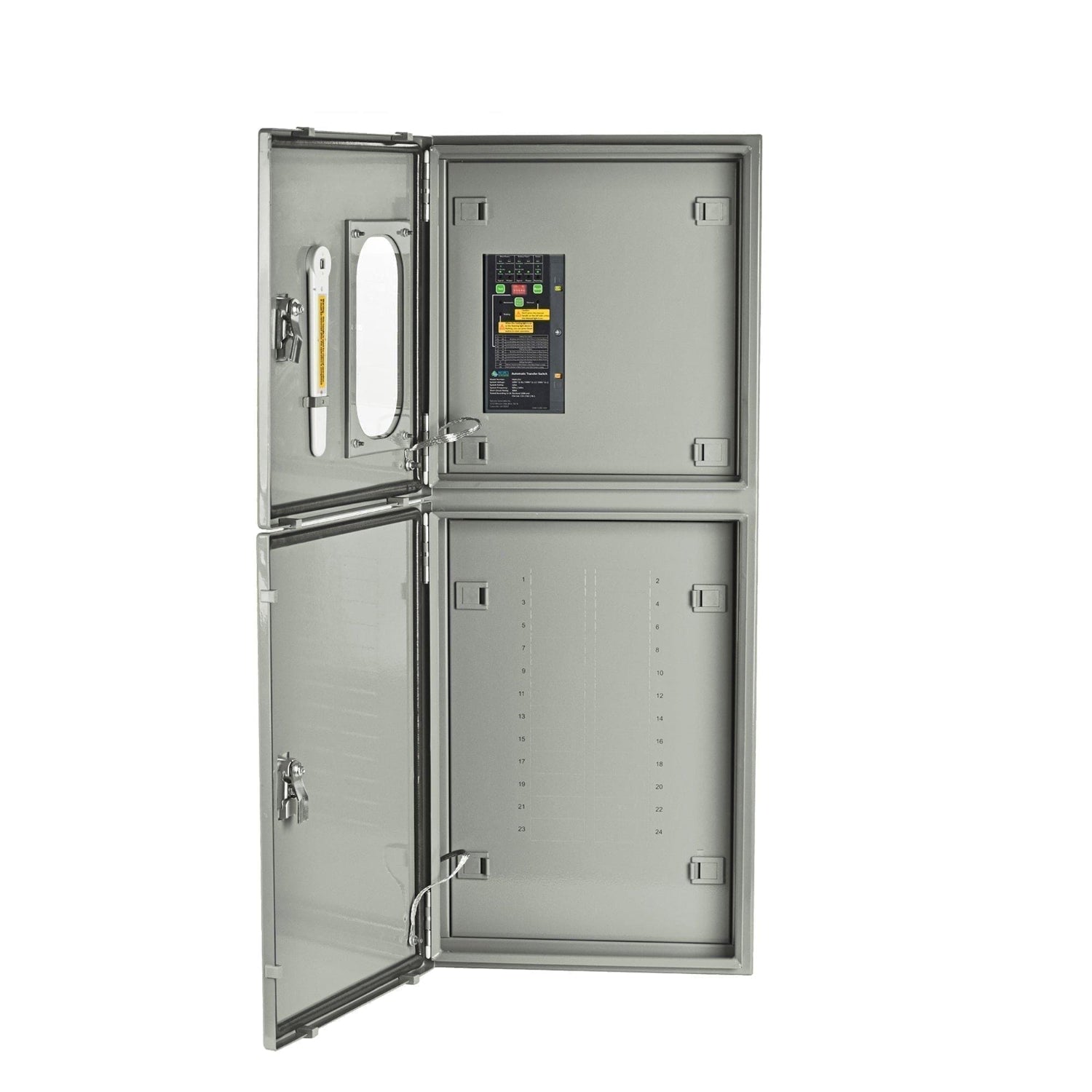

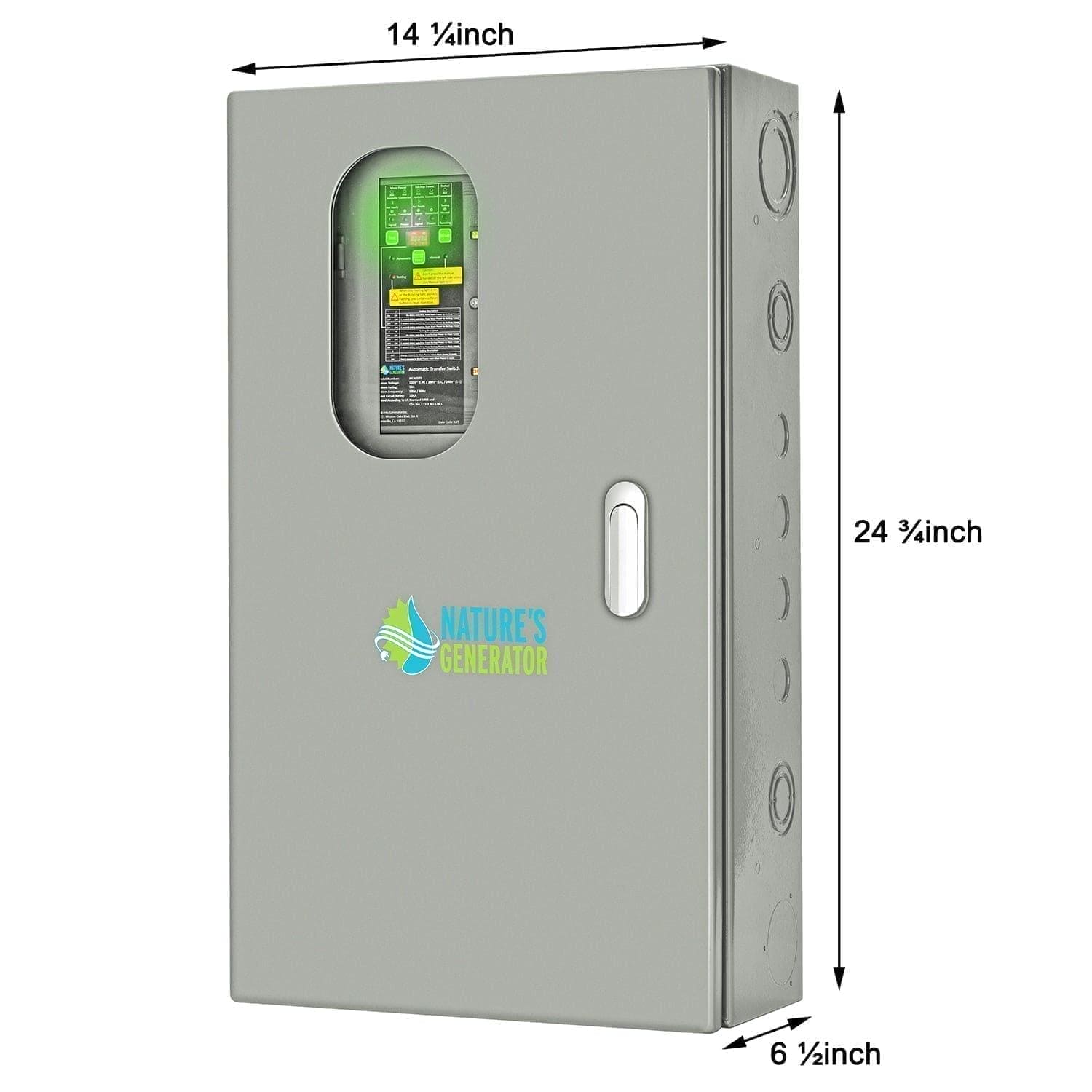

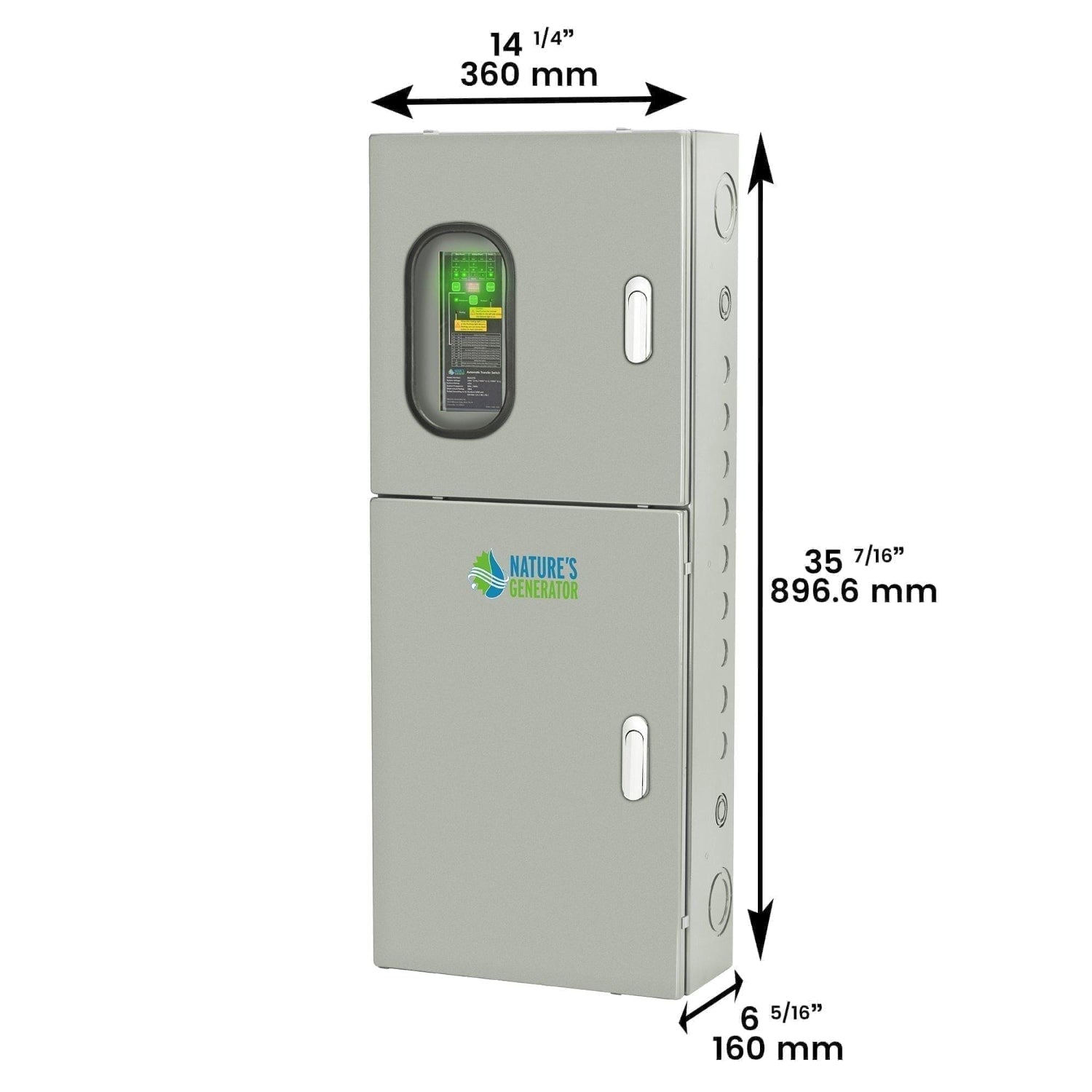

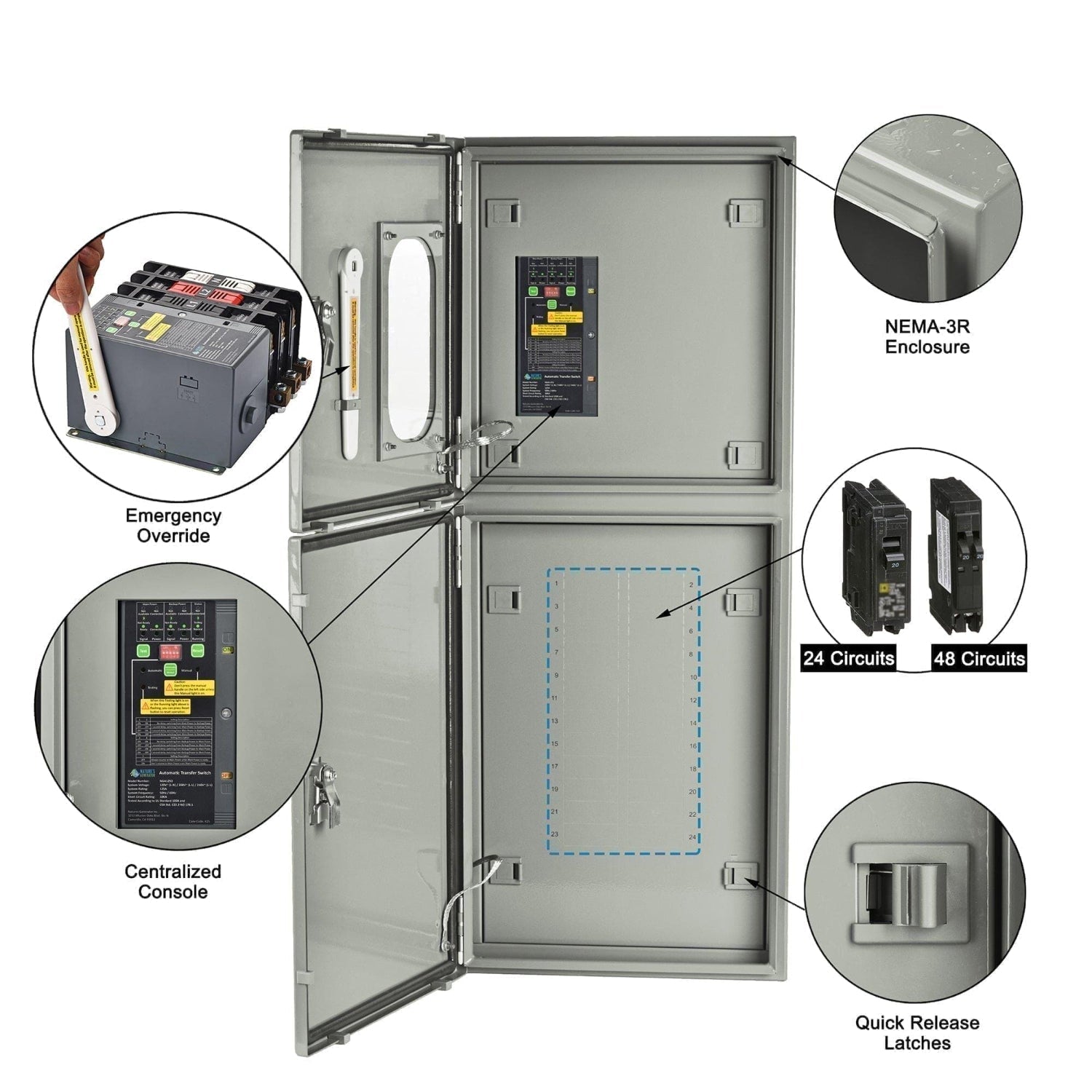

Equipment Type and Primary Applications: - Equipment Type: Standalone home energy storage system with automatic transfer switch - Primary Applications: Whole-home battery backup; AC coupling with existing grid-tied solar inverters; off-grid or uninterrupted power for residential and light commercial use; temporary or portable deployment scenarios Performance Specifications: - Continuous Output: 10,000 W - Battery: 10,496 Wh LiFePO4 - Expandability: Up to two units for 20,000 W total output; battery capacity expansion to 73,742 Wh; capable of integrating up to 12,000 W solar panels or 350 W wind turbine - Voltage Range: 120 V, 120/240 V, and 120/208 V charging and discharging - Charge Time: Up to 80% in approximately 2 hours - Transfer Switch: Automatic, seamless transition during outages or switchover to backup power Safety Features and Certifications: - Integrated Battery Management System (BMS) continuously monitors battery health and prevents overcharge, deep discharge, and thermal excursions - Compact, eco-friendly enclosure with safe, low-emission operation - UL 1741 certified - Basic safeguards include short-circuit protection and overcurrent protection Installation and Maintenance Requirements: - Installation: Plug-and-play design for quick setup, lower installation cost, and easy relocation - Commissioning: Refer to the user manual for step-by-step commissioning; system-wide checks performed during initial power-up - Maintenance: No routine maintenance intervals specified; rely on BMS monitoring for health status Warranty and Service Information: - Warranty information not provided Branding/References: - Manufacturer: MyGrid - Model: MyGrid 10K with Transfer Switch for House Battery Backup - References/Datasheets: Not provided Differentiators: - Expandable to 20 kW with two units and expanded battery to 73,742 Wh; supports up to 12,000 W solar or 350 W wind input; AC coupling with grid-tied inverters without additional panels
