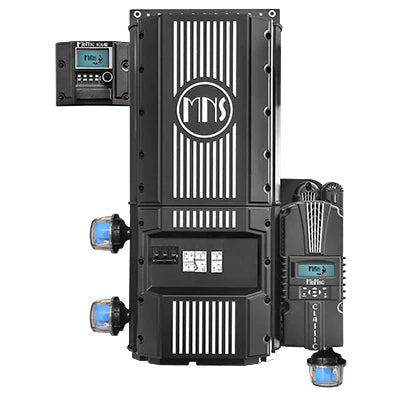

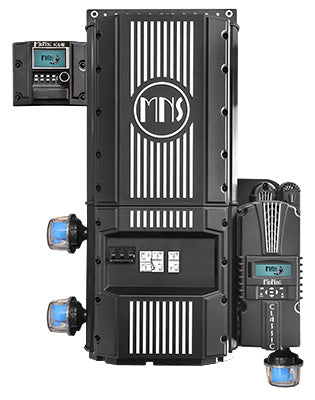

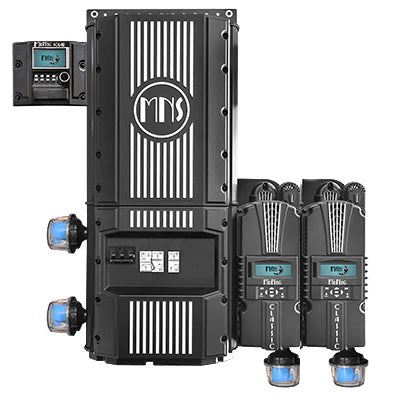

All-In-One Off-Grid Inverter System — 48V Pre-Wired Solar Kit with Classic 150 for Off-Grid Power Applications
Performance Specifications
- Integrated Classic 150 MPPT Charge Controller; up to 86A solar charging at 48V nominal
- Continuous Output Power: 7000VA @ 25°C (6000VA @ 40°C)
- Overload Capacity: 8400VA for 30 minutes @ 25°C
- Maximum Surge Capacity: 15,000VA
- Maximum Output Current: 88A RMS (60 seconds)
- Input Voltage Range: 40–65 VDC (48V nominal)
- Output Voltage: 120VAC or 120/240VAC selectable
- Output Frequency: 60Hz pure sine wave
- Total Harmonic Distortion: <5% at rated power
- Maximum AC Charging Current: 120A (combinable with solar charging)
- Standby Consumption: 30W (7W in search mode)
- Weight: 117 lbs; Shipping: 40 x 30 x 13 inches
- Warranty: 7 years
- Zero transfer time; true sine wave with integrated controls
- Lithium battery compatibility and auto-generator start functionality
- CAN bus communication; real-time SOC via Wizbang Jr. (MNGP2)
- Factory-installed MNSPD-300 surge protection on AC and DC sides
Safety Features and Certifications
- Factory-installed MNSPD-300 surge protection on AC and DC sides
Installation and Maintenance Requirements
- Utilities: 48V nominal battery bank; Input 40–65 VDC; Output 120VAC or 120/240VAC; 60Hz
- System is pre-wired and designed for simplified field wiring; verify CAN bus and Wizbang Jr. display during commissioning
- Commissioning steps: connect battery, configure output (120/240V), enable solar charging integration, test transfer
- Maintenance: perform periodic visual inspection of connections and enclosure; monitor SOC via Wizbang Jr.
Warranty and Service Information
- Warranty: 7 years
- Service terms: manufacturer support with standard RMA process (datasheet for details)
Branding/References
- Manufacturer: Midnite Solar
- Model numbers: Rosie 48V Solar Kit; Classic 150 MPPT Charge Controller
- References/datasheets: Classic 150 MPPT datasheet; Rosie 48V kit documentation
Differentiators
- Integrated pre-wired architecture pairing inverter, Classic 150 MPPT controller, and surge protection in one unit
- American-made design with 7-year warranty, 86A MPPT charging, and 15,000VA surge capacity
|
Continuous Output Power |
7000VA at 25°C (6000VA at 40°C) |
|
Overload Capacity |
8400VA for 30 minutes at 25°C |
|
Maximum Surge Capacity |
15,000VA |
|
Maximum Output Current |
88A RMS (60 seconds) |
|
Input Voltage Range |
40–65 VDC (48V nominal) |
|
Output Voltage |
120VAC or 120/240VAC selectable |
|
Output Frequency |
60Hz pure sine wave |
|
Total Harmonic Distortion |
<5% at rated power |
|
Maximum AC Charging Current |
120A (combinable with solar charging) |
|
Standby Consumption |
30 watts (7 watts in search mode) |
|
Weight |
117 lbs |
|
Dimensions (Shipping) |
40 x 30 x 13 inches |
|
Warranty |
7 years |
