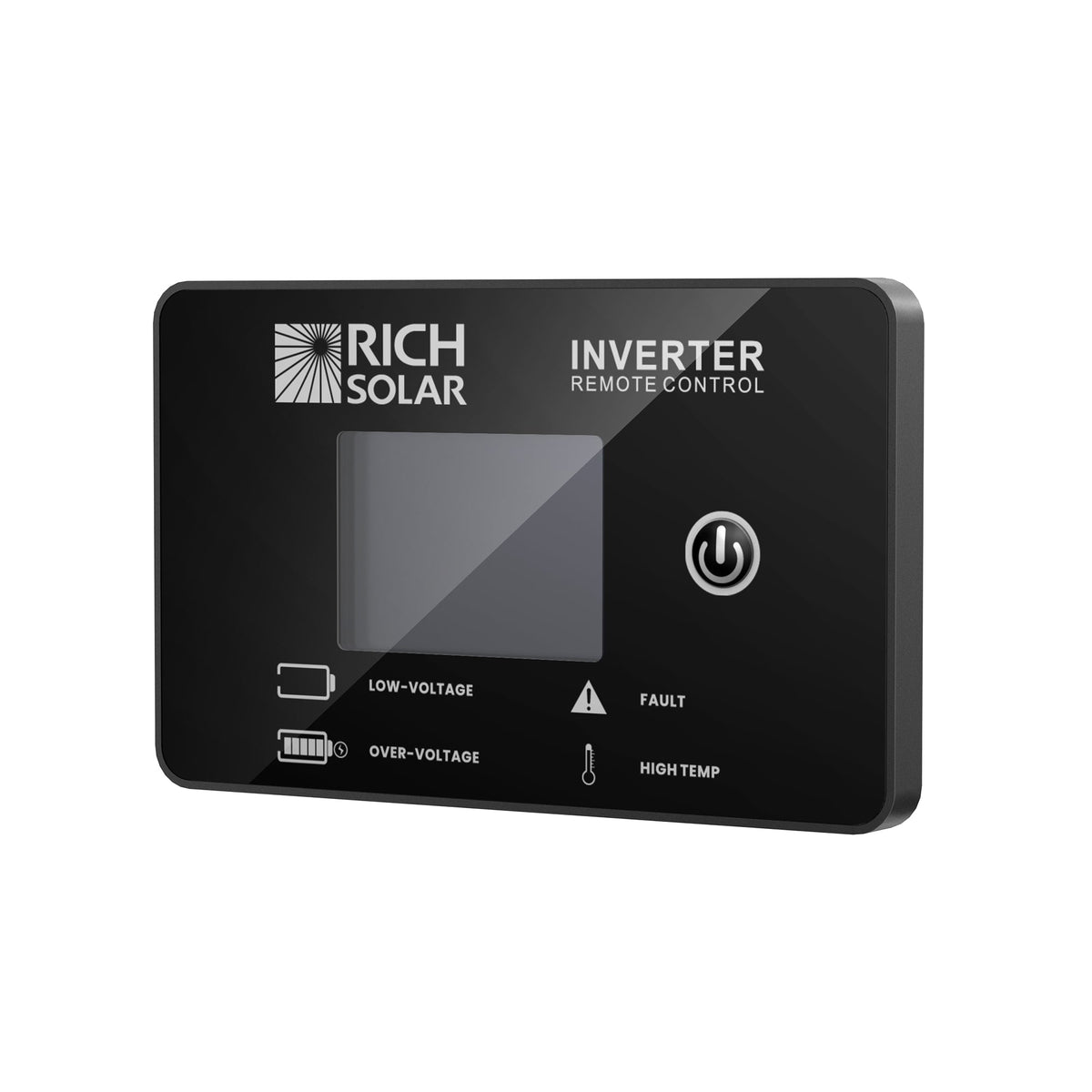

Nova Pure Series Inverter Remote Control with Smart LCD Display
Equipment Type and Primary Applications
Monitor essential inverter conditions from a flush-mounted control point with this wired remote control for Nova Pure Series inverters. It is compatible with RS-V3P12, RS-V3P24, RS-V2P12, RS-V2P24, and RS-V1P12 models. The controller is designed for viewing inverter voltage, output power, battery status, and fault information without accessing the inverter directly.
Performance Specifications

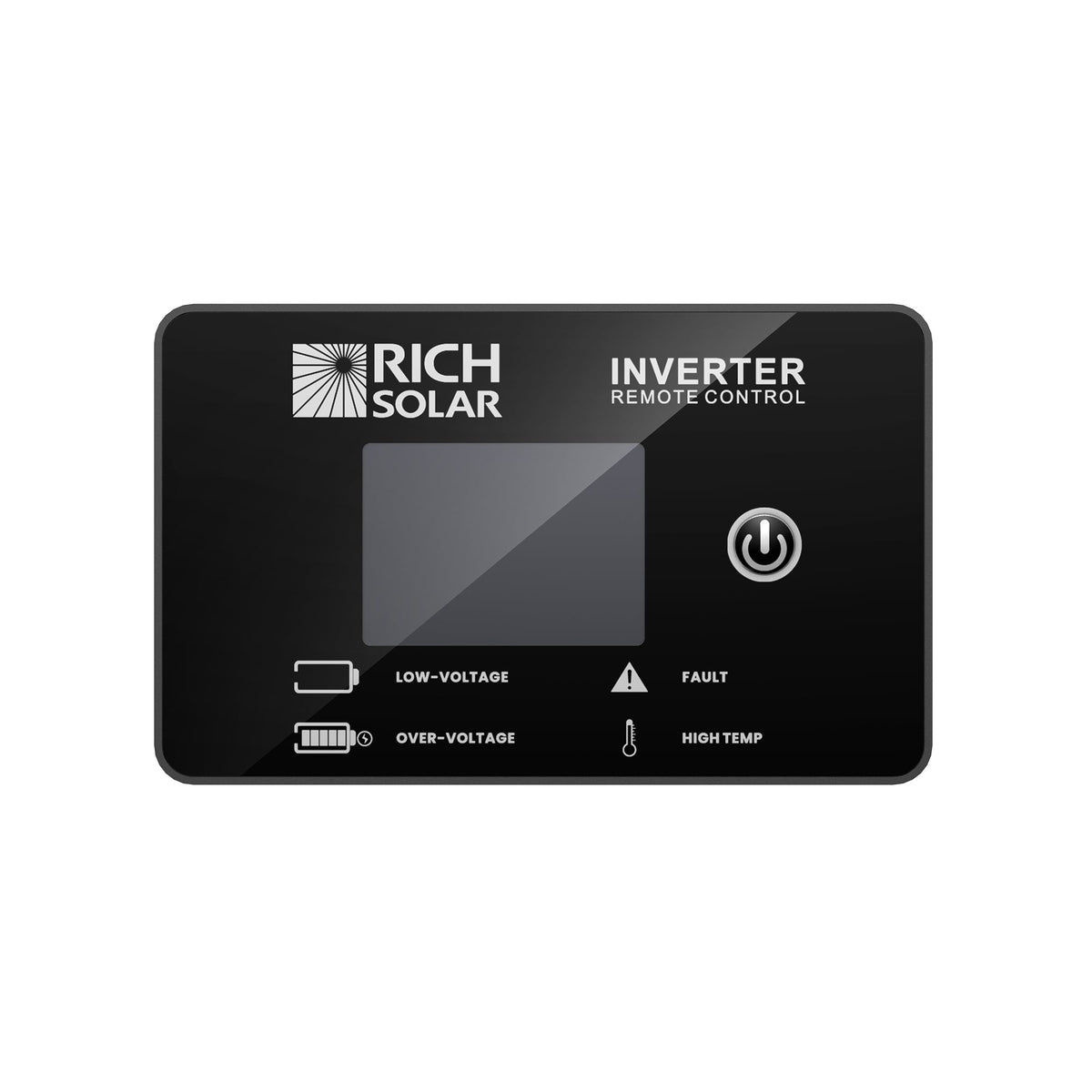

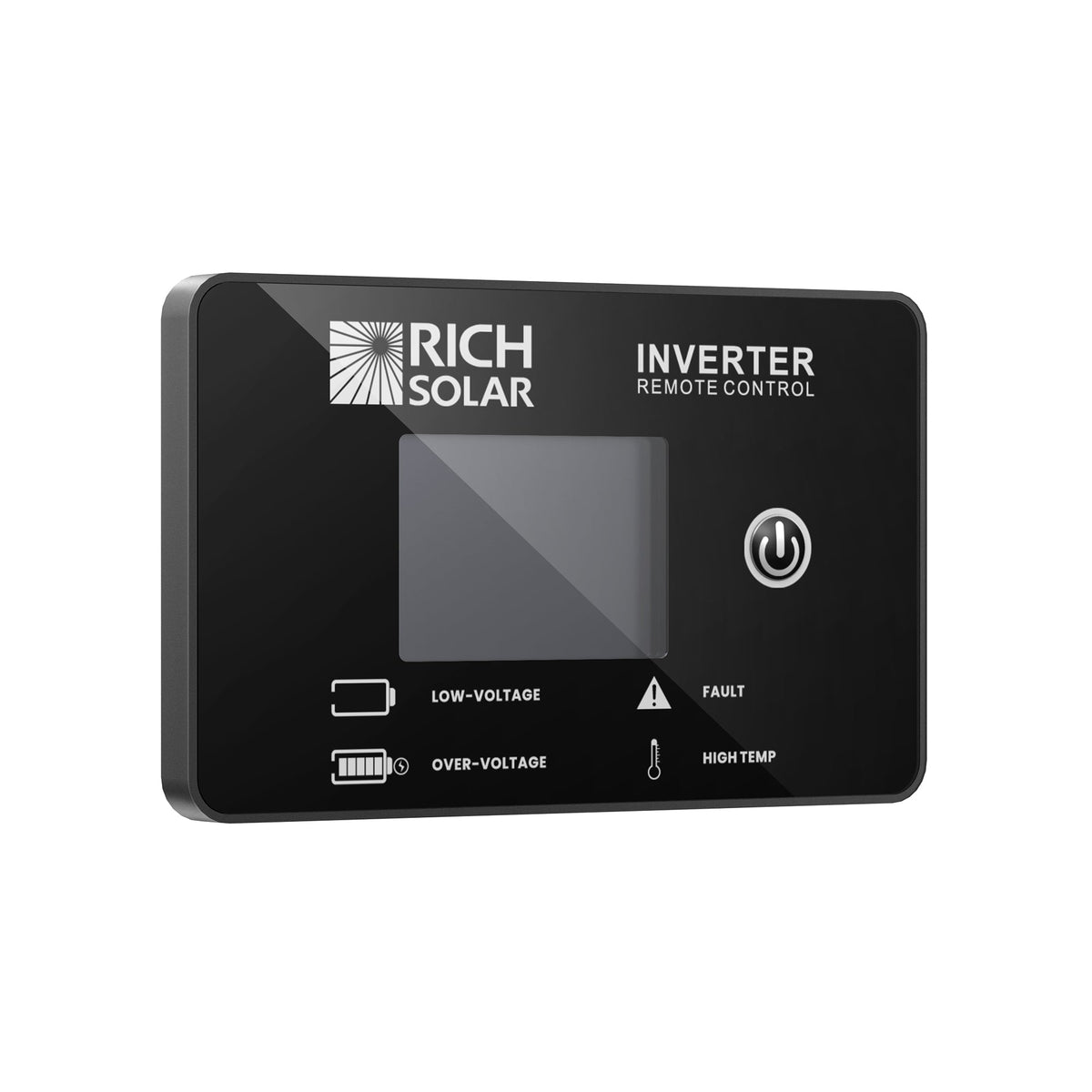

- Display: Backlit LCD with real-time inverter information
- Monitored data: Inverter voltage, output power, battery status, and fault information

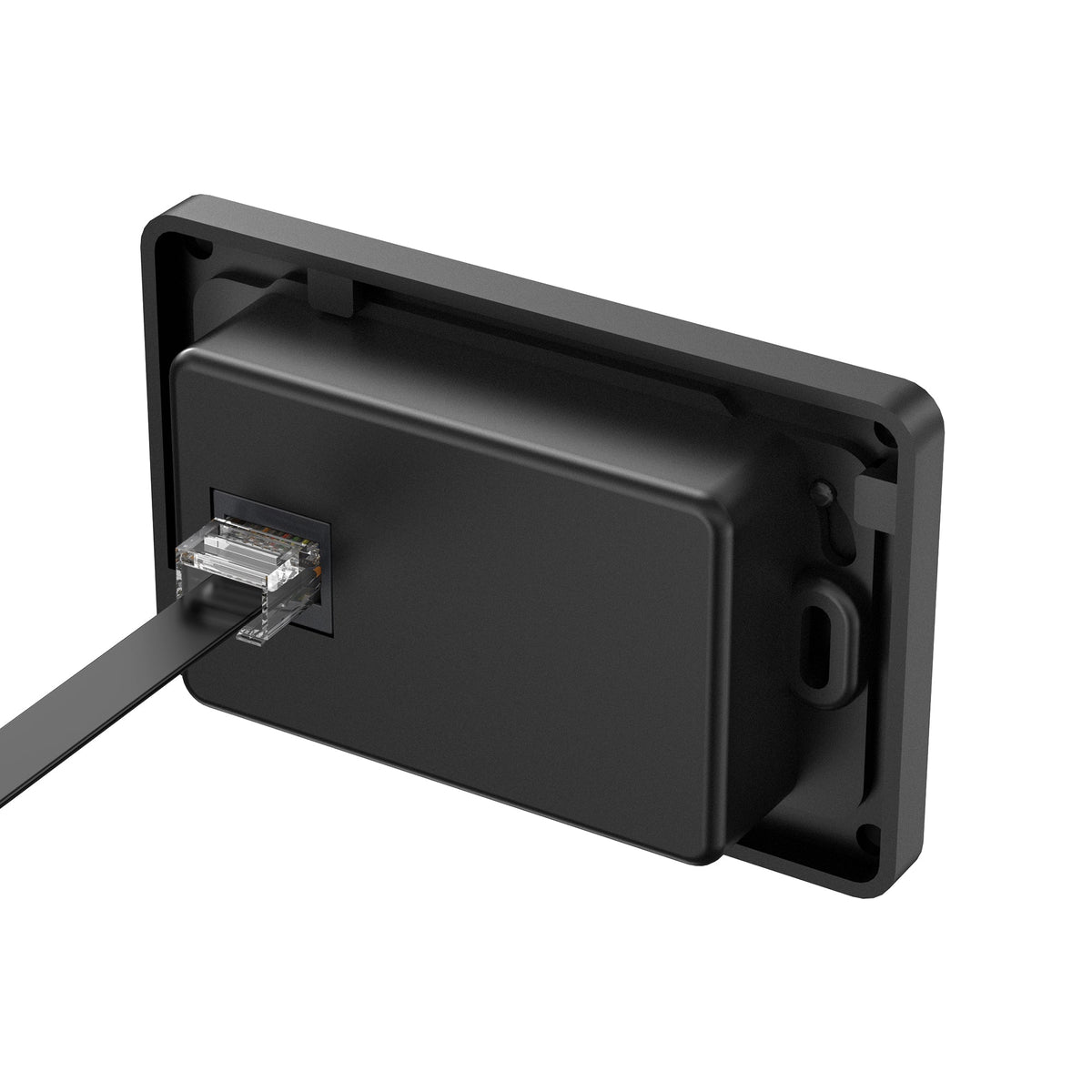

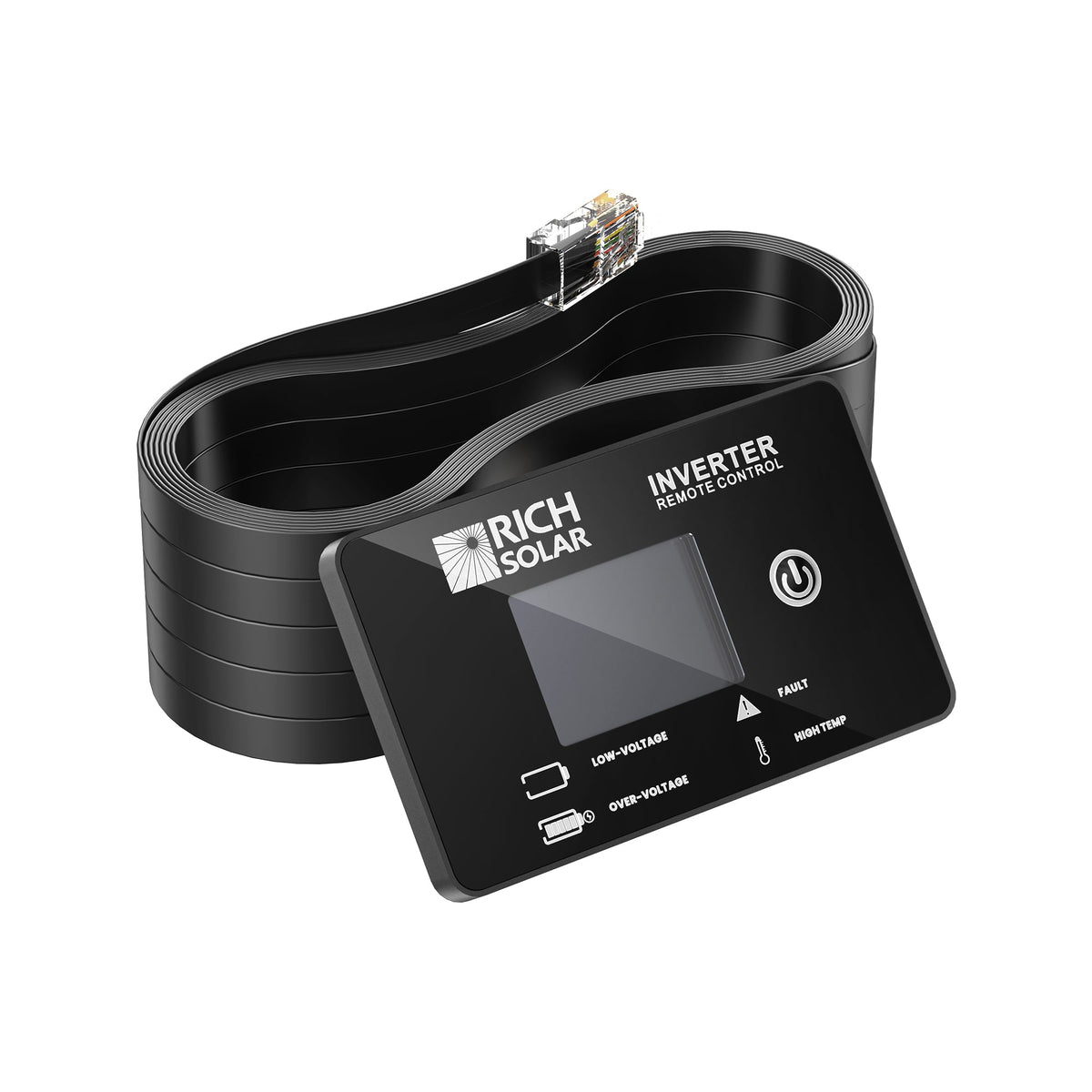

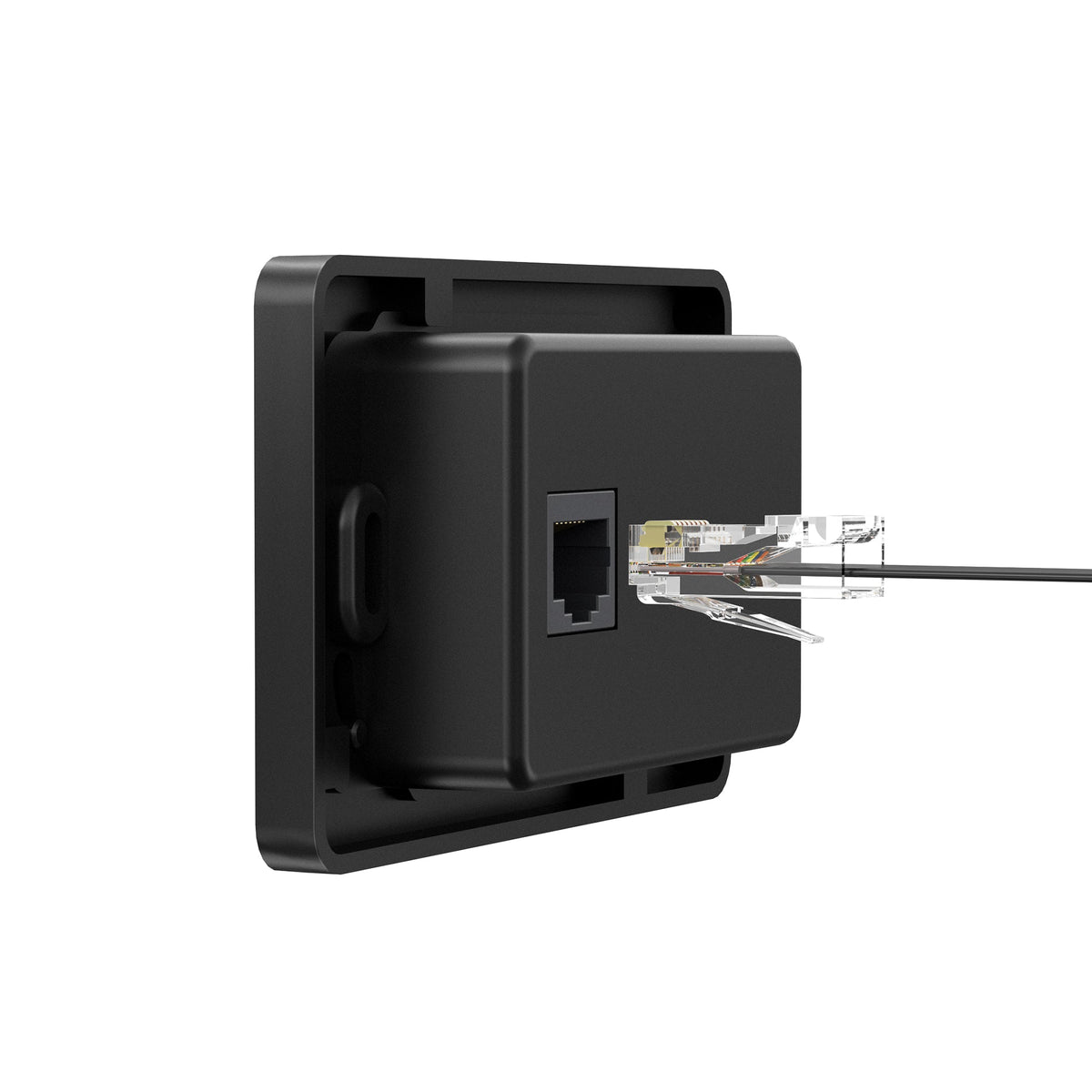

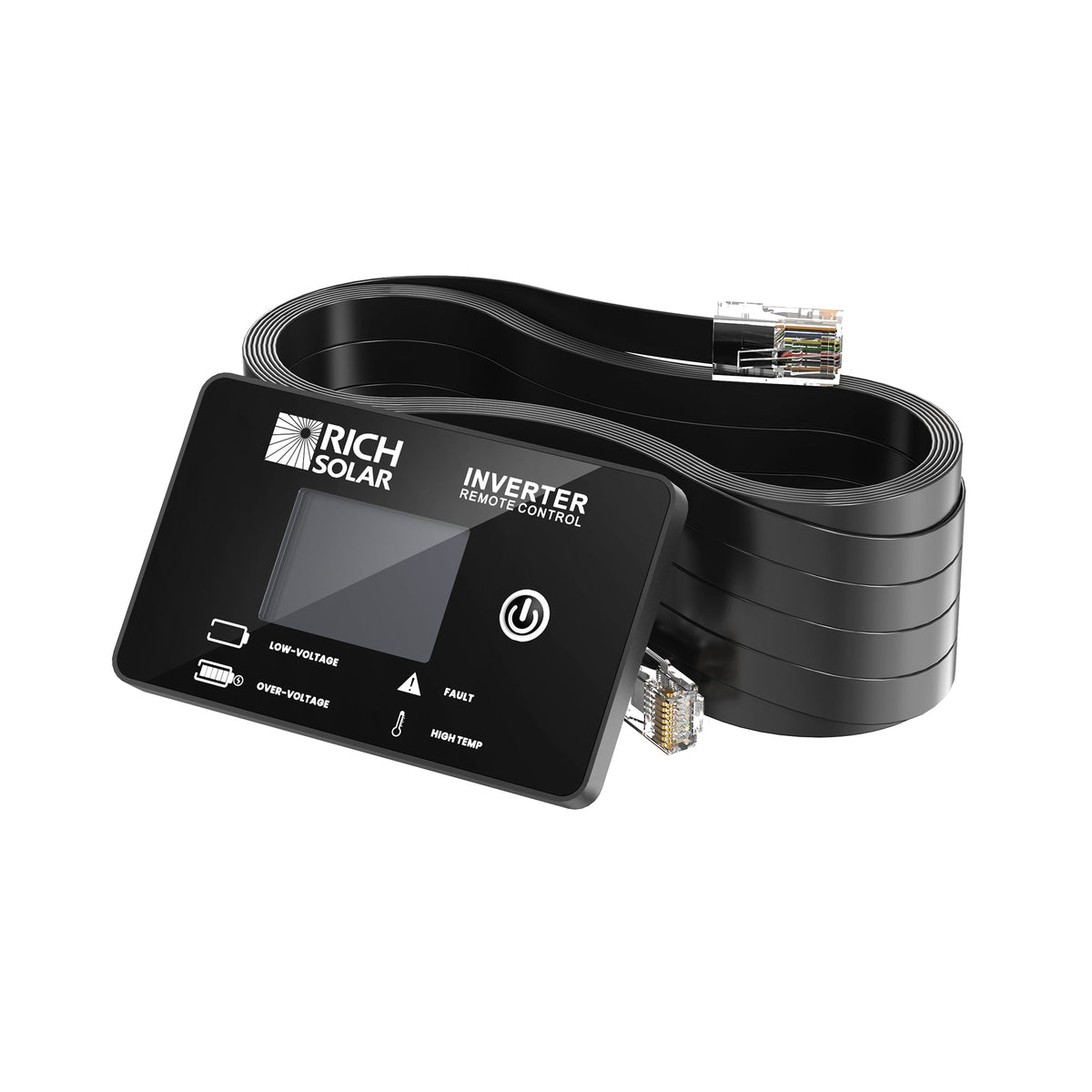

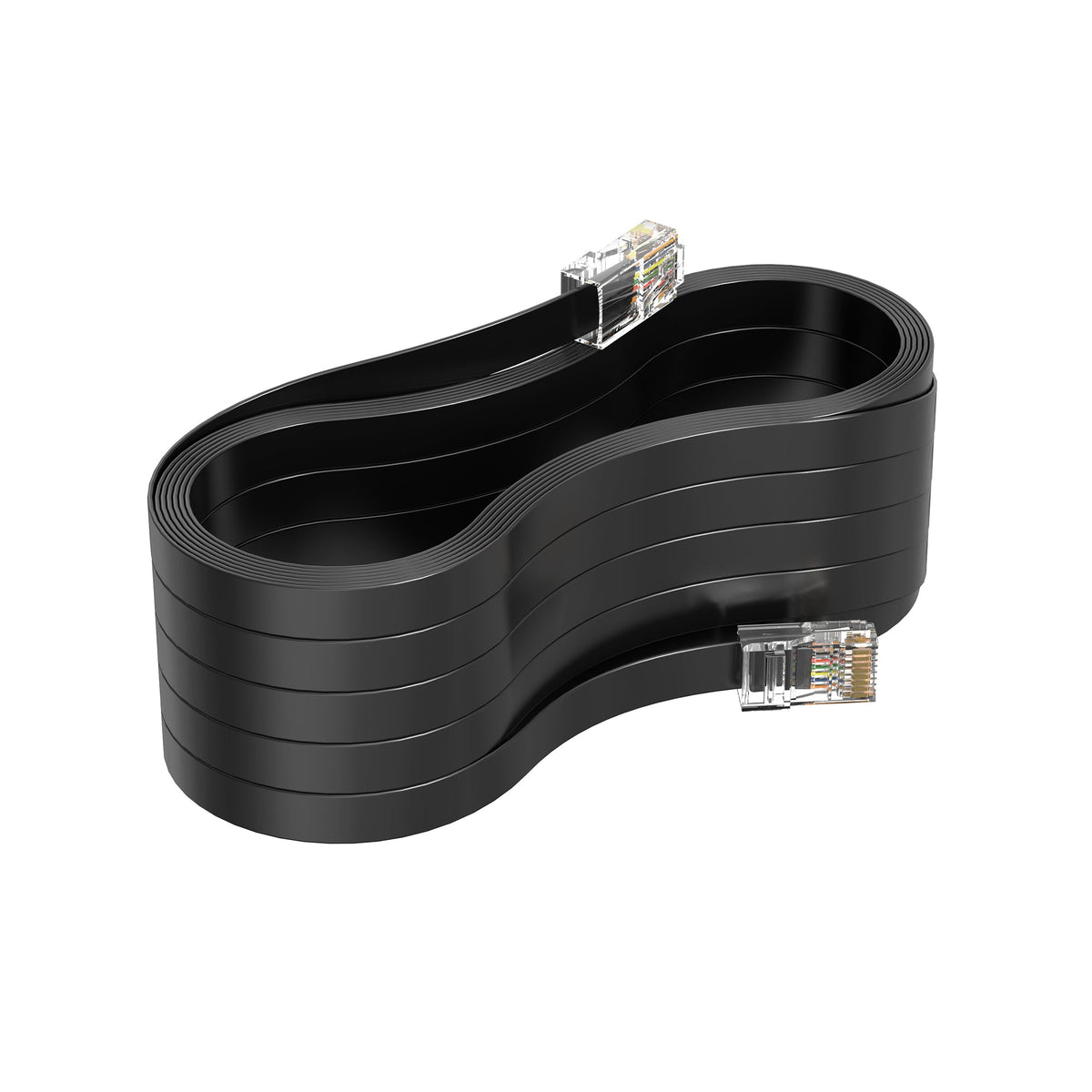

- Connection: Wired RJ45 communication through a 6 m (19.69 ft) shielded cable
- Controls: Tactile buttons for intuitive operation

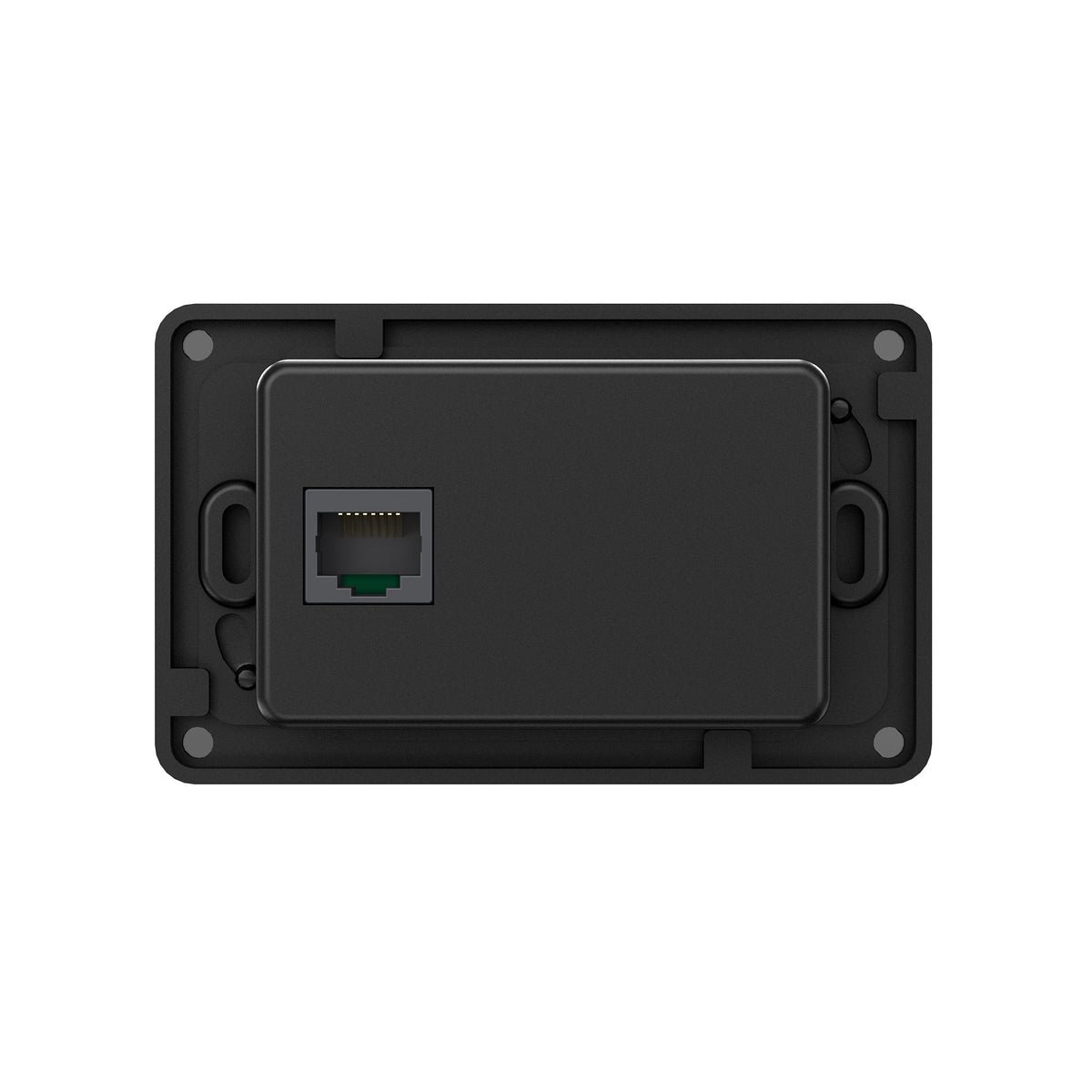

- Mounting: Flush mount
- Mounting hole spacing: 3.01 in (76.5 mm)
- Mounting hole diameter: 0.26 in (6.5 mm)
- Remote dimensions: 3.68 × 2.22 × 0.73 in
- Package dimensions: 4 × 3 × 1 in
- Gross weight: 1 lb
Safety Features and Certifications
Symbol-based fault indicators provide visual alerts to support quick diagnostics and troubleshooting. The shielded RJ45 cable provides stable communication for the connected inverter system.
Installation and Maintenance Requirements
Install the controller using its flush-mount configuration and specified mounting holes. Connect the included 6 m shielded RJ45 cable to the compatible inverter. Follow the inverter user manual for detailed installation and setup instructions.
Warranty and Service Information
Branding/References
Manufacturer series: Nova Pure Series. Compatible references: RS-V3P12, RS-V3P24, RS-V2P12, RS-V2P24, and RS-V1P12. Reference documentation: compatible inverter user manual.
Differentiators
The combination of a backlit LCD, symbol-based fault alerts, tactile controls, and a 6 m shielded RJ45 connection enables remote, at-a-glance inverter monitoring in a clean flush-mounted format.
