Grundfos 6SQF3 Well Pump, SQFlex AC/DC | 6 GPM 820 Ft

Grundfos 6SQF3 Well Pump, SQFlex AC/DC | 6 GPM 820 Ft

$5,626.00 USD
$0.00 USD $5,626.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Grundfos 6SQF3 Well Pump, SQFlex AC/DC | 6 GPM | 820 Ft

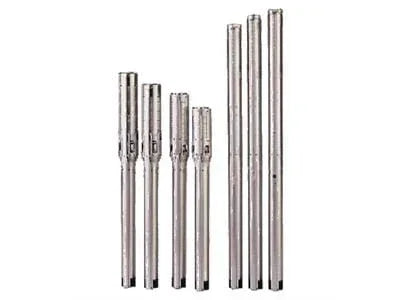

The 3" SQF pump with helical rotor is for high heads and low flows. The SQF pump fits only to the MSF 3 motor

Product Specifications

Grundfos 11SQF2 Well Pump, SQFlex AC/DC | 13 GPM | 395 Ft Product Specifications

Product name: 6 SQF-3
Product No.: 96834837
EAN: 5700311531631

Technical

Rated flow: 5.28 US gpm
Stages: 3
Approvals: CE,EAC,CN RoHS Exempt
Return valve: Y

Materials

Pump: Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Impeller, Stainless steel, EN 1.4301, AISI 304
Rotor: Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Stator: Stainless steel / EPDM, DIN W.-Nr. 1.4301, AISI 304

Installation

Type of connection: NPT(F)
Size of connection: 1 inch
Minimum borehole diameter: 2.99 in

Liquid

Pumped liquid: Water
Liquid temperature range: 32 .. 104 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³

Others

Minimum efficiency index, MEI ≥ -.--
Net weight: 6.17 lb
Gross weight: 10.4 lb
Sales region: North America
Country of origin: MX
Custom tariff no.: 8413.70.2004

Product Manual

Grundfos 6SQF3 Well Pump, SQFlex AC/DC IO 101 SQFlex (Quick Guide)

Grundfos 6SQF3 Well Pump, SQFlex AC/DC SQFLEX (Product brochure)

GRUNDFOS 5 SQF-8 solar submersible pump (Product brochure)

GRUNDFOS SOLAR WATER SOLUTIONS, SQFlex 1-8 solar submersible pump (Product brochure)

SQFlex, GRUNDFOS SOLAR WATER SOLUTIONS (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

POWERED BY NATURE, DRIVEN BY INNOVATION (Brochure/Article)

SQFLEX SOLAR POWERED SUBMERSIBLE PUMP RANGE (Product brochure)

SQFlex battery back-up system (Data booklet)

SQFlex, Renewable-energy-based water supply systems (Data booklet)
