Portable Sun LLC

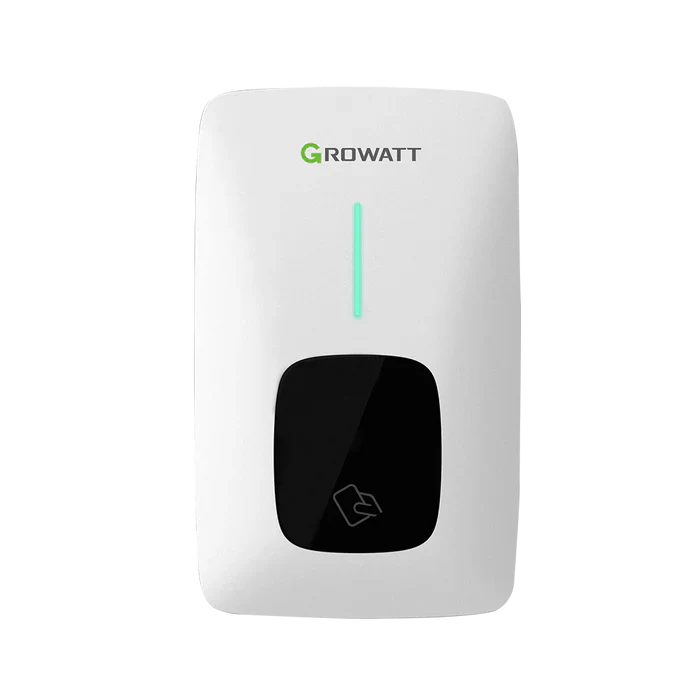

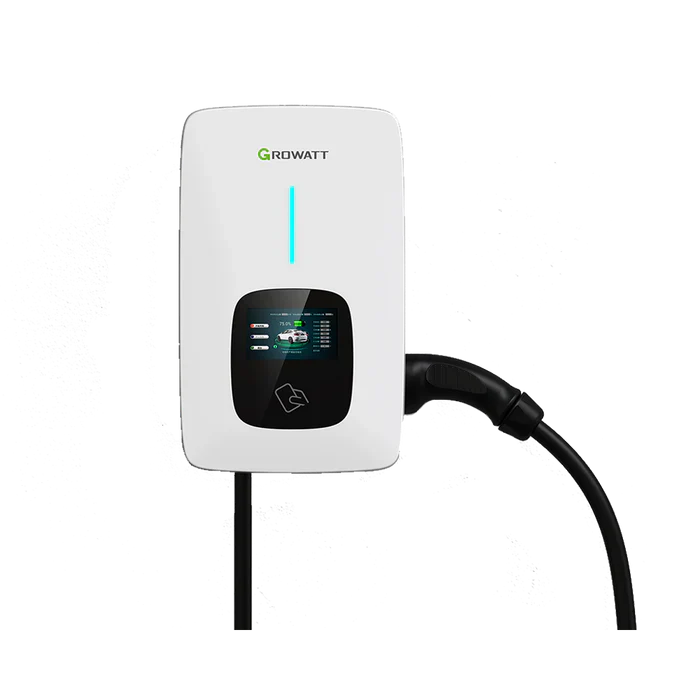

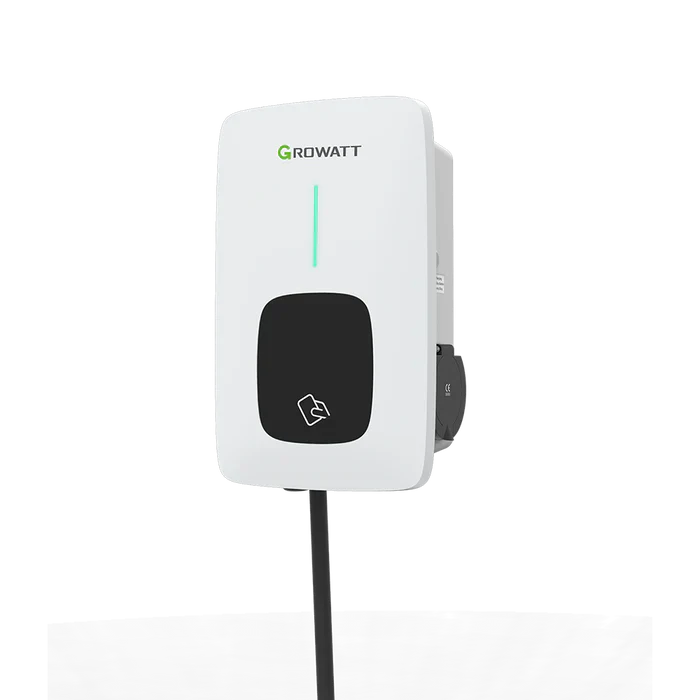

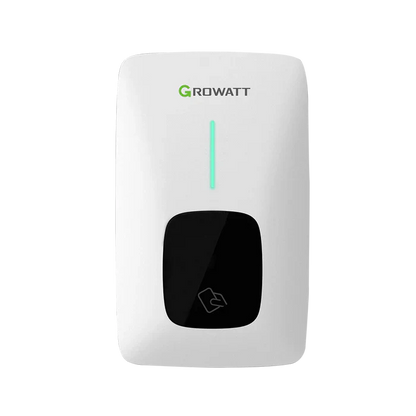

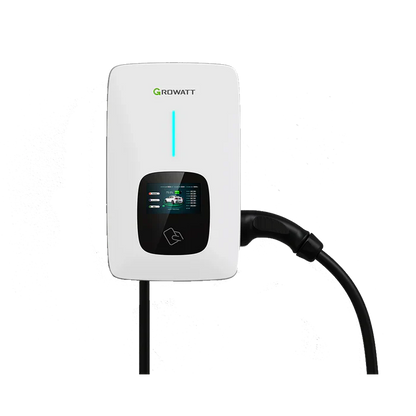

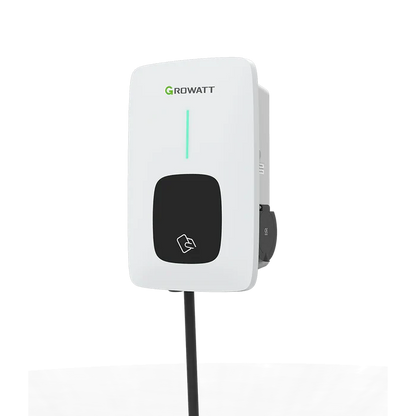

Growatt Thor 9.6kW Level 2 Ev Charger 40A 09AS-P US Smart WiFi RFID PV Linkage NEMA 4X

Growatt Thor 9.6kW Level 2 Ev Charger 40A 09AS-P US Smart WiFi RFID PV Linkage NEMA 4X

$550.00 USD
$699.00 USD $550.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Growatt THOR 9.6kW Level 2 EV Charger (THOR 09AS-P US)

Equipment Type and Primary Applications

- Equipment Type: AC Level 2 EV charger - Primary Applications: home and small business EV charging; solar-integrated installations using GroHome PV Linkage; outdoor environments (NEMA 4X)

Performance Specifications

- Max output power: 9.6 kW - Max output current: 40 A - Input voltage: 240 V - Charging interface: SAE J1772 (Type 1) - Cable length: 23 ft (7 m) - Enclosure rating: NEMA 4X - Working modes: Fast, PV Linkage, Off-Peak, Load Balancing - Networking/control: LAN, Wi-Fi, App control, RFID, Plug & Play - Dimensions (W×H×D): 9.68 × 15 × 6.06 in - Weight: 20.9 lb - Certifications: UL2594, UL2231, UL1998, CSA-C22.2

Safety Features and Certifications

- Type A RCD with 6 mA DC fault protection - NEMA 4X enclosure suited for outdoor/indoor use - UL2594, UL2231, UL1998, CSA-C22.2 certifications

Installation and Maintenance Requirements

- Utilities: 240 V AC supply; dedicated 40 A circuit preferred - Space/clearances: install in accessible location with outdoor-rated enclosure - Commissioning steps: connect power, configure network (LAN/Wi‑Fi) or 4G option, enroll in GroHome, enable PV Linkage - Preventive maintenance (tasks/intervals): periodic visual inspections of enclosure and connectors; firmware/app updates when available; verify RFID access and load-balancing functionality

Warranty and Service Information

- Warranty: 3 years

Branding/References

- Manufacturer: Growatt - Model: THOR 09AS-P US - Product family: THOR 9.6 kW Level 2 EV Charger - References/datasheets: THOR 09AS-P US datasheet; GroHome PV Linkage documentation

Differentiators

- PV Linkage prioritizes surplus solar for EV charging, enhancing self-consumption - GroHome integration enables solar-first scheduling and smart load balancing - RFID access and app-based control for flexible user management
