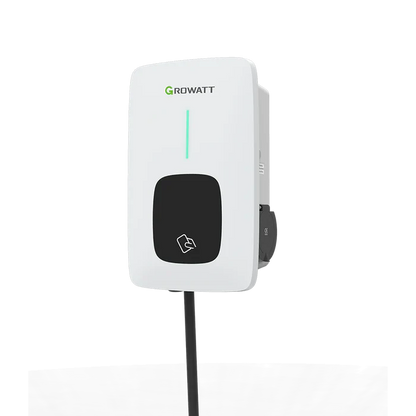

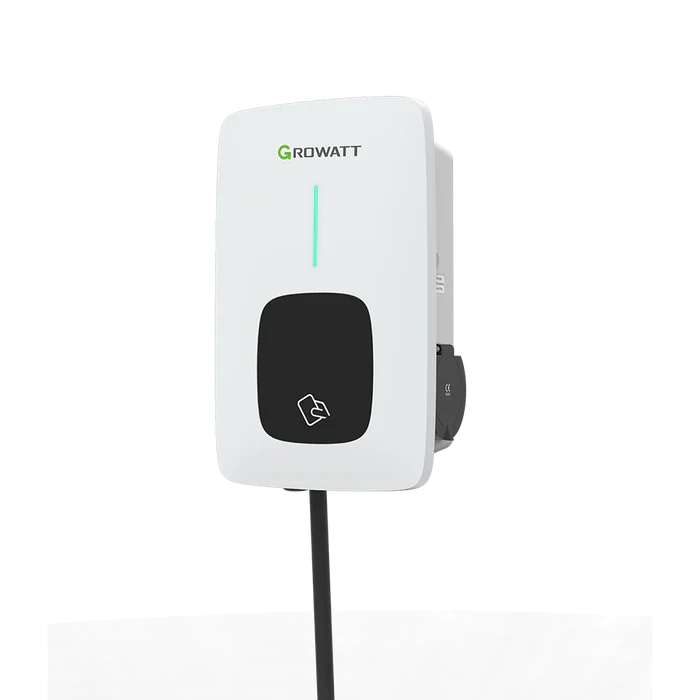

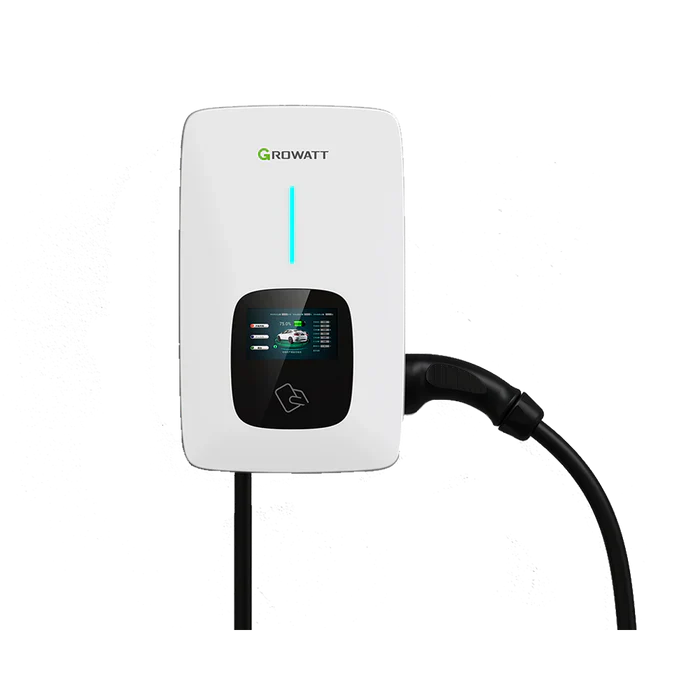

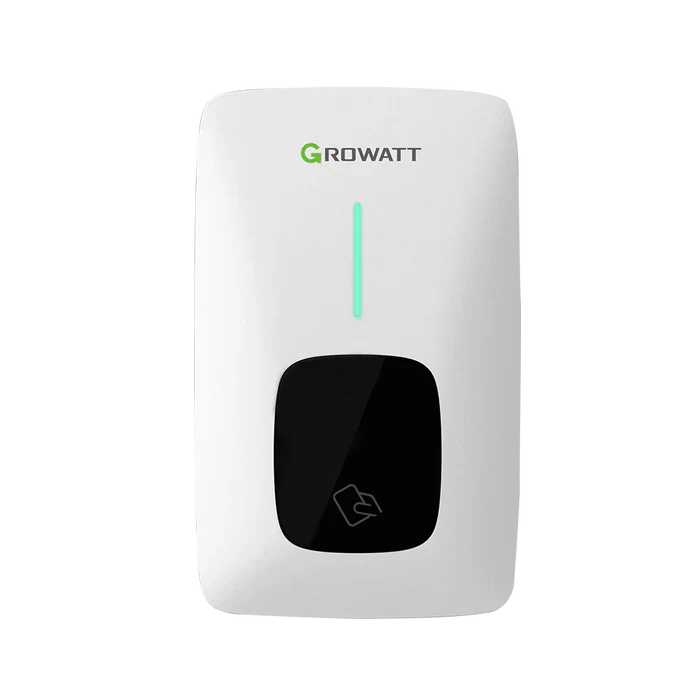

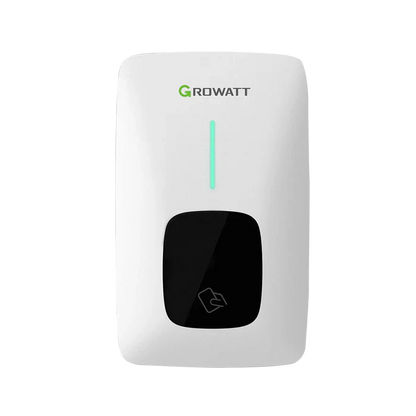

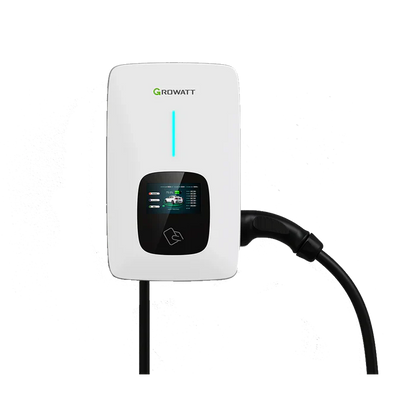

Growatt THOR 12AS-P US 12kW Level 2 EV Charger
Equipment Type and Primary Applications- Equipment Type: AC EV Charger (Level 2)
- Primary Applications: Residential and commercial charging; supports solar integration through PV Linkage
Performance Specifications
- Max output power: 12 kW
- Max output current: 50 A
- Input voltage: 240 V
- Charging connector: SAE J1772 (Type 1)
- Cable length: 23 ft (7 m)
- Enclosure rating: IP56 / NEMA 4X
- Dimensions (W × H × D): 9.68 × 15 × 6.06 in (246 × 382 × 154 mm)
- Weight: 20.9 lb (9.5 kg)
- Connectivity: LAN, Wi‑Fi; optional 4G
- Working modes: Fast, PV Linkage, Off-Peak, Load Balancing
- Solar integration: PV Linkage mode charges from surplus solar energy
- Certifications: UL2594, UL2231, UL1998, CSA-C22.2
Safety Features and Certifications
- Built-in Type A RCD with 6 mA DC fault protection
- IP56 / NEMA 4X enclosure for outdoor and indoor use
- Certification marks: UL2594, UL2231, UL1998, CSA-C22.2
Installation and Maintenance Requirements
- Utilities: 240 V input; dedicated circuit; 50 A maximum
- Required space: wall-mount footprint defined by listed dimensions
- Commissioning steps: install, connect to power, configure network (LAN/Wi‑Fi; 4G optional), enable PV Linkage and load balancing, enroll via App or RFID
- Preventive maintenance: not specified in product details; refer to manufacturer manuals for firmware updates and inspections
Warranty and Service Information
- Warranty: 3 years
- Coverage: manufacturer-backed warranty on defects
- Service terms and response times: not specified
Branding/References
- Manufacturer: Growatt
- Model: THOR 12AS-P US
- References: manuals, certificates, and datasheets available for download
Differentiators
- PV Linkage solar integration enabling direct charging from surplus solar energy
- High-power 12 kW / 50 A Level 2 capability with rugged IP56 / NEMA 4X enclosure and RFID/App control
