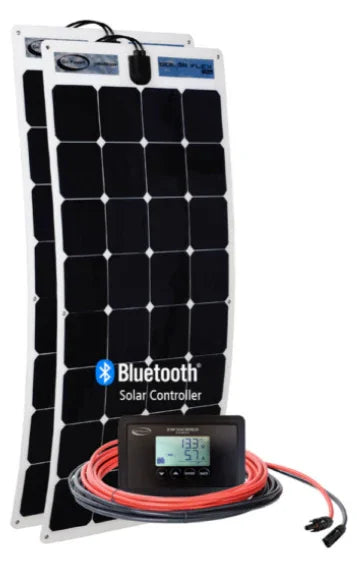

Go Power! 220 Watt Flexible Solar Kit – GP-FLEX-220
Overview
Go Power!'s GP-FLEX-220 is a 220-watt flexible solar kit designed for RVs and boats. Its ultra-thin, lightweight construction enables conforming installation on curved surfaces with a low-profile footprint. At less than 3 mm thick and with a bend tolerance to 30 degrees, the panels can contour to irregular roofs without heavy mounting hardware.
Performance specifications
- Nominal power: 220 W
- Current: 12.62 A
- Thickness: < 3 mm
- Bend tolerance: up to 30 degrees
- Durability: impermeable laminated surface for curved-surface mounting
- Weight advantage: ~82% lighter than rigid modules
Electrical enclosure and integration
Includes a 30-amp single-bank Bluetooth PWM Solar Controller (GP-SB-PWM-30-BT). Cables: 25 ft red (#10) and 25 ft black (#10) for panel-to-controller routing.
Installation and maintenance
- Mounting: adhesive or screws; grommets included
- Sealant: required sealant depends on roof membrane; not included; follow RV dealer/manufacturer guidelines
- Maintenance: inspect seals and connections periodically and clean surfaces to sustain performance
Warranty and service
5-year solar module power output warranty. For full terms and service information, consult the included User Manual, Spec Sheet, and Controller Manual.
Includes
- 220 W / 12.62 A solar charging kit
- 30-amp single-bank Bluetooth PWM Controller (GP-SB-PWM-30-BT)
- 25 ft red output cable (#10)
- 25 ft black output cable (#10)
- User Manual, Spec Sheet, Controller Manual
The Go Power! 220 Watt solar flex kit is perfect for RVs and boats, its flexible design can conform to almost any surface. The panels are only 3 mm thick, making them easy to install. The thin, lightweight design provides a low profile, which is aesthetically pleasing and more aerodynamic than traditional rigid solar modules. The solar panels are durable, allowing a bend of up to 30 degrees, providing you with a long-term solution to your solar power needs.
An impermeable lamination coats the entire Solar Flex module, allowing it to contour and flex against curved surfaces, eliminating any need for custom mounts. The panel can be affixed by adhesive or screws, and grommets are provided for ease of installation.
Key benefits:
Avoids custom mounts
Can be installed on a curve up to 30 degrees
Durable surface
Measures less than 1/8” (3 mm) thick
Is ideal for lightweight RVs (modules are 82% lighter)
5-year solar module power output warranty
The sealant/adhesive required will depend on the roof membrane material and is not included in the Solar Flex kit. Use an appropriate sealant as recommended by your RV dealer or manufacturer.
Kit Includes:
220 watts / 12.62 amps solar charging kit
30-amp single-bank, Bluetooth PWM Solar Controller (GP-SB-PWM-30-BT)
25′ of solar output cable - RED (#10)
25′ of solar output cable - BLACK (#10)
Documents:
User Manual
Spec Sheet
Controller Manual
