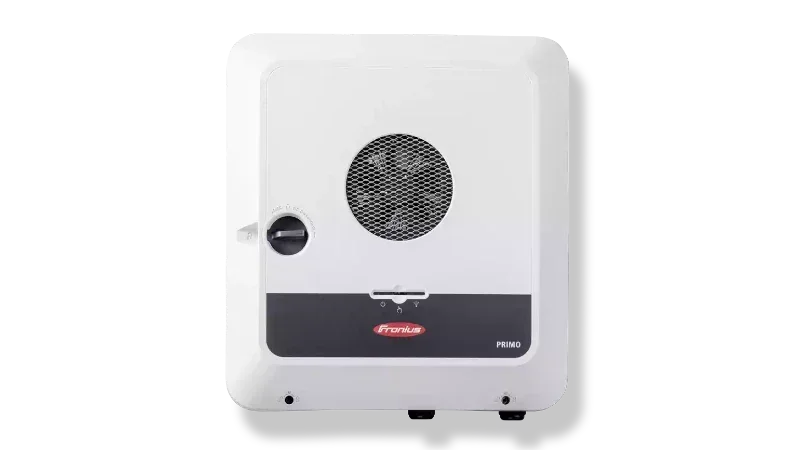

Fronius Primo GEN24 7.7 Plus 4,210,143,802

Fronius Primo GEN24 7.7 Plus 4,210,143,802

$2,860.00 USD
$0.00 USD $2,860.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Fronius Primo GEN24 7.7 208-240 Plus 4210143802

Key Features

  1. Integrated Shade Management: Features the Dynamic Peak Manager, optimizing yields at the string level, even in shaded conditions, without requiring additional hardware.
  2. Backup Power Ready: Equipped with PV Point for immediate backup power during grid outages, using solar energy (as long as sunlight is available) without needing a battery.
  3. Active Cooling Technology: Maintains optimal operation by reducing heat stress on components, ensuring longevity and reliability.
  4. Flexible System Design: The SuperFlex Design supports complex roof configurations with modules in various orientations and requires as few as three modules per string.
  5. Future-Ready Hybrid Design: Through a software upgrade, the inverter can be retrofitted with battery functionality for Full Backup capabilities.

Applications

  • Designed for residential and small-scale commercial PV installations.
  • Ideal for systems requiring backup power, with or without batteries.
  • Suitable for installations in complex roof configurations or shaded environments.
  • Perfect for outdoor installations in harsh climates due to its robust build.

Installation

  • Flexible Mounting: Supports indoor and outdoor installation.
  • Cooling: Advanced Active Cooling ensures consistent performance in high-temperature settings.
  • Environmental Protection: Rated Type 4X, providing excellent protection against water and dust ingress.

Specifications

Parameter Value
Model Fronius Primo GEN24 7.7 Plus
AC Rated Power 7,680 W
Maximum Output Current 32.0 A (240 V nominal)
Maximum PV Input Voltage 600 V
Nominal DC Input Voltage 365–400 V
MPP Voltage Range 260–480 V
Number of MPPTs 2
Maximum Efficiency 97.6%
CEC Efficiency 97.0%
Backup Power (PV Point) 3,120 VA (240 V nominal)
Dimensions 23.0 × 20.8 × 7.1 in
Weight 45.97 lbs
Operating Temperature Range -40°C to +60°C
Noise Emission <52 dB(A)
Protection Class Type 4X
Cooling Active Cooling Technology
Warranty 5-year standard (extendable)
