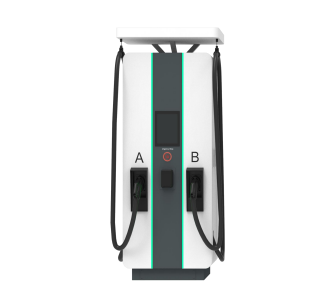

FDEnergy Genesis Series 240-480kW Integrated DC Charger

FDEnergy Genesis Series 240-480kW Integrated DC Charger

$118,125.00 USD
$118,125.00 USD
Sale Sold out
Shipping calculated at checkout.
Charging level

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Unit: FDEnergy Integrated DC Charger — Genesis Series
Power Range: 240–480kW (configurable 30–360kW output)
Number of Outputs: 2
Output Interface: CCS1 / CCS2 / CHAdeMO / NACS / GBT (Optional)
Installation: Ground mounted
Cooling: Air-cooled
Display: 12-inch touchscreen
Protection Level: IP55

View full details

FDEnergy Genesis Series 240–480 kW Integrated DC Fast Charger

Equipment Type: High-power integrated DC fast charging system. Primary Applications: Commercial fleet depots, highway corridors, and municipal EV networks requiring high duty-cycle throughput.

Performance Specifications

  • Rated output: 240–480 kW scalable per chassis
  • Channel architecture: Dual independent DC outputs for simultaneous charging
  • User interface: 12.1-inch color touchscreen
  • Connectivity: Ethernet, 4G LTE, or WiFi
  • Backend protocols: OCPP 1.6 J or OCPP 2.0.1 JSON
  • Access control: Swipe credential, QR scanning, or manual PIN

Safety Features and Certifications

  • Integrated overload relays with adaptive thermal derating
  • Multi-layer insulation monitoring for real-time fault isolation
  • Industrial-grade enclosure sealing against moisture and particulate ingress

Installation and Maintenance Requirements

Requires level concrete footing for ground-mount deployment. Connects directly to facility 3-phase power feeds with dedicated secondary disconnects. Initial setup validates communication handshake with station management software. Routine servicing entails quarterly air filter cleaning, annual terminal torque verification, and scheduled firmware synchronization.

Warranty and Service Information

System health monitored via continuous remote telemetry. Diagnostics export enables predictive component replacement and streamlined factory support dispatch.

Branding/References

Manufacturer: FDEnergy. Model series: Genesis. Reference resource: Official Technical Specification Sheet.

Differentiators

  • Shared high-frequency conversion architecture dynamically balances 480 kW across both ports without external transformers, reducing auxiliary equipment footprints and lowering site wiring requirements
