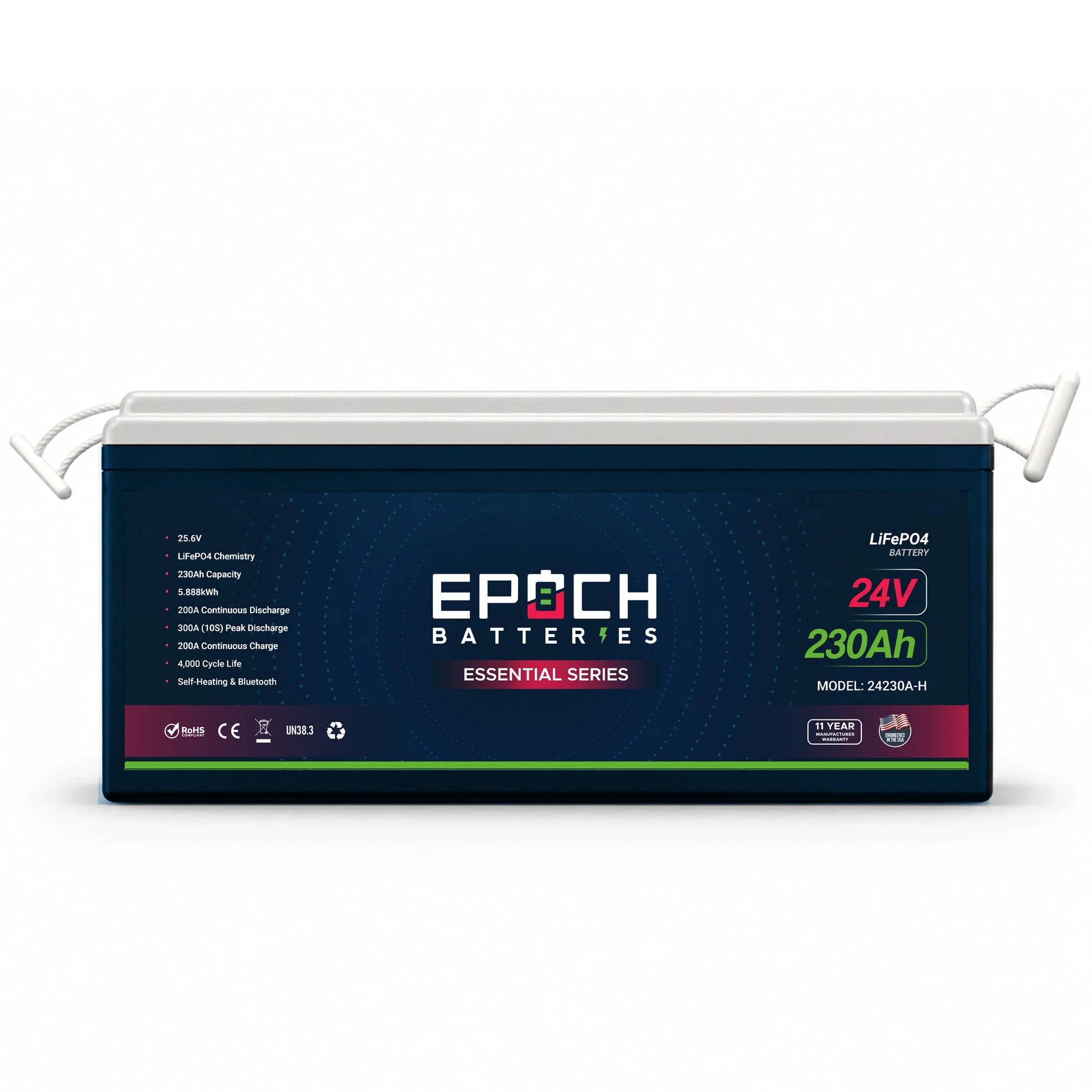

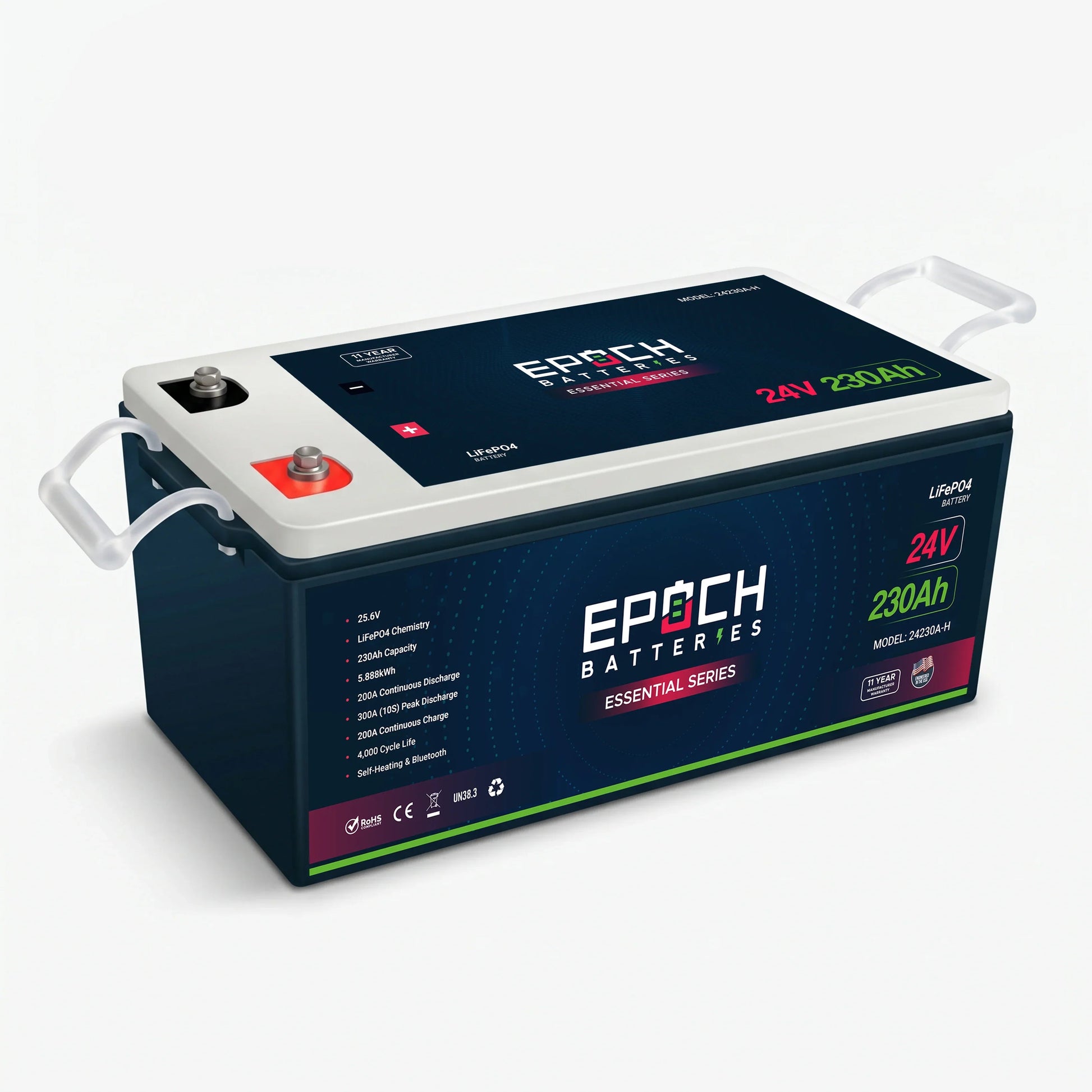

Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)
- 24V 230Ah Deep Cycle LiFePO4 (5.89kWh): Massive 5.89kWh usable energy capacity, engineered as a premium power solution for heavy-duty 24V marine house banks, large RVs, and off-grid solar systems.
- High-Performance 230A Output: Delivers a massive 230A maximum continuous discharge—and a 500A peak (for up to 30 seconds)—to effortlessly run large inverters, A/C units, and high-draw equipment.
- Heated for Sub-Zero Charging: Built-in internal self-heating technology ensures safe and efficient charging even in extreme freezing temperatures (down to -22°F).
- Smart Bluetooth Monitoring: Connect seamlessly to the free Epoch iOS and Android apps to track real-time capacity, voltage, and overall battery health directly from your smartphone.
- IP54 Rated: Dust-protected and splash-resistant
- Advanced Smart BMS Protection: The integrated Battery Management System automatically guards your investment against over-charge, over-discharge, over-current, short circuits, and extreme high/low temperatures.
- 4,000+ Cycle Life & Maintenance-Free: Exceptional drop-in longevity offering over a decade of reliable daily use with absolutely no watering, acid maintenance, or routine upkeep required.
- 11-Year Manufacturer Warranty: Backed by an industry-leading warranty to guarantee long-term performance and ultimate peace of mind on the water or off the grid.
Technical Specifications & Dimensions
Clean technical table for the Epoch 24V 230Ah Essential Series battery.
| Core specifications | |
|---|---|
| Model / SKU | 24230A-H |
| Series | Essential Series |
| Battery type | Heated Bluetooth deep-cycle LiFePO4 battery |
| System voltage | 24V platform / 25.6V nominal |
| Nominal capacity | 230Ah |
| Stored energy | 5.89kWh / 5,890Wh |
| Cell configuration | 8S1P prismatic LiFePO4 |
| Max continuous discharge | 200A |
| Max continuous charge current | 100A recommended / 200A rating |
| Peak discharge | 300A @ 10 seconds |
| Operating voltage range | 20.0V – 29.2V |
| Bulk / absorption voltage | 28.4V – 28.8V |
| Float voltage | Disabled preferred, or 26.6V – 27.2V |
| Re-bulk voltage | 26.4V |
| Temperature compensation | 0mV/°C / none |
| Equalization | Disabled |
| Charge temperature range | -20°C to 55°C / -4°F to 131°F, with self-heating |
| Battery charge temperature range for charger setup | 0°C to 55°C / 32°F to 131°F |
| Discharge temperature range | -20°C to 60°C / -4°F to 140°F |
| Dimensions | 20.55 in L × 9.45 in W × 8.60 in H |
| Weight | 84 lb / 38.10 kg |
| Terminal size | M8 female / verify supplied torque |
| Case material | Battery-grade ABS/PC housing |
| Enclosure rating | IP54 dust-protected and splash-resistant |
| Cycle life | 4,000+ cycles |
| Warranty | 11-year manufacturer warranty |
Always verify charger programming, cable ampacity, fuse ratings, tray clearance, ventilation, and environmental limits before final installation.
IP54 rated marine and RV protection
Dust-protected and splash-resistant for protected compartments.
IP54 weather resistance does not mean waterproof. Install this battery in a protected marine compartment, RV battery bay, or mobile power enclosure where it is shielded from submersion, pressure washing, standing water, and direct terminal exposure.
