EG4 Hybrid Solar AC/DC Mini-Split Kit 24000 BTU

Designed for versatile cooling and heating, the EG4 Hybrid Solar Mini-Split Kit delivers ductless comfort with AC and DC operation. It can be powered directly from a PV array during daytime, or draw grid power at night or on overcast days, ideal for off‑grid homes, solar‑powered buildings, and energy‑conscious spaces. Its compact footprint, modern design, and Plug‑n‑Cool technology enable quick installation in living areas, offices, and retrofit projects without ductwork.

Key specifications

Type: Hybrid – AC/DC Driven; Coverage: 1,350 square feet; SEER2: 21; Capacities: 6,100–25,200 BTU/h; Indoor Sound: 50/48.5/45.5/43.5/41/39 dB(A); Outdoor Sound: 58 dB(A); HSPF2: 9.6; COP: 11.82 Btu/W; Recommended Solar Input: 1600–2400W (90VDC–380VDC); Operating Temperature: -10℃ to 58℃; Indoor Temp (Cooling/Heating): 61–90°F / 32–90°F; Outdoor Temp (Cooling/Heating): 32–131°F / 5–86°F; Weight: 169.9 lb; Warranty: 5 Years Limited.

Features and safety

• Energy Star Certified
• AC power limiter 0–600W
• AC/DC Auto Balance; No inverter, battery, or charge controller required
• Plug-n-Cool connectors attach directly to PV wire
• Pre-charged lineset & electrical wire – 16.4 ft
• Pre-vacuumed lineset and installation accessories included
• Solar Aircon App compatibility

Installation and maintenance

Package includes Indoor Head Unit, Outdoor Unit, LCD Remote Control, Pre-charged 16.4 ft lineset & electrical wire, and installation accessories. The Plug-n-Cool approach supports quick, DIY installation and immediate operation with available solar input. Maintenance and service guidance are provided in the included manuals and spec sheets.

Warranty and service information

5-year limited warranty. Comprehensive documentation is provided, including the User Manual, Spec Sheet, Wiring Diagrams V1.2, Environmental Considerations, and Certification. The Solar Aircon App offers remote monitoring and system status for ongoing support.

EG4 Hybrid Solar Mini-Split Kit | Energy Star Certified Air Conditioner Heat Pump AC/DC| 24000 BTU

The EG4 Hybrid Solar Mini-Split Kit is one of the most innovative ductless heat pump/air conditioners available; reduce your electric bill and keep your home the temperature you want with this energy-efficient appliance. Featuring the ability to plug directly into solar panels, this system accepts DC power from their PV array without the need for an intermediary device during the day or can draw AC power from the grid at night or during overcast days. Users of the EG4 Solar Mini-Split AC can save money when compared to conventional central air conditioning systems. Pair this unit with a small string of solar panels to immediately begin heating and cooling your property.

Its compact size, sleek design, and new Plug-n-Cool technology make this EG4 Mini-Split a Do-It-Yourself project. Plug-n-Cool allows the EG4 Mini-Split to be easily installed, cooling and heating quickly in virtually any living space or workplace.

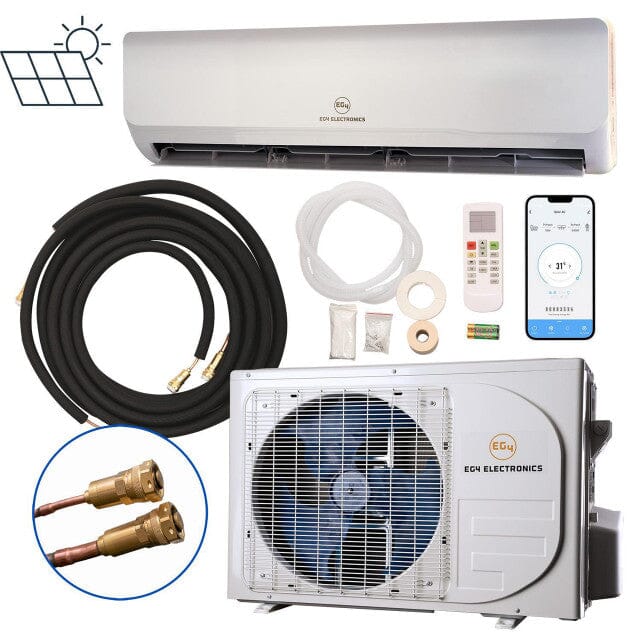

EG4 Hybrid Solar Mini-Split Kit Contents:

• Indoor Head Unit
• Outdoor Unit
• Pre-Charged Lineset & Electrical Wire - 16.4Ft
• LCD Remote Control
• Installation Accessories


Features

• Hybrid - AC/DC Driven
• Power from the grid or PV array - No inverter, battery, or charge controller necessary!
• 100% energy saving in the daytime.
• Daytime power comes directly from solar.
• Plug and Play
• MC4 Connectors attach directly to PV wire.
• AC grid power limiter Limit AC power from 0-600W
• AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
• Wide operating temperature (-10℃ to 58 ℃)
• Highly Efficient
• Perfect for off-grid, solar, or energy-efficient projects!

RECOMMENDED SOLAR INPUT: 1600-2400W (90VDC-380VDC)
