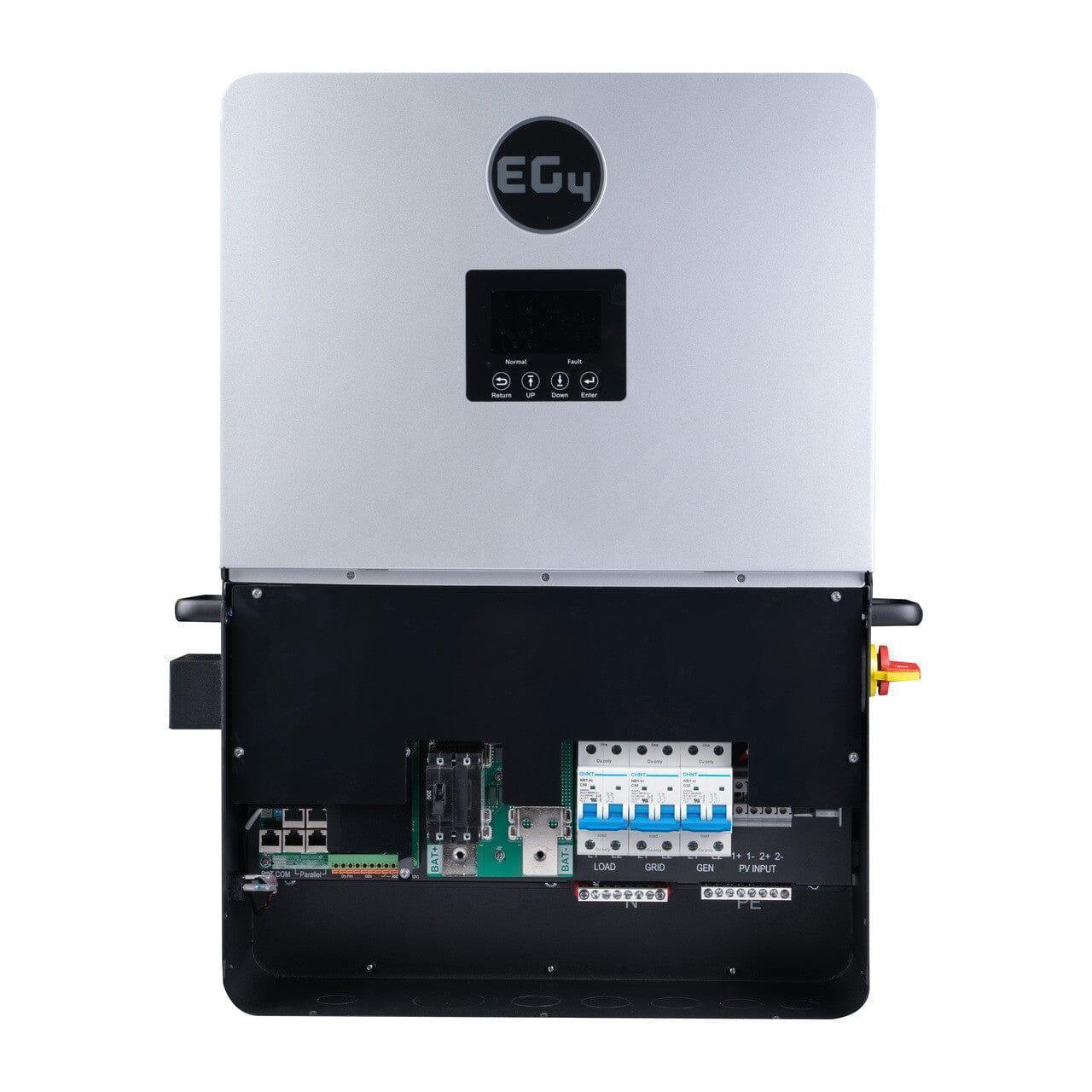

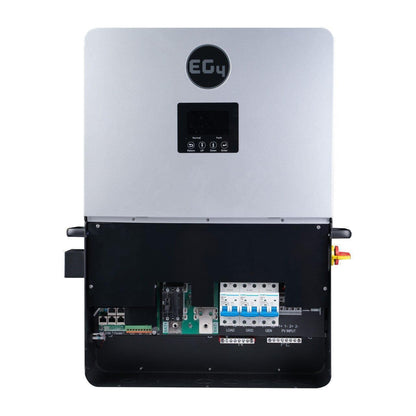

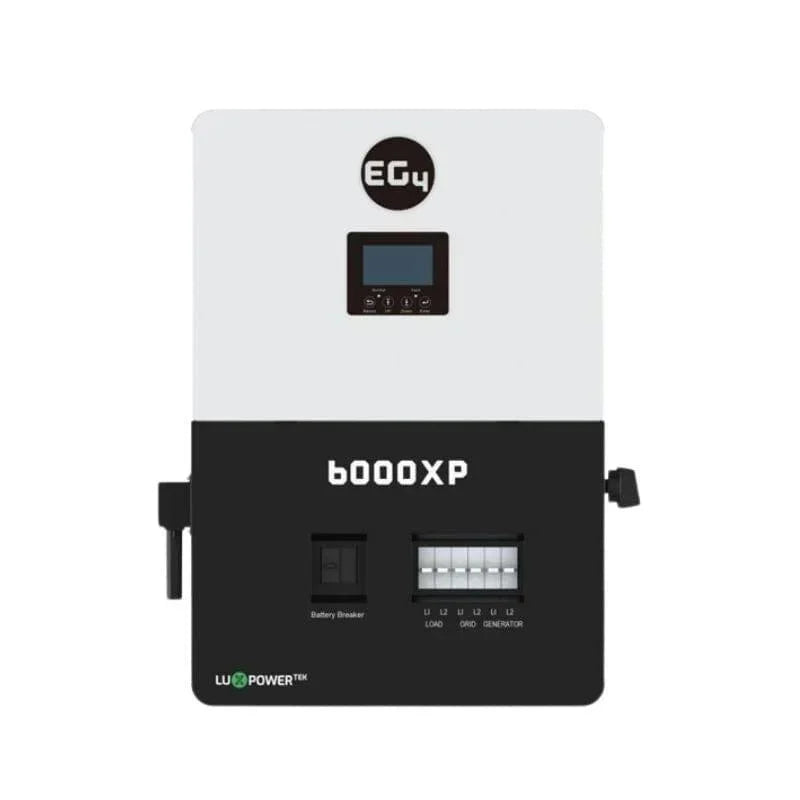

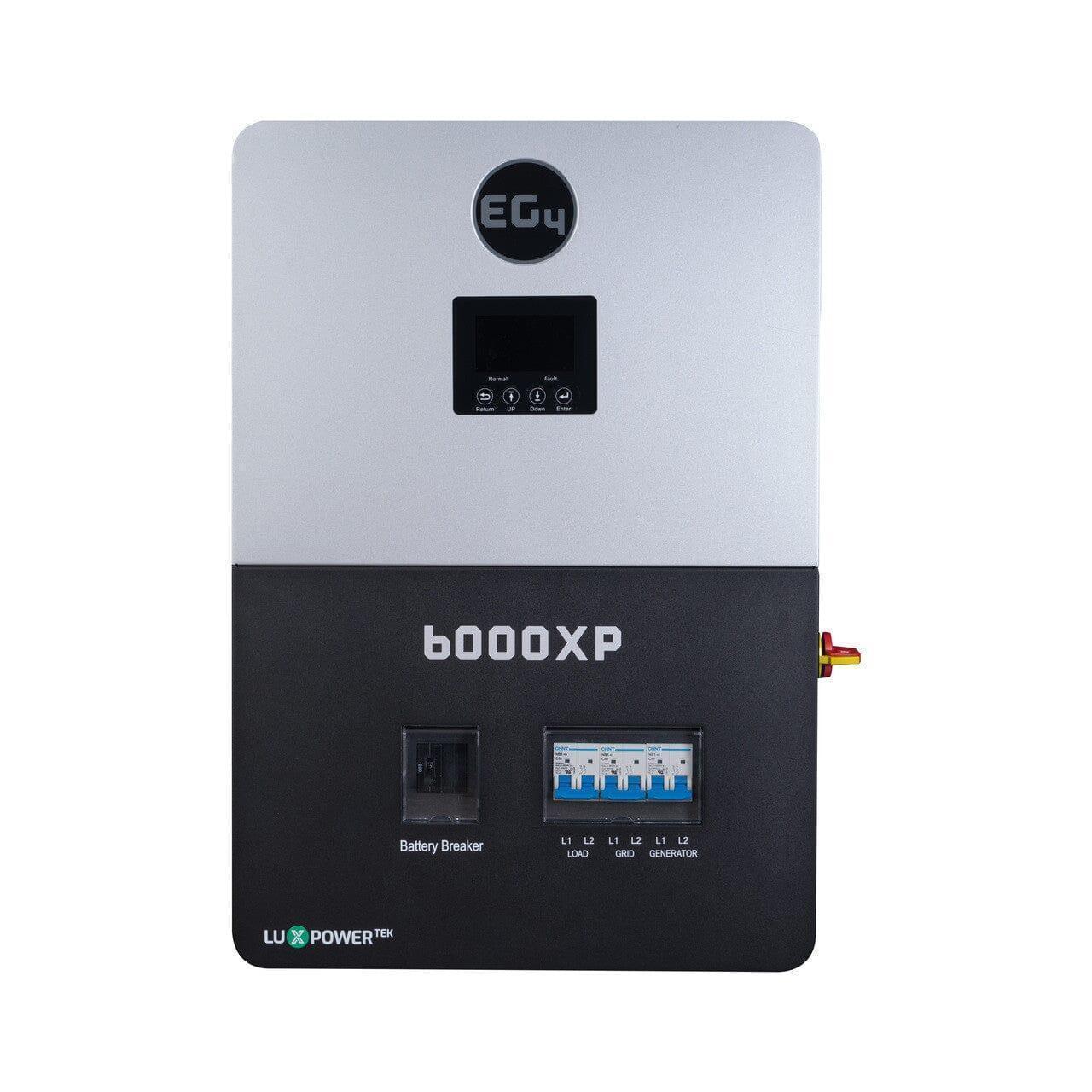

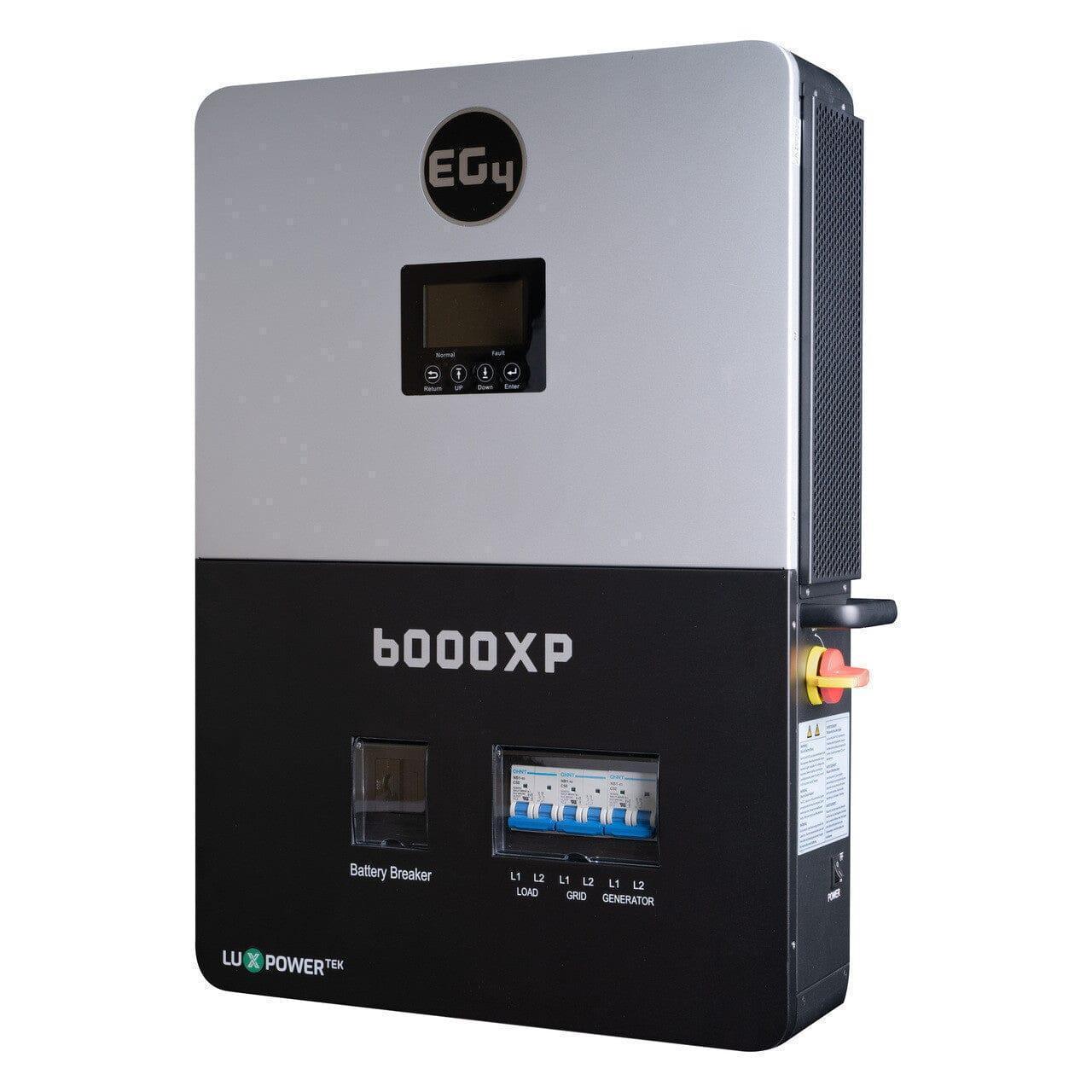

EG4 6K XP Off-Grid Inverter – 6,000W Output, 48V 120/240V Split-Phase

The EG4 6K XP is an off-grid all-in-one solar inverter engineered to convert solar and battery energy into reliable AC power. It supports up to 8,000W of PV input and delivers up to 6,000W of continuous AC output, making it suitable for homes, RVs, or remote facilities seeking energy independence.

Performance highlights

• Continuous output: 6,000W with peak surge up to 12,000W for ~25 seconds
• PV input: up to 8,000W usable with 2 MPPTs; 17A max input per MPPT; nominal MPPT voltage 320V; startup at ~100V
• Voltage and battery: 48V nominal battery system with a 46.4–60VDC range (Lithium)
• Electrical interface: 120/240VAC split-phase output; frequency selectable 50/60Hz; power factor 0.99 at full load
• Efficiency and control: MPPT efficiency 99%; battery charging efficiency 93%; remote monitoring via mobile app or website with included Wi‑Fi module
• System scalability: parallel operation up to 16 units for a combined 96kW
• Design: transformerless topology with integrated MPPT solar charge controllers for compact, efficient operation
• Durability and support: backed by a 5-year warranty and lifetime customer support

Electrical specifications

• AC Input: Nominal 120–240VAC; Max continuous current 37.5A at 240VAC; Max AC input power 9,000W
• AC Output: Max continuous 25A; Bypass 60A; Output 120/240VAC; Nominal power 6,000W; Surge 12,000W for ~25s
• Backup/UPS capability: 6,000W rated output; 50/60Hz operation; THD <3%
• PV Input: 2 MPPTs; 1 input per MPPT; 17A per MPPT; 120–385VDC MPP range; 100–480VDC startup; 320VDC nominal MPPT voltage
• Max utilized solar power: 8,000W (8kW); Recommended maximum solar input: 10,000W
• Battery: Nominal 48V; Voltage range 46.4–60V; Lithium chemistry
• Physical: 18 x 25.5 x 5.25 in; 52.9 lbs

What’s included

• 1 x 6000XP Inverter
• 1 x User Manual
• 4 x Expansion Screws and Tubes
• 1 x Wi-Fi Module
• 2 x Cross Head Screws M6 x 16
• 4 x Cross Head Screws M3 x 10
• 1 x Mounting Template
• 1 x Inverter to Battery Comm. Cable (78 in. length)
• 1 x Inverter to Inverter Comm. Cable (78 in. length)

Installation and maintenance

• Compatible with a 48V battery bank; ensure the battery voltage remains in the 46.4–60V range during operation
• Connect to a 120/240VAC electrical system with appropriate protective devices; parallel installation supported with up to 16 units
• Use the included 78-inch inverter-to-battery and inverter-to-inverter cables for system wiring

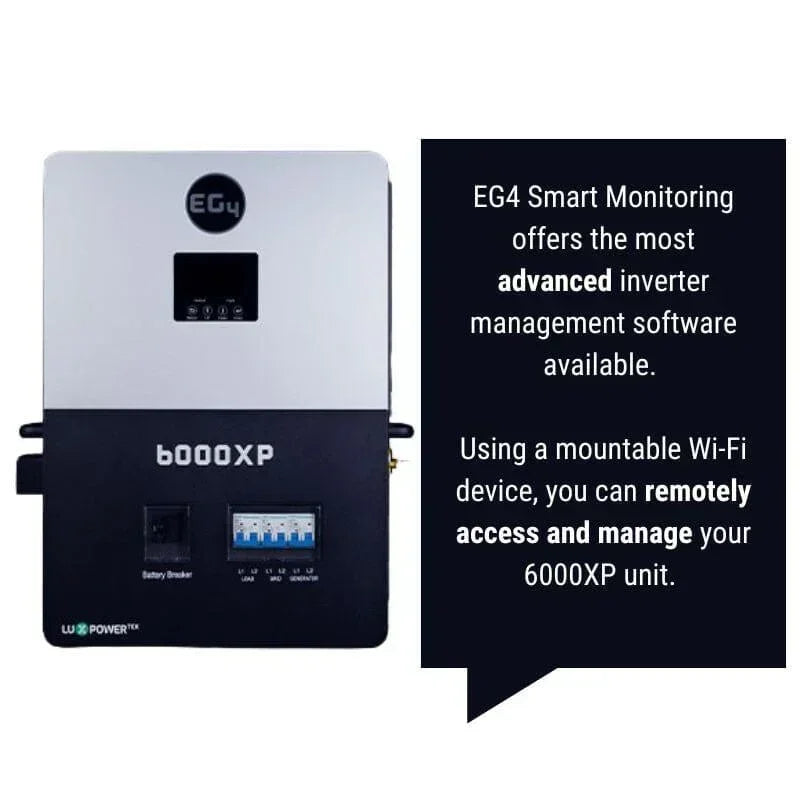

• Remote monitoring and firmware updates are accessible via the included Wi‑Fi module; keep firmware current to maximize performance

Warranty and service

• 5-year limited warranty
• Lifetime customer support via email, live chat, and phone
• Free shipping included with purchase

EG4 6K XP Off-Grid Inverter | 8,000W PV Input | 6,000W Output | 48V 120/240V Split Phase | All-In-One Solar Inverter

Why this product is a must-have: The EG4 6000XP Inverter is your ultimate solution for off-grid power needs, combining robust performance with advanced features that enhance energy independence and efficiency. With the ability to manage up to 8,000W of solar input and deliver 6,000W of output, it’s engineered to support your sustainable lifestyle while providing peace of mind.

Standout Qualities:

• High Capacity: Supports up to 8,000W PV input with 6,000W output power, ideal for powering your home or RV.
• Off-Grid Capability: Operates fully off the grid or with grid support, giving you flexibility in energy sourcing.
• Advanced Monitoring: Remote monitoring and firmware updates via mobile app or website ensure you stay in control.
• Efficient Design: Transformerless design with integrated MPPT solar charge controllers for optimal performance.
• Scalable Solution: Parallel support for up to 16 units, allowing for a massive output of 96kW.
• Durability & Support: Backed by a 5-year warranty and lifetime customer support ensures reliability and assistance when needed.

Specifications:

• AC Input Data:
  • Nominal AC Voltage: 120-240VAC
  • Max. Continuous AC Current: 37.5A @ 240VAC
• PV Input Data:
  • Number of MPPTs: 2
  • Max. Utilized Solar Power: 8000W
• Battery Data:
  • Nominal Voltage: 48 VDC
  • Voltage Range: 46.4-60 VDC (Lithium)
• General Data:
  • Dimensions: 18x25.5x5.25 in
  • Weight: 52.9 lbs

What's Included With Your Order?

• 1 x 6000XP Inverter
• 1 x User Manual
• 4 x Expansion Screws and Tubes
• 1 x Wi-Fi Module
• 2 x Cross Head Screws M6 x 16
• 4 x Cross Head Screws M3 x 10
• 1 x Mounting Template
• 1 x Inverter to Battery Comm. Cable (78 in. length)
• 1 x Inverter to Inverter Comm. Cable (78 in. length)
• Free Shipping
• Lifetime Customer Support (Email, Live Chat & Phone)

EG4 6000XP Inverter Specifications

AC Input Data

• Nominal AC Voltage 120-240VAC
• Frequency 50/60Hz
• Max. Continuous AC Current 37.5A @ 240VAC
• Max. AC Input Power 9000W

AC Grid Output Data

• Max. Continuous Output Current 25A
• AC Bypass (Grid) 60A
• Output Voltage 120/240VAC
• Nominal Power Output 6000W
• Output Frequency 50/60Hz
• Power Factor 0.99 @ full load
• Reactive Power Adjust Range (-0.8) – (+0.8) leading adjustable

Backup/UPS AC Output Data

• Rated Output Current @ 240V 25A
• AC Bypass (Generator) 60A
• Rated Output Power 6000W
• Max Cont. Line Wattage 3000W
• Surge Capacity 12,000W for ~25 seconds
• Operating Frequency 50/60Hz
• THD (V) <3%
• Switching Time <15ms @ Single / <30ms @ Parallel

PV Input Data

• Number of MPPTs 2
• Inputs per MPPT 1
• Max. Usable Input Current 17/17A
• Max. Short Circuit Input Current 25/25A
• DC Input Voltage Range 100-480 VDC
• Unit Startup Voltage 100 VDC ± 10 VDC
• MPP Operating Voltage Range 120-385 VDC
• Nominal MPPT Voltage 320 VDC
• Maximum Utilized Solar Power 8000W (4000W per MPPT)
• Recommended Maximum Solar Input 10,000W

Efficiency

• MPPT Efficiency 99%
• Battery Charging Efficiency 93%
• Battery Discharging Efficiency 93%
• Idle Consumption (Standby mode) w/ PV w/ Battery w/ AC <30W** <50W 10W

Battery Data

• Type Lead-acid/Lithium
• Max. Charge/Discharge Current 140A
• Nominal Voltage 48 VDC
• Voltage Range 46.4-60 VDC (Lithium); 38.4-60 VDC (Lead-Acid)
• Rec. Battery Capacity per Inverter >200Ah

EG4 6000XP Inverter General Data

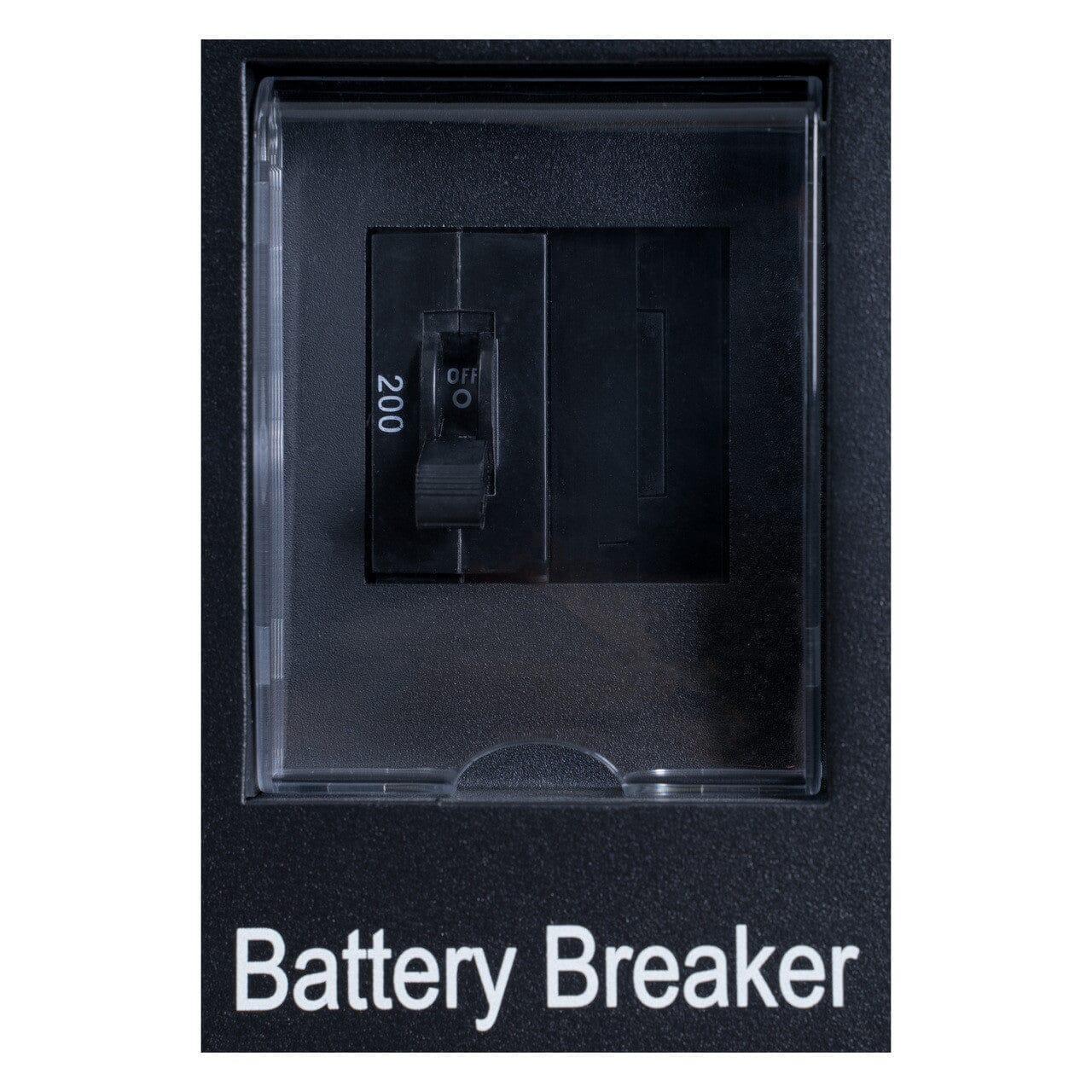

• Integrated Disconnect Yes
• DC Switch Rating for each MPPT Yes
• Dimensions 18×25.5×5.25 in (457×648×132mm)
• Weight 52.9 lbs (24kg)

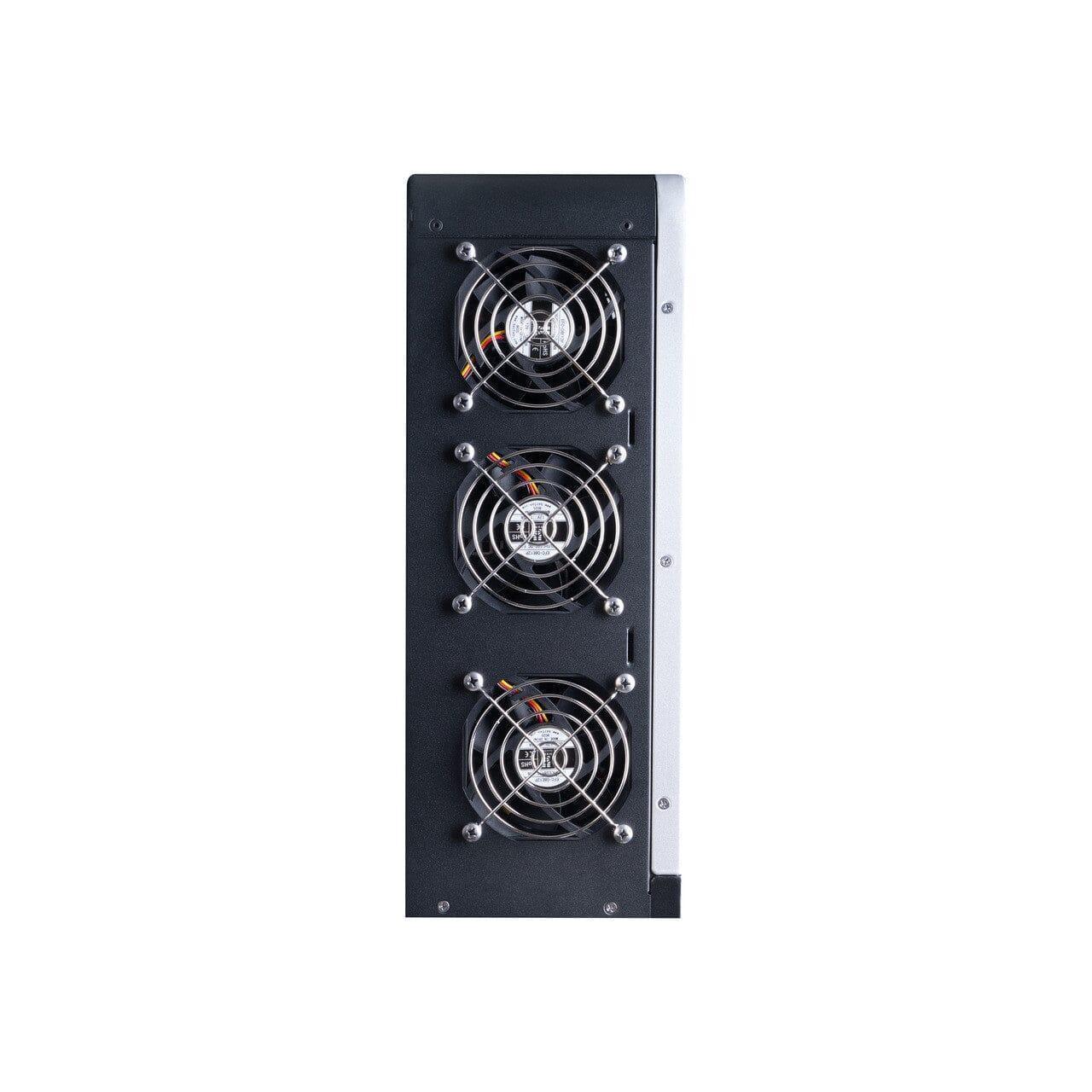

• Cooling Concept Fan
• Topology TL (Transformerless)
• Relative Humidity 5-95%
• Altitude <6561ft
• Operating Temperature Range 32 – 113°F (0 – 45°C)
• Storage Temperature Range 5 – 140°F (-15 – 60°C)
• Noise Emission (typical) <58 dB
• Display LCD + LED
• Communication Interface RS485/Wi-Fi/CAN
• Standard Warranty 5* year standard warranty

Make the switch to sustainable energy with the EG4 6000XP Inverter, and experience the freedom of off-grid living backed by technology that keeps you connected and informed.
