Deye RW-F10.2-B Home Battery Storage System | 10.25kWh Advanced LiFePO4

Deye RW-F10.2-B Home Battery Storage System | 10.25kWh Advanced LiFePO4

$2,599.00 USD
$3,999.00 USD $2,599.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

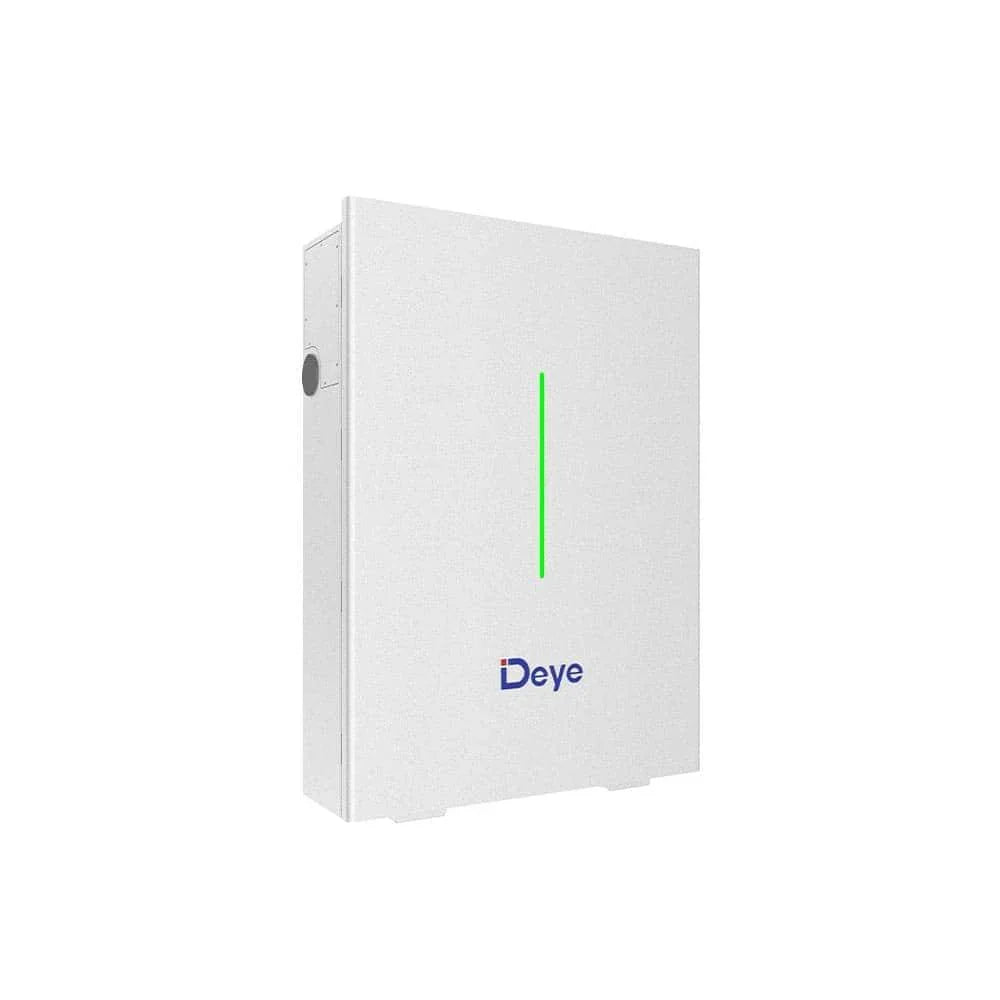

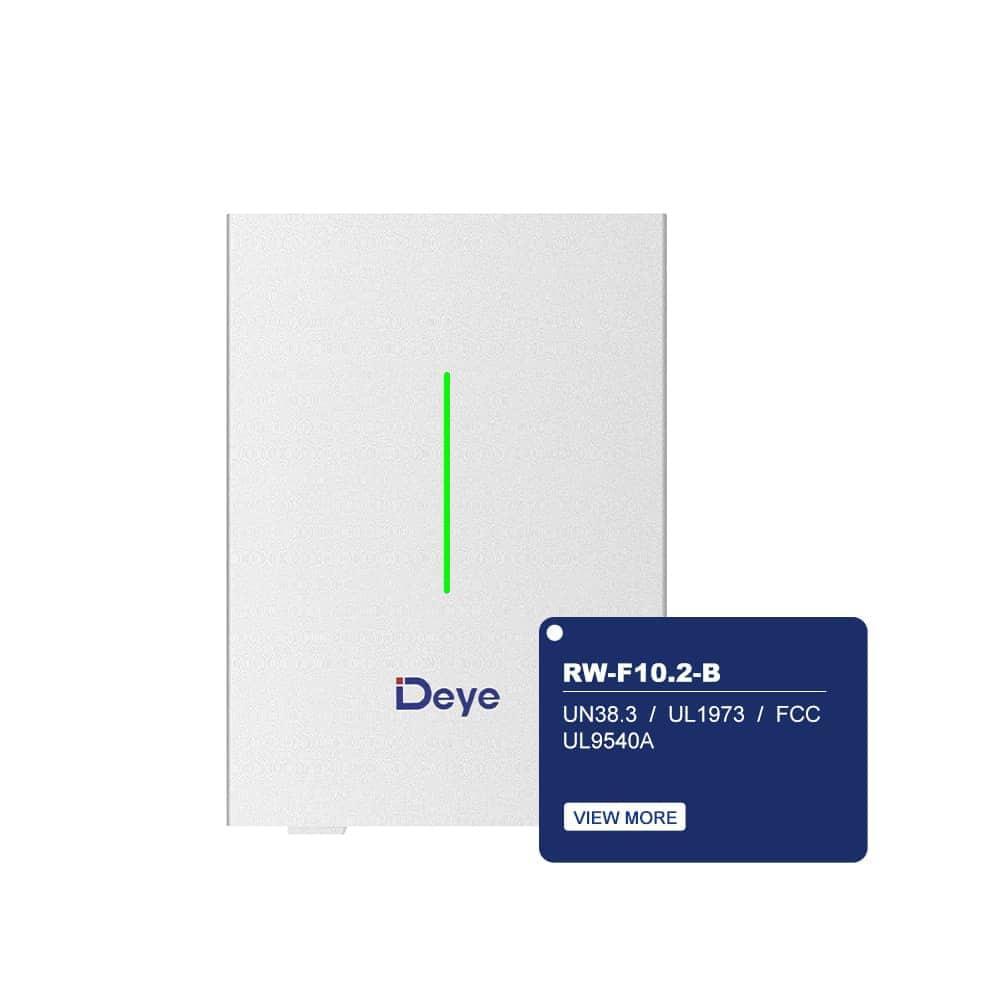

Deye RW-F10.2-B Home Battery Storage System | 10.25kWh Advanced LiFePO4

The RW-F10.2-B is a state-of-the-art home battery storage system engineered with lithium iron phosphate (LiFePO4) technology to deliver exceptional performance, safety, and reliability for residential and commercial energy storage applications. This intelligent wall mounted lithium battery represents the pinnacle of batteries for home energy storage, offering 10.24 kWh capacity to power your home efficiently and sustainably.

Performance & Capacity:

  • 51.2V nominal voltage with 200Ah capacity
  • 10.24kWh nominal energy and 9.2kWh usable energy
  • Supports 1C charging and 1.25C discharging
  • Impressive 6000+ cycle life at 90% depth of discharge

Safety & Protection:

  • Cobalt-free LFP chemistry for enhanced safety and longevity
  • Built-in intelligent Battery Management System (BMS)
  • IP65 rated enclosure
  • Operating temperature range of -20°C to 55°C

Scalability & Installation:

  • Modular design supporting up to 32 units in parallel
  • Maximum system capacity of 327kWh
  • Flexible mounting options: wall-mounted or floor-standing
  • Dimensions: 600 x 830 x 200mm

Smart Features:

  • Auto-networking battery modules
  • Remote monitoring and upgrade capability
  • Seamless integration with Deye inverters
  • CAN2.0 and RS485 communication ports

Environmental & Warranty:

  • Eco-friendly, non-toxic materials
  • Natural cooling design
  • 10-year standard warranty
  • Certified to UN38.3, FCC, UL1973, and UL9540A standards

The RW-F10.2-B home battery storage system combines advanced technology with practical design to deliver a premium energy storage solution that seamlessly integrates with your photovoltaic battery storage setup.

Product Specifications

Deye RW-F10.2-B Home Battery Storage System | 10.25kWh Advanced LiFePO4 Product Specifications

Feature Specification
Battery Chemistry LiFePO₄
Built-in Circuit Breaker 125A 4P, 60Vdc
Capacity (Ah) 200
Scalability Max. 32 pcs pack (Max. 327kWh) in parallel
Nominal Voltage (V) 51.2
Operating Voltage (V) 43.2 ~ 57.6
Nominal Energy (kWh) 10.24
Usable Energy (kWh) 9.2
Charge/Discharge Current (A) – Recommend Charge: 100 / Discharge: 100
Charge/Discharge Current (A) – Max. Charge: 198 / Discharge: 240
Charge/Discharge Current (A) – Peak (2mins, 25°C) 300

Product Manual

Deye RW-F10.2-B User Manual

Deye RW-F10.2-B Series Brochure

Product Warranty

Deye RW-F102-B Warranty
