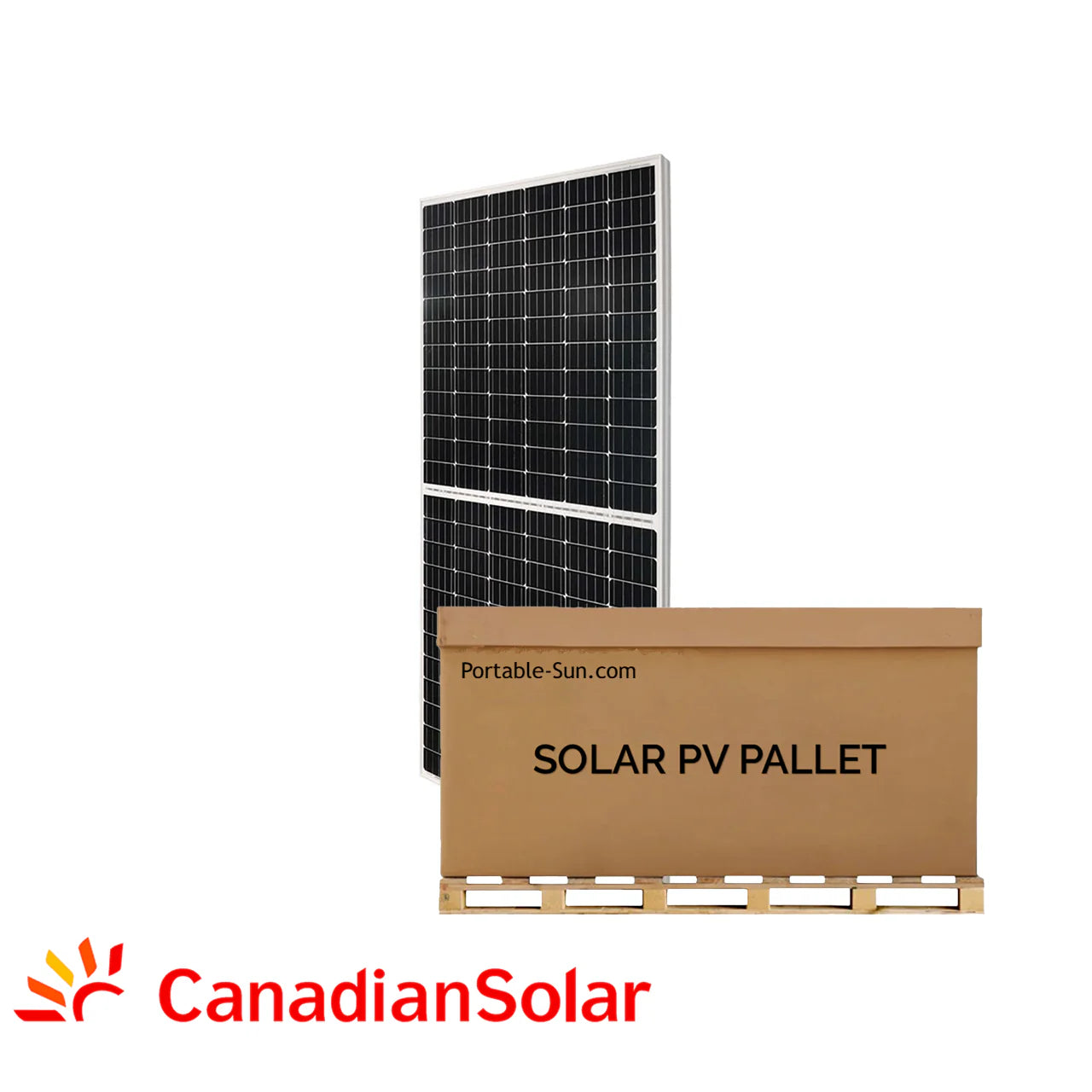

Canadian Solar 15.6kW Pallet - 600W N-Type TOPCon Bifacial Solar Panels | Up to 720W Bifacial | CS6W-600TB-AG | Full Pallet (26)
This premium 26-piece solar pallet features Canadian Solar's CS6W-600TB-AG N-type TOPCon bifacial panels, delivering up to 720W with bifacial gain. Ideal for commercial installations, large residential systems, and utility-scale projects requiring maximum efficiency and long-term performance with minimal degradation.
- Next-Generation TOPCon Technology
- 23.2% Module Efficiency
- 30-Year Linear Power Warranty
About the Product
With N-type TOPCon solar technology, Canadian Solar CS6W-600TB-AG bifacial solar panels deliver 23.2% module efficiency at standard test conditions. The advanced cell technology offers excellent anti-LeTID and anti-PID performance, ensuring consistent energy production throughout the panel's lifespan.
The anodized aluminum frame provides structural integrity certified for snow loads up to 6000 Pa and wind loads up to 4000 Pa, making these N-type bifacial panels suitable for challenging installation environments. Also, the dual-glass construction features 2.0mm heat-strengthened glass on both sides, maximizing light transmission.
Canadian Solar backs these panels with a 30-year linear power performance warranty, guaranteeing no more than 1% degradation in the first year and only 0.4% annual degradation thereafter. The full solar pallet includes 26 panels, or 15.6kW of installed capacity in total. Each panel connects via T6 or MC4-EVO2 connectors for seamless integration with existing solar arrays and inverters.
Specifications
|
Brand |
Canadian Solar |
|
Pallet Size |
26 pcs |
|
Rated Power (Pmax) |
600 W |
|
Cell Type |
N-type TOPCon |
|
Dimensions |
89.7 x 44.6 x 1.57 inches |
|
Weight |
69.7 lbs |
|
Open Circuit Voltage (VOC) |
53 V |
|
Current at Short Circuit (ISC) |
14.18 A |
|
Current at Maximum Power (IMP) |
13.68 A |
|
Operating Temperature |
-40 °F to +185 °F (-40°C ~ +85°C) |
|
Module Efficiency |
23.2% (up to 27.9% with bifacial gain) |
Download full specifications here.
