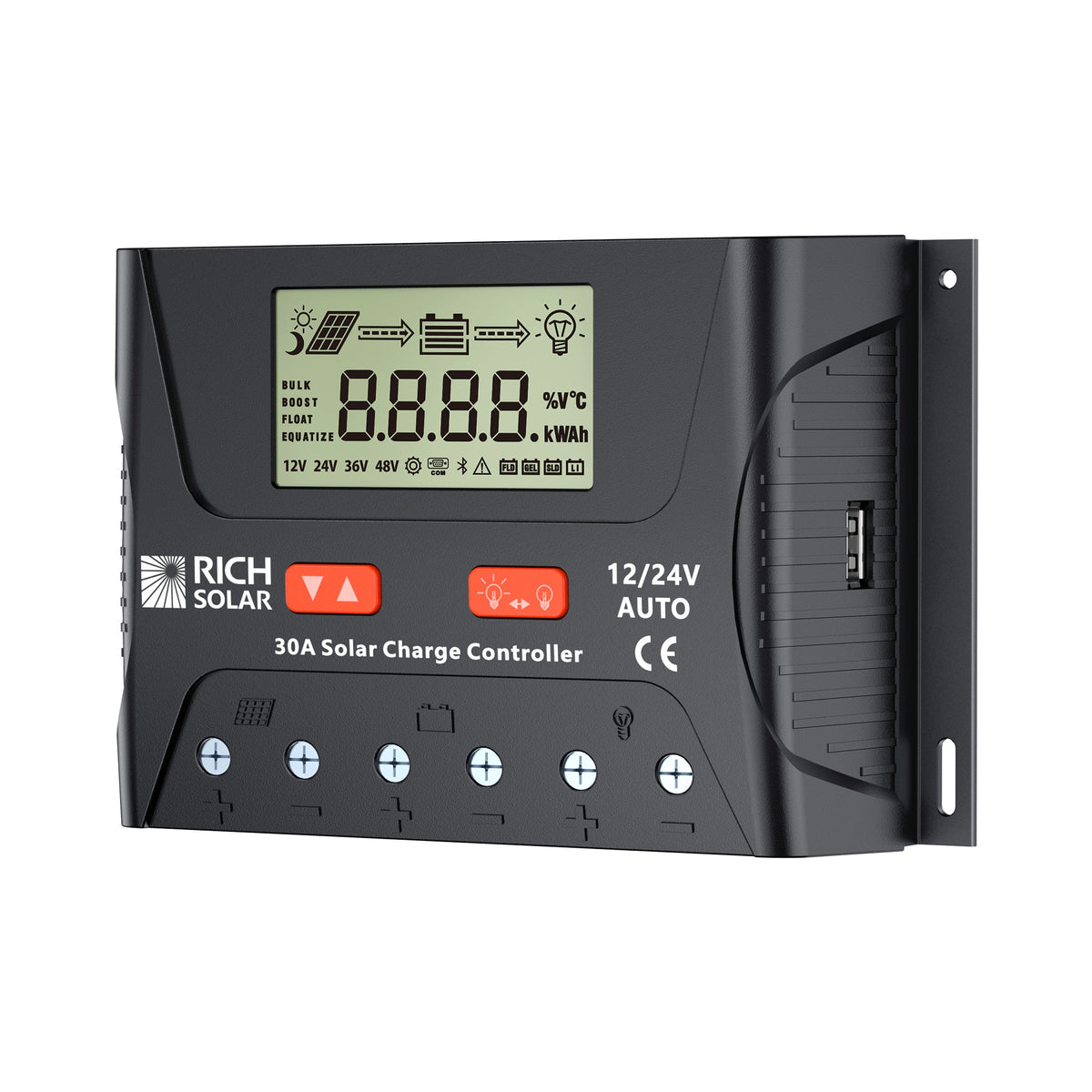

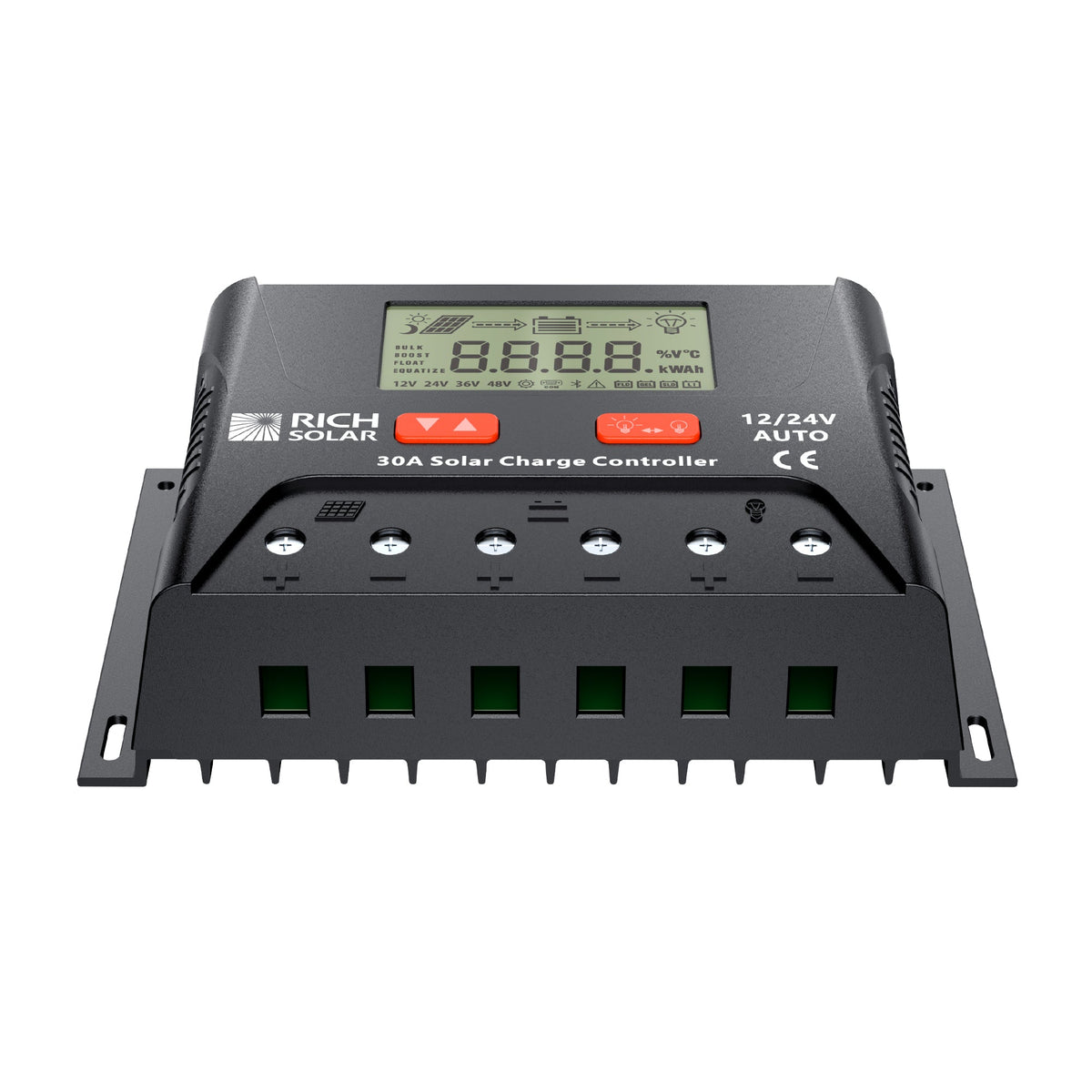

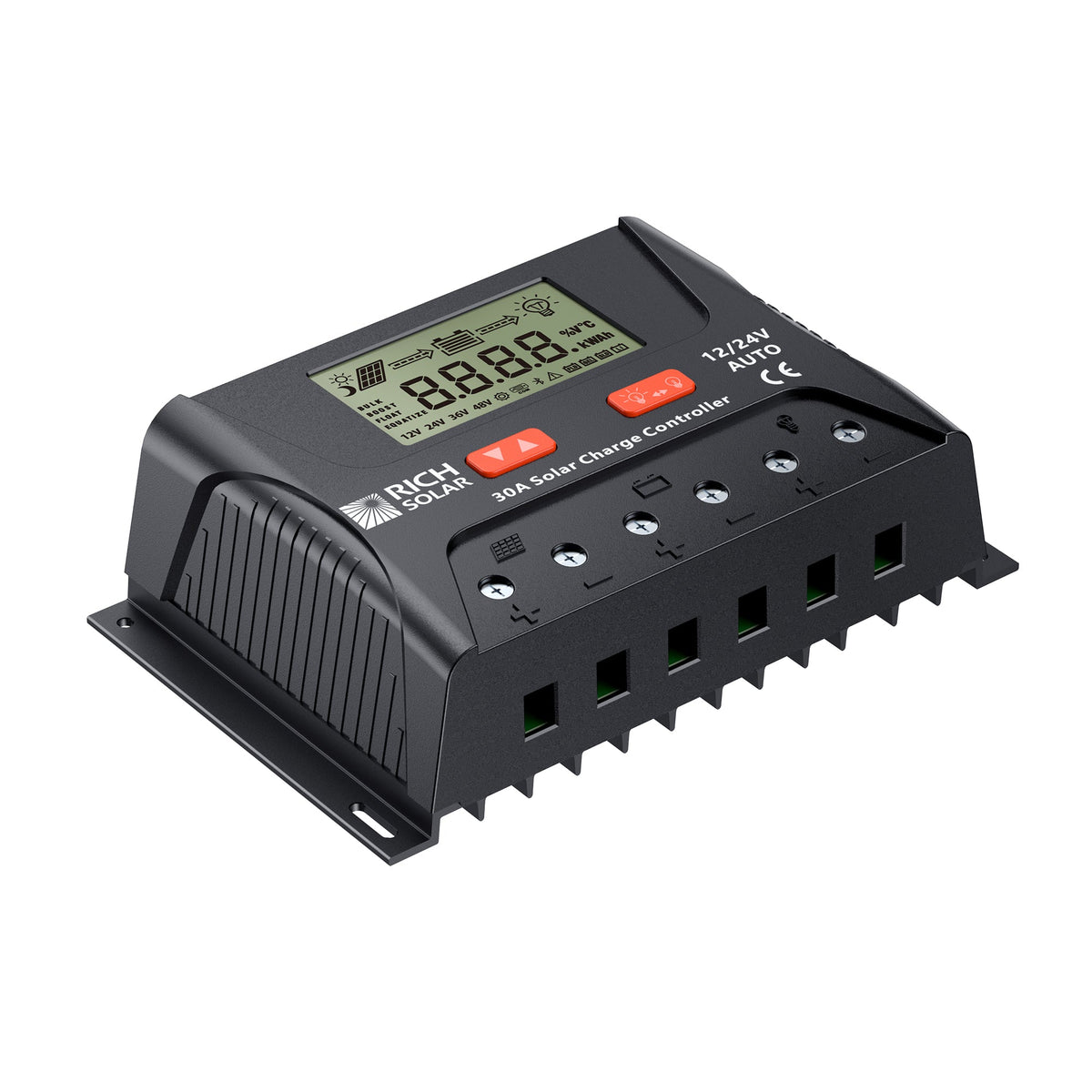

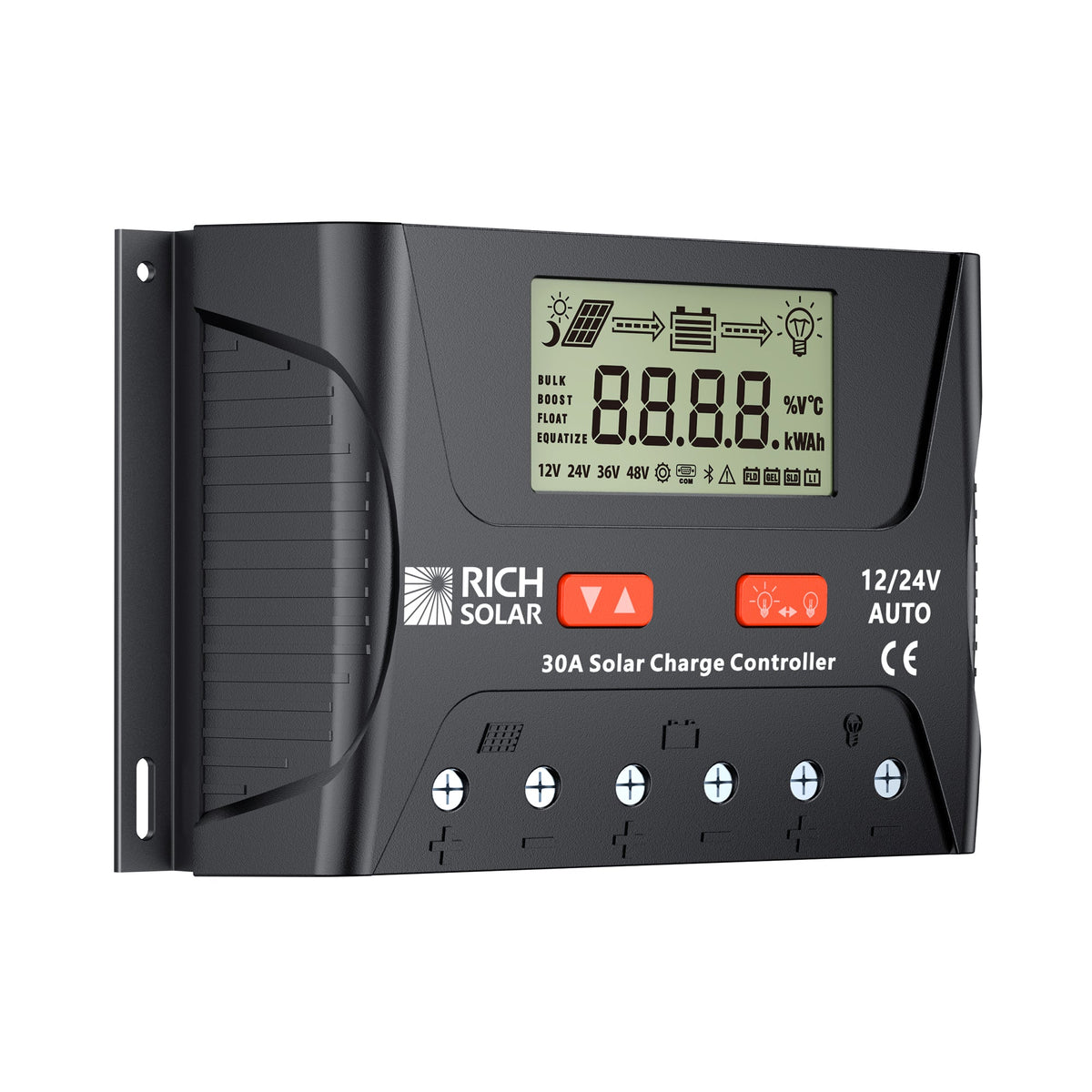

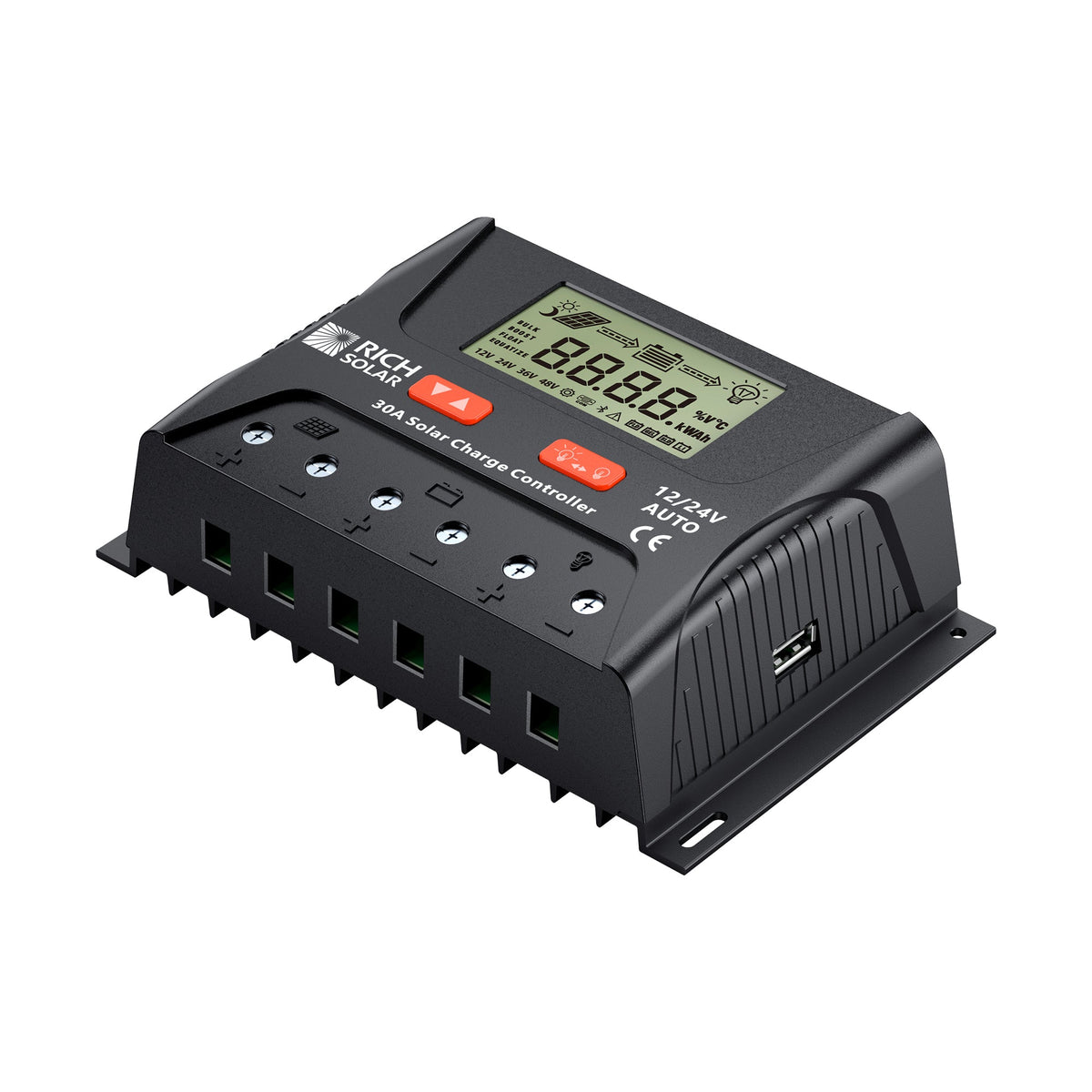

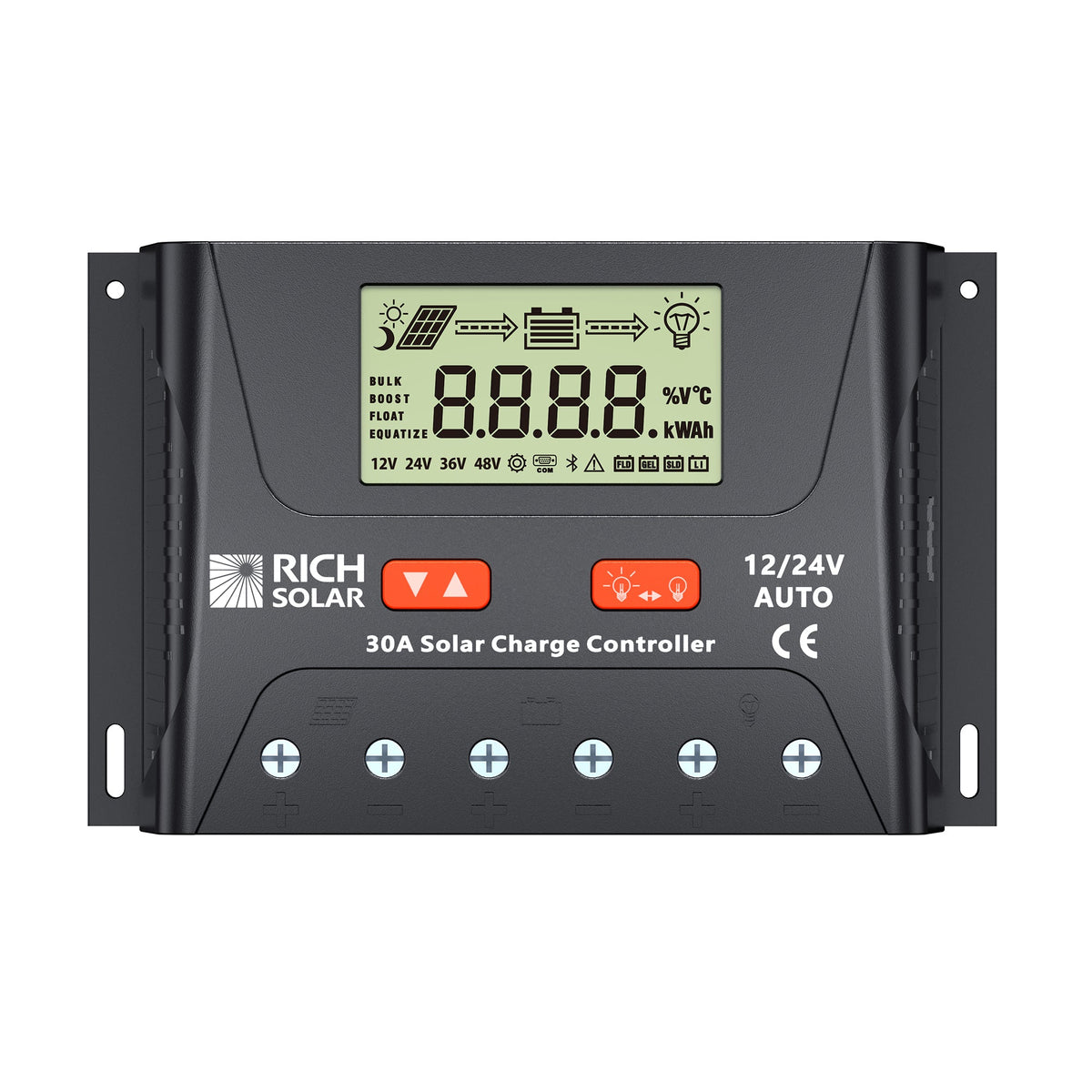

BRAVO LEGEND 30 30A PWM Solar Charge Controller
Equipment Type and Primary Applications
The BRAVO LEGEND 30 is a 30A PWM solar charge controller for 12V or 24V battery systems in RVs, trailers, campers, vans, boats, and off-grid installations. Automatic system-voltage detection simplifies setup for compatible solar charging systems.
Performance Specifications
- Rated current: 30A
- Rated power: 450W at 12V; 900W at 24V
- Solar input voltage: less than 55V
- Battery voltage: less than 34V
- System voltage: automatic 12V/24V recognition; manual setup optional
- Charging method: three-stage PWM charging with boost, float, and equalization stages
- Temperature compensation: -3.0mV/°C/2V; excludes lithium batteries
- No-load loss: less than 13mA at 12V; less than 15mA at 24V
- Operating temperature: -25°C to +55°C (-13°F to +131°F)
- Protection rating: IP30; positive-ground design
- Dimensions: 164 × 103 × 47mm (6.46 × 4.07 × 1.85in); net weight: 0.39kg (0.86lb)
Safety Features and Certifications
Electronic protection covers overcharge, over-discharge, overload, short circuit, and reverse polarity. TVS lightning protection helps limit lightning-induced voltage surges. UL 1741 certified.
Installation and Maintenance Requirements
Use with compatible solar panels producing less than 55V and lithium, sealed, GEL, or flooded batteries. Configure automatic or manual 12V/24V operation, select the applicable operating mode, and observe positive-ground requirements. Equalization charging is intended for lead-acid batteries and excludes GEL and lithium batteries.
Warranty and Service Information
Refer to seller terms for applicable warranty coverage, service conditions, and response arrangements.
Branding/References
Brand: BRAVO. Model: LEGEND 30. Product reference: 30A PWM solar charge controller.
Differentiators
Five operating modes—light control with a 10-minute delay, light control plus 1–14-hour timer, manual, debug, and normal-on—support varied RV, marine, and off-grid lighting applications.
