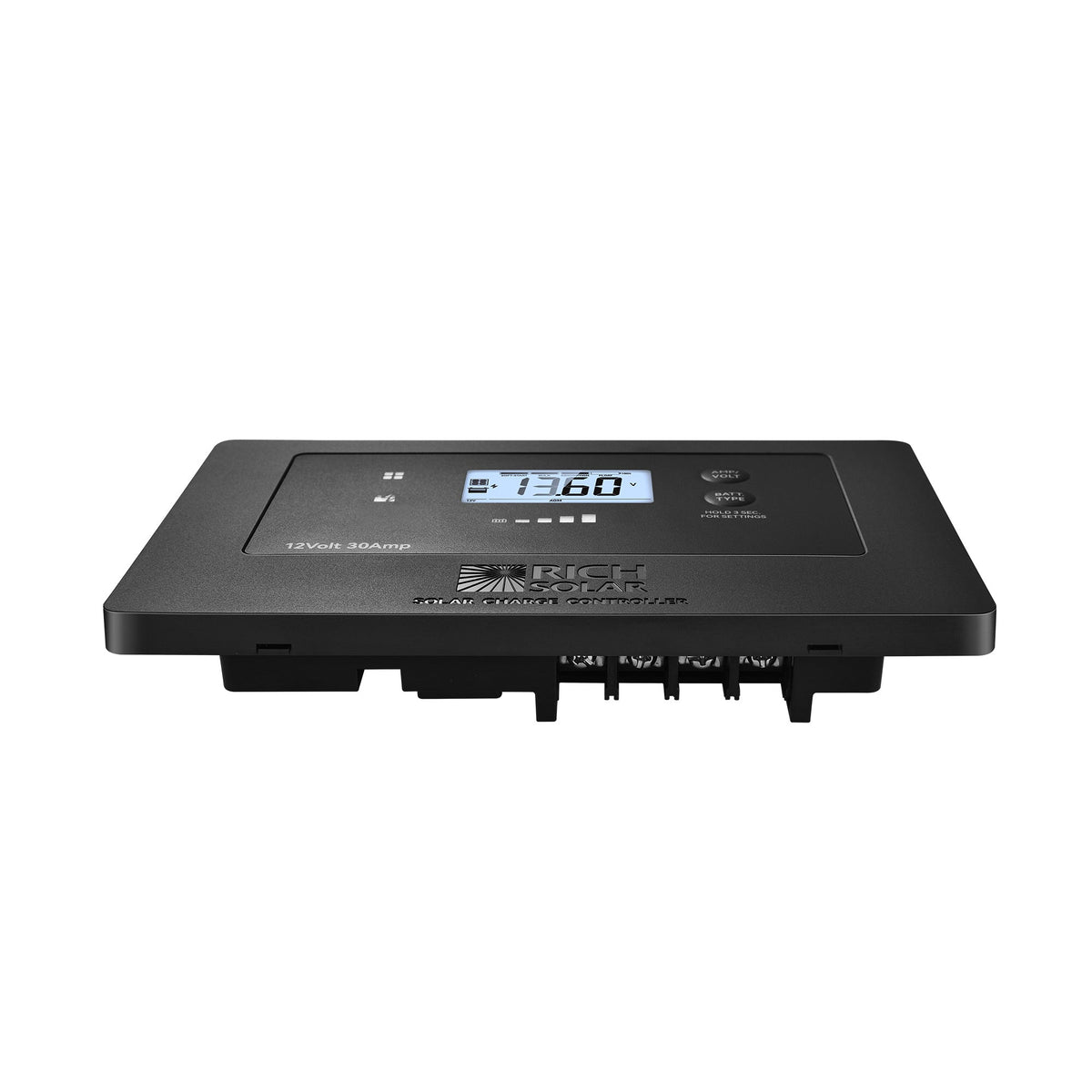

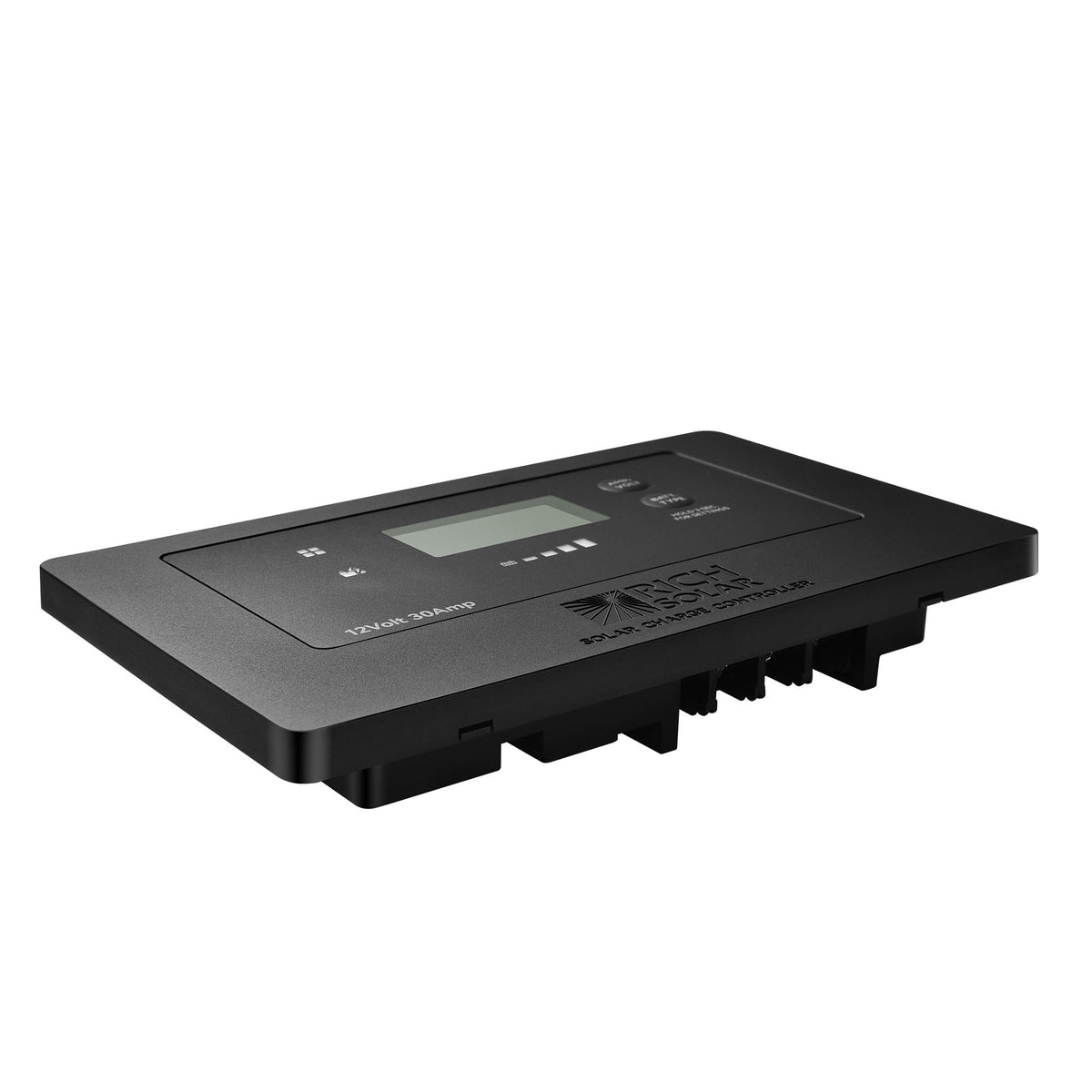

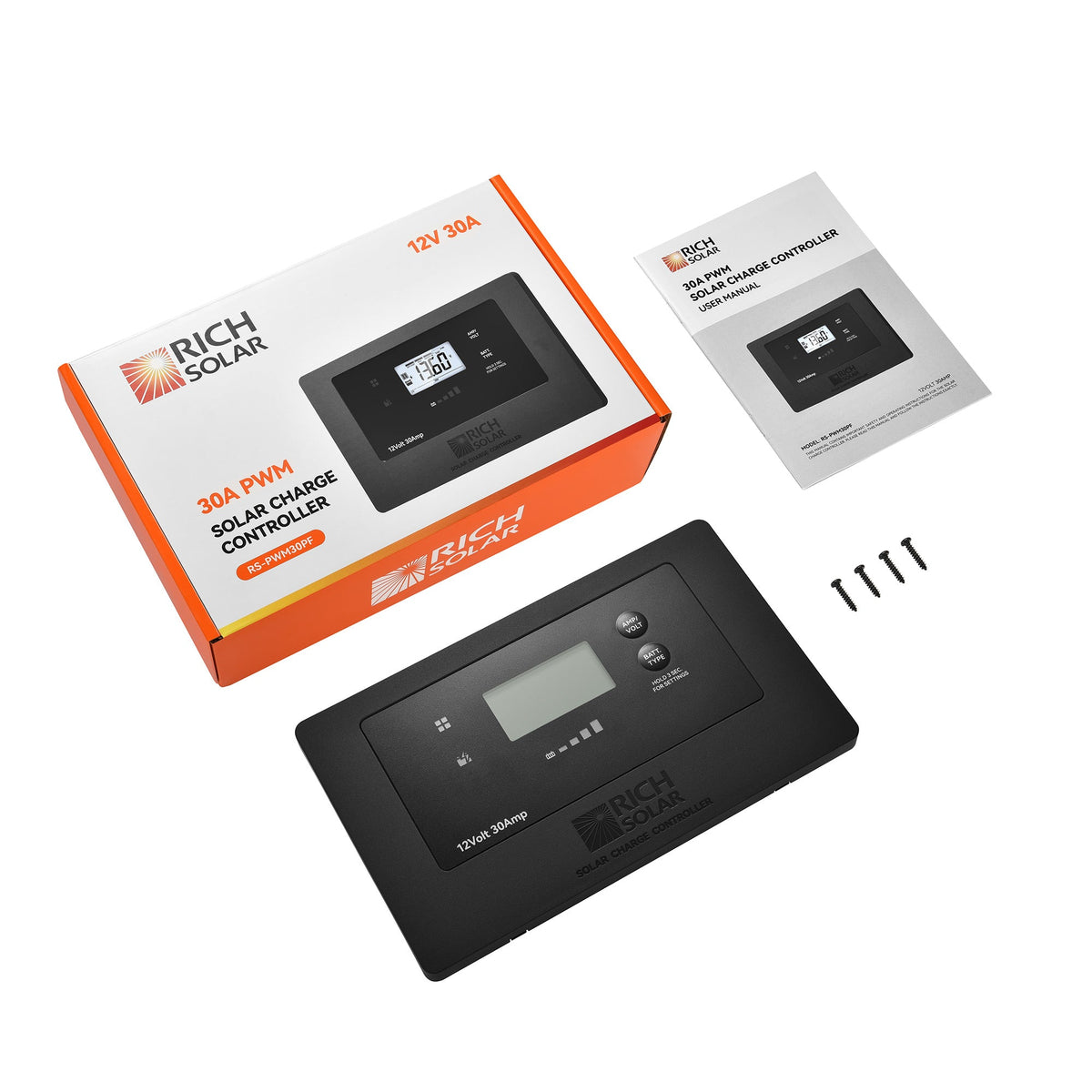

BRAVO AIR 30 30A Flush-Mount PWM Solar Charge Controller
Equipment Type and Primary Applications
30A PWM solar charge controller for 12V battery systems in RVs, trailers, campers, vans, and boats. The flush-mount enclosure supports vertical wall installation and provides Bluetooth monitoring through the RICH SOLAR App.
Performance Specifications
- Rated solar charging current: maximum 30A.
- Normal solar array input: 5–22VDC; maximum open-circuit solar input: 25VDC.
- Minimum operating voltage at the solar or battery side: 8VDC.
- Maximum solar-to-battery voltage drop: 0.25VDC.
- Charging method: PWM with MOSFET technology and bulk, absorption, equalization, and float stages.
- Compatible batteries: Gel, AGM, flooded, calcium, LTO, and LiFePO₄.
- Automatic temperature compensation; external battery temperature sensor supported.
- Night standby consumption: maximum 10mA.
- Operating temperature: -25 to 50°C (-13 to 122°F); operating humidity: 0–85% RH.
- Protection operating threshold: 85°C (185°F); enclosure rating: IP22.
Safety Features and Certifications
Electronic protection covers reverse polarity, short circuit, over-temperature, over-voltage, and overload conditions. Automatic BMS activation can reactivate protected LiFePO₄ batteries. Compliance markings and standards include UL1741, FCC, CE, EMC, and RoHS.
Installation and Maintenance Requirements

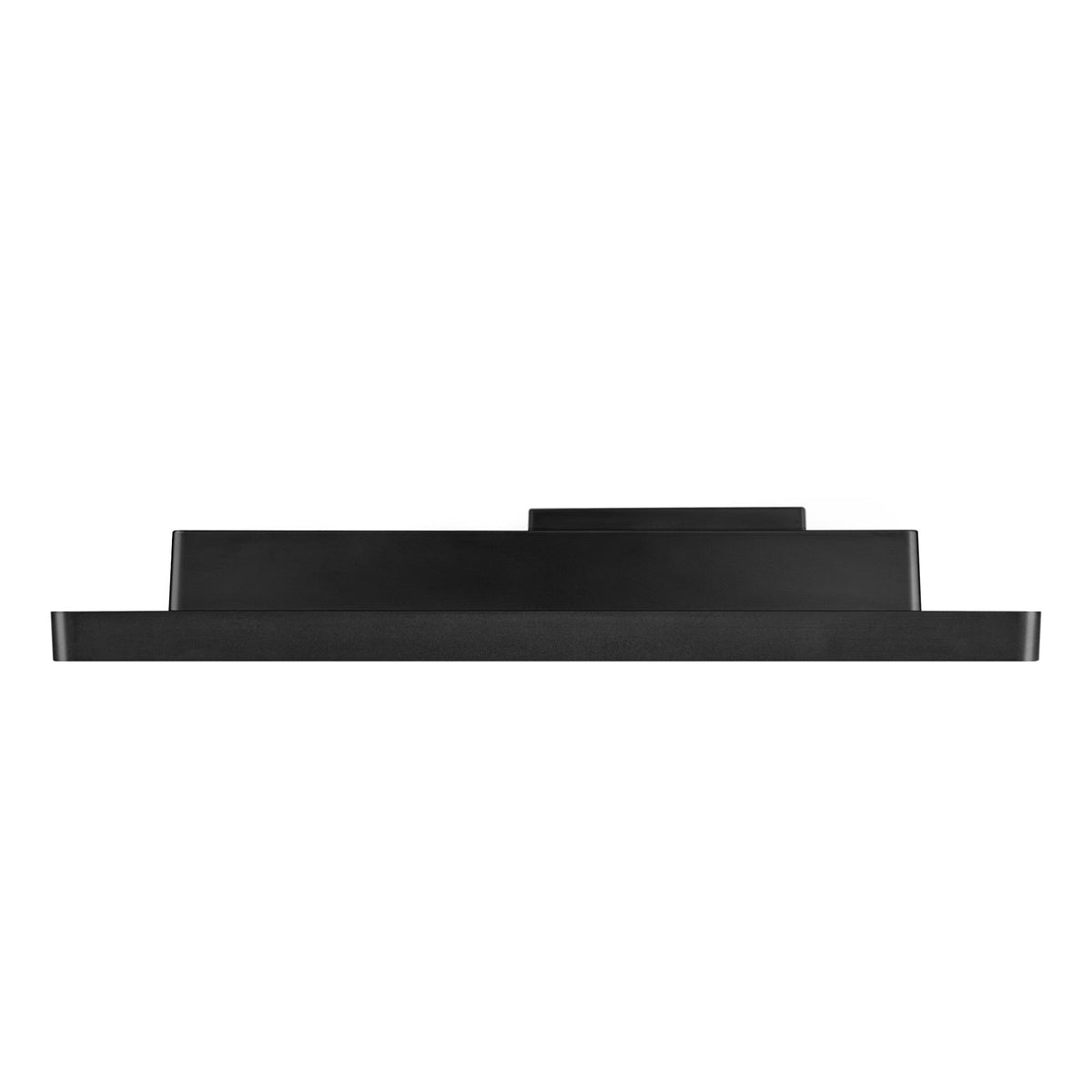

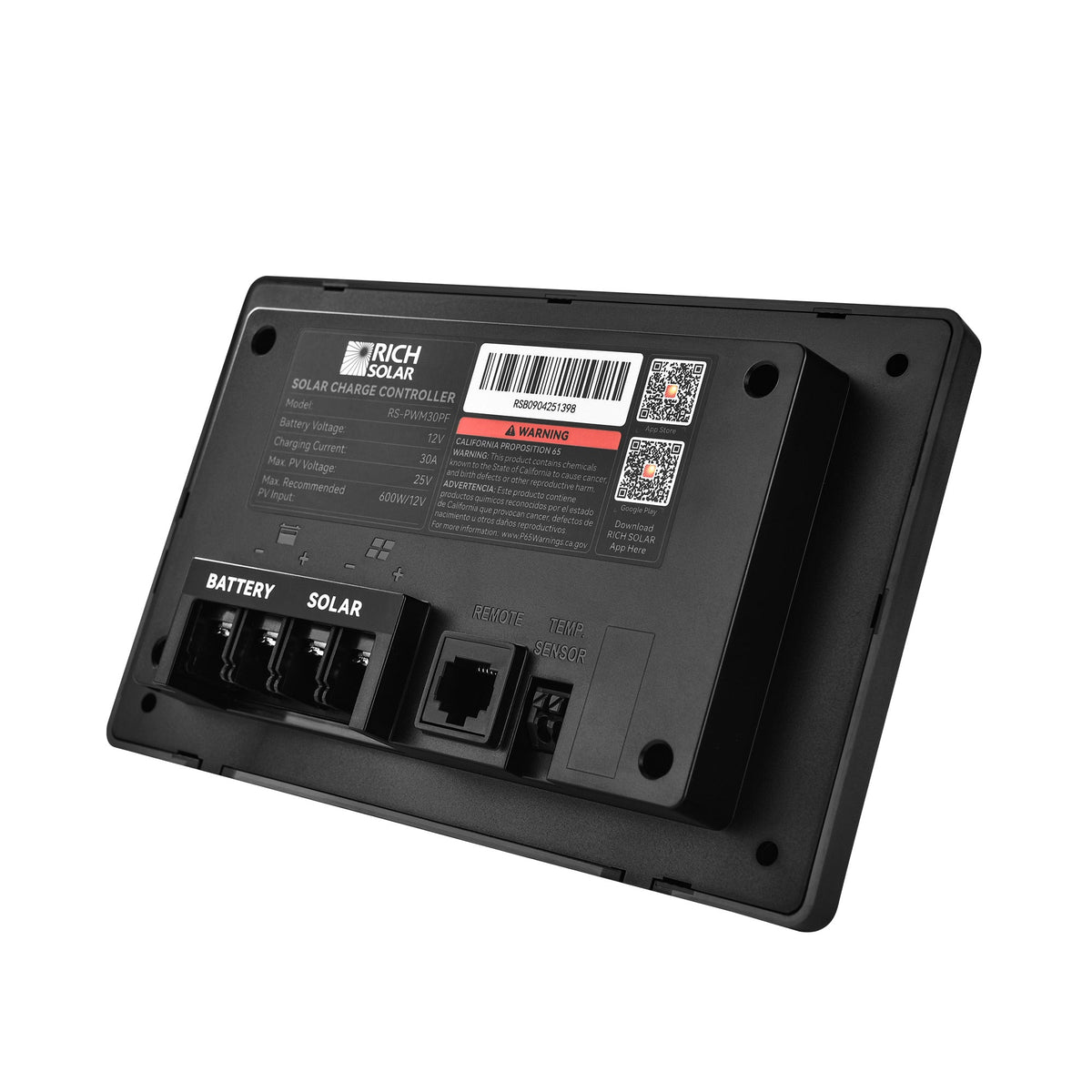

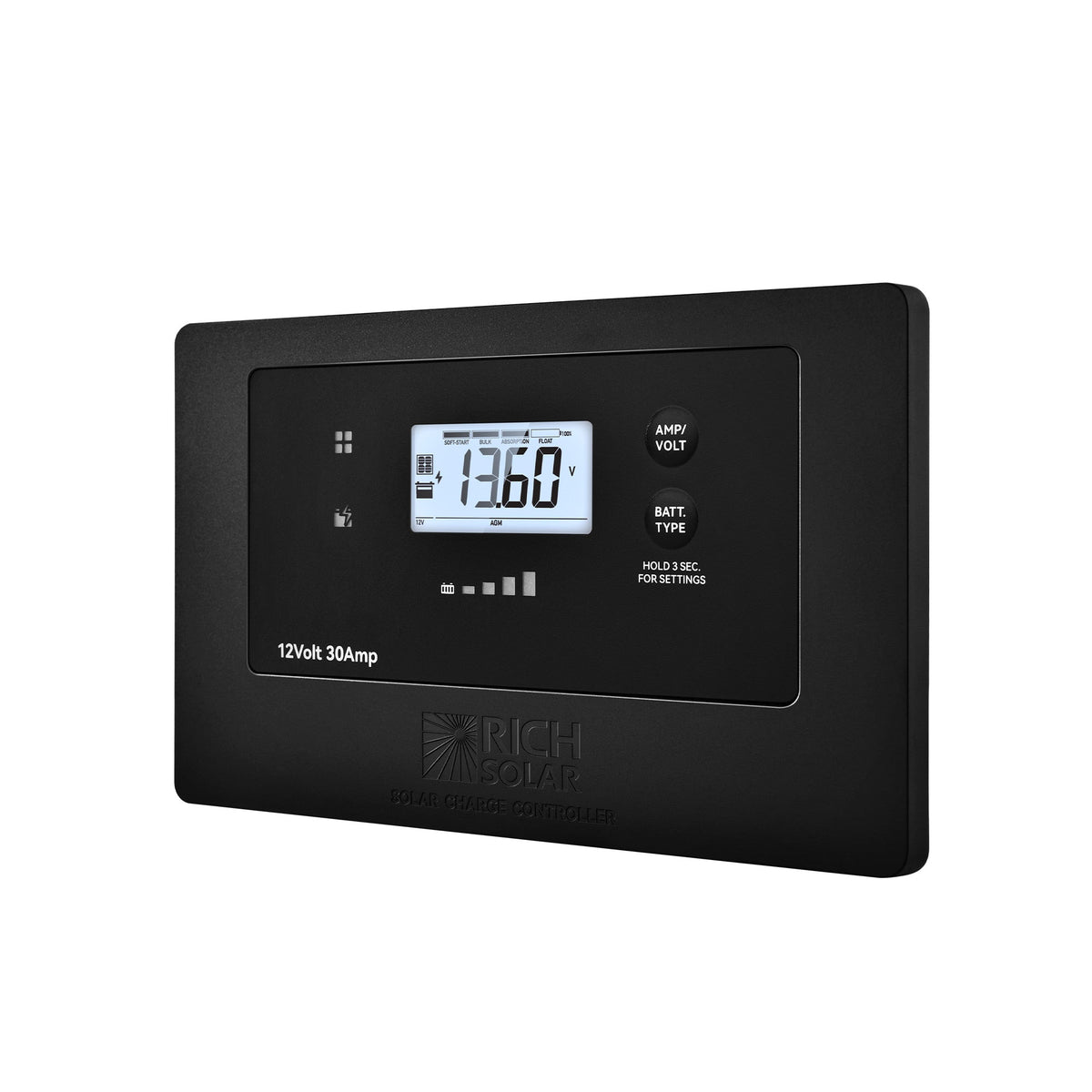

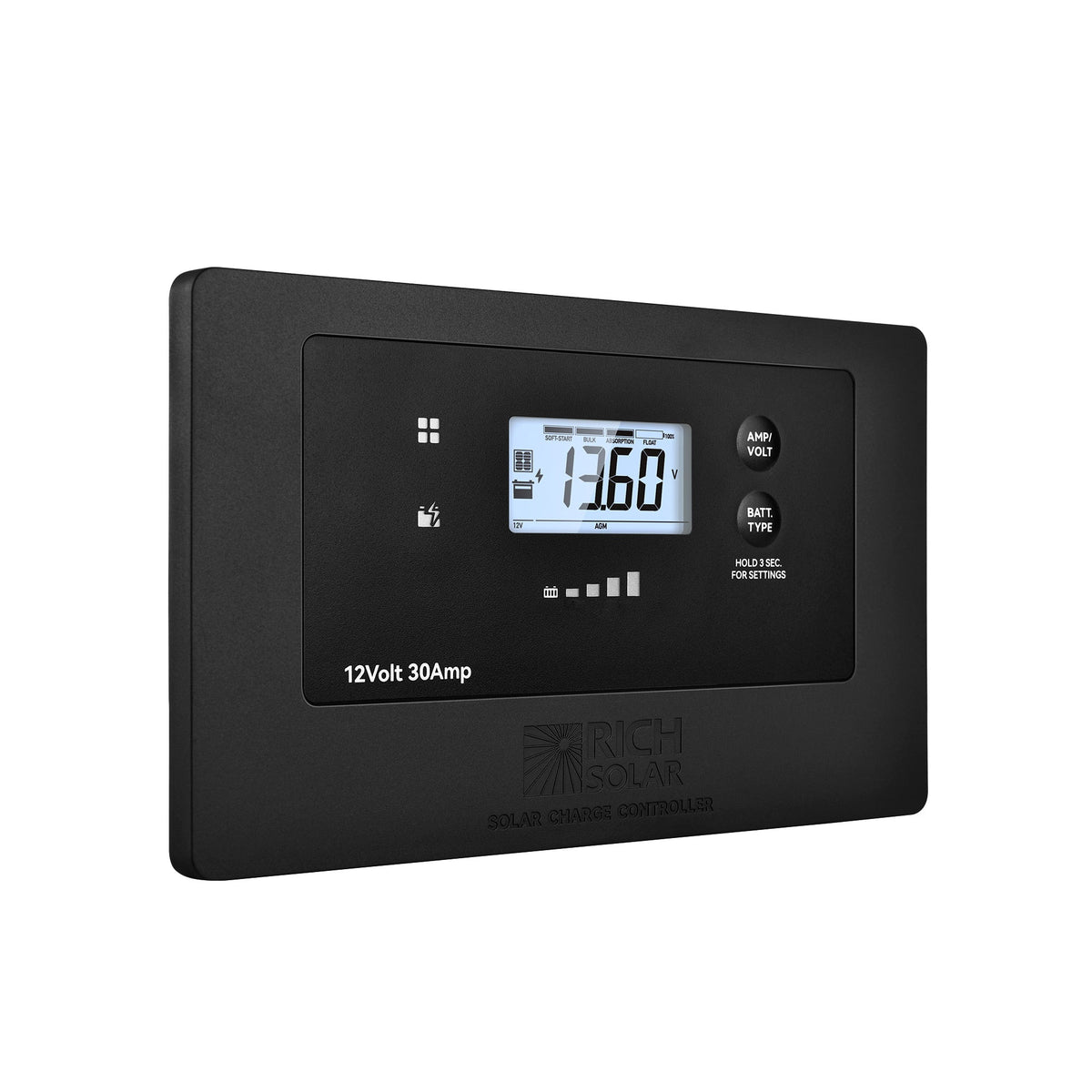

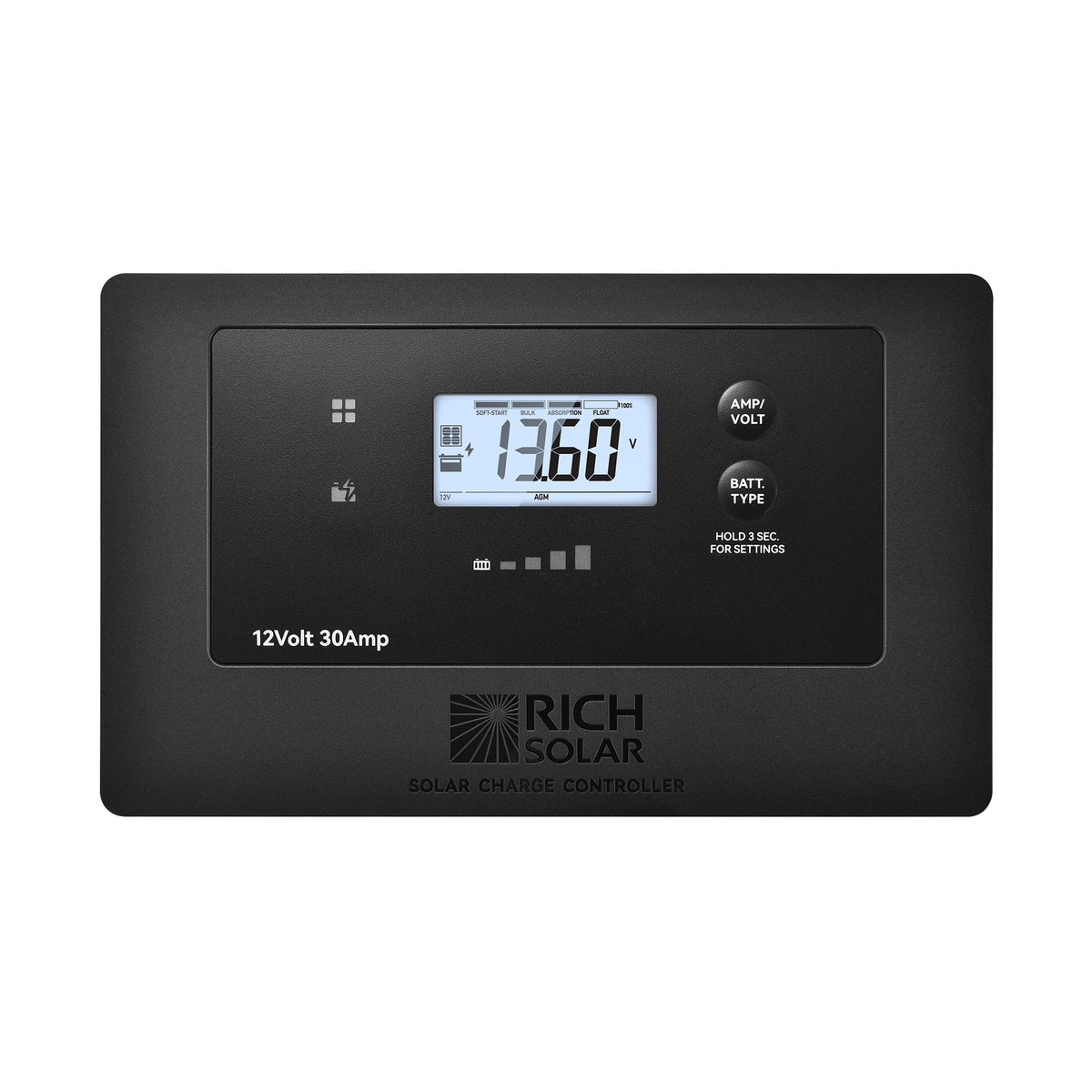

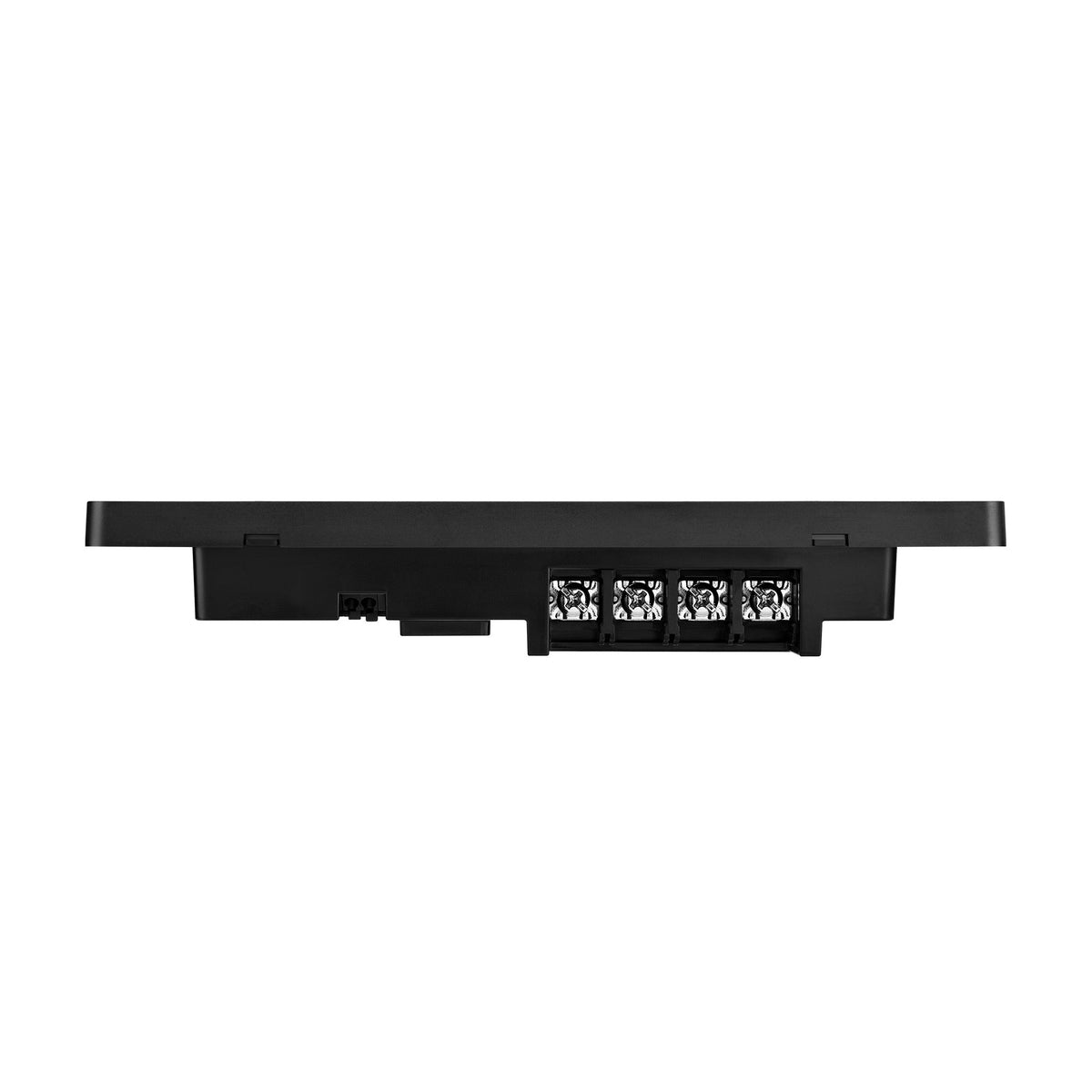

Install vertically using the flush-mount design. Power terminals accept maximum #8 AWG stranded wire and require 6.2–7.1 in-lb (0.7–0.8 N·m) torque. Connect a compatible 12V battery system and solar array within specified voltage limits, then confirm operation on the LCD and LED indicators. Keep the controller within its rated environmental conditions.
Warranty and Service Information
Branding/References
Product: BRAVO AIR 30. Monitoring reference: RICH SOLAR App.
Differentiators
Combines flush-mount installation, built-in Bluetooth monitoring, multi-stage PWM charging, automatic temperature compensation, and automatic LiFePO₄ BMS reactivation in one 30A 12V controller.
