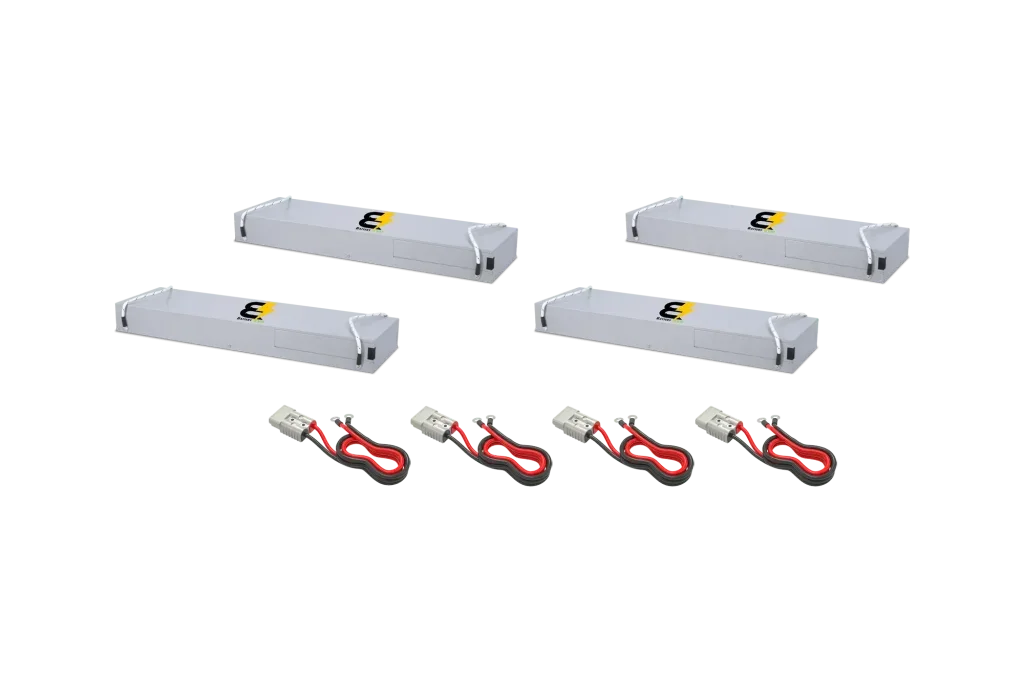

BatteryEvo 48V MUSTANG 4x Kit
The BatteryEvo 48V MUSTANG 4x Kit delivers reliable, high‑capacity energy for off‑grid power, emergency backup, and rugged worksite use. Built around premium Razor LiFePO4 cells and the Beyond BMS, this pack emphasizes safety, efficiency, and long‑term durability with maintenance‑free operation in a compact, modular form factor. It is optimized for systems requiring dependable energy storage, rapid response, and extended cycle life in challenging environments.
Technical specifications
- System Voltage: 48 V
- Nominal Voltage: 51.2 V
- Chemistry: LiFePO4 (LFP)
- kWh Capacity: 7 kWh
- Ah Capacity: 140 Ah
- Charging Voltage: 55.2–58.4 V
- Max Charge Voltage: 58.8 V
- Operating Voltage Range: 44.8–58.4 V
- Suggested Low Voltage Cutoff: 44.8–50.8 V
- Cell Configuration: 16S1P
- Max Continuous Discharge Current: 150 A
- Max Continuous Power: 7680 W
- Max Discharge Peak Current: 300 A (5 s)
- Charge Temperature Range: 0°C–55°C
- Discharge Temperature Range: −20°C–55°C
- Optimal Discharge Temperature Range: 15°C–35°C
- Storage Temperature Range: −5°C–35°C (max 6 months)
- Weight: 146 lb
- Dimensions (W × D × H): 39.9 in × 11.6 in × 4.4 in
Safety, reliability, and warranty
Beyond BMS with triple safety redundancy, combined with Razor LiFePO4 cells, delivers enhanced thermal stability, robust fault isolation, and long‑cycle life. The system supports high energy density with maintenance‑free operation and is protected by a 10‑year warranty for confidence in continuous performance in demanding applications.
Installation and maintenance
- Weight and footprint: 146 lb with a 39.9 in W × 11.6 in D × 4.4 in H profile to inform handling and mounting decisions
- Operating and storage temperature ranges are specified to support reliable field performance
- Maintenance: maintenance‑free due to LiFePO4 chemistry and Beyond BMS
Warranty and service
Includes a 10‑year warranty. For service options and support, contact the supplier through standard channels.
Download Spec Sheet
BatteryEvo 48V MUSTANG 4x Kit
The BatteryEVO 48V 7kWh (140Ah) MUSTANG battery delivers reliable, high-capacity energy for off-grid, backup, and worksite power needs. Built with premium Razor LiFePO4 cells and an advanced Beyond BMS, it ensures top safety, efficiency, and durability. Embrace powerful, maintenance-free energy with this next-generation solution.
➤ Beyond BMS with triple safety redundancy
➤ Razor LiFePO4 cells for superior safety
➤ High energy density, maintenance-free
➤ 10-year warranty
| System Voltage | 48V |
| Nominal Voltage | 51.2 V |
| Chemistry | LFP |
| kWh Capacity | 7 kWh |
| Ah Capacity | 140 Ah |
| Charging Voltage | 55.2V - 58.4V |
| Max Charge Voltage | 58.8 V |
| Operating Voltage Range | 44.8V - 58.4V |
| Suggested Low Voltage Cutoff | 44.8V - 50.8V |
| Cell Configuration | 16S1P |
| Max Continuous Discharge Current | 150 A |
| Max Continuous Power | 7680 W |
| Max Discharge Peak Current | 300A (5 seconds) |
| Max Charge Current | 150 A |
| Charge Temperature Range | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight | 146 lb |
| Depth | 11.6 in |
| Width | 39.9 in |
| Height | 4.4 in |
| System Voltage | 48V |
| Nominal Voltage | 51.2 V |
| Chemistry | LFP |
| kWh Capacity | 7 kWh |
| Ah Capacity | 140 Ah |
| Charging Voltage | 55.2V - 58.4V |
| Max Charge Voltage | 58.8 V |
| Operating Voltage Range | 44.8V - 58.4V |
| Suggested Low Voltage Cutoff | 44.8V - 50.8V |
| Cell Configuration | 16S1P |
| Max Continuous Discharge Current | 150 A |
| Max Continuous Power | 7680 W |
| Max Discharge Peak Current | 300A (5 seconds) |
| Max Charge Current | 150 A |
| Charge Temperature Range | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight | 146 lb |
| Depth | 11.6 in |
| Width | 39.9 in |
| Height | 4.4 in |
