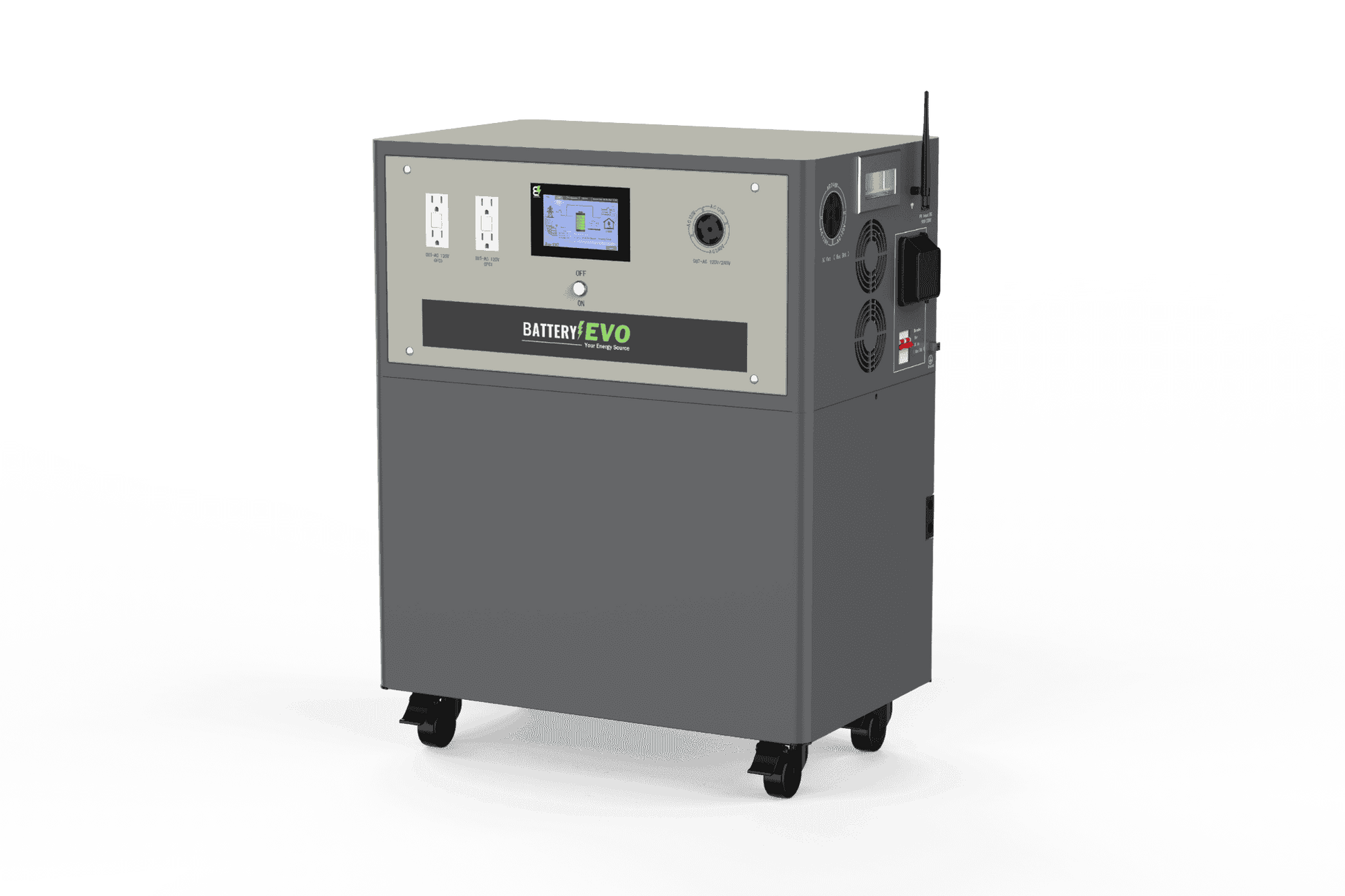

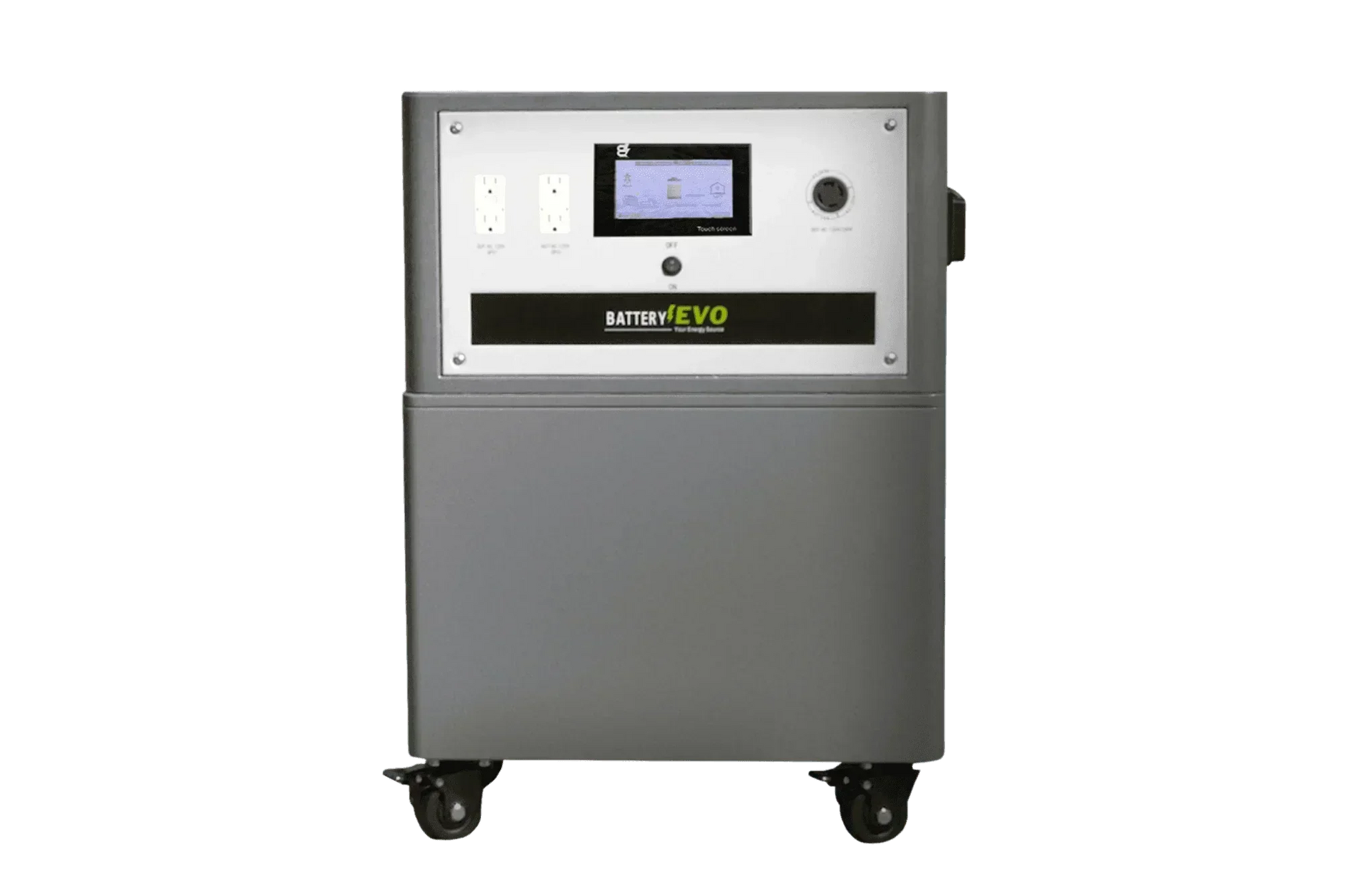

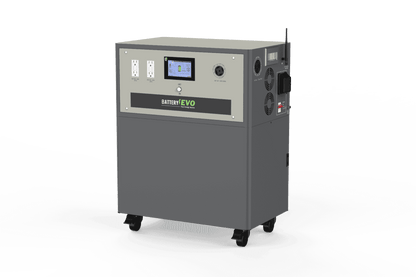

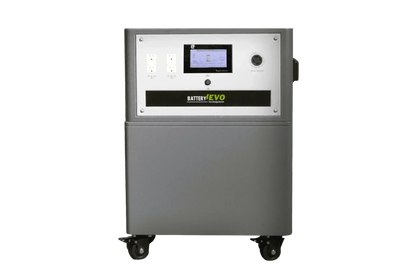

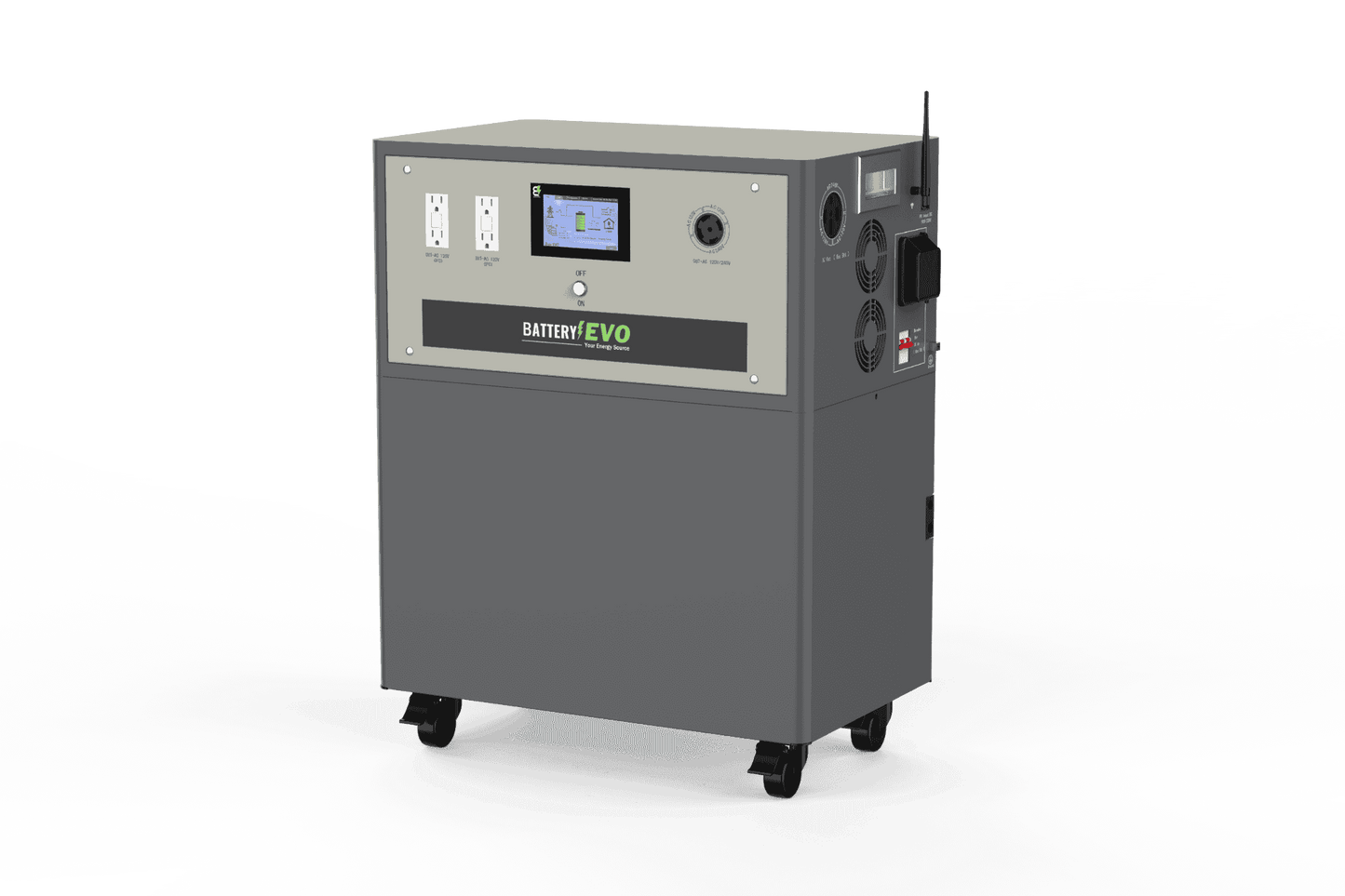

Battery Evo WALRUS G3 12K INV. 22 kWh AC110/220V 72N
The Battery Evo WALRUS G3 12K INV is a compact, scalable home energy storage system engineered for grid-tied and off-grid operation. With a 22 kWh pack and a 12.5 kVA inverter, it delivers reliable daytime charging and high-demand event readiness. The unit supports AC110/220V output and a nominal 66V system, balancing safety with high performance in a portable cabinet designed for modern homes.
- System Voltage: AC110/220V
- Nominal Voltage: 66V
- Chemistry: NMC
- Capacity: 22 kWh
- Max Continuous Power: 12.5 kVA
- Max Charge Current: 250 A
- Max Discharge Peak Current: 300 A
- Weight: 394 lb (178.7 kg)

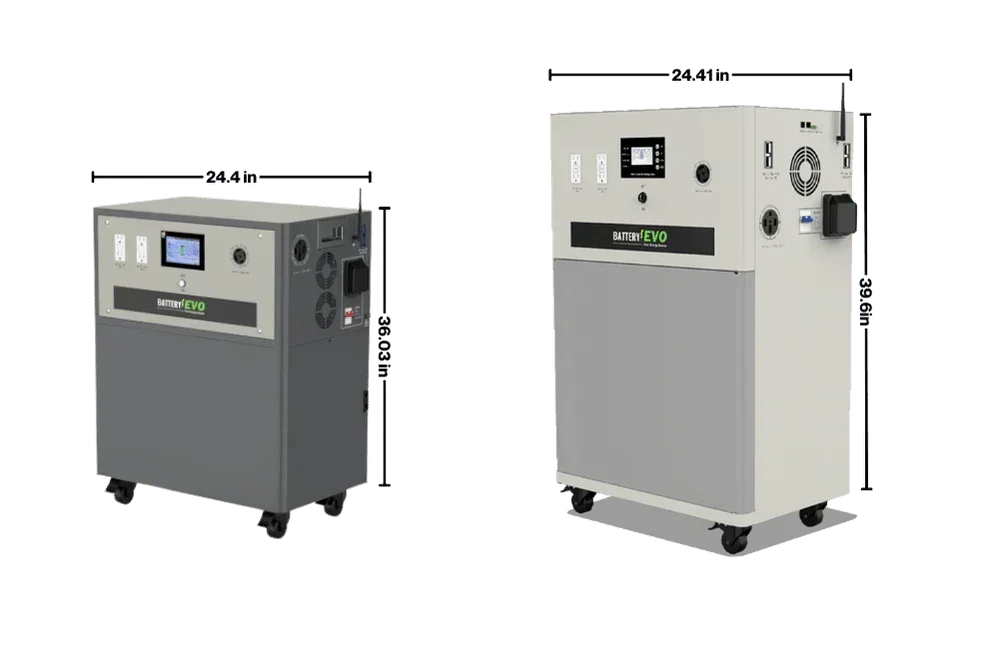

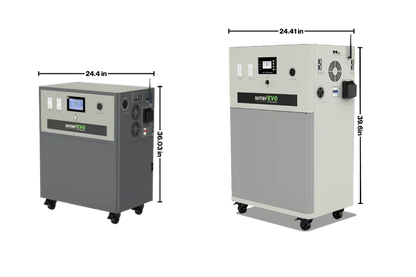

- Dimensions: 15.4 in D × 24.41 in W × 36.06 in H

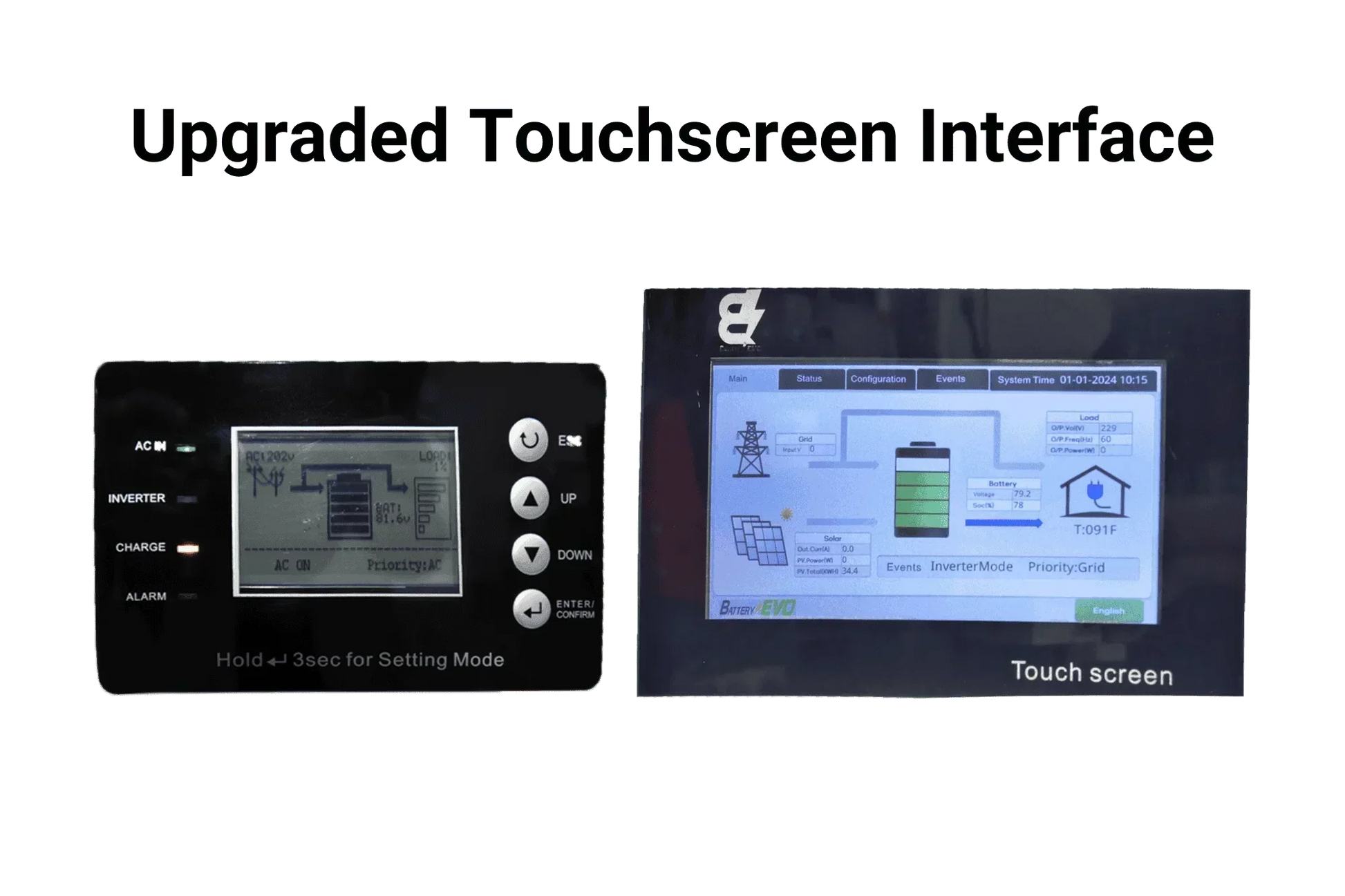

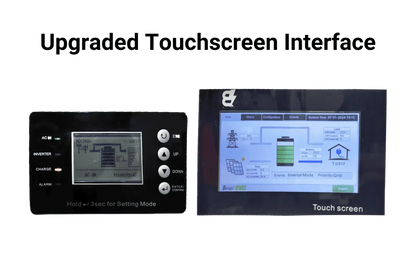

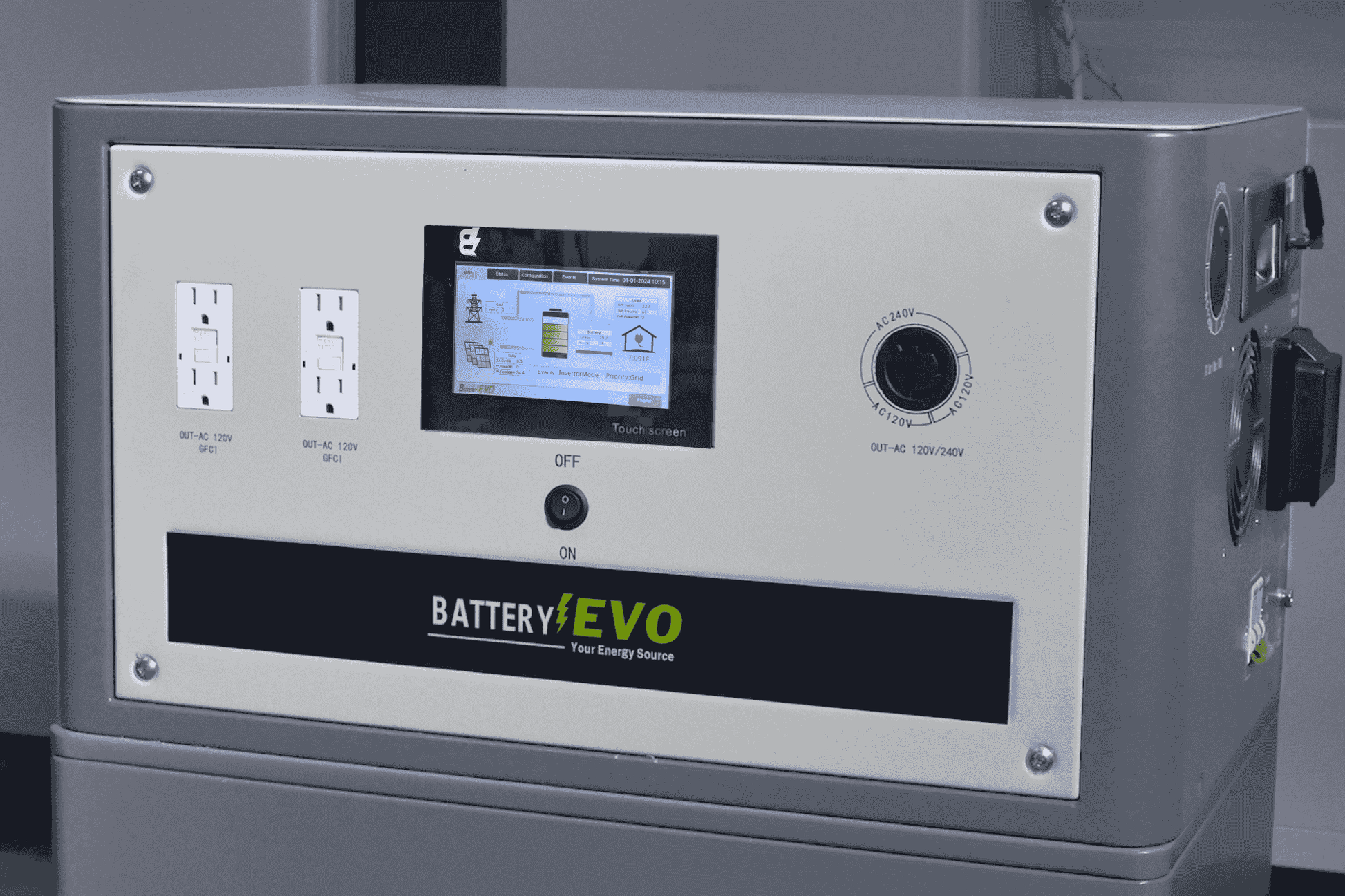

Key features include a 7-inch color touchscreen for intuitive control, Wi‑Fi and network ports for remote monitoring via app, and programmable charge/discharge timers to optimize energy use. The design is expandable—connect additional WALRUS units to scale capacity, and integrate with grid-tied solar panels to maximize utility savings. A portable chassis with wheels allows easy repositioning without wall mounting.
- Safety: Fuse (300A) and Battery Management System with over/under voltage, over current, and over/under temperature protections
- Warranty: 10-year coverage with minimal maintenance requirements
- Origin: Made in America with high-quality components
For installation details, refer to the Installation Manual and watch the step-by-step installation video.
Additionally, this system supports remote monitoring, offers expandability via multiple units, and ensures energy independence for outages or daily use.
Battery Evo WALRUS G3 12K INV. 22 kWh AC110/220V 72N
Experience the cutting-edge of energy solutions with the Battery Evo WALRUS G3 12K INV. This advanced battery system, equipped with a powerful 22 kWh capacity and 12.5k inverter, is designed to redefine how you manage and store energy in your home. Say goodbye to energy limitations and embrace a sustainable lifestyle with this compact powerhouse that combines technology and efficiency.
Main Advantages:
- Versatile Energy Management: Ideal for both off-grid power systems and grid-tied homes, this battery system supports your energy needs while reducing utility bills.

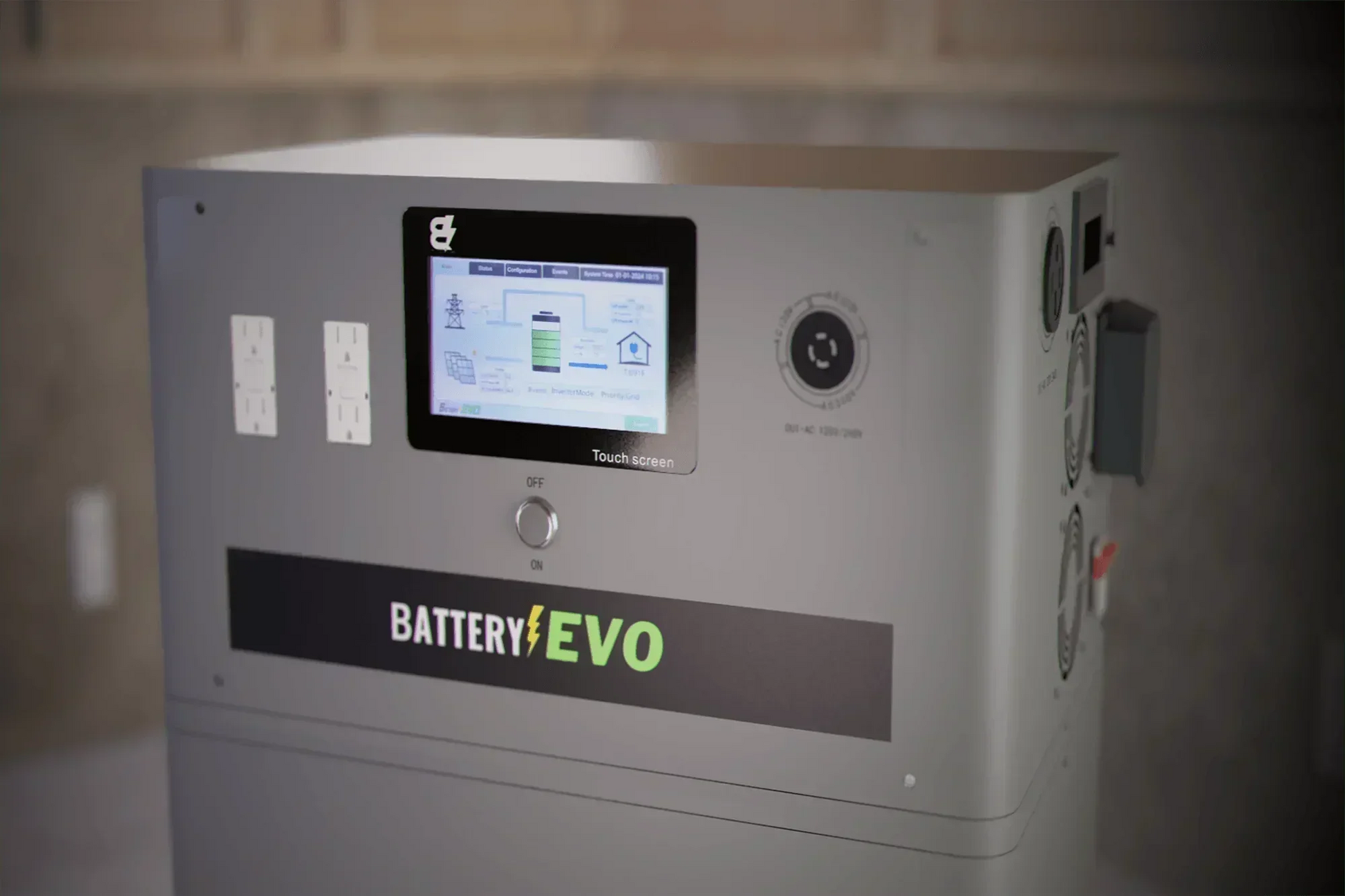

- Enhanced User Experience: The user-friendly 7-inch color touchscreen provides intuitive control and monitoring, making it perfect for tech-savvy homeowners.
- Robust and Reliable: Backed by a 10-year warranty and designed for minimal maintenance, the WALRUS G3 ensures long-lasting performance and peace of mind.
Why This Product is Essential:
In a world where energy demands are growing, the Battery Evo WALRUS G3 is an essential investment for anyone looking to enhance their home's energy independence. Whether you are powering high-demand appliances during outages or aiming for a fully off-grid lifestyle, this system offers a reliable solution that adapts to your needs.
Specifications and Guides:
Features:
- Compatible with grid-tied solar panels for maximized utility savings.

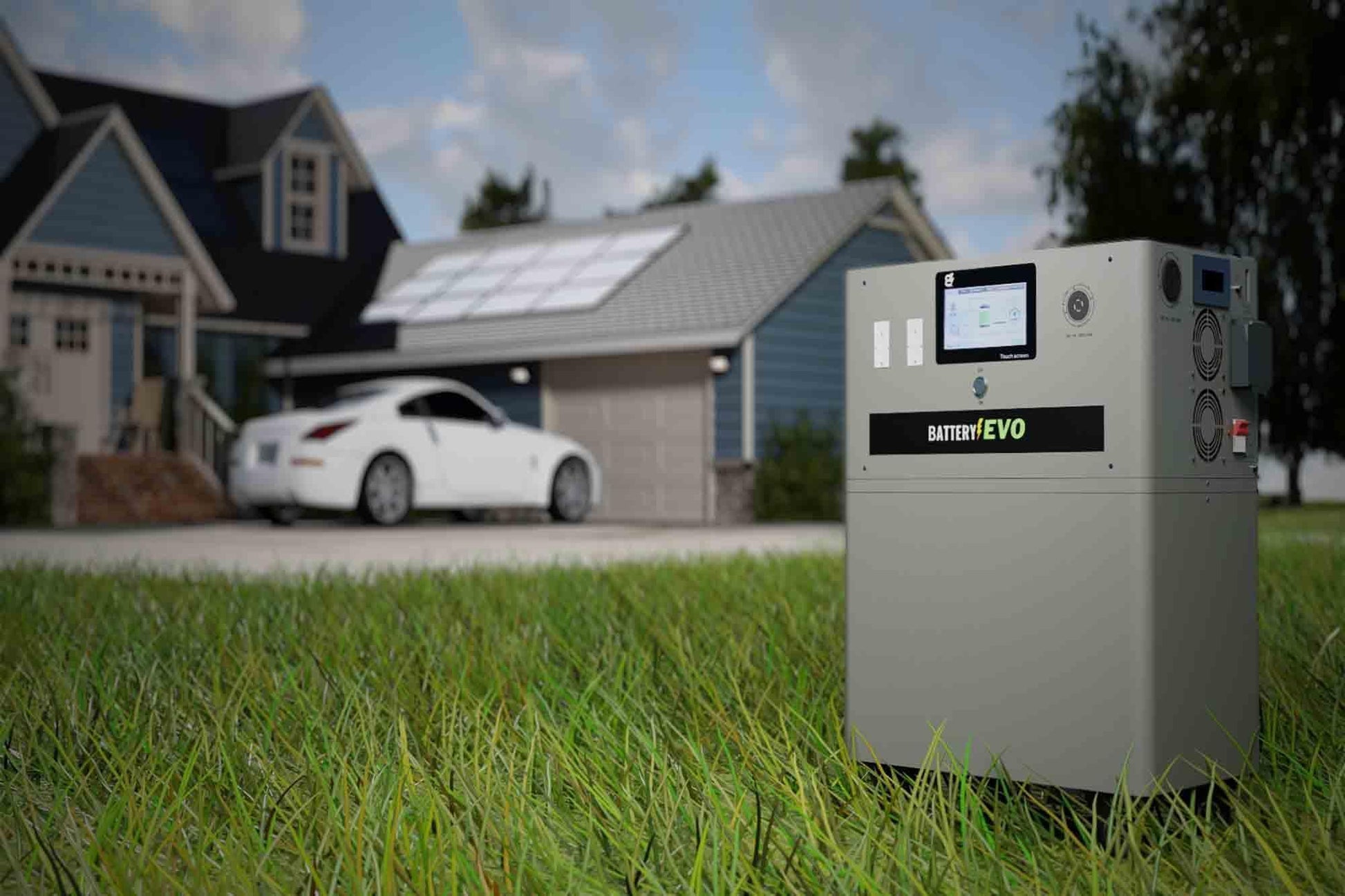

- Portable design with wheels for easy transport; no wall mounting required.
- Expandable capacity by connecting multiple WALRUS units.
- Wi-Fi and network ports for remote monitoring via app.
- Programmable charge/discharge timer for optimized energy use.
- Made in America with high-quality components.
Manuals:
For detailed installation instructions, please refer to the Installation Manual.
Guides:
Watch our step-by-step installation video for easy setup.
Specifications:
- SKU: EVO-WLRS-1022-72N
- System Voltage: AC110/220V
- Nominal Voltage: 66V
- Chemistry: NMC
- Weight: 394 lbs (178.7 kg)
- Dimensions: 15.4 in (D) x 24.41 in (W) x 36.06 in (H)
- Max Continuous Power: 12.5 kVA
- Max Charge Current: 250A
- Max Discharge Peak Current: 300A
- Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
