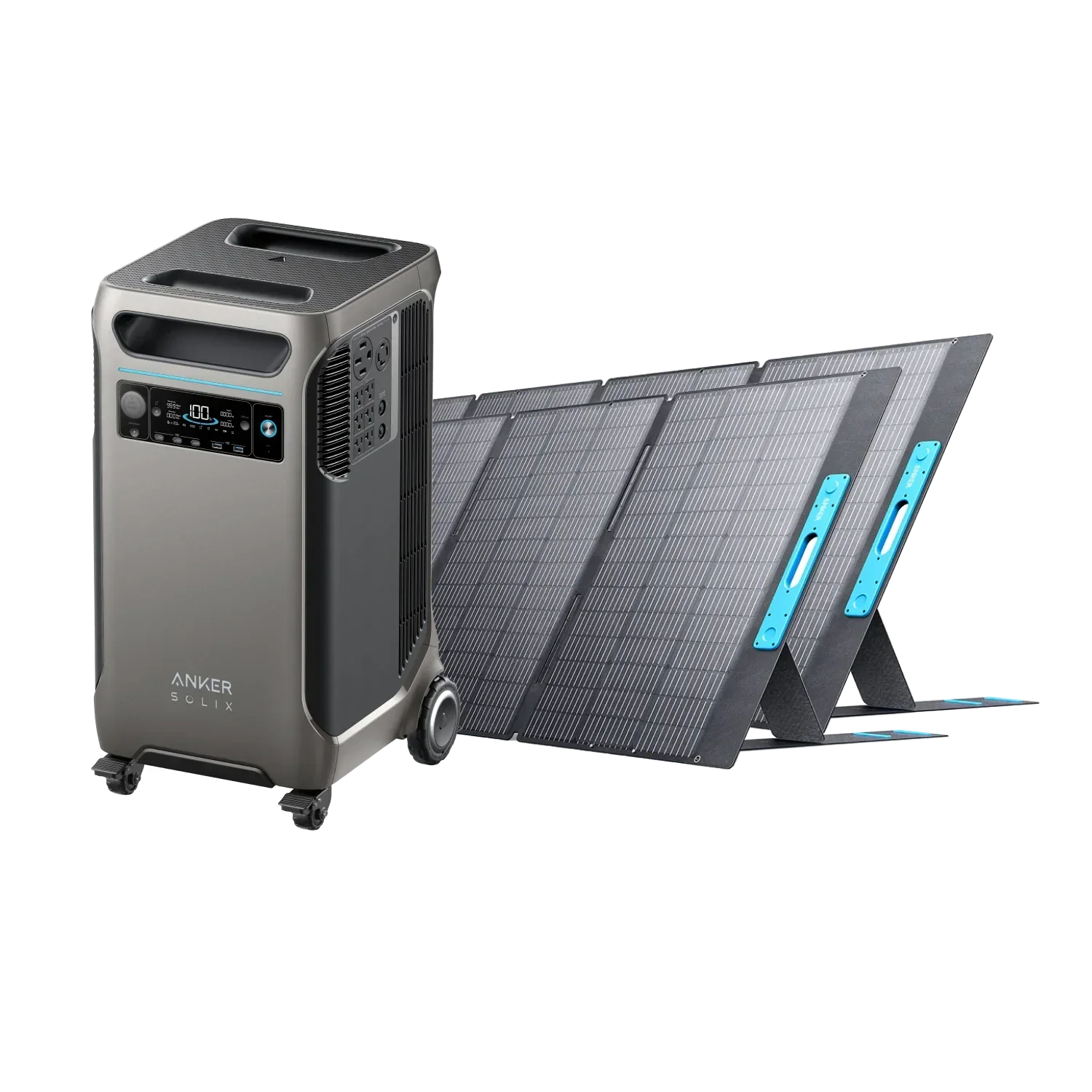

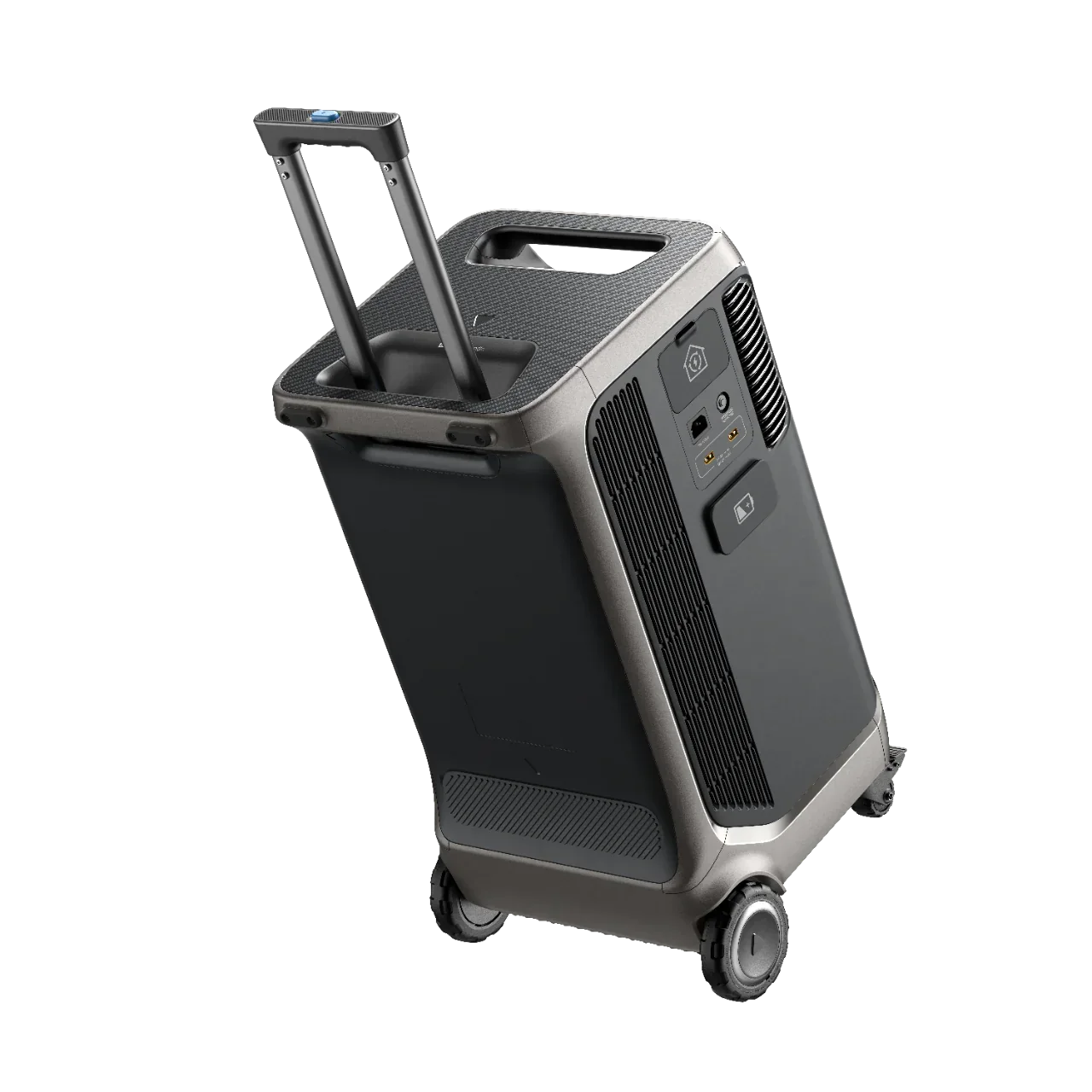

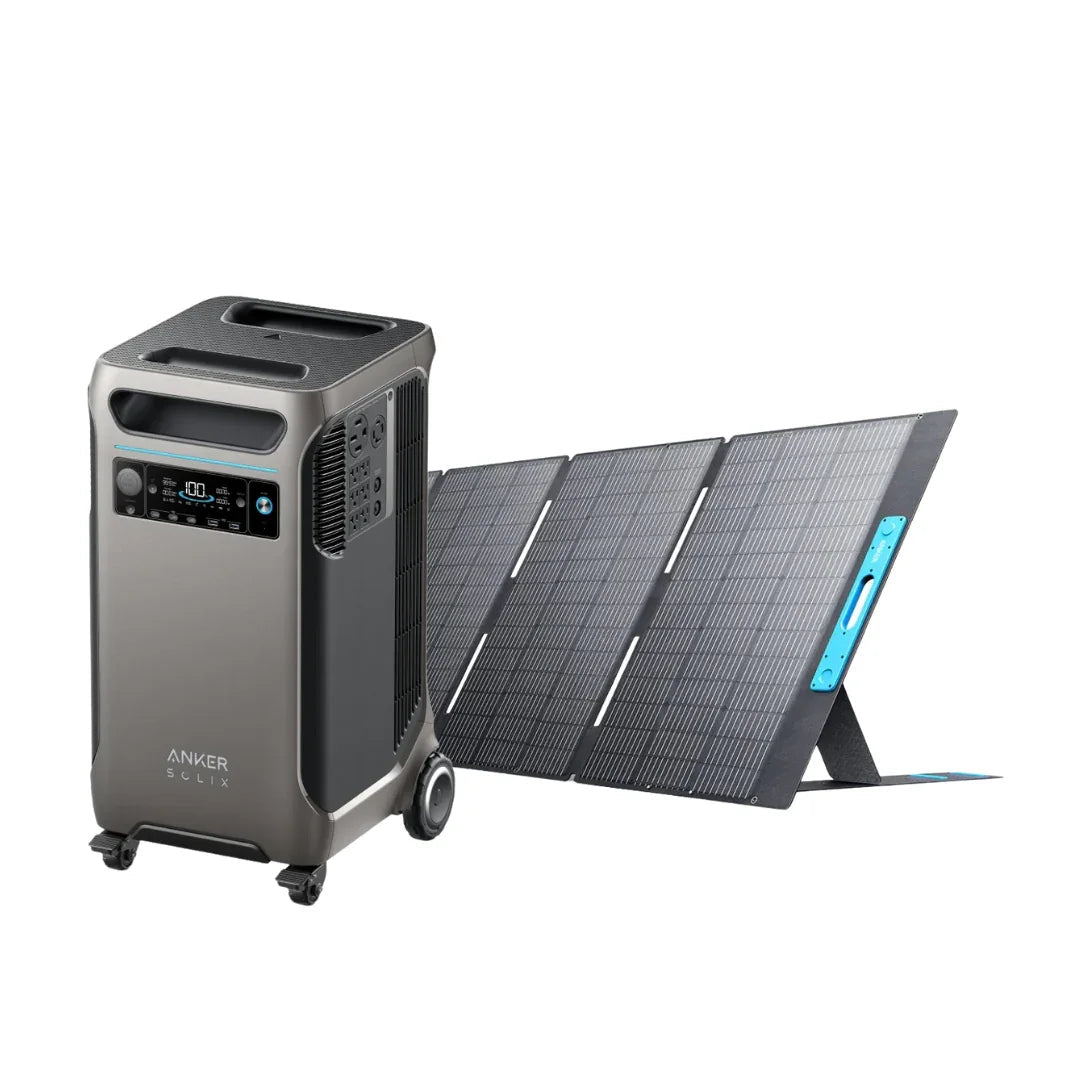

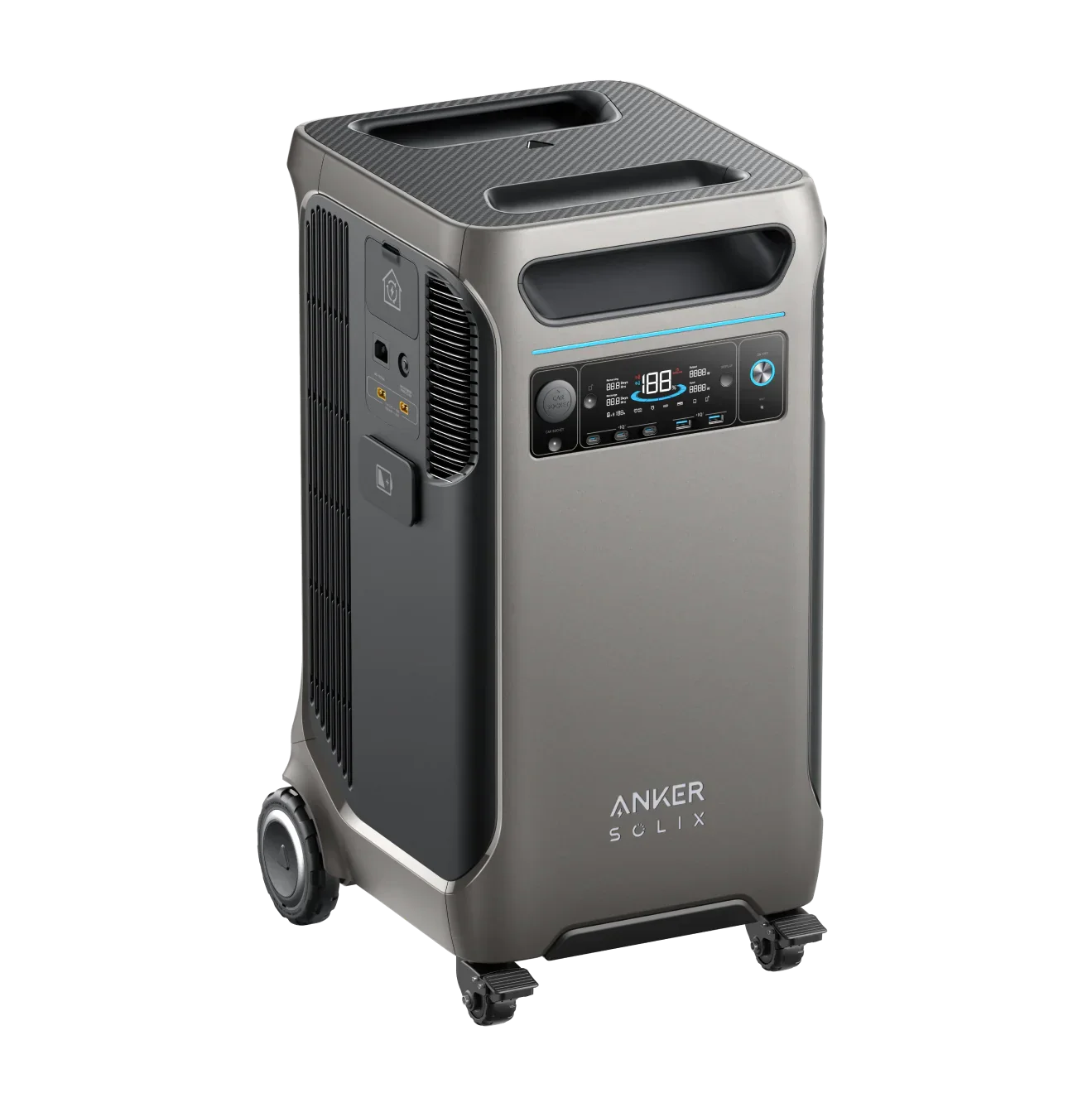

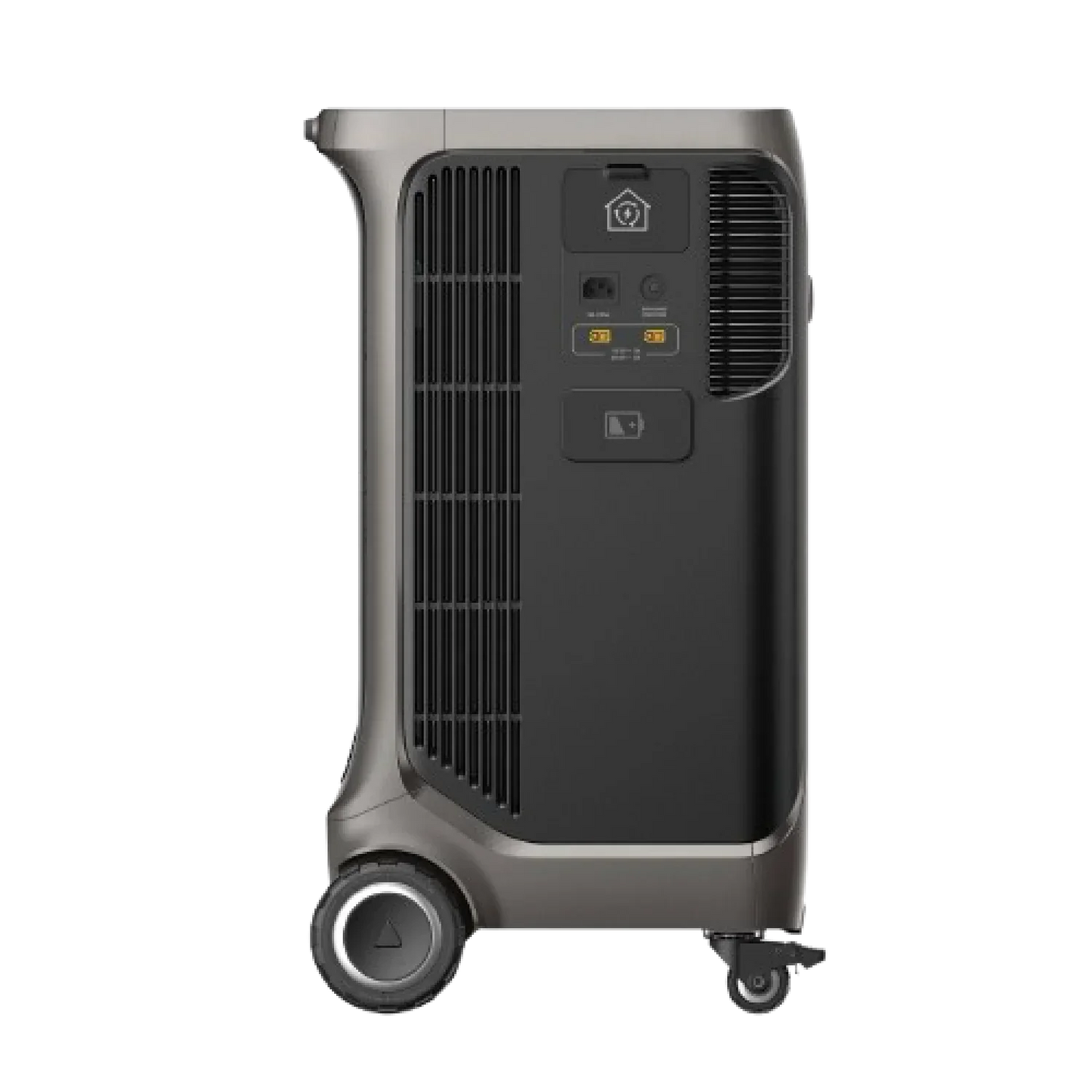

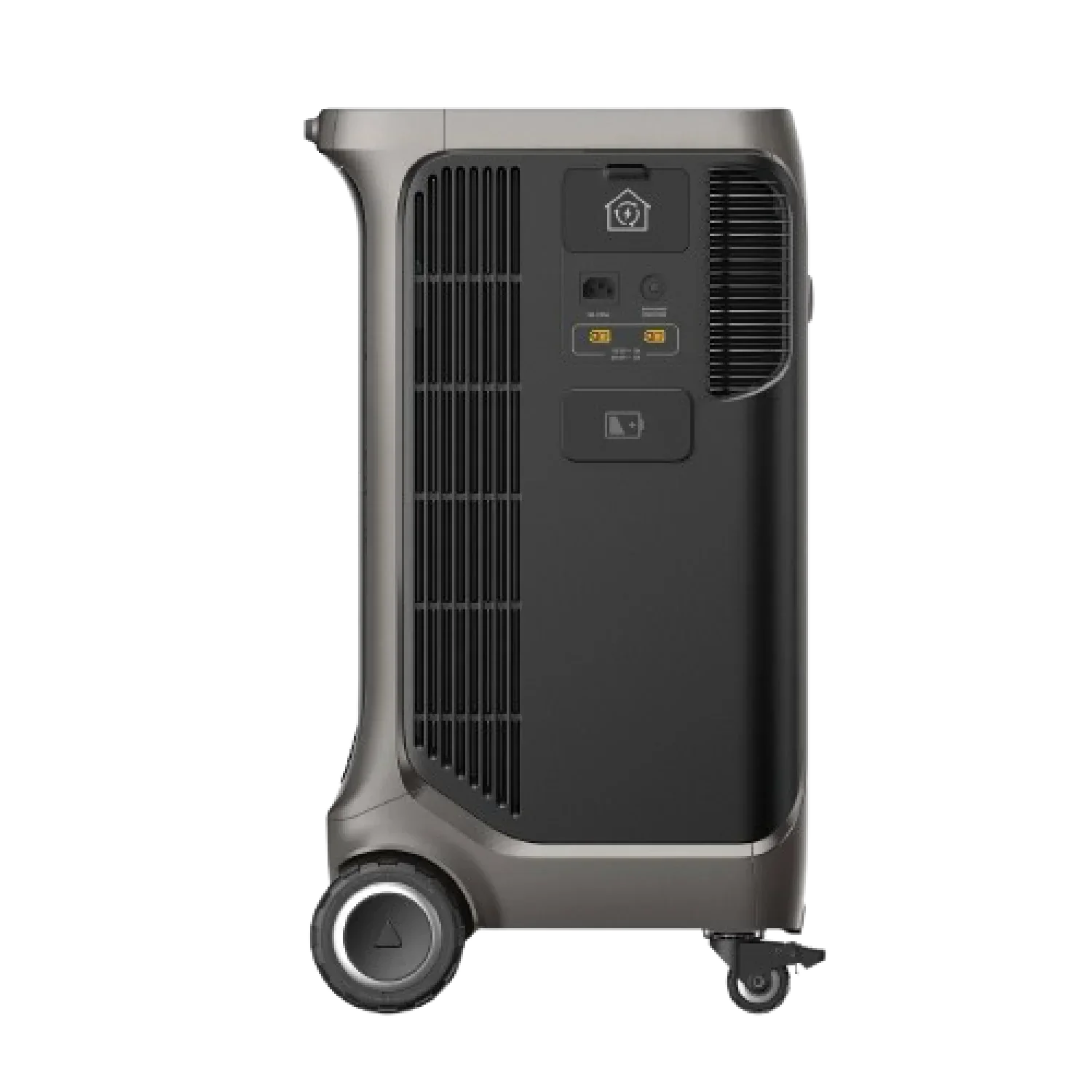

Anker SOLIX F3800 Solar Generator + 400W Portable Solar Panels
The Anker SOLIX F3800 Solar Generator + 400W Portable Solar Panels is a high-capacity portable power solution designed for home backup, professional power provisioning, EV charging support, and RV or off-grid applications. The system combines a LiFePO4 battery with integrated inverter technology and a compact 400W solar panel for plug‑and‑play solar recharging, ensuring you stay powered in critical moments or remote locations.
Core specifications
- Battery: LiFePO4 cell, 80 cells; 51.2 V, 75 Ah, 3,840 Wh (SKU A1790111).
- AC input: 120 V ~, 15 A max (3 hours); 12 A continuous; 60 Hz.
- AC input power (charging): 1,800 W max; bypass mode up to 1,440 W.
- Solar input: 11–32 V ⎓ 10 A; 32–60 V ⎓ 25 A (1200 W max per input channel).
- AC outputs (total): 6,000 W max; two 120 V outlets at 20 A each, 60 Hz; up to 2,400 W per outlet.
- USB output: USB-A 5 V ⎓ 2.4 A per port; USB-C up to 100 W per port.
- UPS: 20 ms seamless switchover for critical loads.
- Thermal operating range: discharging −4°F to 104°F; charging 32°F to 104°F.
- Physical: 132.2 lb; 27.6 in × 15.3 in × 15.6 in.

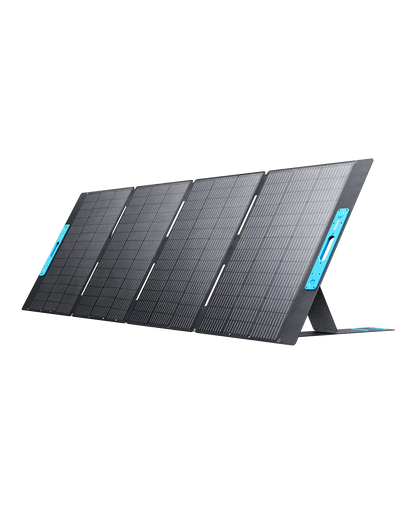

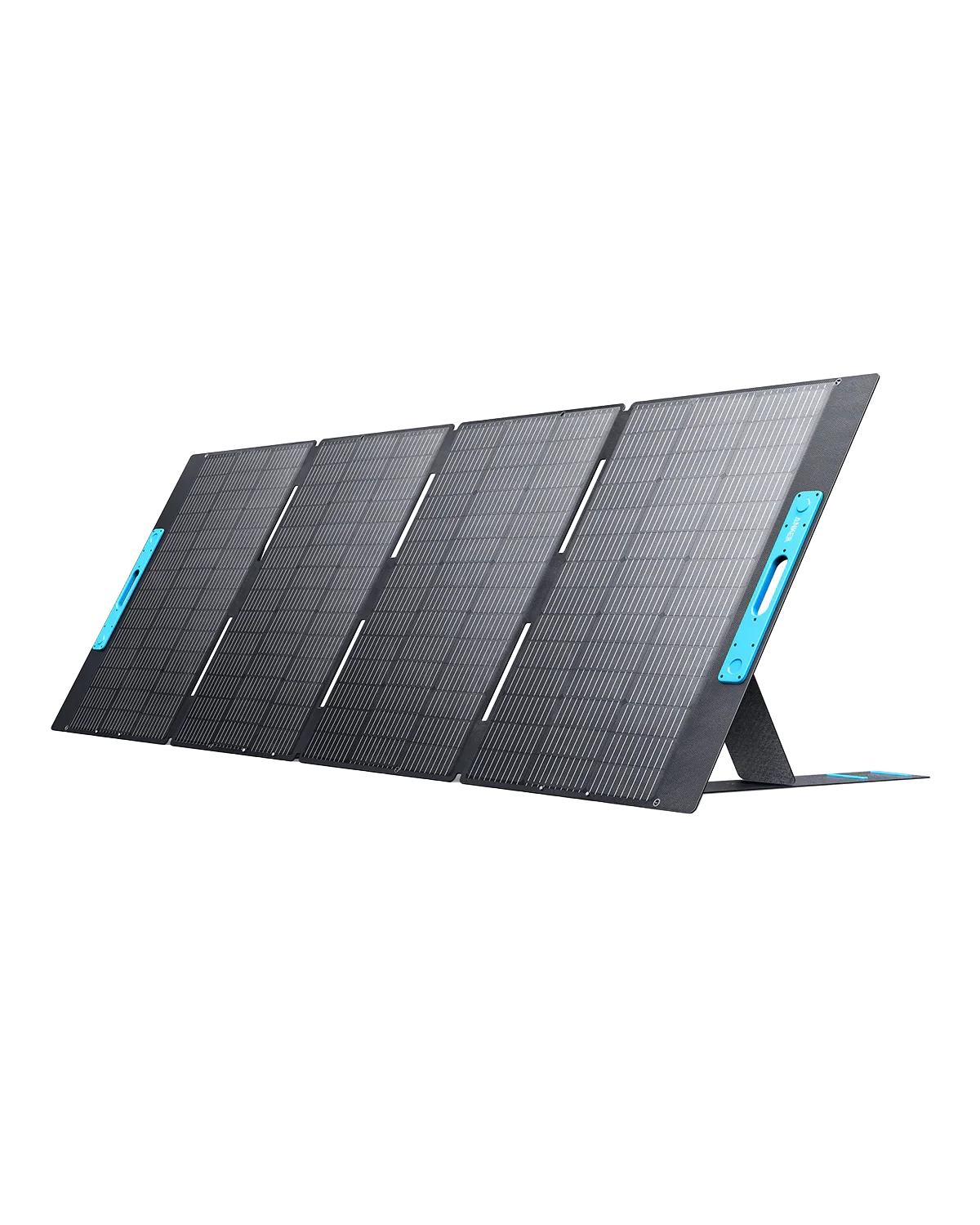

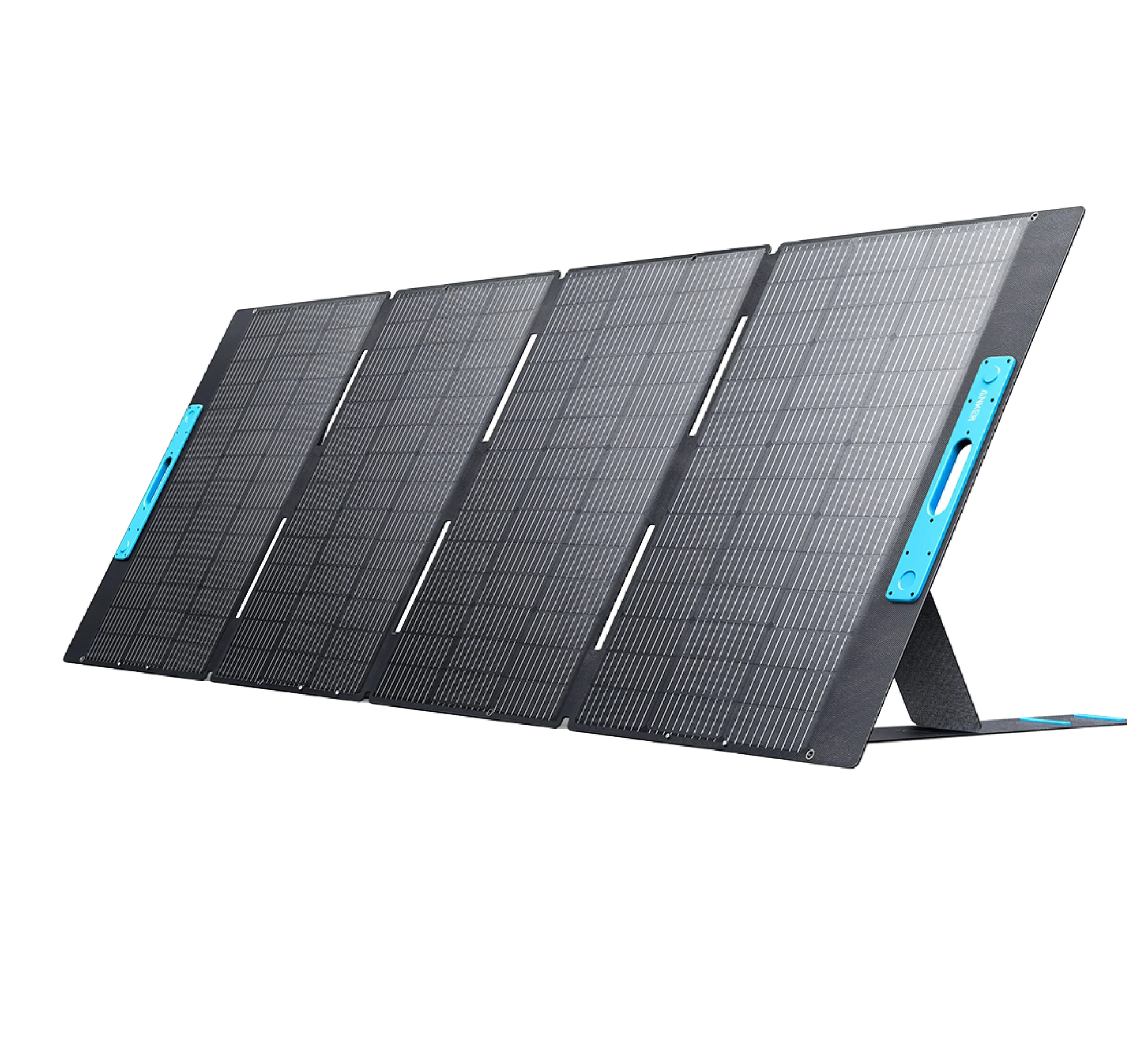

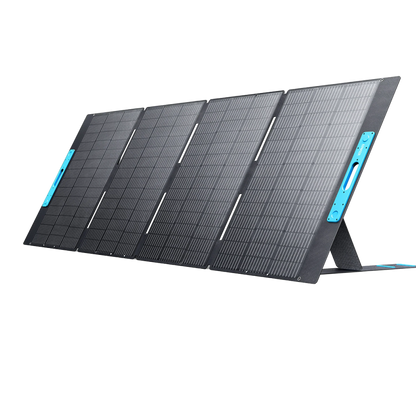

Solar panel specifications
- Panel: Anker SOLIX PS400, 400 W rated power.
- Open-circuit voltage: 57.6 V; operating voltage: 48 V; current approximately 8.33 A.
- Dimensions folded: 39 in × 26.6 in × 2 in; unfolded: 100 in × 39 in × 1.2 in; weight 35.3 lb.
Installation and maintenance
Engineered for plug-and-play installation. Connect the 400 W solar panel to the SOLIX unit, then attach to essential AC loads via the dual 120 V outlets or the NEMA 14-50 / L14-30 configurations as needed. Position panels in direct sunlight with minimal shading and ensure adequate ventilation around the unit. Routine maintenance is minimal; periodically inspect cables and connectors for wear and clean surfaces to maintain efficient heat dissipation.
Anker SOLIX F3800 Solar Generator + 400W Portable Solar Panels
Always Stay Charged and Prepared
Plug-and-Play Power for Any Situation
Home Backup
Professional Power
Power for EVs
Power for RVs
Specifications:
| SKU | A1790111 |
|---|---|
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Cell Number | 80 |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
| AC Input | 120V~ 15A (3 hours Max), 12A (continue), 60Hz L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input | 11-32V⎓10A; 32V-60V⎓25A (1200W Max Each) |
| Car Charger Output | 12V⎓10A |
| Home Panel Power Port | 3800W Max (AC Input), 6000W Max (AC Output), 20V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA 14-50 / L14-30) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V⎓2.4A (12W Max Per Port) |
| USB-C Output | 5V⎓3A / 9V⎓3A / 15V⎓3A / 20V⎓3A / 20V⎓5A (100W Max Per Port) |
| UPS | 20ms |
| Discharging Temperature | -4°F-104°F |
| Charging Temperature | 32°F-104°F |
| Size | 27.6 in × 15.3 in × 15.6 in |
| Net Weight | 132.2 lbs |
| SKU | A24371A1 |
|---|---|
| Rated Power | 400W |
| Open Circuit Voltage | 57.6V |
| Operating Voltage | 48V |
| Operating Current | 8.33A |
| Dimension (Folded) | 39 in x 26.6 in x 2 in |
| Dimension (Unfolded) | 100 in x 39 in x 1.2 in |
| Net Weight | 35.3 lbs |
| SKU | A1790111 |
|---|---|
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Cell Number | 80 |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
| AC Input | 120V~ 15A (3 hours Max), 12A (continue), 60Hz L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input | 11-32V⎓10A; 32V-60V⎓25A (1200W Max Each) |
| Car Charger Output | 12V⎓10A |
| Home Panel Power Port | 3800W Max (AC Input), 6000W Max (AC Output), 20V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA 14-50 / L14-30) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V⎓2.4A (12W Max Per Port) |
| USB-C Output | 5V⎓3A / 9V⎓3A / 15V⎓3A / 20V⎓3A / 20V⎓5A (100W Max Per Port) |
| UPS | 20ms |
| Discharging Temperature | -4°F-104°F |
| Charging Temperature | 32°F-104°F |
| Size | 27.6 in × 15.3 in × 15.6 in |
| Net Weight | 132.2 lbs |
| SKU | A24371A1 |
|---|---|
| Rated Power | 400W |
| Open Circuit Voltage | 57.6V |
| Operating Voltage | 48V |
| Operating Current | 8.33A |
| Dimension (Folded) | 39 in x 26.6 in x 2 in |
| Dimension (Unfolded) | 100 in x 39 in x 1.2 in |
| Net Weight | 35.3 lbs |
