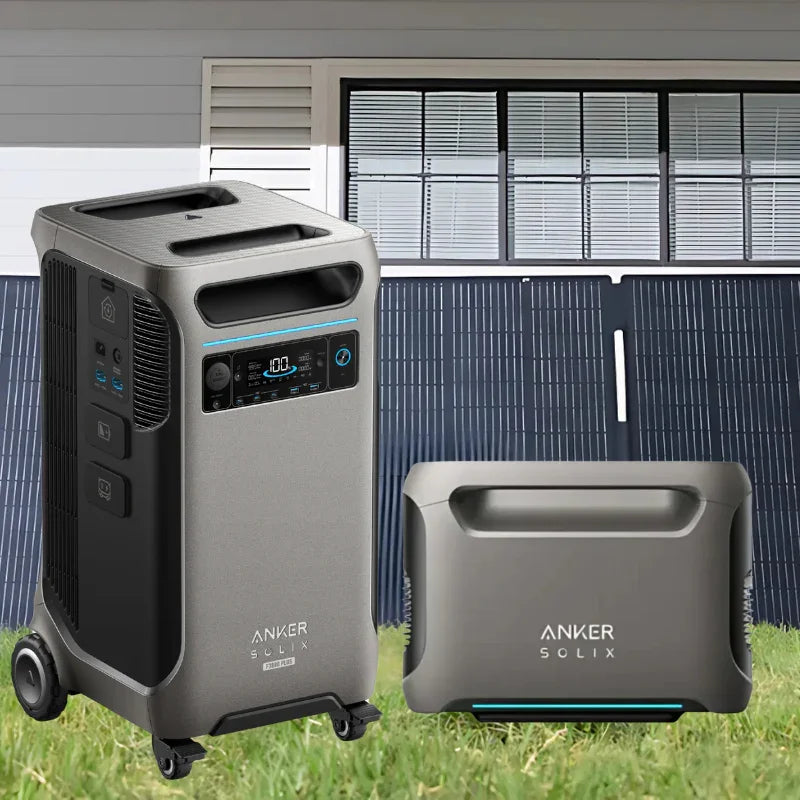

Anker SOLIX F3800 Plus Portable Power Station Bundle
The Anker SOLIX F3800 Plus Bundle delivers a resilient off-grid power solution for whole-home backup, remote work sites, RVs, cabins, and emergency preparedness. It combines a high-capacity power station, an expandable BP3800 Expansion Battery, and a 400W foldable solar panel to store and deliver energy when mains power is unavailable.
Key specifications
- Energy storage: SOLIX F3800 Plus power station 3,840Wh LiFePO4 (51.2V, 75Ah); expansion battery BP3800 adds 3,840Wh per unit; total system capacity expandable to 53.8kWh with multiple BP3800 packs.
- AC output: 6,000W continuous, 12,000W surge; two AC outputs up to 2,400W each; includes NEMA L14-30R 120/240V compatibility.
- Charging and inputs: AC input 120V~15A max (<3 hours) or 12A continuous; AC input power 1,800W max; bypass 1,440W max; solar input 2 ports 11–165V, 17A max each (1,600W max per input); DC input port 60V max, 120A max.
- Fast charging: Solar input up to 3,200W (with multiple panels); 1.5-hour full charge with 8×400W panels; generator charging up to 6,000W; home charging via 1,800W AC input.
- Home integration: Plug & Play Home Integration — connects directly to a home’s power inlet box without extra accessories.
- Battery longevity: LiFePO4 chemistry rated for 3,000+ cycles to 80% DoD; designed for 10+ years of daily use.
- Smart management: Anker App for real-time monitoring, energy customization, and automation, enabling significant yearly savings.
What’s included
- Anker SOLIX F3800 Plus Portable Power Station (3,840Wh, 6,000W)
- Anker SOLIX BP3800 Expansion Battery (3,840Wh)
- Anker SOLIX 400W Foldable Solar Panel
- AC Charging Cable MC4 3-Port Solar Charging Connector
- User Manual & Setup Guide
Applications
Whole-home backup during outages, off-grid cabins and RV solar setups, emergency preparedness, and portable power for construction sites, outdoor events, and remote workstations.

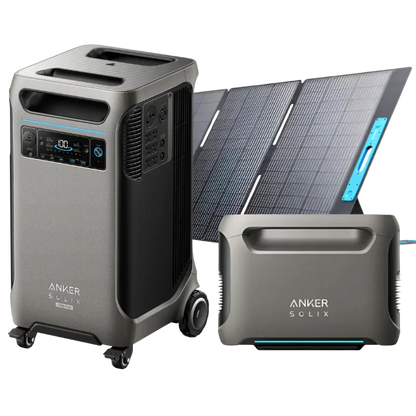

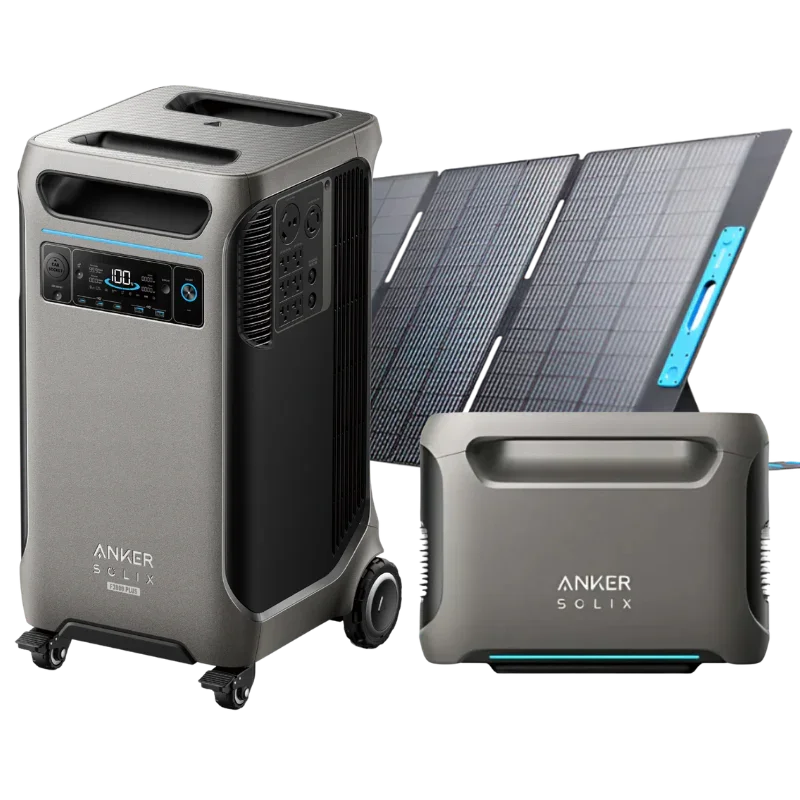

Anker SOLIX F3800 Plus + Extra Battery + 400W Solar Panel
The Anker SOLIX F3800 Plus Bundle is the ultimate off-grid power solution, combining high-capacity energy storage, expandable backup power, and efficient solar charging. This bundle includes the Anker SOLIX F3800 Plus Portable Power Station (3,840Wh, 6,000W output), the BP3800 Expansion Battery (3,840Wh) to double the energy storage, and the Anker SOLIX 400W Foldable Solar Panel for fast and sustainable charging. Ideal for whole-home backup, off-grid living, RVs, emergency preparedness, and reducing energy costs, this system ensures unmatched power reliability.
Anker SOLIX F3800 Plus + Extra Battery + 400W Solar Panel Features
Expandable Battery Capacity – Start with 3,840Wh, expand up to 53.8kWh with additional BP3800 Expansion Batteries.
6,000W AC Output (12,000W Surge) – Runs heavy-duty appliances, including refrigerators, well pumps, and HVAC systems.
Ultra-Fast Charging –
- 3,200W Solar Input for 1.5-hour full charge (with 8 x 400W solar panels).
- 6,000W Generator Charging for rapid backup.
- 1,800W AC Input for home charging.
Plug & Play Home Integration – Connects directly to a home’s power inlet box without the need for additional accessories.
Smart Power Management – The Anker App allows real-time monitoring, energy customization, and automation for up to $5,000+ in yearly savings.
Reliable LiFePO₄ Battery – Ensures 3,000+ cycles at 80% depth of discharge, providing 10+ years of daily use.
Anker SOLIX F3800 Plus + Extra Battery + 400W Solar Panel Applications
- Whole-home backup power during power outages
- Off-grid cabins and RV solar power for long-term independence
- Emergency preparedness with long-lasting battery storage
- Reducing electricity bills by storing solar energy for peak-hour use
- Portable power solution for construction sites, outdoor events, and remote workstations
What's Included
Everything you need is included with your product.
- Anker SOLIX F3800 Plus (3,840Wh Power Station, 6,000W Output)
- Anker SOLIX BP3800 Expansion Battery (3,840Wh)
- Anker SOLIX 400W Foldable Solar Panel
- AC Charging Cable
- MC4 3-Port Solar Charging Connector
- User Manual & Setup Guide
Anker SOLIX F3800 Plus Portable Power Station Specifications
BATTERY
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
INPUT
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
OUTPUT
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
UPS
| Specifications | Details |
| UPS | 20ms |
ENVIROMENTAL OPERATION
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
DIMENSION
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
Anker SOLIX PS400 Portable Solar Panel Specifications
| Specification | Details |
| Peak Power | 400W |
| Open Circuit Voltage | 57.6V |
| Operating Voltage | 48V |
| Rated Current | 8.33A |
| Cell Efficiency | 23% |
| Net Weight | 20.34 lb | 9.23 kg |
| Product Dimensions (Folded) | 35.9 × 25.9 × 1.9 in | 913 × 659 × 47 mm |
| Product Dimensions (Unfolded) | 102 × 35.9 × 1.2 in | 2,591 × 913 × 30 mm |
| Product Weight | 35.1 lb | 15.9 kg |
| Operating Temperature | 4°F-140°F | -20°C-60°C |
Anker SOLIX BP3800 Expansion Battery Specifications
| Specification | Details |
| Capacity | 51.2Vdc 75Ah / 3840Wh |
| Expansion Battery Port Input | 75A Max |
| Expansion Battery Port Output | 170A Max |
| Discharging Temperature | -4°F - 104°F | -20°C - 40°C |
| Charging Temperature | 32°F - 104°F | 0°C - 40°C |
| Dimensions | 15.5 × 14.0 × 10.3 in | 39.3 × 35.5 × 26.2 cm |
| Net Weight | 33 kg | 72 lb |
Frequently-Asked Questions
Can I expand the battery capacity of the Anker SOLIX F3800 Plus?
Yes. You can expand storage up to 53.8kWh by adding BP3800 Expansion Batteries.
How long does it take to fully recharge with solar?
With 3,200W solar input, the system can fully recharge in about 1.5 hours under optimal conditions.
Can I run my entire home on the F3800 Plus?
Yes, when connected to a Home Power Panel, it can provide whole-home backup power with essential circuit support.
Is the 400W Solar Panel waterproof?
Yes. The Anker SOLIX 400W Solar Panel is IP67-rated, making it weather-resistant and durable for outdoor use.
Can I charge the system with both solar and AC power at the same time?
Yes. The system supports dual charging methods, allowing for faster recharge times.
What appliances can I run on the F3800 Plus?
The system can power:
- Refrigerators, microwaves, coffee makers
- Well pumps, sump pumps, space heaters
- Air conditioners, washing machines, electric stoves
- TVs, computers, medical devices, and more
How does this system help reduce electricity bills?
The AC Coupling feature allows the F3800 Plus to store excess solar energy and use it later, reducing electricity costs.
Can I use the F3800 Plus while charging?
Yes. The system supports pass-through charging, meaning you can use power while recharging via solar, AC, or generator.
Is professional installation required?
No. The plug-and-play design allows for easy setup, but an electrician may be needed if integrating with a home power panel.
Can I use the BP3800 Expansion Battery without an F3800 Plus?
No. The BP3800 requires an F3800 Plus unit to function. It cannot be used as a standalone battery.
How many BP3800 Expansion Batteries can I add?
You can add multiple BP3800 batteries to increase storage up to 53.8kWh.
How durable is the F3800 Plus?
The unit is built with a rugged, impact-resistant shell and uses high-efficiency LiFePO₄ battery cells rated for 3,000+ cycles, ensuring over 10 years of daily use.
