40A MPPT solar charge controller

40A MPPT solar charge controller

$127.99 USD
$159.99 USD $127.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Equipment Type and Primary Applications

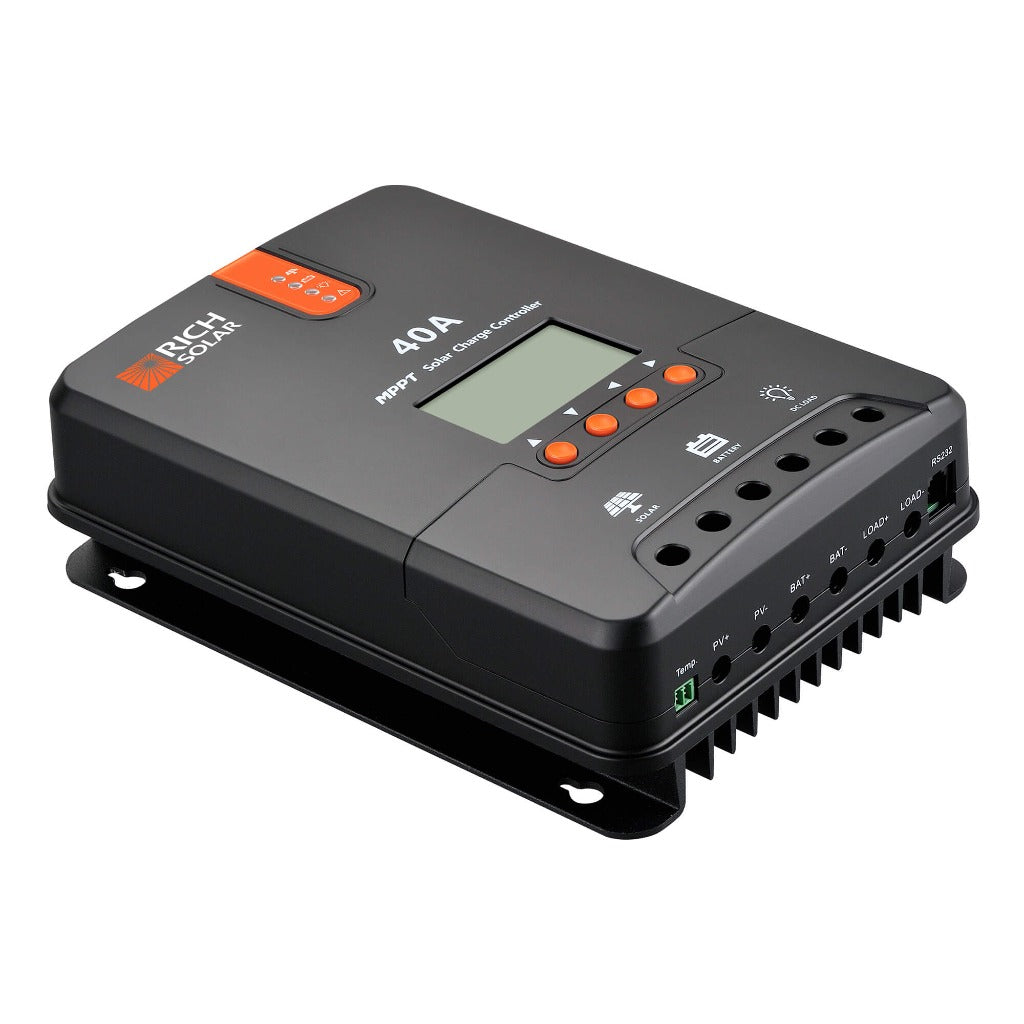

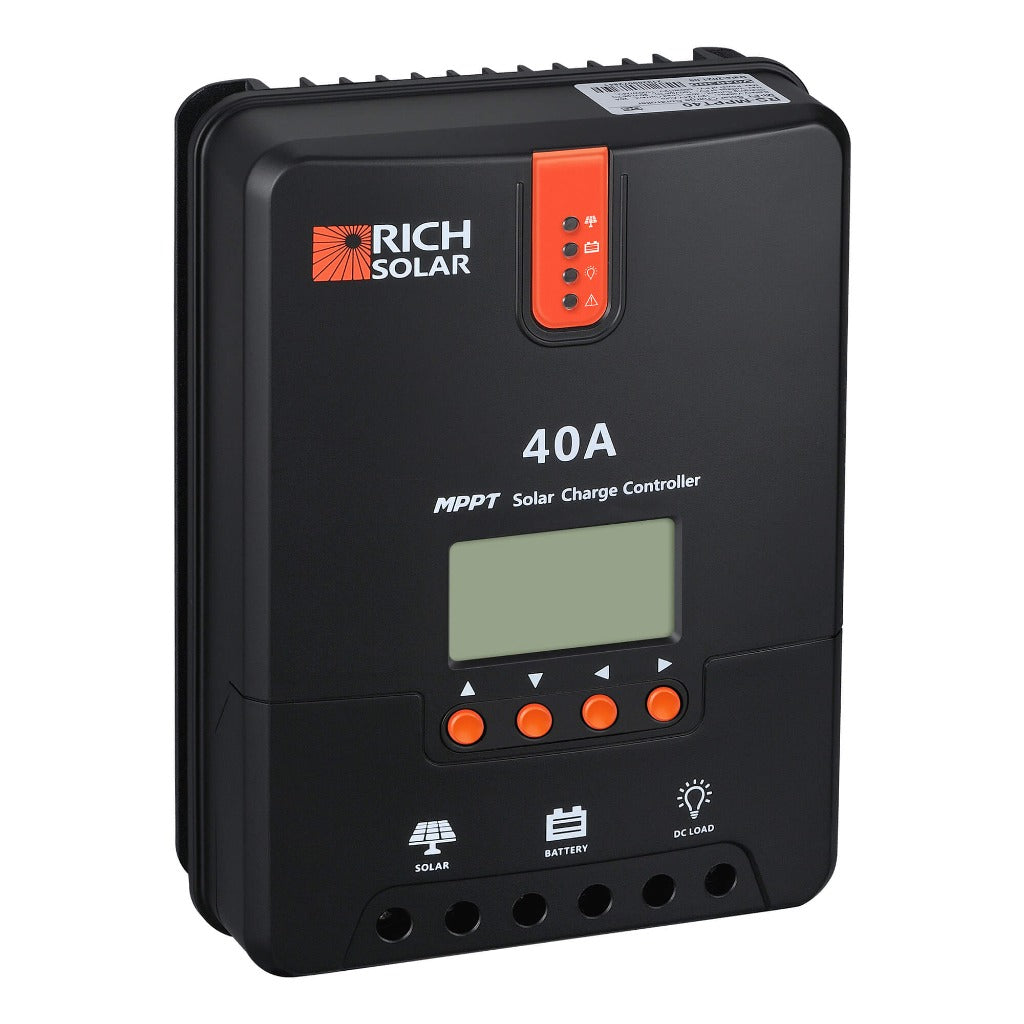

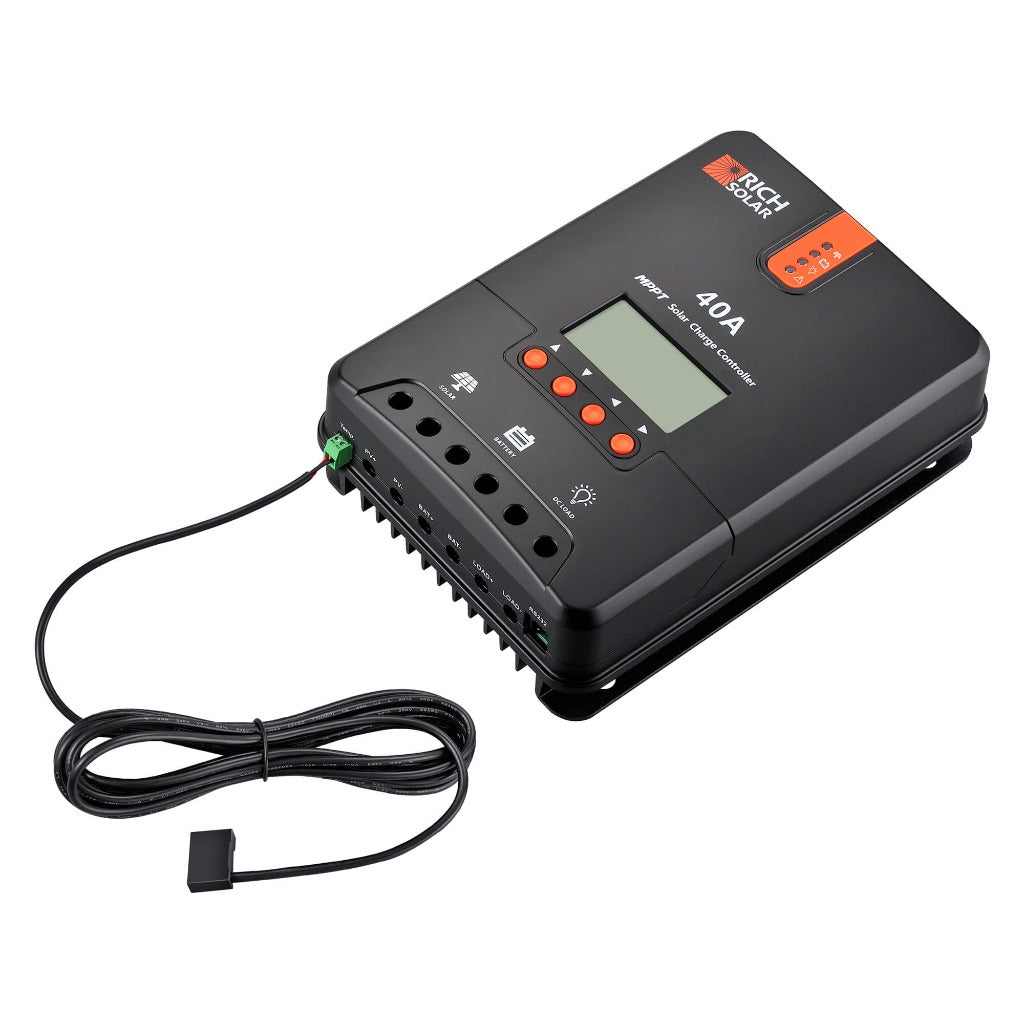

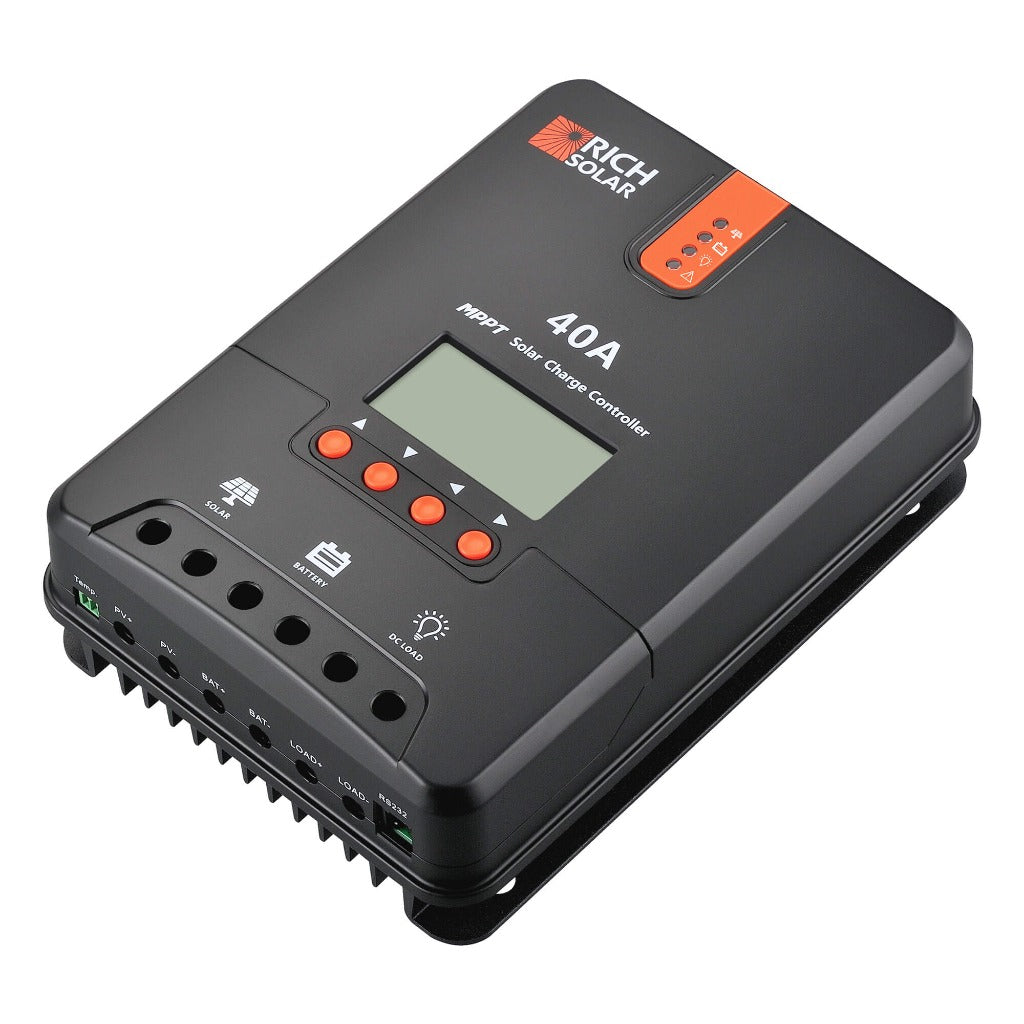

This 40A MPPT solar charge controller supports 12V and 24V off-grid battery systems, accepting up to 550W of photovoltaic input at 12V or 1100W at 24V. It is designed for solar charging applications using sealed, gel, flooded, or lithium batteries.

Performance Specifications

  • Maximum charging current: 40A
  • Rated load current: 20A
  • System voltage: 12V/24V, automatic detection during installation
  • Maximum solar input voltage: 100V at 25°C; 90V at -25°C
  • Maximum PV short-circuit current: 50A
  • Battery voltage range: 9V–35V; maximum battery voltage: 32V
  • MPPT tracking efficiency: greater than 99%; conversion efficiency: up to 98%
  • Protection rating: IP32
  • Operating dimensions: 9.37 × 6.81 × 2.85 inches; net weight: 4.41 lb

Safety Features and Certifications

  • Electronic protection against reverse polarity, overcharging, overload, short circuit, and reverse current
  • Lithium battery recovery function for over-discharged lithium batteries

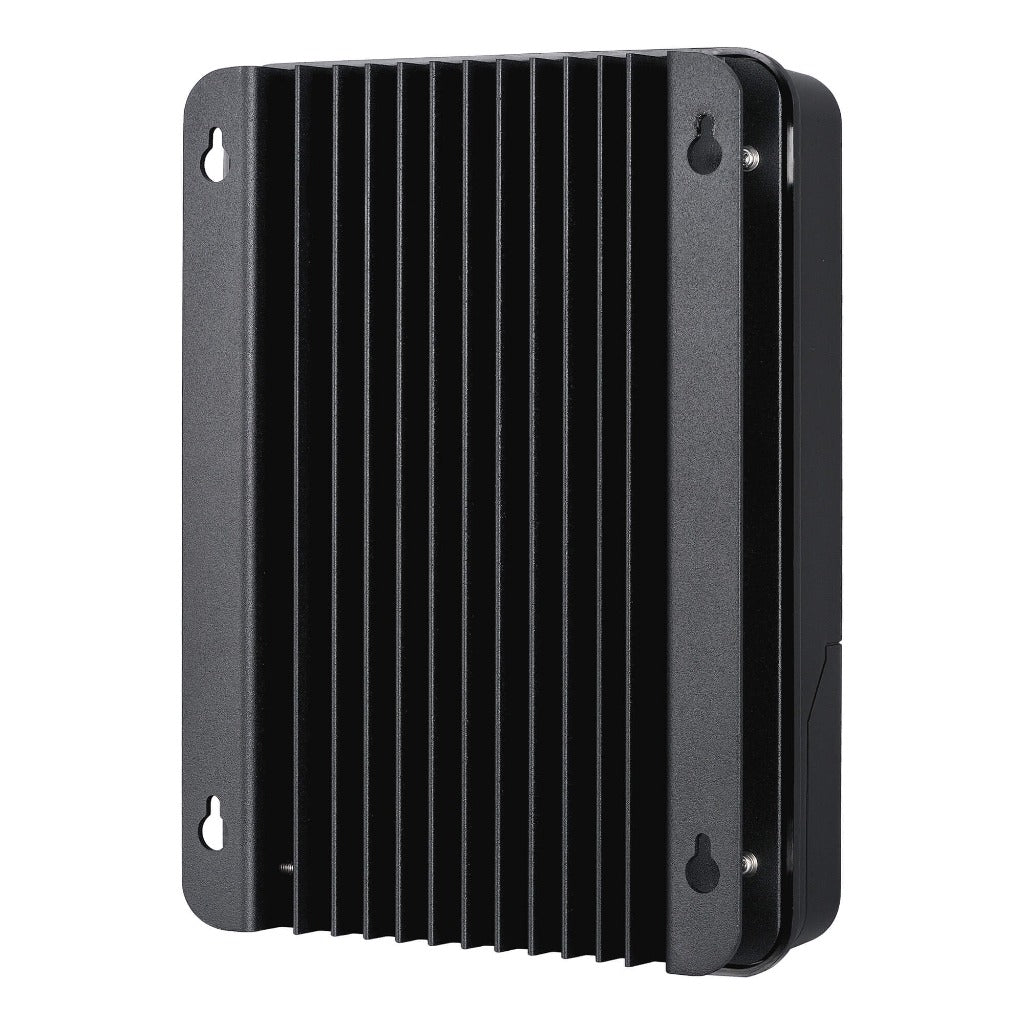

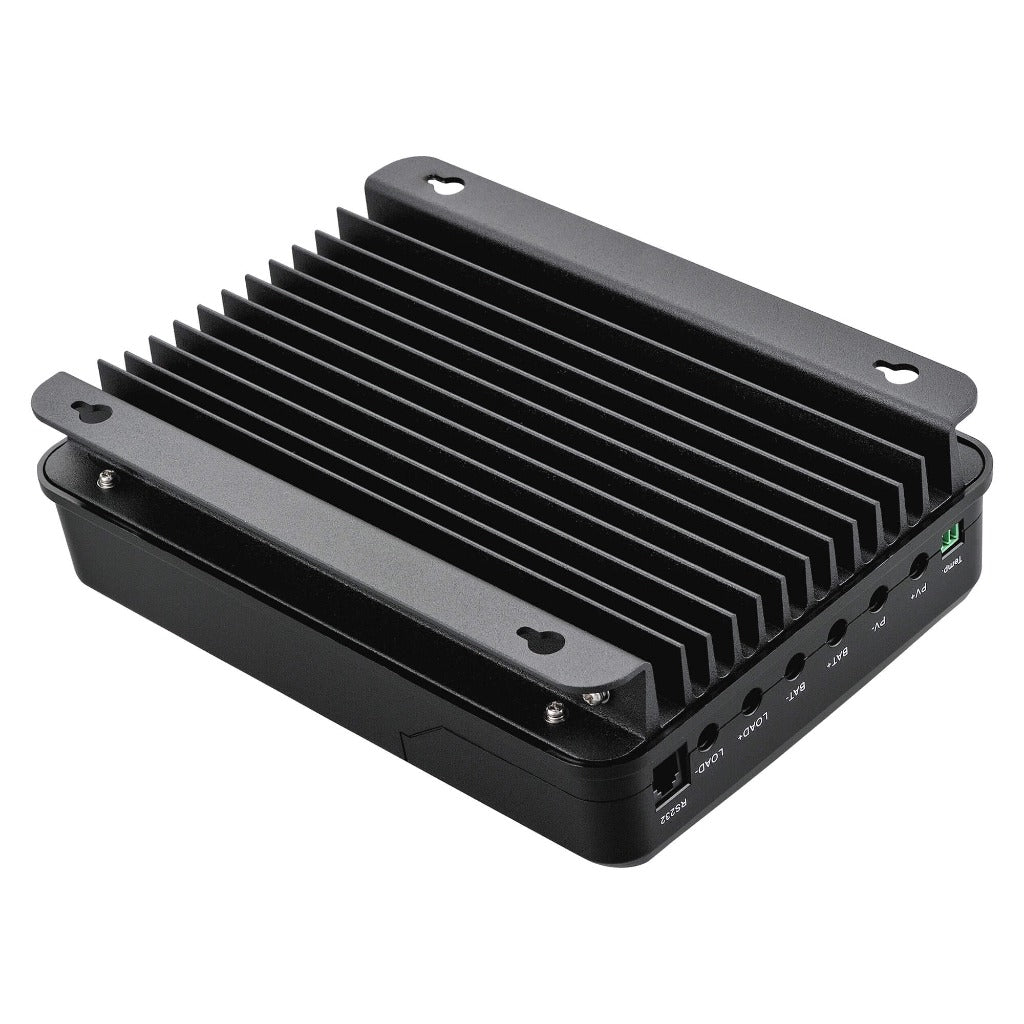

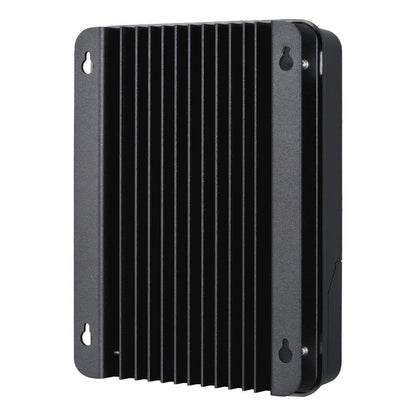

  • Die-cast aluminum housing supports heat dissipation
  • IP32 enclosure rating

Installation and Maintenance Requirements

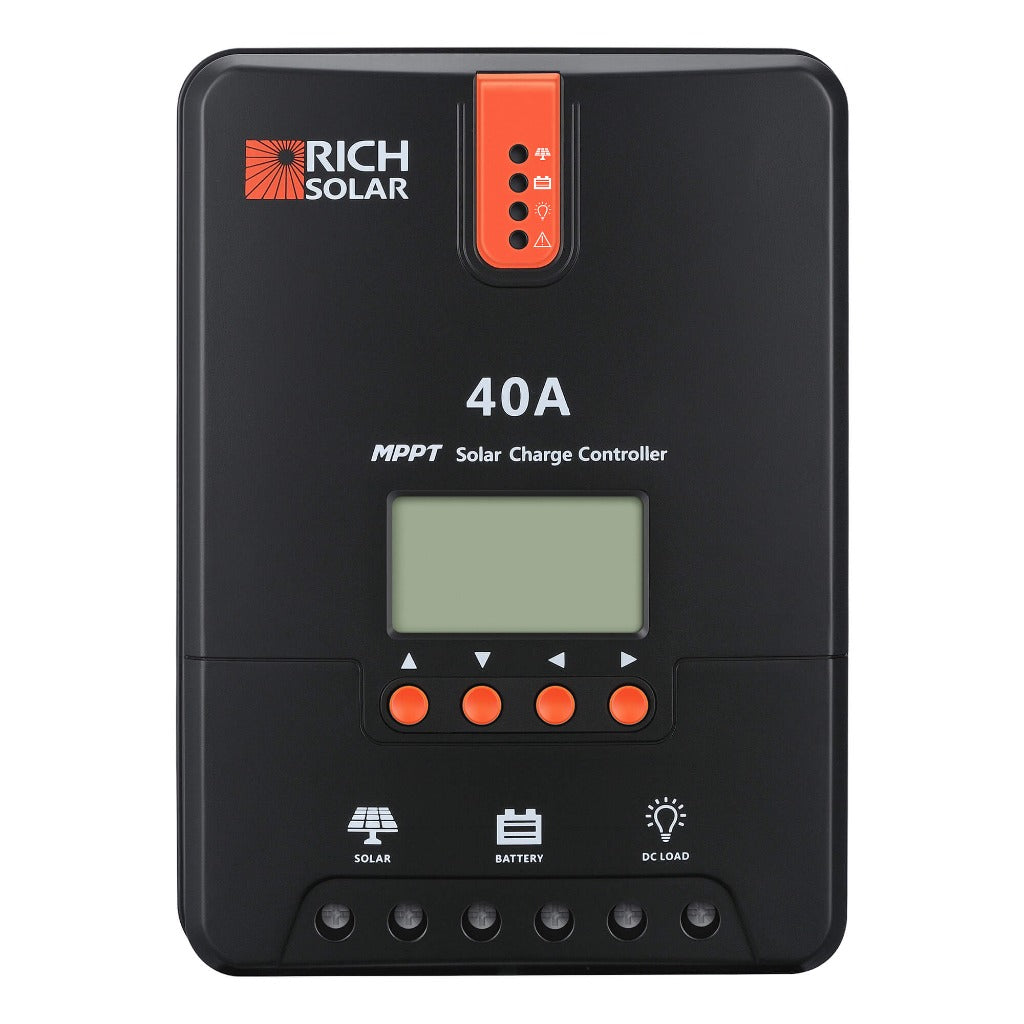

Install in a compatible 12V or 24V solar battery system. The maximum terminal size is 8 AWG. Confirm PV voltage, battery voltage, and polarity during commissioning; the controller automatically detects nominal system voltage. Provide sufficient clearance around the 9.37 × 6.81 × 2.85-inch enclosure for ventilation and service access. The LCD and LED indicators display charging status, battery information, operating parameters, and fault codes.

Warranty and Service Information

Branding/References

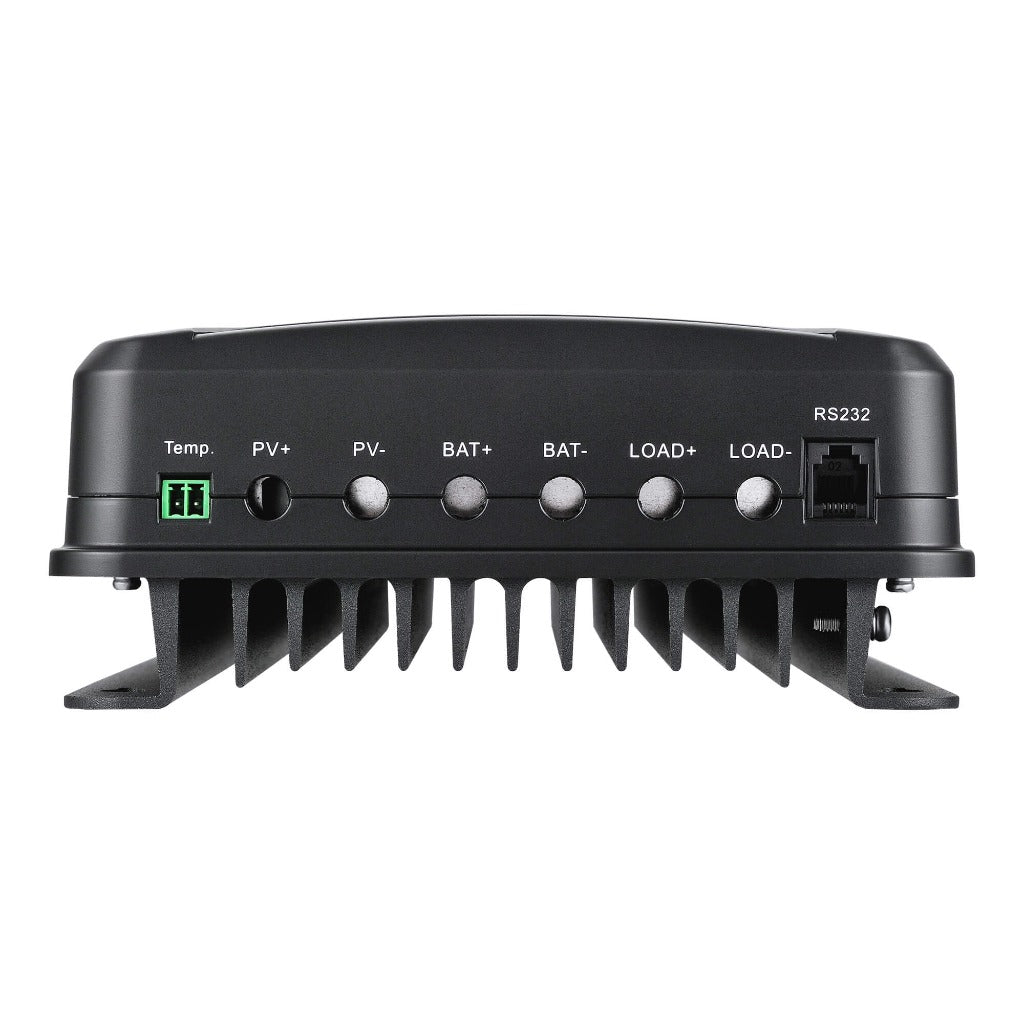

Product reference: 40A MPPT solar charge controller. Communication interface: RS232, compatible with the optional BT-1 Bluetooth module.

Differentiators

MPPT tracking efficiency above 99%, 100V solar input capability, automatic 12V/24V detection, and lithium battery recovery combine flexible installation with efficient charging control.
