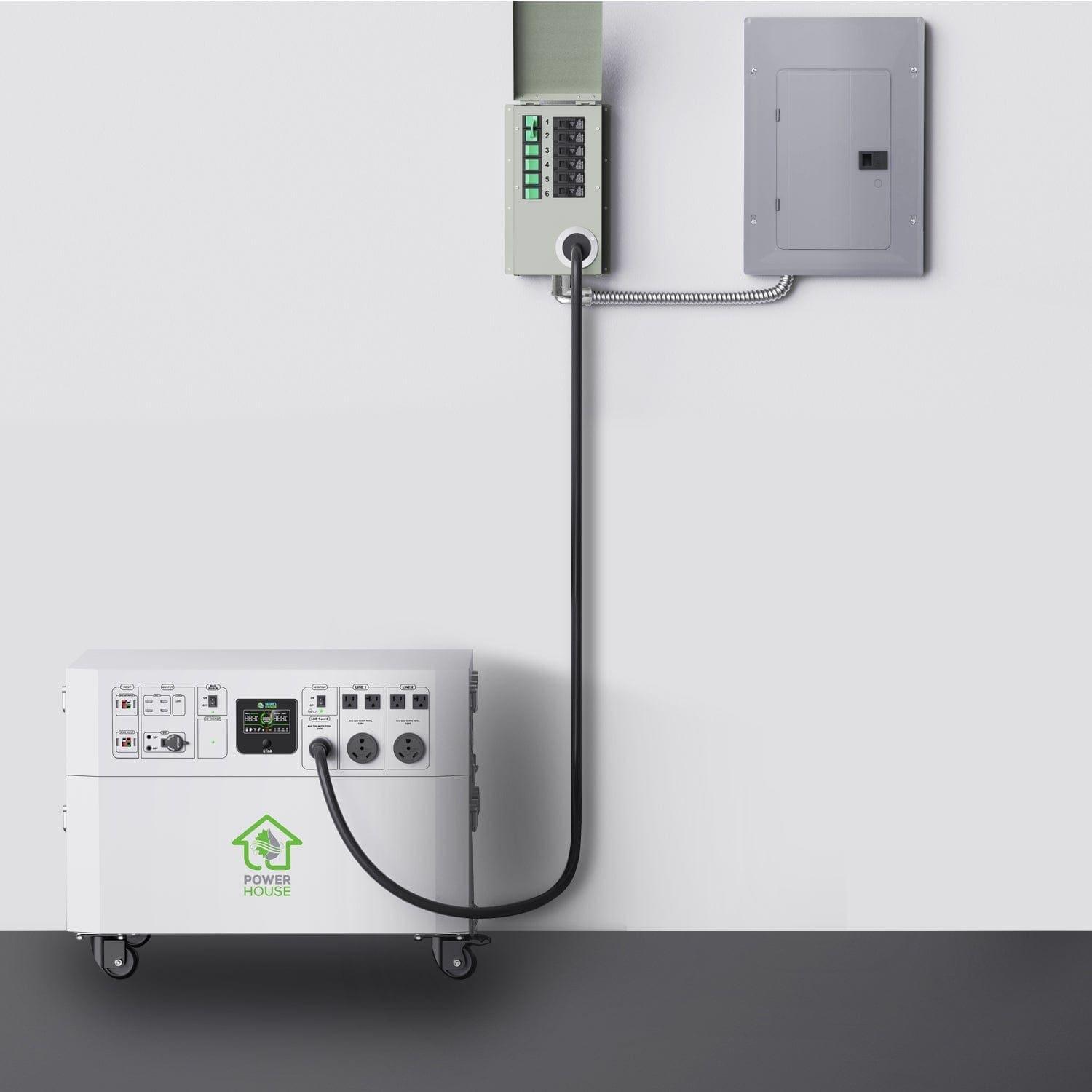

• Safe Manual Power Switching: Provides a secure, non-automatic way to connect your generator to your home’s electrical system, giving you full control over power during an outage.
• 30A Power Capacity with Flexible Circuit Support: Rated for 30 amps at 120/240V, supporting up to 6 circuits (configurable as six 120V circuits or three 240V circuits) to power essential home loads.
• Precise Circuit Control & Load Management: Manual selector switches allow you to choose and manage specific circuits efficiently while preventing backfeeding and protecting your electrical system.

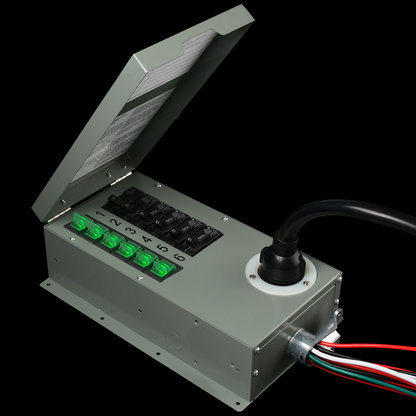

• Durable, Installation-Ready Construction: Built with a rugged steel enclosure and illuminated rocker switches that clearly indicate generator power status for safe, reliable operation.

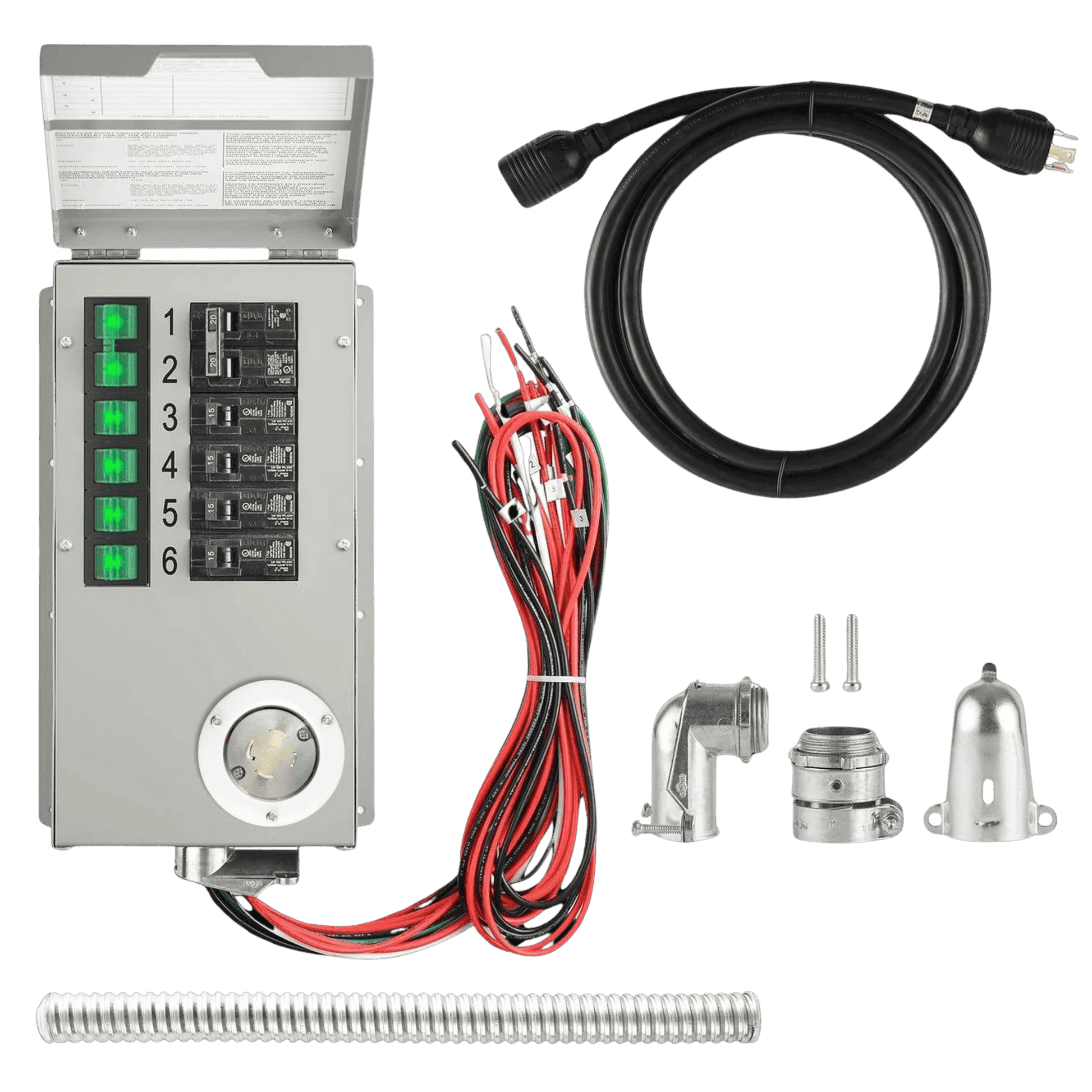

• Complete Generator Connection Kit: Includes a L14-30P 30A power inlet, 30A power cord and pre-wired components to simplify installation with compatible generator systems.
• Certified for Safety & Code Compliance: Independently tested and certified to meet UL 1008 and CAN/CSA C22.2 No. 178.1 standards, with compliance verified under ISO/IEC Guide 17067 for safe, code-compliant operation.
Pre-installed Breakers
| Type | Quantity | Wire Gauge | Upgradable to |
|---|---|---|---|
| 2-Pole 20A Breaker | 1 | 10 AWG | 30A Breaker |
| 1-Pole 15A Breaker | 4 | 12 AWG | 20A Breaker |
Pre-installed Backup Power Conductors
| Type | Wire Gauge |
|---|---|
| Line 1 | 10 AWG |
| Line 2 | 10 AWG |
| Neutral | 10 AWG |
| Ground | 12 AWG |
